iAxis String

Defining architectural spaces with precision optics.

The system has been developed for use in a wide variety of large-scale outdoor architectural lighting projects requiring wall grazing and wall wash lighting where the building surfaces are non-linear with curved profiles and facades.

PRODUCT
GALLERY
OPTICAL
TECHNICAL DATA
CODES
DOWNLOAD FILES

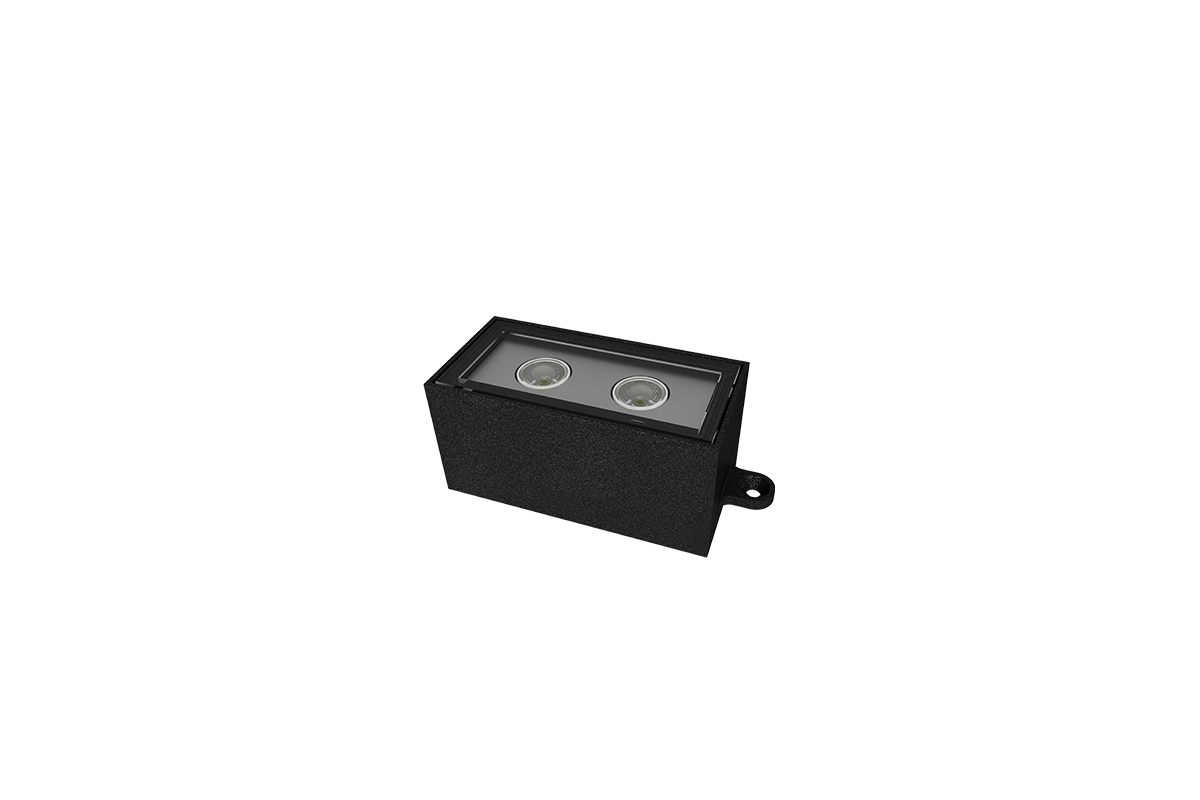

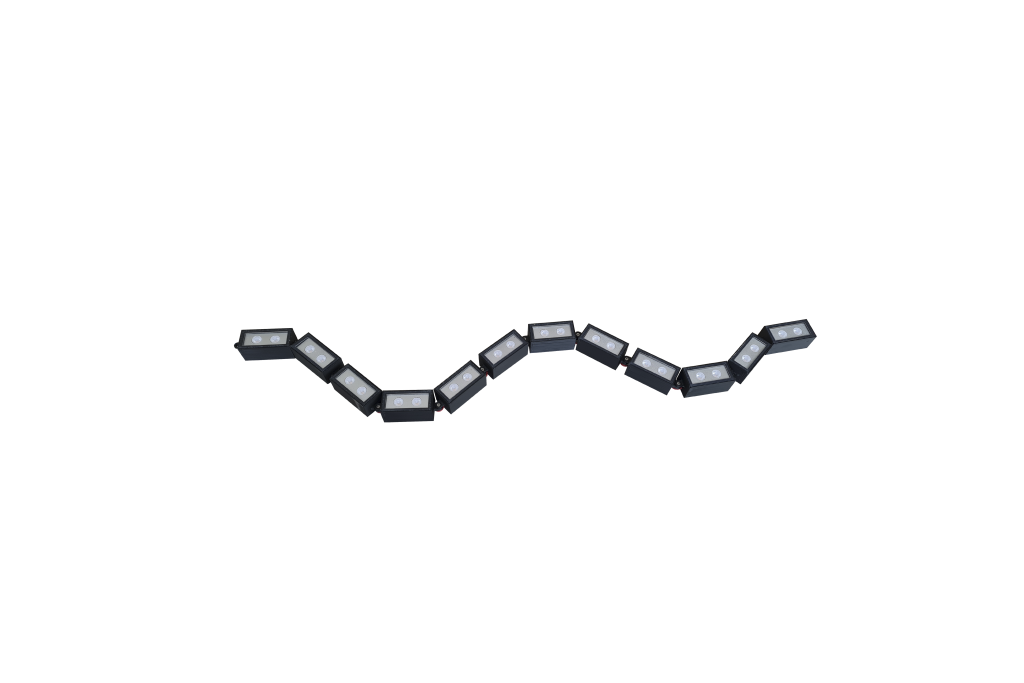

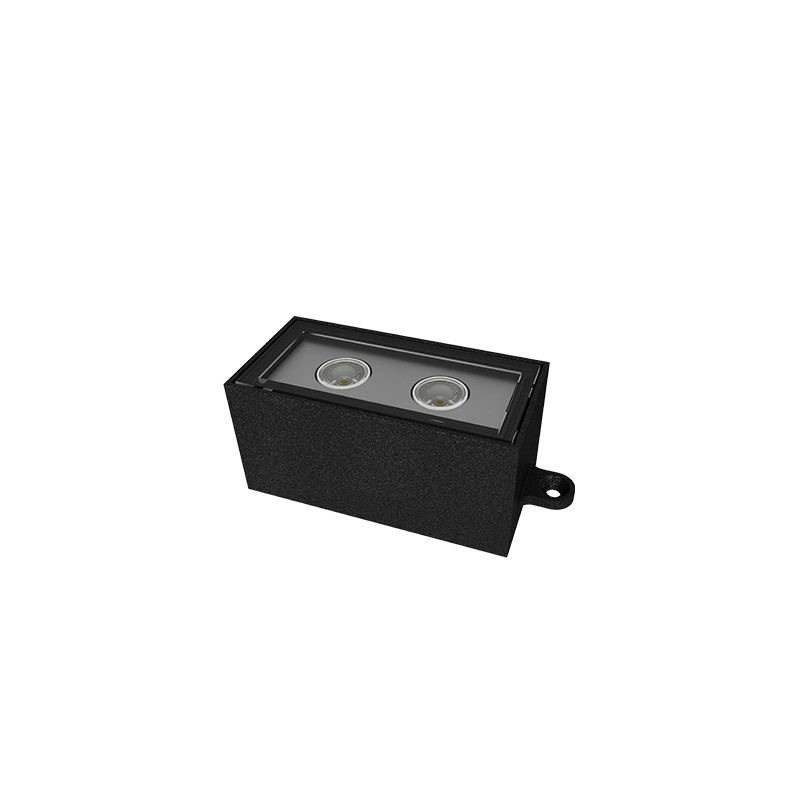

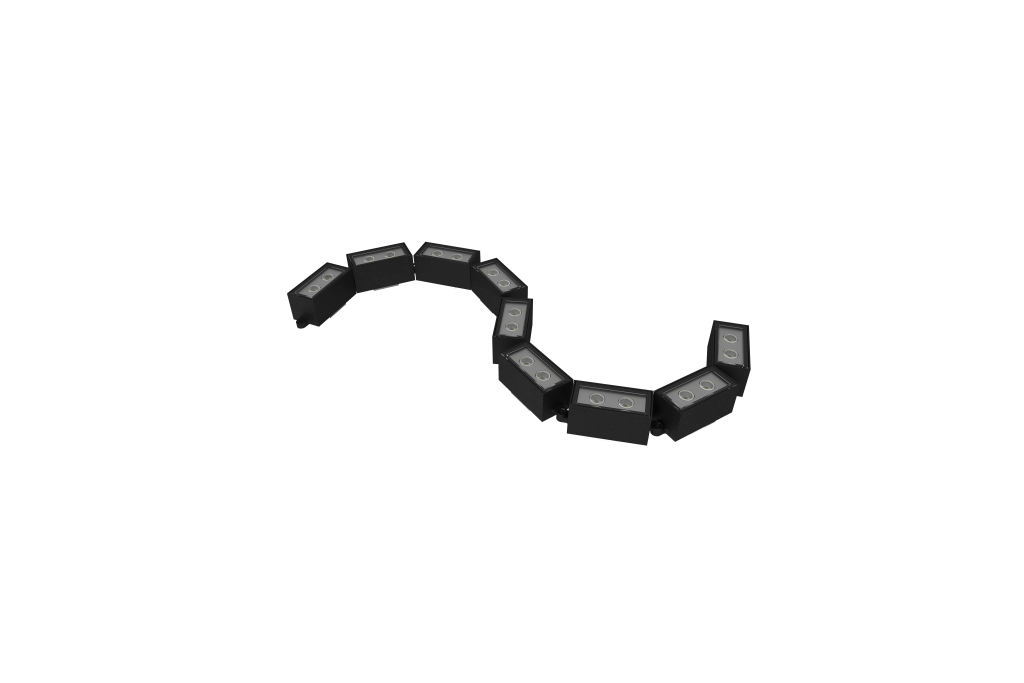

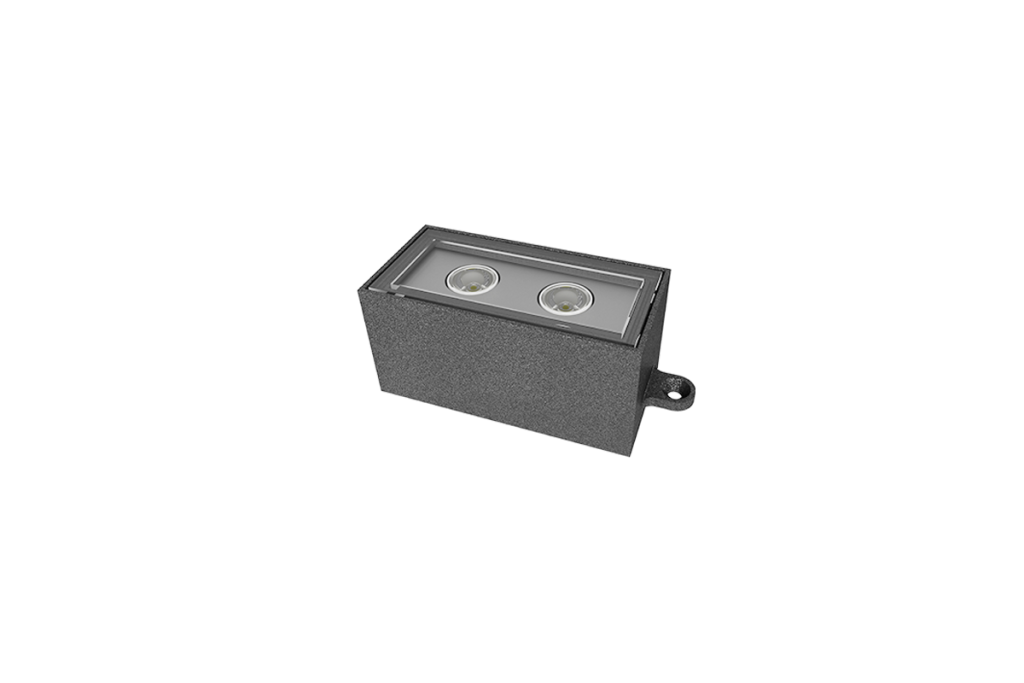

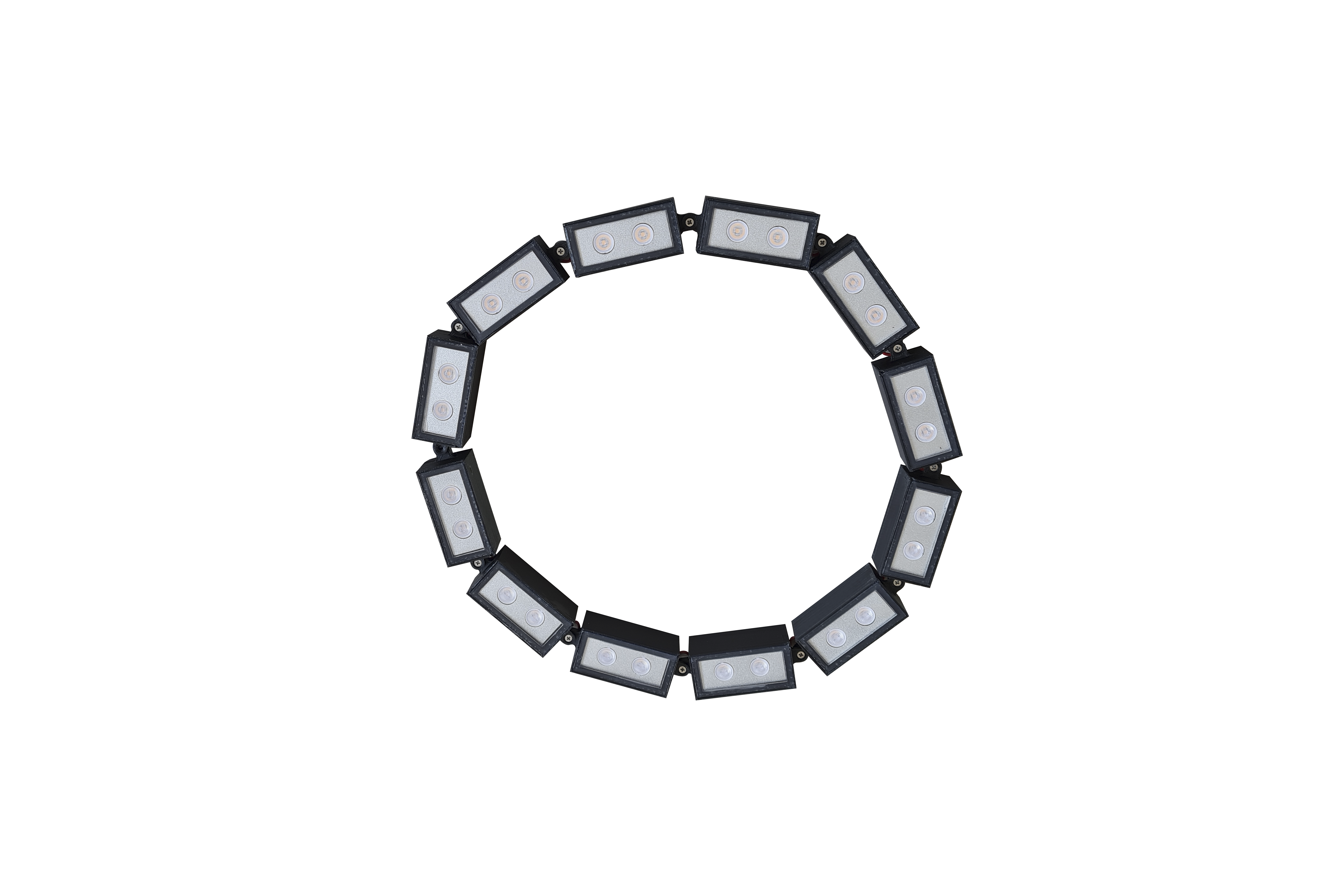

DiAxis String is a durable and virtually maintenance surface mounted modular curved luminaire suitable for a wide range of cove, wall washing, accent, surface grazing, and indirect lighting applications in architectural, hospitality, and retail environments.

Designed to last in extremely harsh environments.

High Performance and Creative

High performance and modular wall washing and wall grazing luminaires with impressive creativity.

Innovative light sources and precise optical systems combine to form a high impact and low maintenance lighting system.

Versatile and Easy to Install

Featuring very compact and slim housing for convenient installation in confined or remote spaces.

Its elegant profile and versatile configuration meet the requirements of a powerful but easily customizable luminaire.

The watertight plug and T-connector ensures easy, fast and secure installation The robust luminaire fits seamlessly into the architecture.

Individualize the System

We offer you extensive options for the individualization of the iAxis String range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.

Architectural

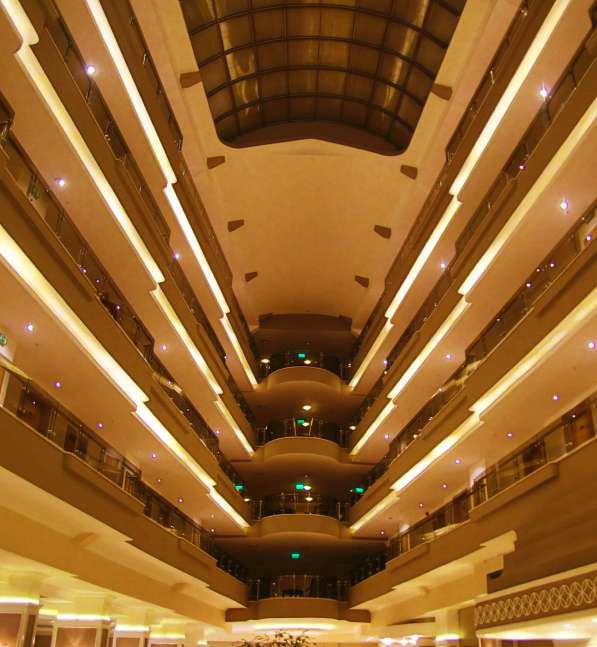

Linear outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.

Sustainable

BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.

Durable

Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

OPTICAL

8°

10° x 60°

12°

18° x 38°

30°

45°

60°

90°

TECHNICAL DATA

Led Type

High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K,6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.

Colour Rendering Index

CRI ≥ 80 standard and CRI ≥ 90 on request.

Materials

Corrosion resistant encapsulated thermoplastic housing with stainless steel screws (A4 grade) durable and exhibits superior resistance to external factors including UV radiation. Withstands changing temperature, humidity or sunlight and extreme weather conditions. Operates with a remote driver. Product can be angled up to 45 degrees. 6 or 12 Units for 1000mm and 12 or 24 Units for 2000mm.

Optional Coating

Marine grade.

Diffuser

High impact and heat resistant polycarbonate with UV protection.

LED Life Time

L90 - B10 > 100,000h

Operating Temperature

-40°C / +55°C

Power Factor

>0.95

Conformity

Complies with European Standards EN 60598 and CE certified.

LED

IP66

IK08

Class III

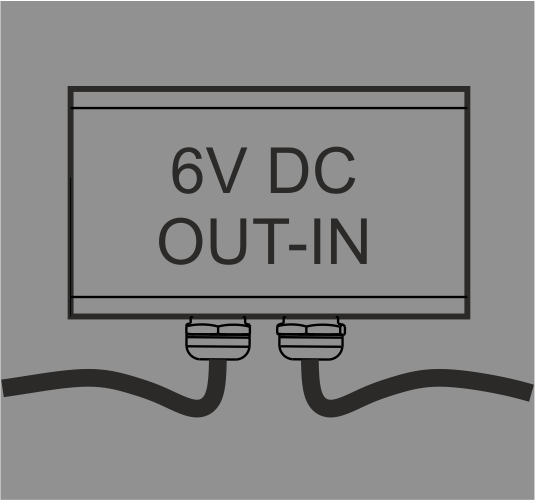

6V DC

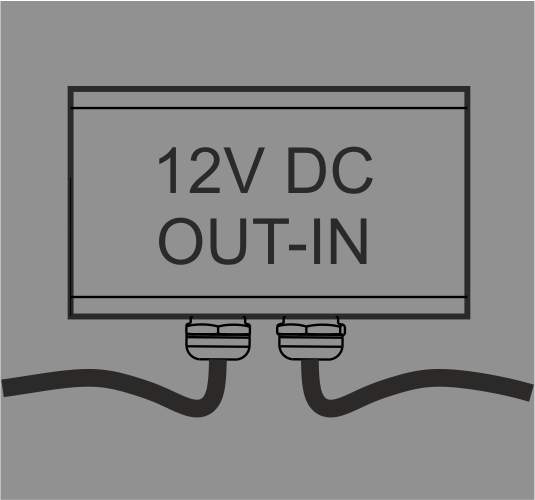

12V DC

72V DC

144V DC

European conformity

RoHS compliant

No IR

No UV

Durable

DALI interface

Color rendering index

Suitable for extreme conditions

Static load resistance

Temperature is suitable for contact

F mark

Luminaires with high visual comfort

Dimmable luminaire

LM-80

CODES

CODE
LENGTH (mm)
PITCH
(mm)
LED QTY
POWER
CONSUMPTION
350mA
POWER
CONSUMPTION
500mA
LUMEN OUTPUT (lm)
3000K / 4000K
350mA
LUMEN OUTPUT (lm)
3000K / 4000K
500mA
DOWNLOAD

CODES

CODE	LENGTH (mm)	V DC	POWER CONSUMPTION 350mA	POWER CONSUMPTION 500mA	POWER CONSUMPTION 700mA	LUMEN OUTPUT (lm) 3000K / 4000K 350mA	LUMEN OUTPUT (lm) 3000K / 4000K 500mA	LUMEN OUTPUT (lm) 3000K / 4000K 700mA	DOWNLOAD
AR91593 1 Module	70	6V DC	2W	3W	4W	270 / 284	405 / 426	540 / 568	PRODUCT SHEET PHOTOMETRY
AR91594 1 Module	120	12V DC	4W	6W	8W	540 / 568	810 / 852	1080 / 1136	PRODUCT SHEET PHOTOMETRY
AR91595 12 Module	1000	72V DC	24W	36W	48W	3240 / 3408	4860 / 5112	6480 / 6816	PRODUCT SHEET PHOTOMETRY
AR91596 6 Module	1000	72V DC	24W	36W	48W	3240 / 3408	4860 / 5112	6480 / 6816	PRODUCT SHEET PHOTOMETRY
AR91596 24 Module	2000	144V DC	48W	72W	96W	6480 / 6816	9720 / 10224	12960 / 13632	PRODUCT SHEET PHOTOMETRY
AR91596 12 Module	2000	144V DC	48W	72W	96W	6480 / 6816	9720 / 10224	12960 / 13632	PRODUCT SHEET PHOTOMETRY
