Defining architectural spaces with precision optics.

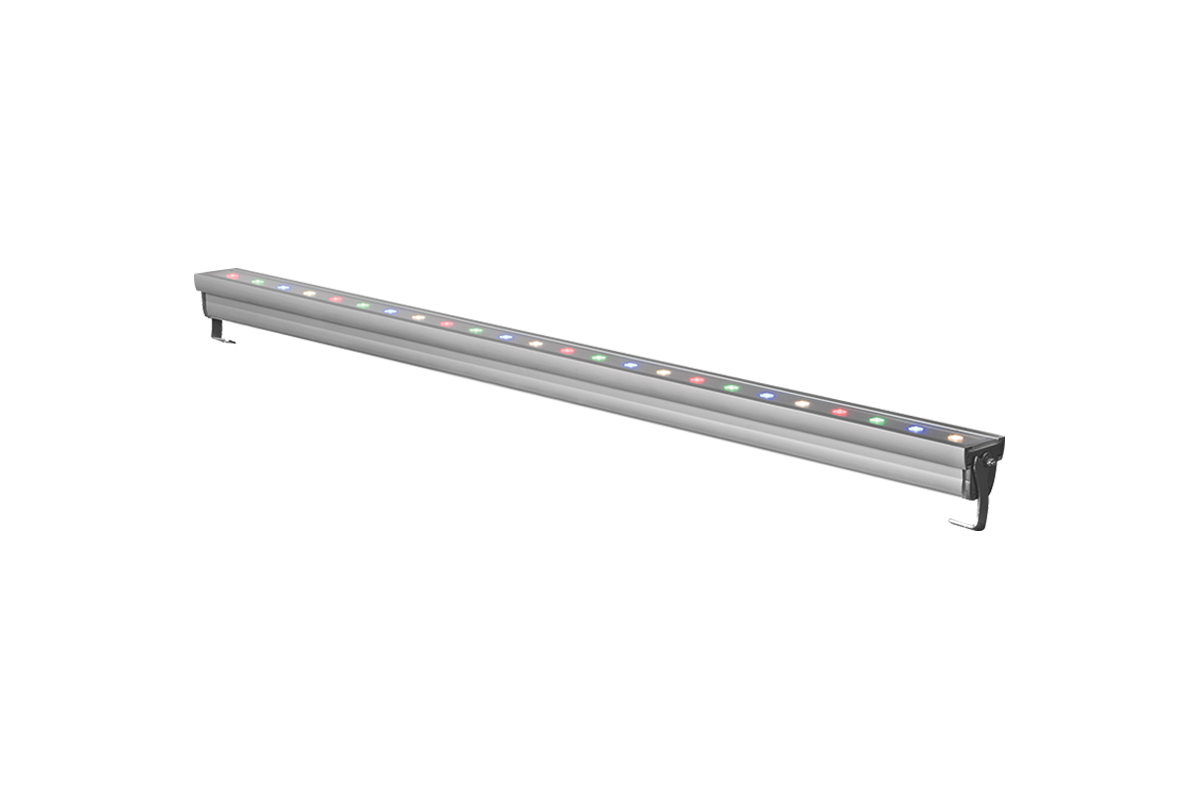

iAxis RGB-RGBW Surface
iAxis RGB-RGBW is a durable and virtually maintenance free surface mounted luminaire suitable for a wide range of wall washing, accent, surface grazing and indirect lighting applications in architectural, hospitality and retail environments, it has multiple customization options to illuminate interior walls, exterior facades and unique architectural details.

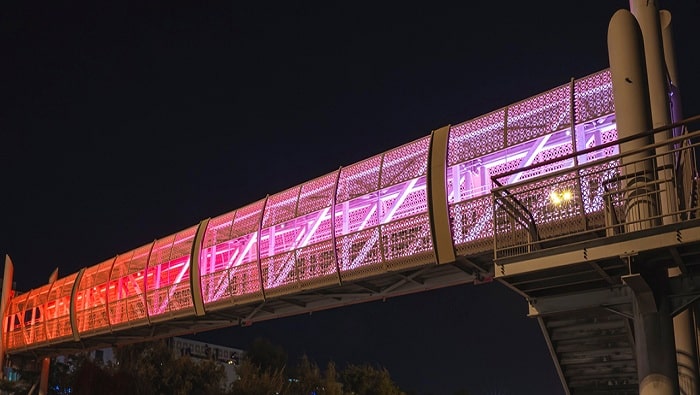

Confirms vibration standards for bridge applications.
RGB & RGBW, DMX or DALI controllable, easy to install with the integrated universal power supply and connect via combined power and data connectors.

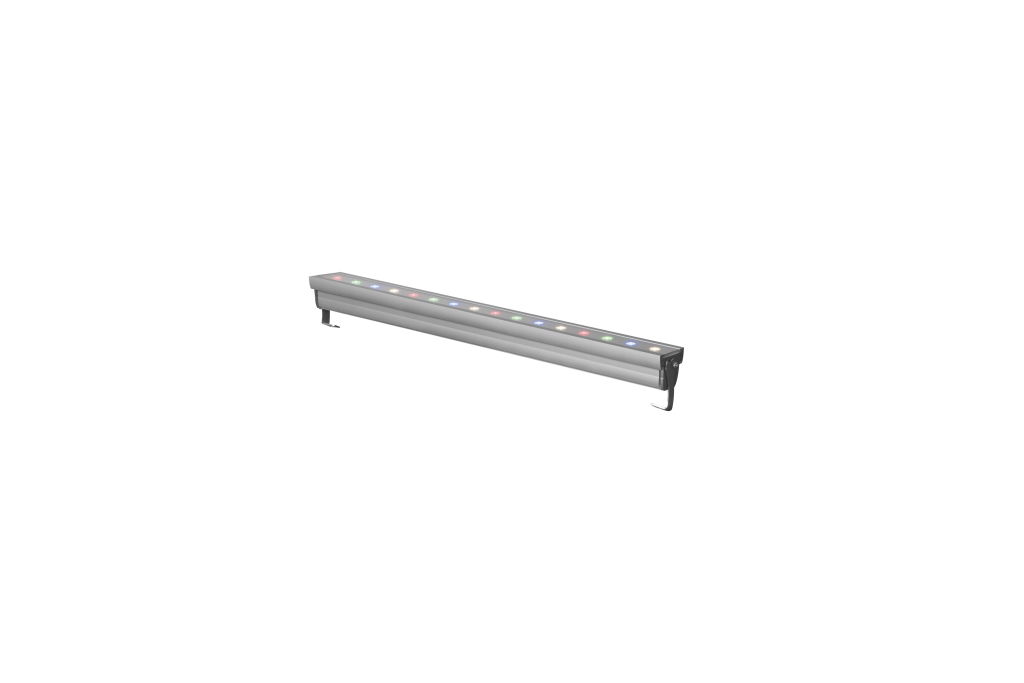

Compact and High Performance
High performance and compact linear wall washing and wall grazing luminaires with impressive versatility and feature superb color mixing and uniform light distribution.
Innovative light sources and precise optical systems combine to form a high impact and low maintenance lighting system.
Innovative light sources and precise optical systems combine to form a high impact and low maintenance lighting system.

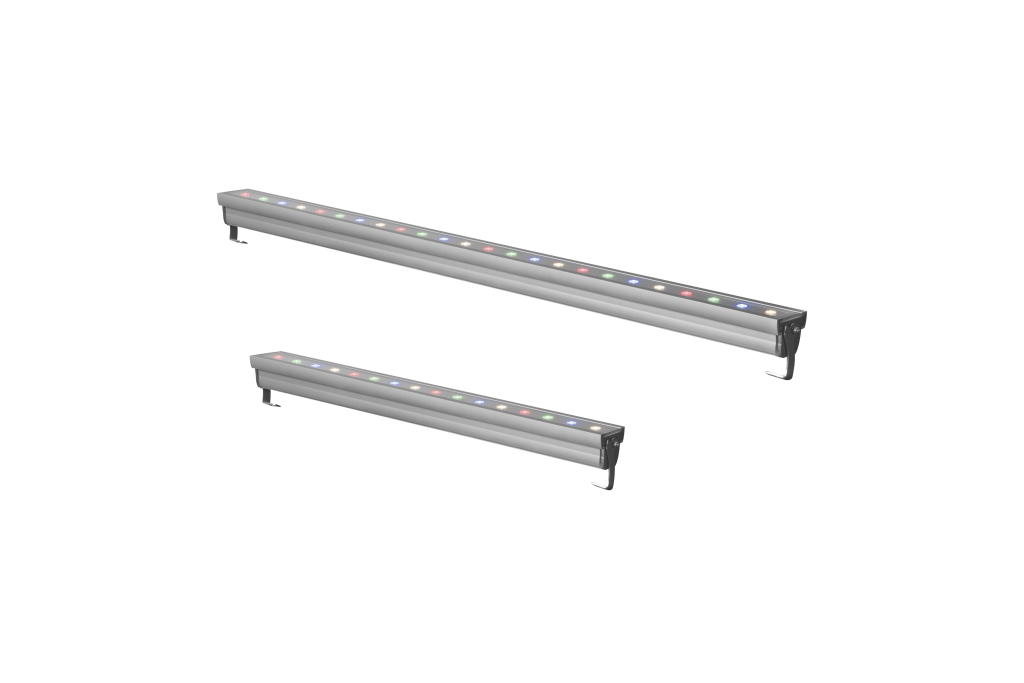

Individualize the System
We offer you extensive options for the individualization of the iAxis range. To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Integrated Solution and Easy to Install
Plug and play built-in system with the fully integrated universal power supply unit.
The watertight plug connector ensures easy, fast and secure installation The robust luminaire fits seamlessly into the architecture.
The watertight plug connector ensures easy, fast and secure installation The robust luminaire fits seamlessly into the architecture.
Architectural
Linear outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.
Led Type
High efficiency LEDs, RGB-RGBW, 3-step MacAdams ellipse and LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant extruded anodized aluminium housing (EN AW-6060) with stainless steel screws (A4 grade) and silicone rubber gaskets.

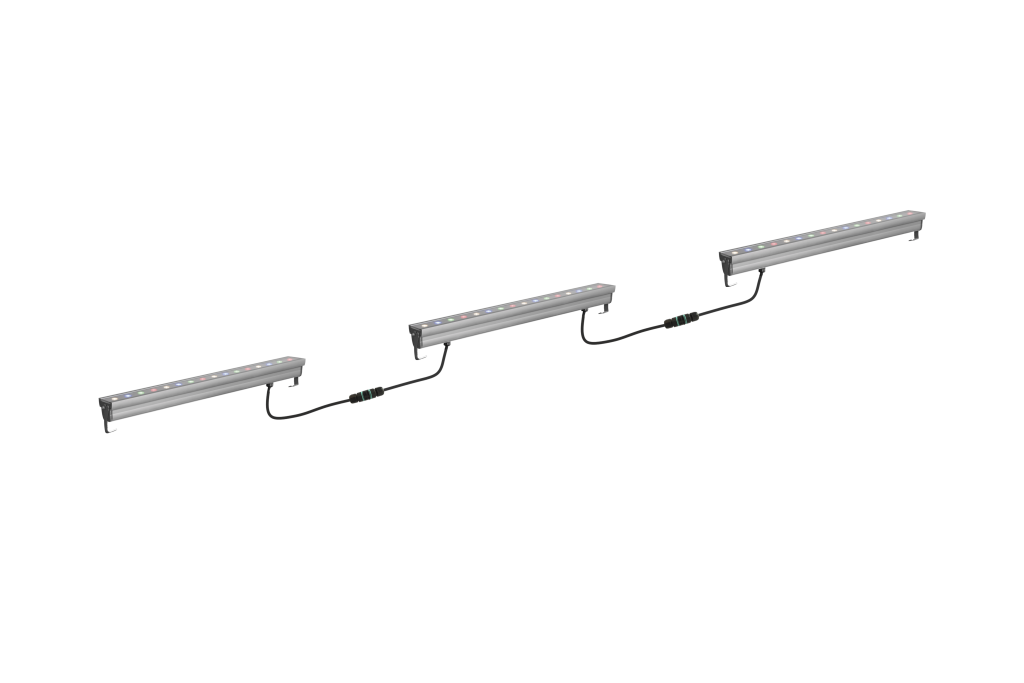

End-to-end connection via power connectors. Includes adjustable mounting brackets.
Power unit is built in.
Optional Coating
Marine grade.
Diffuser
High impact and heat resistant polycarbonate with UV protection.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP67
IK10
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
RGB
RGBW
Color rendering index
DMX / RDM
220V AC
Suitable for extreme conditions
Static load resistance
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
Dimmable luminaire
LM-80
| CODE | LENGTH (mm) | PITCH (mm) | LED QTY | POWER CONSUMPTION 350mA | POWER CONSUMPTION 500mA | LUMEN OUTPUT (lm) 350mA | LUMEN OUTPUT (lm) 500mA | DOWNLOAD |
|---|---|---|---|---|---|---|---|---|
| AR9155331/RGB | 635 | 33 | 18 | 18W | 27W | 1080 | 1620 | PRODUCT SHEET PHOTOMETRY |
| AR9155332/RGB | 935 | 33 | 27 | 27W | 40W | 1620 | 2400 | PRODUCT SHEET PHOTOMETRY |
| AR9155333/RGB | 1235 | 33 | 36 | 36W | 54W | 2160 | 3240 | PRODUCT SHEET PHOTOMETRY |
| AR9155334/RGB | 1535 | 33 | 45 | 45W | 67W | 2700 | 4020 | PRODUCT SHEET PHOTOMETRY |
| AR9155335/RGBW | 675 | 40 | 16 | 16W | 24W | 1120 | 1680 | PRODUCT SHEET PHOTOMETRY |
| AR9155336/RGBW | 1035 | 41 | 24 | 24W | 36W | 1680 | 2520 | PRODUCT SHEET PHOTOMETRY |
| AR9155337/RGBW | 1535 | 41 | 36 | 36W | 54W | 2520 | 3780 | PRODUCT SHEET PHOTOMETRY |
