iMistral Decor

iMistral Decor with a range of customised shapes, ideal for lighting modern and architectural streets, squares, parks, public areas and entryways.

Decorative patterns highlighted with LEDs offers joy of decor and lighting creativity. BSISQ® LED Module adopted for optimum light distribution.

PRODUCT
GALLERY
OPTICAL
TECHNICAL DATA
CODES
DOWNLOAD FILES

iMistral is a family of robust and high-quality construction light elements, designed on the basis of rectangular shapes.

The series offers a high level of performance and visual comfort, creating the right atmosphere for all applications. Its design gives a coherent and elegant identity to the cityscape.

Architectural LED lighting column range inspires architects, designers and system integrators with its exceptional quality, a variety of beam angles and remarkable creativity.

Versatile and High-Performance

With a minimalist lighting system and distinctive linear features, illuminates in a versatile way and discreetly blends into its surroundings.

The luminaire with stylized appearance and with improvements in installation, maintenance and service life offers a wide variety of light distributions that ensure effective values, visual comfort and light output for pedestrian areas and streets without light pollution. The possibility to use various photometric distribution with optional mounting heights allows designers to illuminate differing urban spaces with original system configurations.

Modern Design and Easy to Install

The modernly designed luminaire, which is equipped with an integral power supply unit, is optionally available with DALI control or in the user-friendly On-Off version.

The product is supplied pre-wired, permitting simple, rapid and safe installation.‎

Individualize the System

We offer you extensive options for the individualization of the iMistral range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.

Architectural

Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.

Sustainable

BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.

Durable

Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

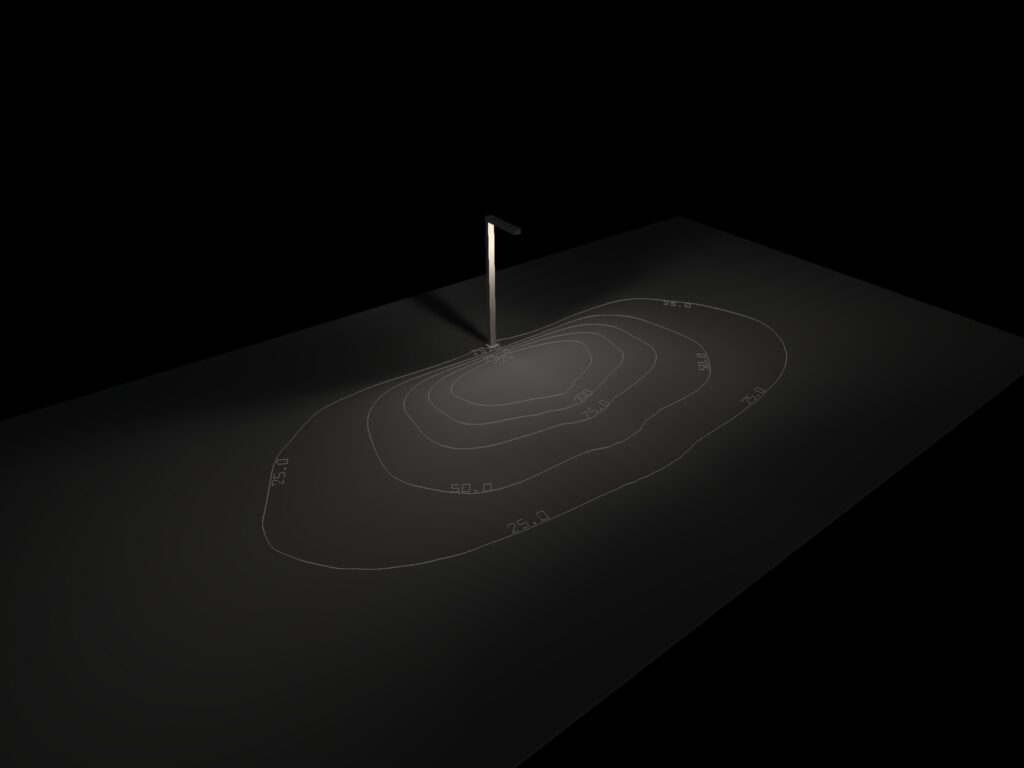

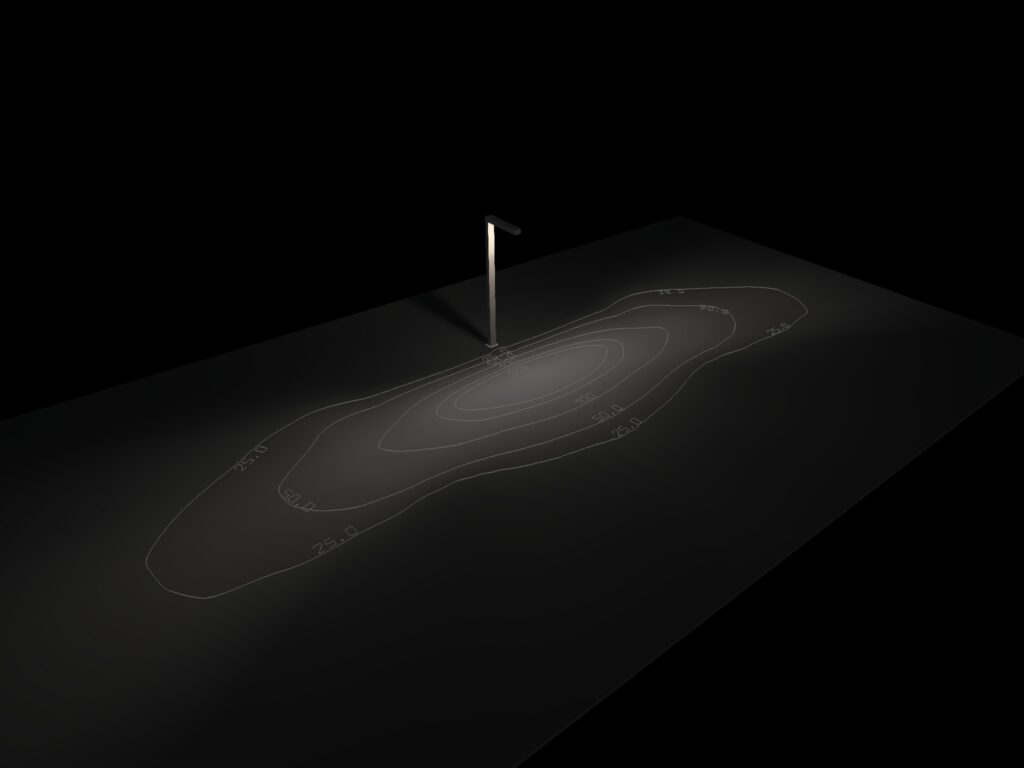

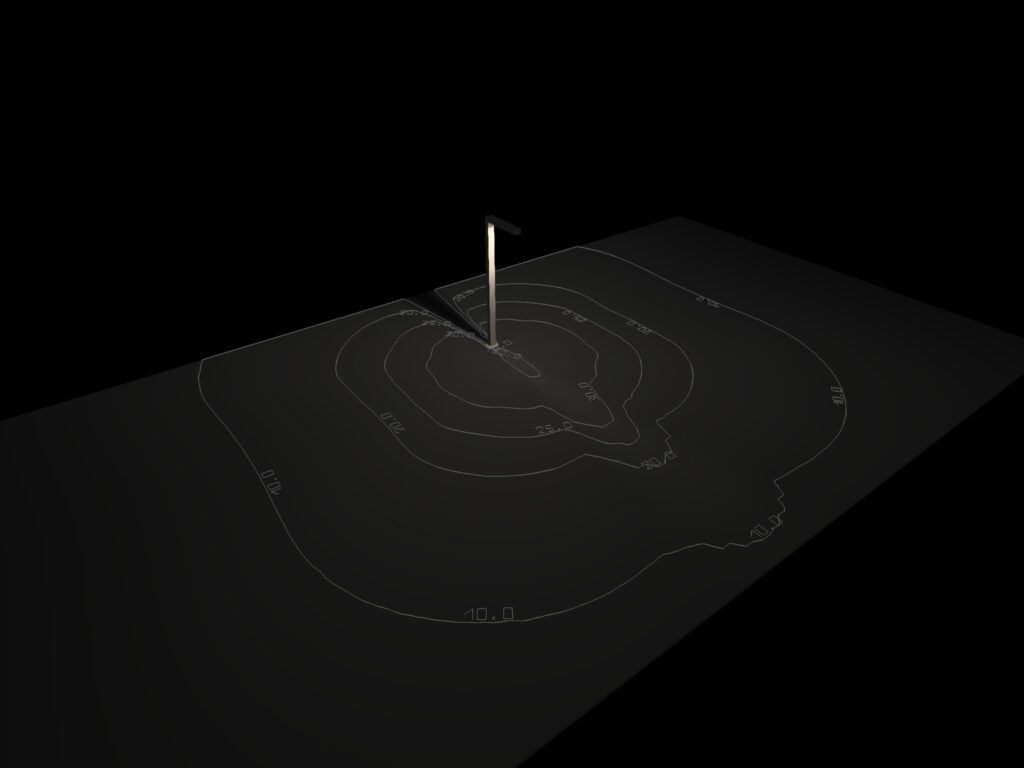

OPTICAL

40°

60°

90° Asym

90°

TECHNICAL DATA

Led Type

High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.

Colour Rendering Index

CRI ≥ 80 standard and CRI ≥ 90 on request.

Materials

Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing, aluminium extruded column (EN AW-6060) with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour.

Optional Coating

Marine grade.

Diffuser

Thermal-shock resistant tempered glass.

LED Life Time

L90 - B10 > 100,000h

Operating Temperature

-40°C / +55°C

Power Factor

>0.95

Conformity

Complies with European Standards EN 60598 and CE certified.

LED

IP66

IK08

Class I

European conformity

RoHS compliant

No IR

No UV

Durable

DALI interface

Color rendering index

220V AC

Suitable for extreme conditions

Temperature is suitable for contact

F mark

Luminaires with high visual comfort

Dimmable luminaire

LM-80

CODES

CODE
LENGTH (mm)
PITCH
(mm)
LED QTY
POWER
CONSUMPTION
350mA
POWER
CONSUMPTION
500mA
LUMEN OUTPUT (lm)
3000K / 4000K
350mA
LUMEN OUTPUT (lm)
3000K / 4000K
500mA
DOWNLOAD

CODES

CODE	POWER CONSUMPTION	LUMEN OUTPUT (lm) 3000K / 4000K	COLOUR TEMPERATURE	DOWNLOAD
LB1431	54W	7290 / 7668	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
LB1432	72W	9720 / 10224	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
LB1433	96W	12960 / 13632	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
LB1434	144W	19440 / 20448	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
