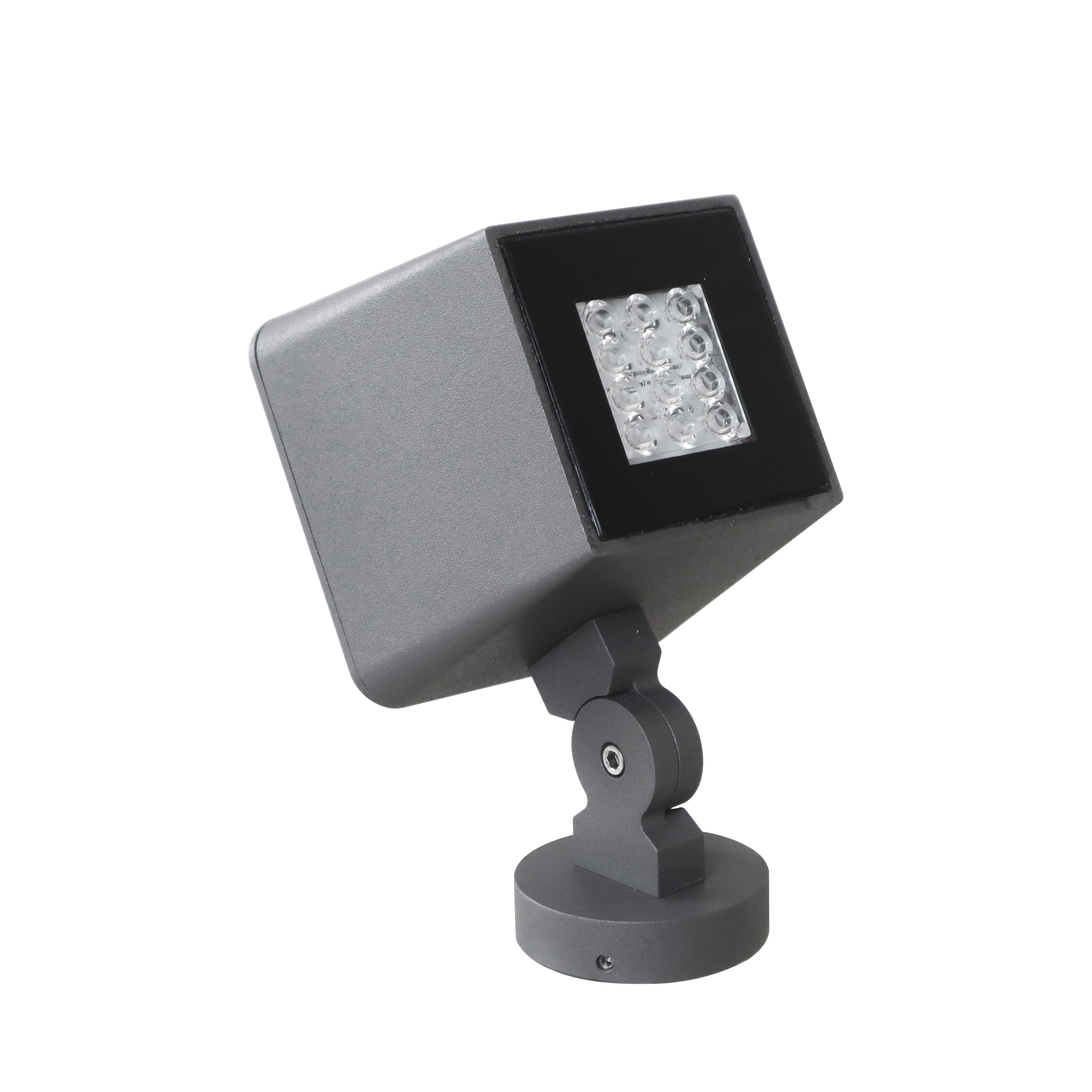

iCubus

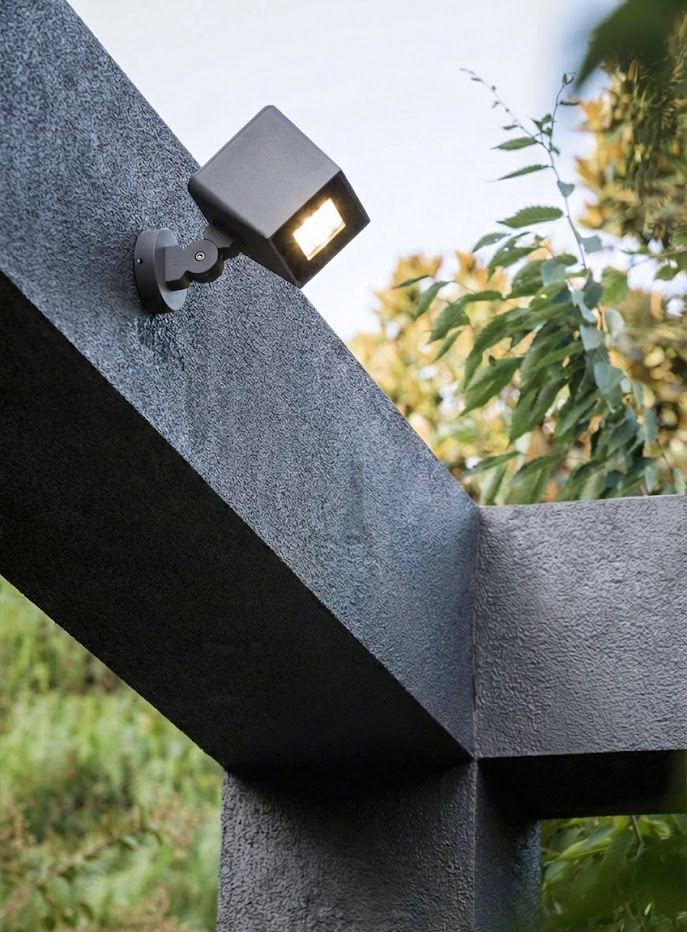

LED projector ideal to highlight and emphasize architectural details and also perfect to illuminate walls, facades and monumental structures.

iCubus series provide an elegant solution for lighting various environments in towns and cities such as urban and residential streets, squares, parks, pedestrian areas and car parks.

Architectural floodlight range inspires architects, designers and system integrators with its exceptional quality, a variety of beam angles and remarkable creativity.

Designed to last in extremely harsh environments.

High Performance and Creative
With precise optics, the iCubus series are used for accent lighting on facades or to illuminate objects from a long distance.

The combination of floodlights with different optics makes creative lighting scenarios possible.
Integrated Solution and Modern Design
Plug and play built-in system with the fully integrated universal power supply unit.

The entire family appears in a uniform and durable modern design.

A wide range of attractive accessories; honeycomb louvre and glare shield, as well as mounting types such as floor, wall and pole.
Individualize the System
We offer you extensive options for the individualization of the iCubus range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Ensure aesthetic and technical coherence for all types of applications in urban areas. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

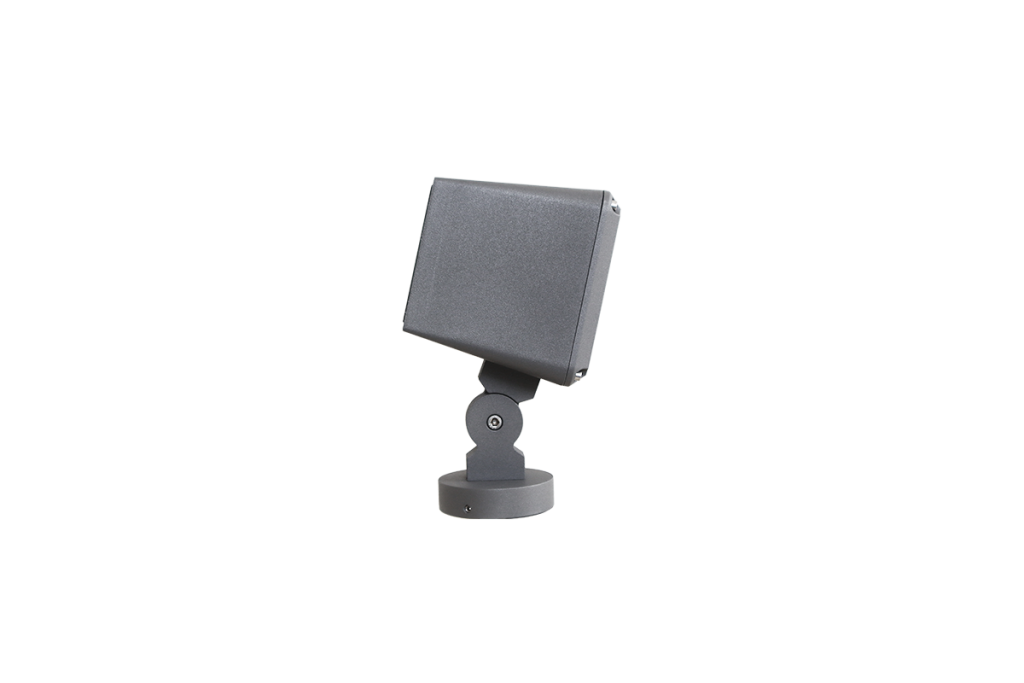

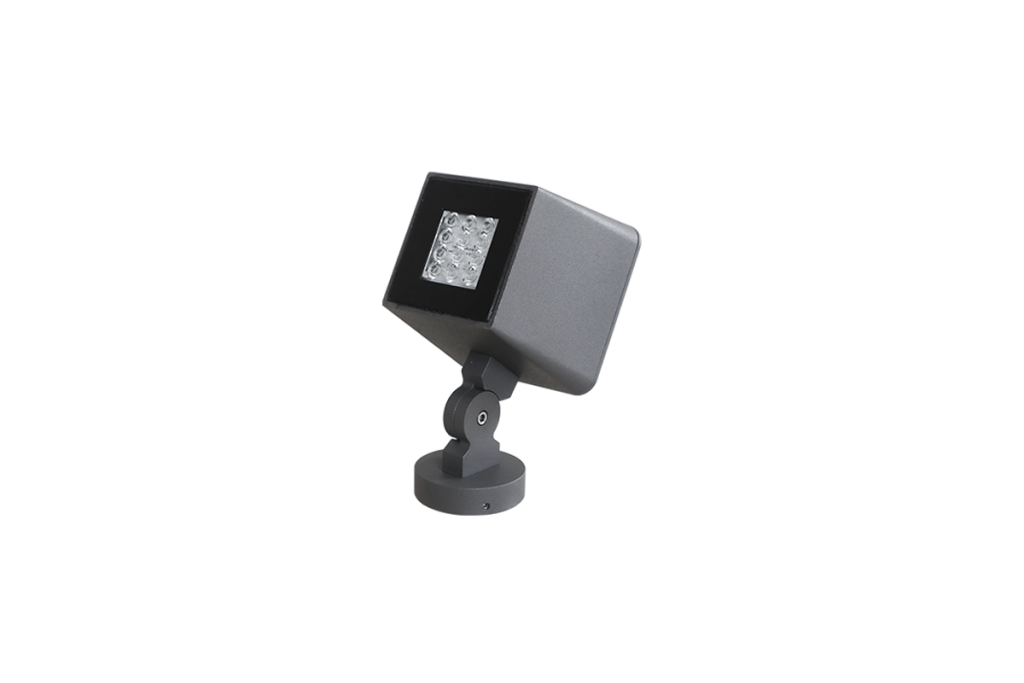

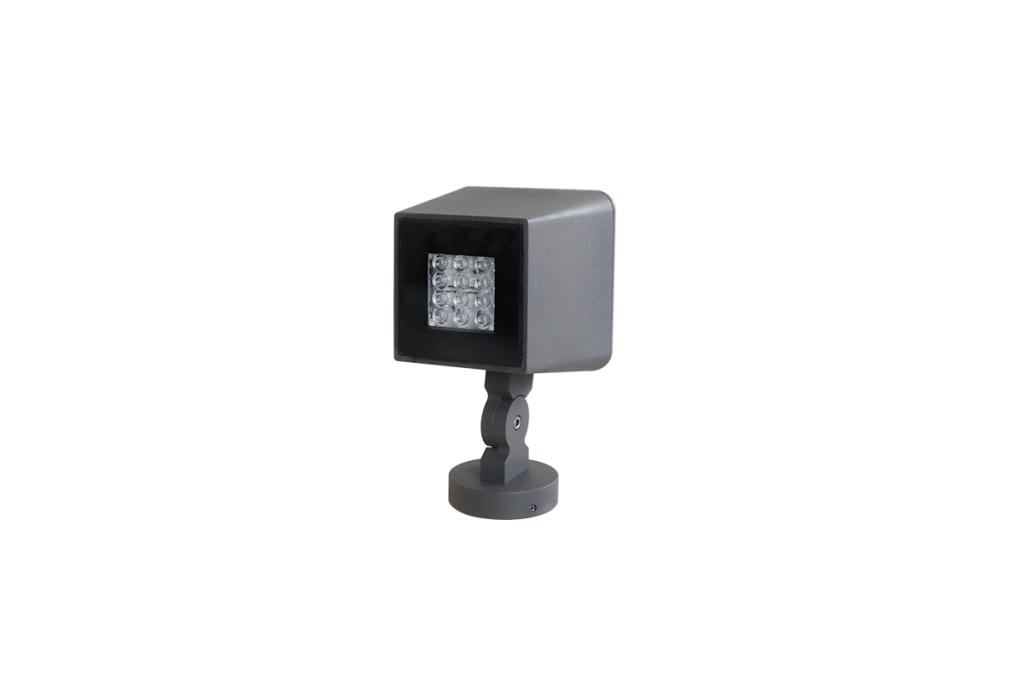

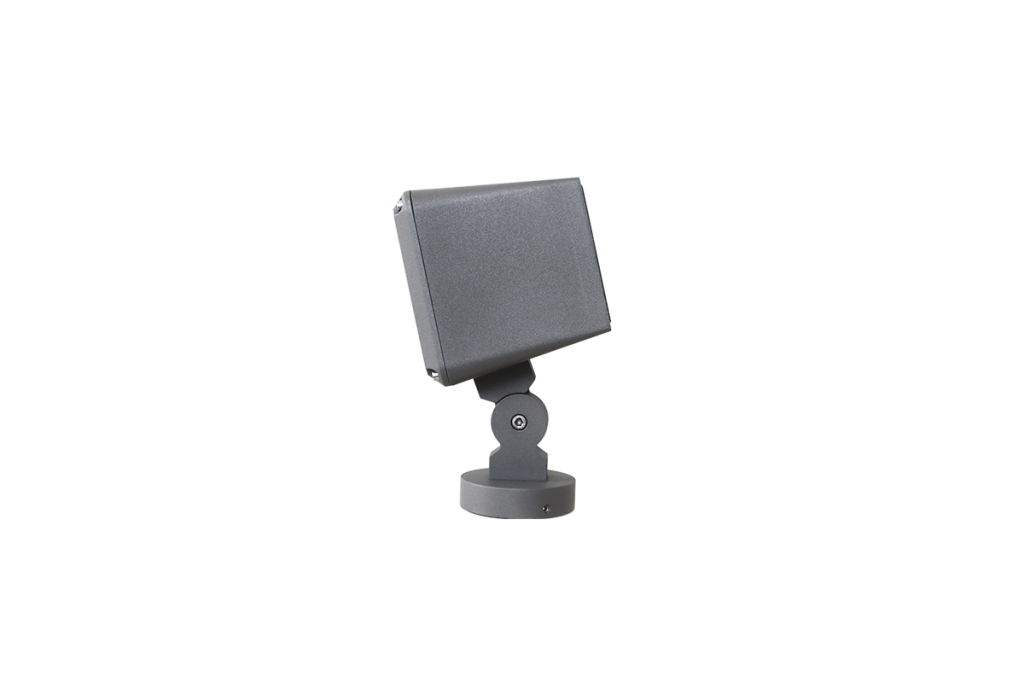

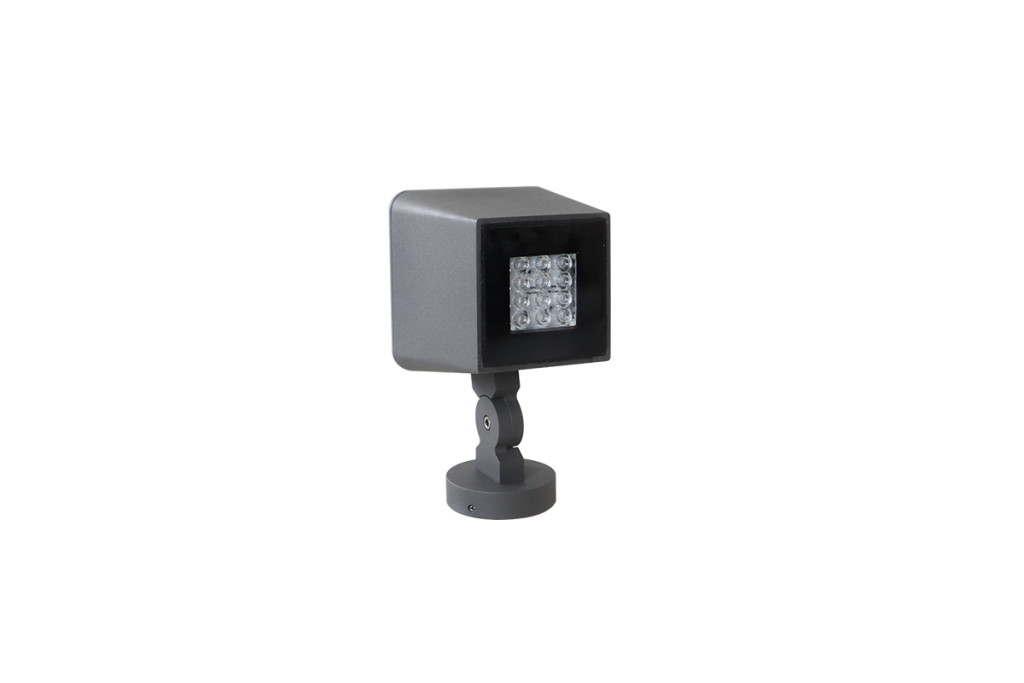

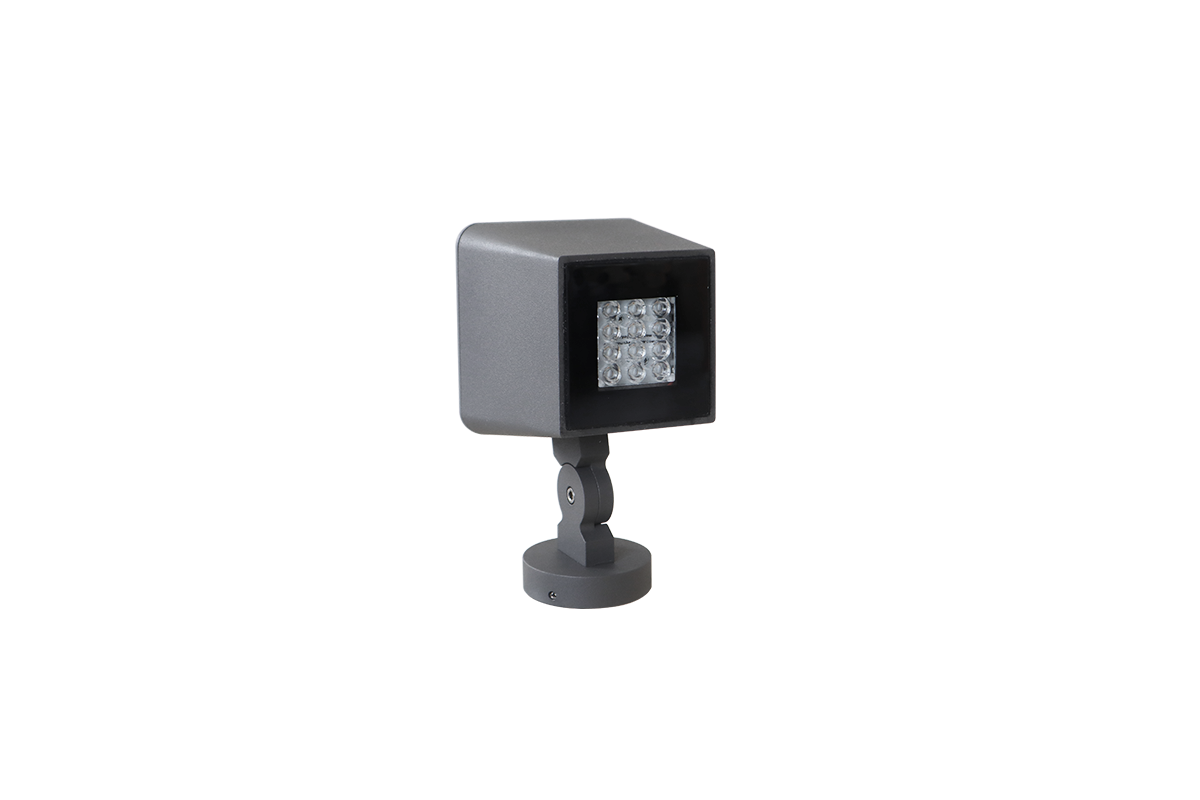

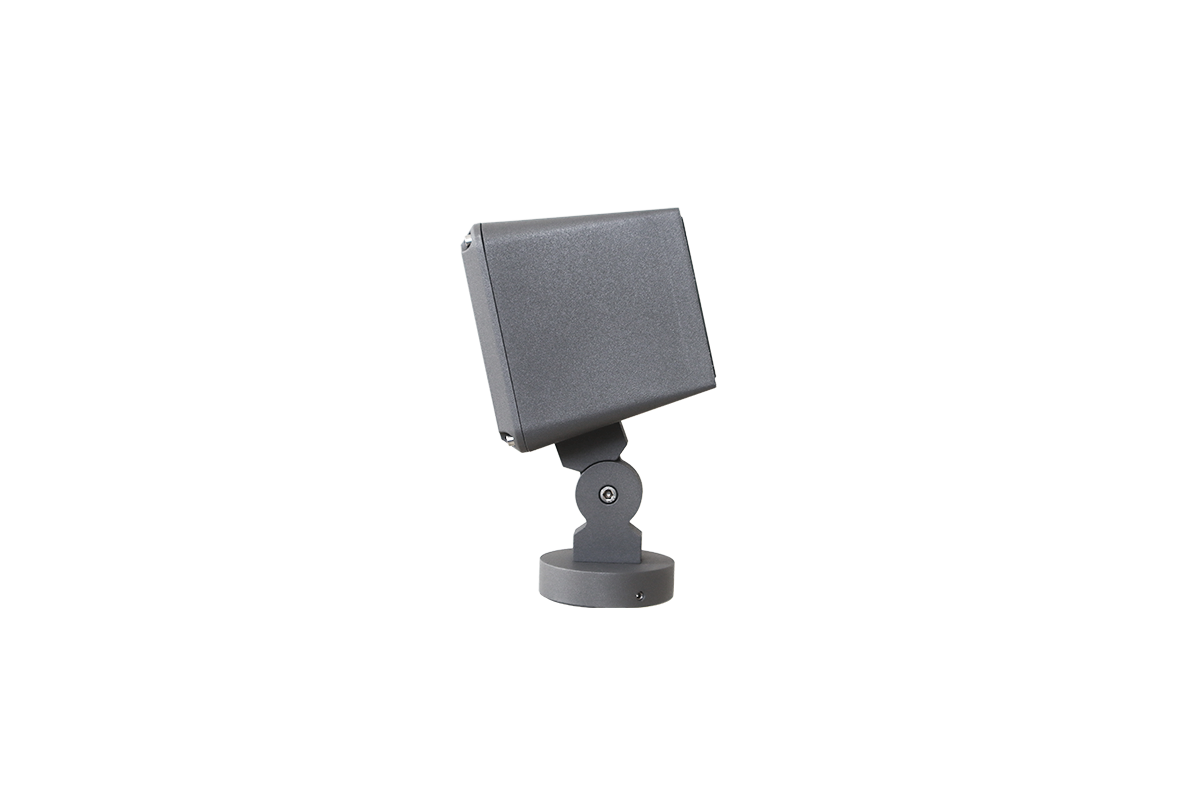

GALLERY

OPTICAL

40°
60°
90°

TECHNICAL DATA

Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour. Mounting bracket made of aluminium with polyester powder coating.
Optional Coating
Marine grade.
Diffuser
Thermal-shock resistant tempered glass with no visible screws.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP66
IK09
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
Color rendering index
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
LM-80

CODES

  • CODE
  • LENGTH (mm)
  • PITCH
    (mm)
  • LED QTY
  • POWER
    CONSUMPTION
    350mA
  • POWER
    CONSUMPTION
    500mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    350mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    500mA
  • DOWNLOAD
2

CODES

CODEPOWER
CONSUMPTION
LUMEN OUTPUT (lm)
3000K / 4000K
COLOUR TEMPERATUREDOWNLOAD
FL932212W1620 / 17043000K / 4000KPRODUCT SHEET PHOTOMETRY
FL932424W3240 / 34083000K / 4000KPRODUCT SHEET PHOTOMETRY
FL932636W4860 / 51123000K / 4000KPRODUCT SHEET PHOTOMETRY
FL932848W6408 / 68163000K / 4000KPRODUCT SHEET PHOTOMETRY
FL933072W9720 / 102243000K / 4000KPRODUCT SHEET PHOTOMETRY
FL9332108W14580 / 153363000K / 4000KPRODUCT SHEET PHOTOMETRY
FL9334144W19440 / 204483000K / 4000KPRODUCT SHEET PHOTOMETRY
