iCubus Flow

iCubus series provide an elegant solution for lighting various environments in towns and cities such as urban and residential streets, squares, parks, pedestrian areas and car parks.

Architectural floodlight range inspires architects, designers and system integrators with its exceptional quality, a variety of beam angles and remarkable creativity.

Functional LED outdoor pole mounted luminaire, with wide range of beams, sizes and powers, ideal for residential, urban and landscape lighting.

iCubus offers a wide range of options for realizing impressive and efficient lighting concepts and individual design solutions within urban spaces.

Designed to last in extremely harsh environments.

Versatile and Creative

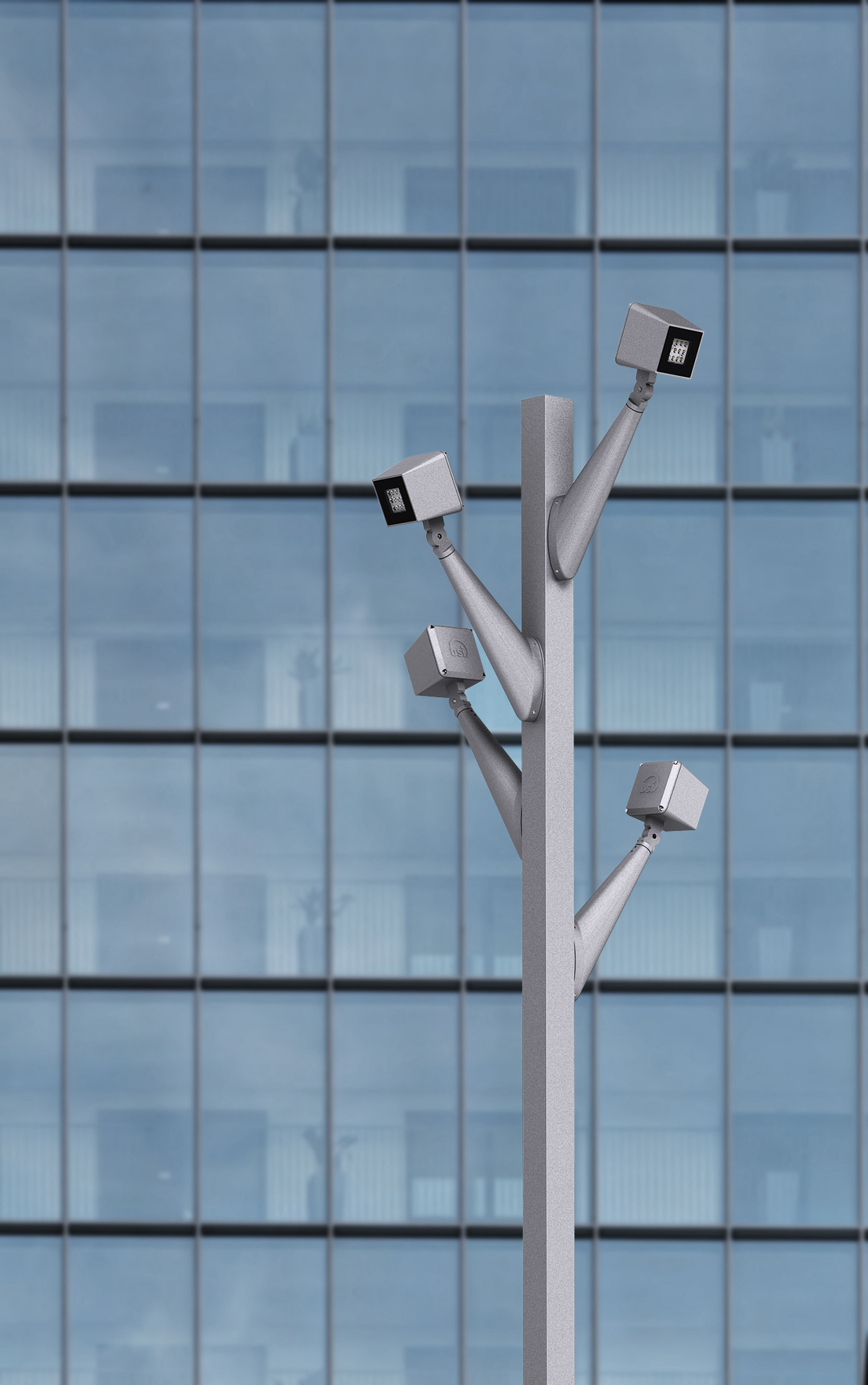

Urban floodlights create a simple and versatile base for cities and streetscapes to extend their beauty, safety and functionality beyond daylight. The iCubus adjustable urban floodlights complement each other with accessories that allow installation on a pole, available with a wide range of arms and pole types for customized configurations.

The combination of floodlights with different optics makes creative lighting scenarios possible. With pole heights of up to 12meter, various arms and the ability to place various lighting points in differing heights, provide a great deal of creative freedom.
Integrated Solution and Modern Design
Plug and play built-in system with the fully integrated universal power supply unit.

The entire family appears in a uniform and durable modern design. A wide range of attractive accessories; honeycomb louvre, glare shield, as well as wide selection of mounting arms.
Individualize the System
We offer you extensive options for the individualization of the iCubus range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Ensure aesthetic and technical coherence for all types of applications in urban areas. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

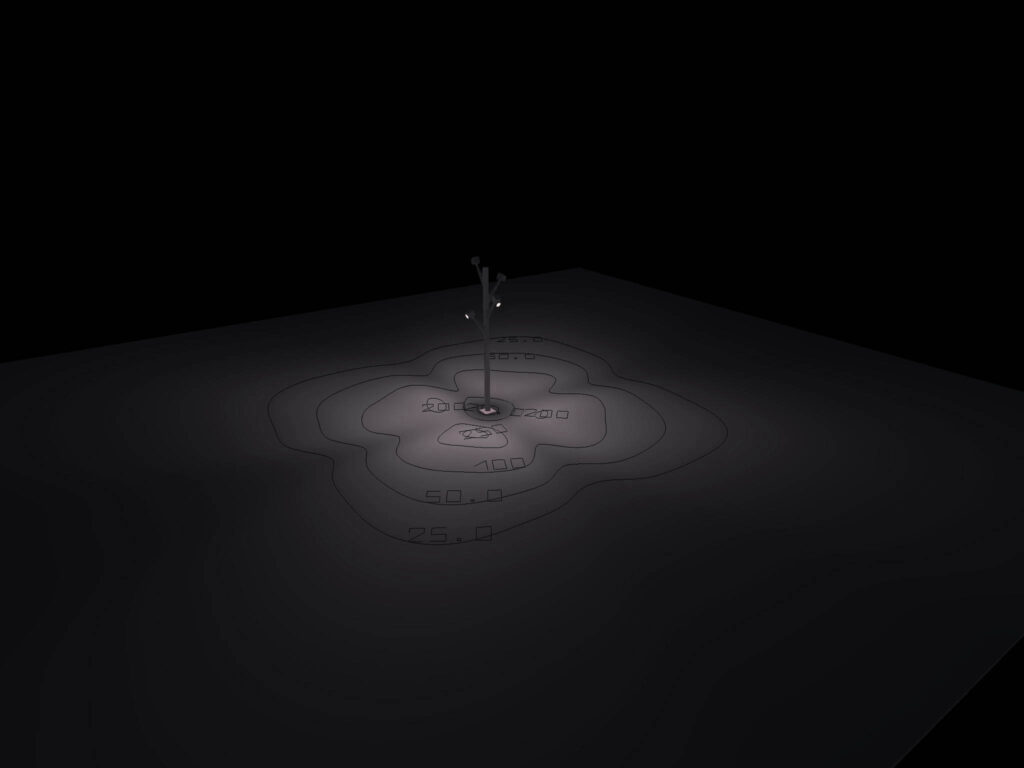

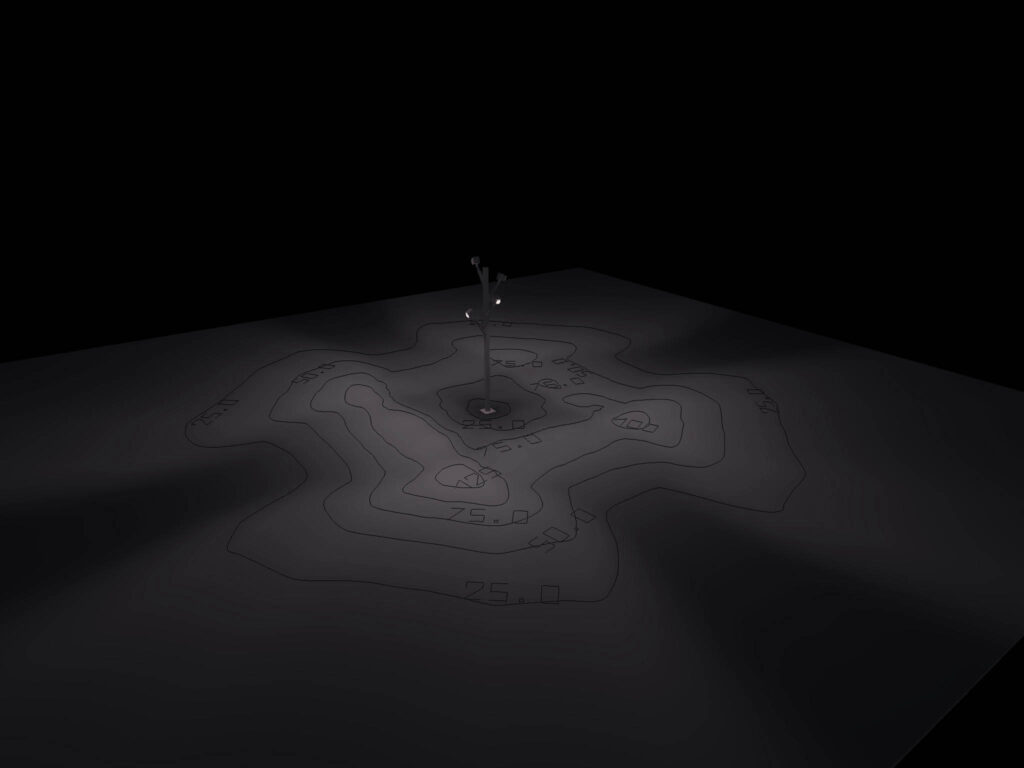

OPTICAL

40°
60°
90°
M3

TECHNICAL DATA

Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour. Adjustable mounting bracket made of aluminium with polyester powder coating. Square poles are in galvanized steel or aluminium, available in different heights from 4m to 10m.
Optional Coating
Marine grade.
Diffuser
Thermal-shock resistant tempered glass.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP66
IK09
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
Color rendering index
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
Dimmable luminaire
LM-80

CODES

  • CODE
  • LENGTH (mm)
  • PITCH
    (mm)
  • LED QTY
  • POWER
    CONSUMPTION
    350mA
  • POWER
    CONSUMPTION
    500mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    350mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    500mA
  • DOWNLOAD
2

CODES

CODEPOWER
CONSUMPTION
LUMEN OUTPUT (lm)
3000K / 4000K
COLOUR TEMPERATUREDOWNLOAD
UA1711148W6480 / 68163000K / 4000KPRODUCT SHEET PHOTOMETRY
UA1711272W9720 / 102243000K / 4000KPRODUCT SHEET PHOTOMETRY
UA17113108W14580 / 153363000K / 4000KPRODUCT SHEET PHOTOMETRY
UA17114144W19440 / 204483000K / 4000KPRODUCT SHEET PHOTOMETRY
