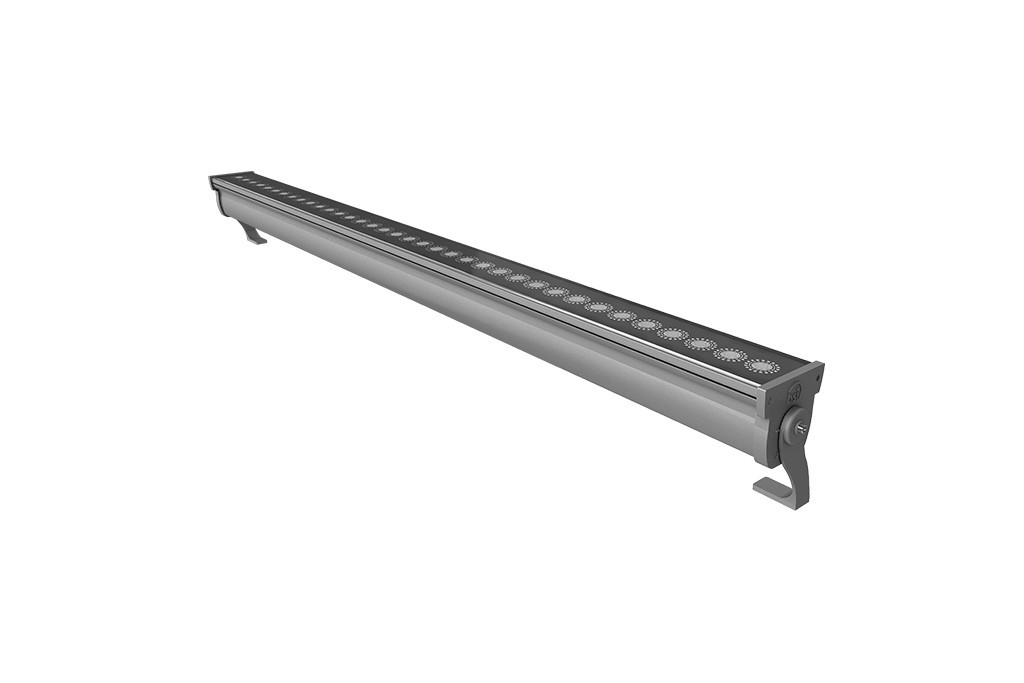

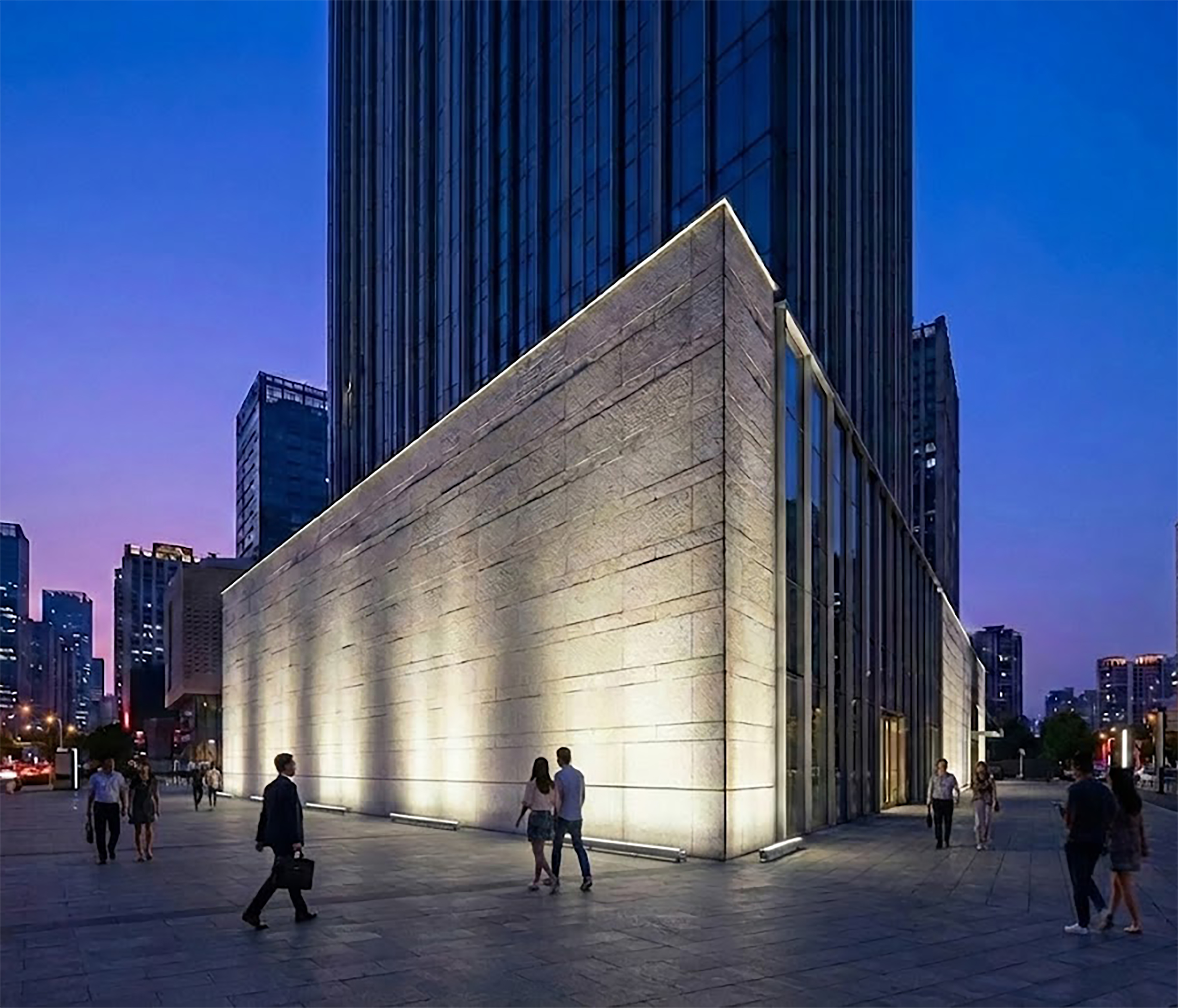

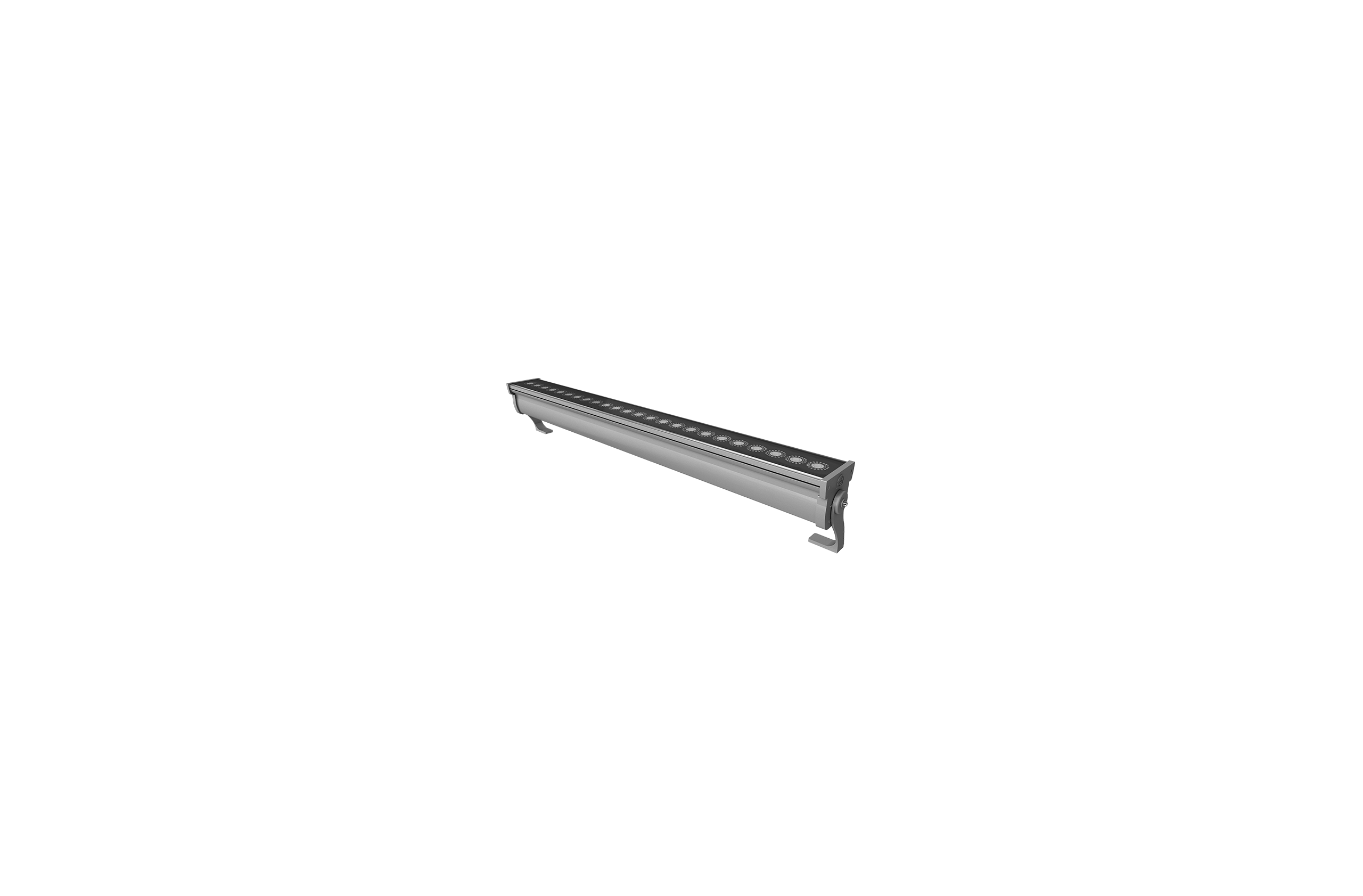

iAxis VS Surface is a robust surface-mounted luminaire for wall washing, grazing and accent lighting in architectural and urban environments.
iAxis VS Surface
Compact and High Performance
High-performance, compact linear luminaires designed for wall washing and wall grazing, offering outstanding flexibility.Advanced light sources and precision optics deliver a powerful, low-maintenance lighting solution.

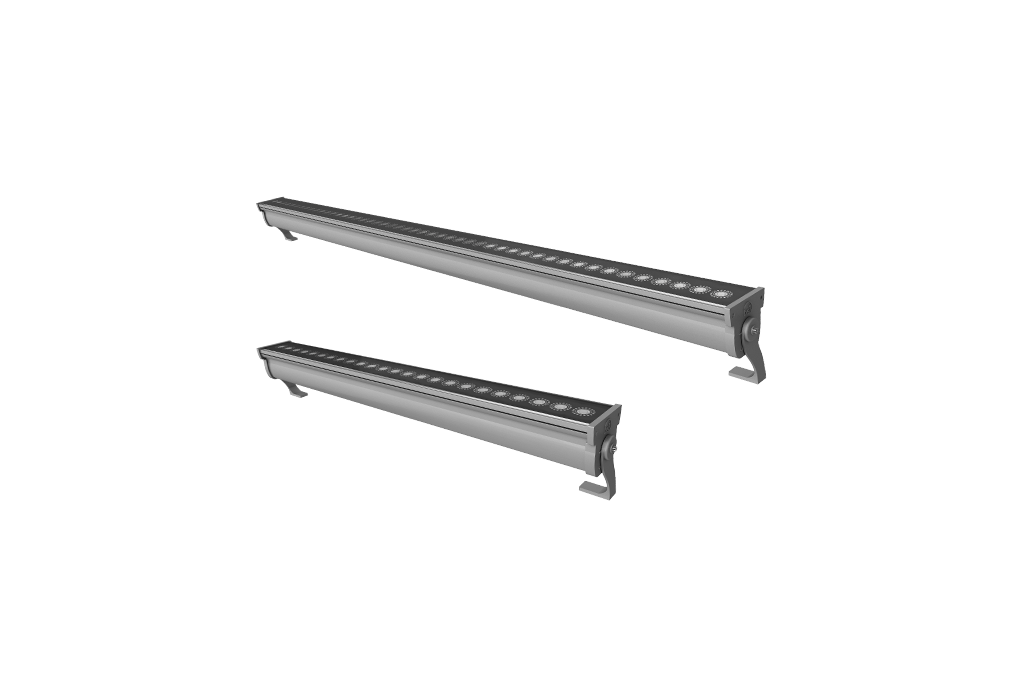

Individualize the System
The iAxis range provides a wide variety of customization options. In addition to standard configurations, further variants are available on request to better suit specific project requirements.
Integrated Solution and Easy to Install

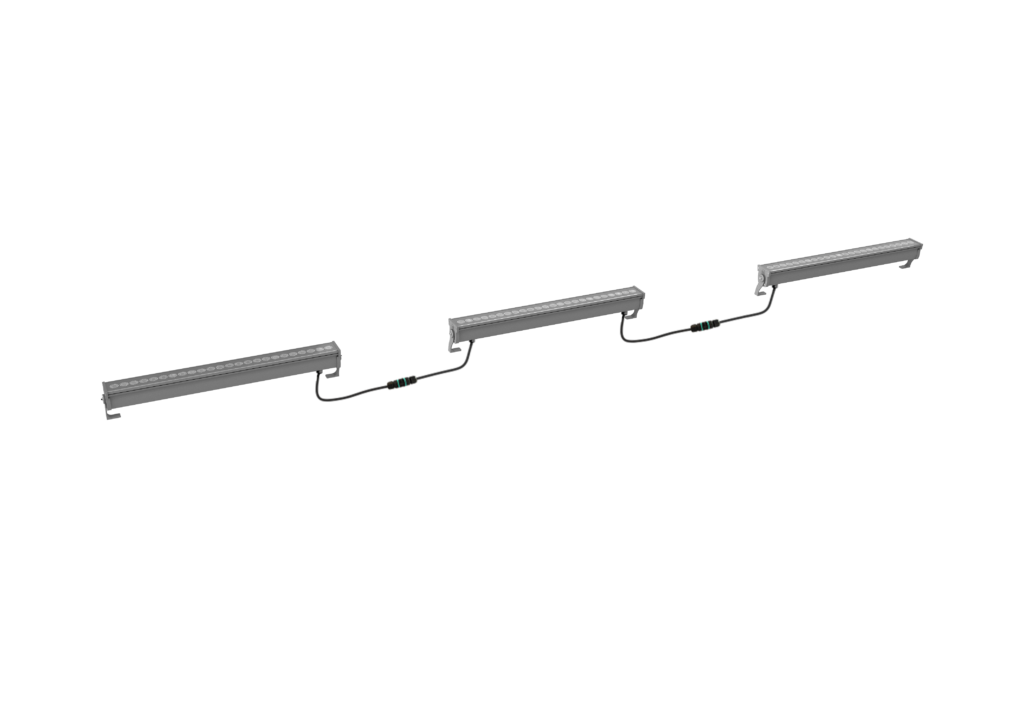

Plug and play built-in system with the fully integrated universal power supply unit.The watertight plug connector ensures easy, fast and secure installation.The robust luminaire fits seamlessly into the architecture.
Architectural
Linear outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.
Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant. Custom LED color combinations available.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials

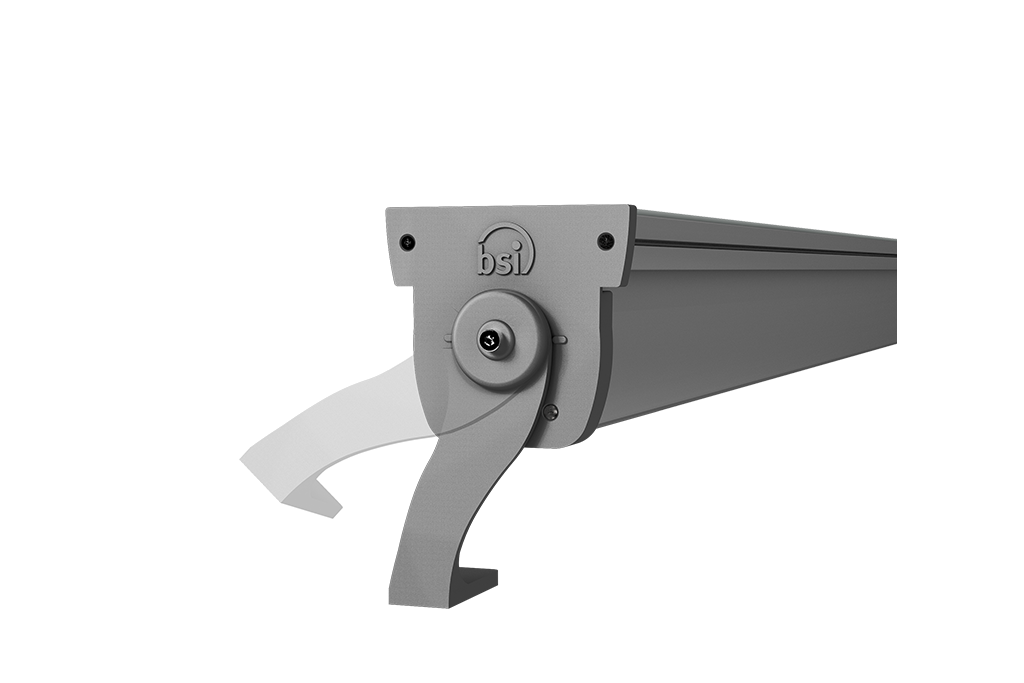

Corrosion resistant extruded anodized aluminium housing (EN AW-6060) with stainless steel screws (A4 grade) and silicone rubber gaskets. End- to-end connection via power connectors. Includes adjustable mounting brackets. Power unit is built in.
Optional Coating
Marine grade.
Diffuser
Thermal-shock resistant 4mm tempered glass.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP67
IK08
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
Color rendering index
220V AC
Suitable for extreme conditions
Static load resistance
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
Dimmable luminaire
LM-80

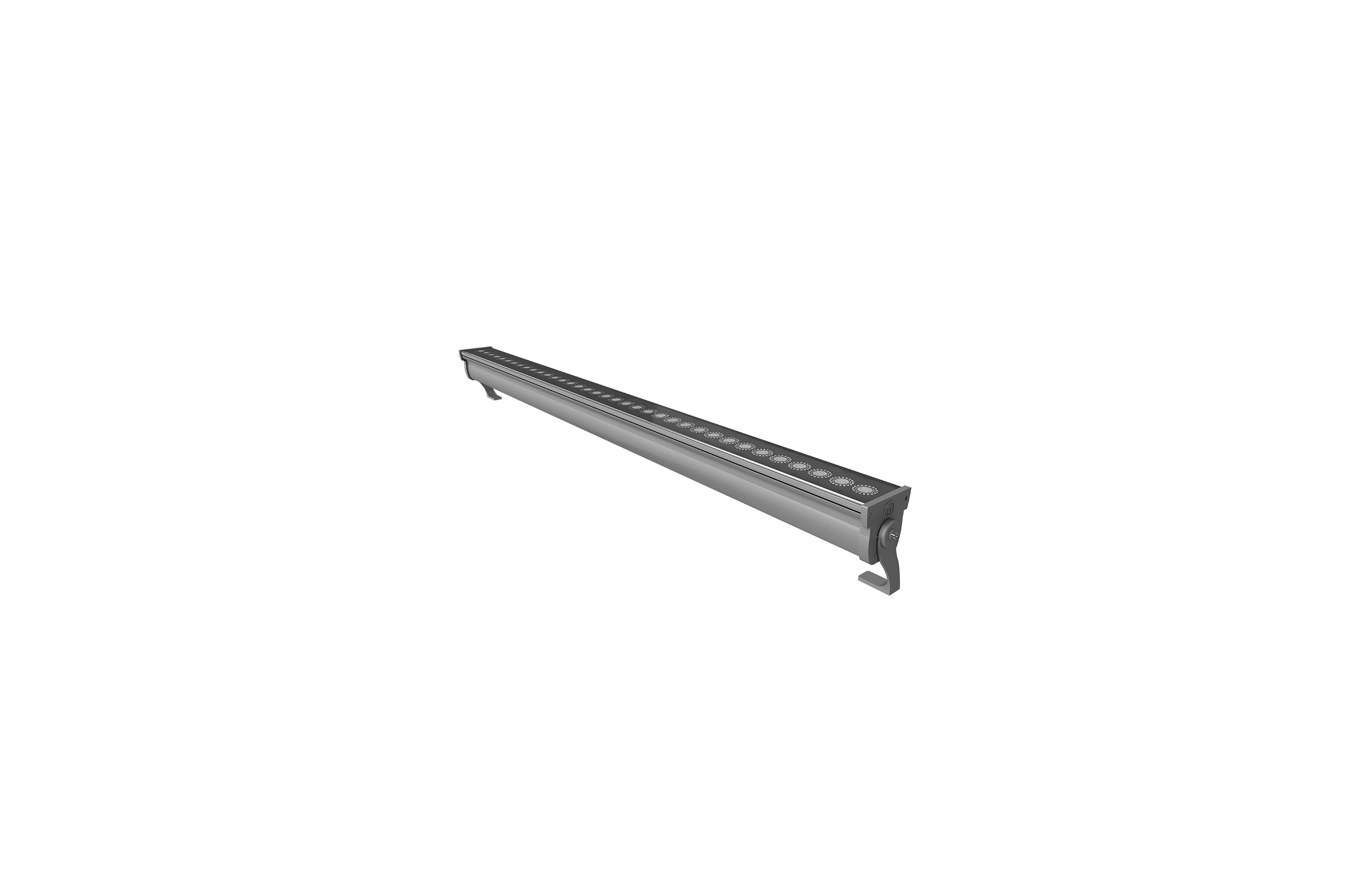

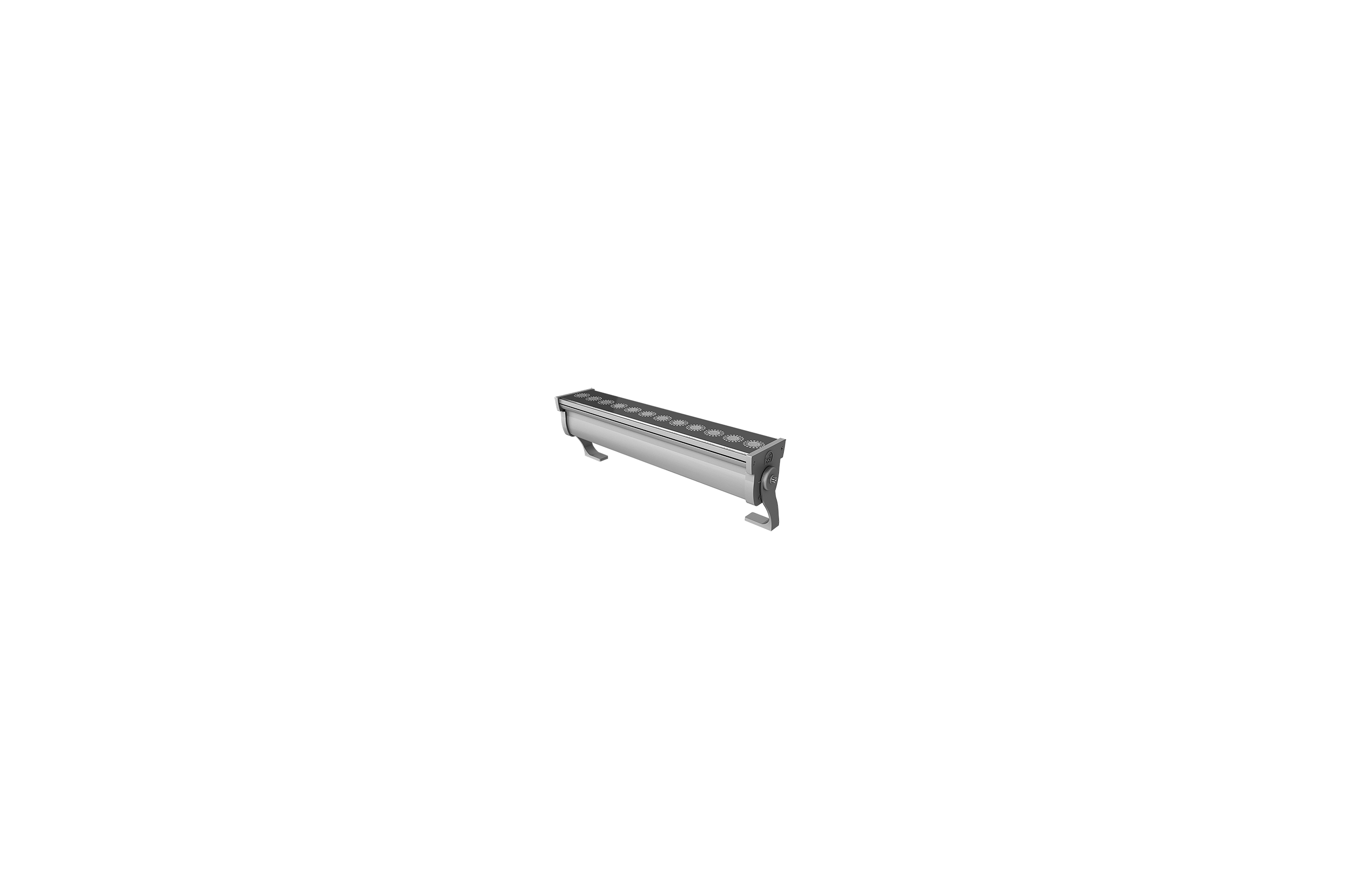

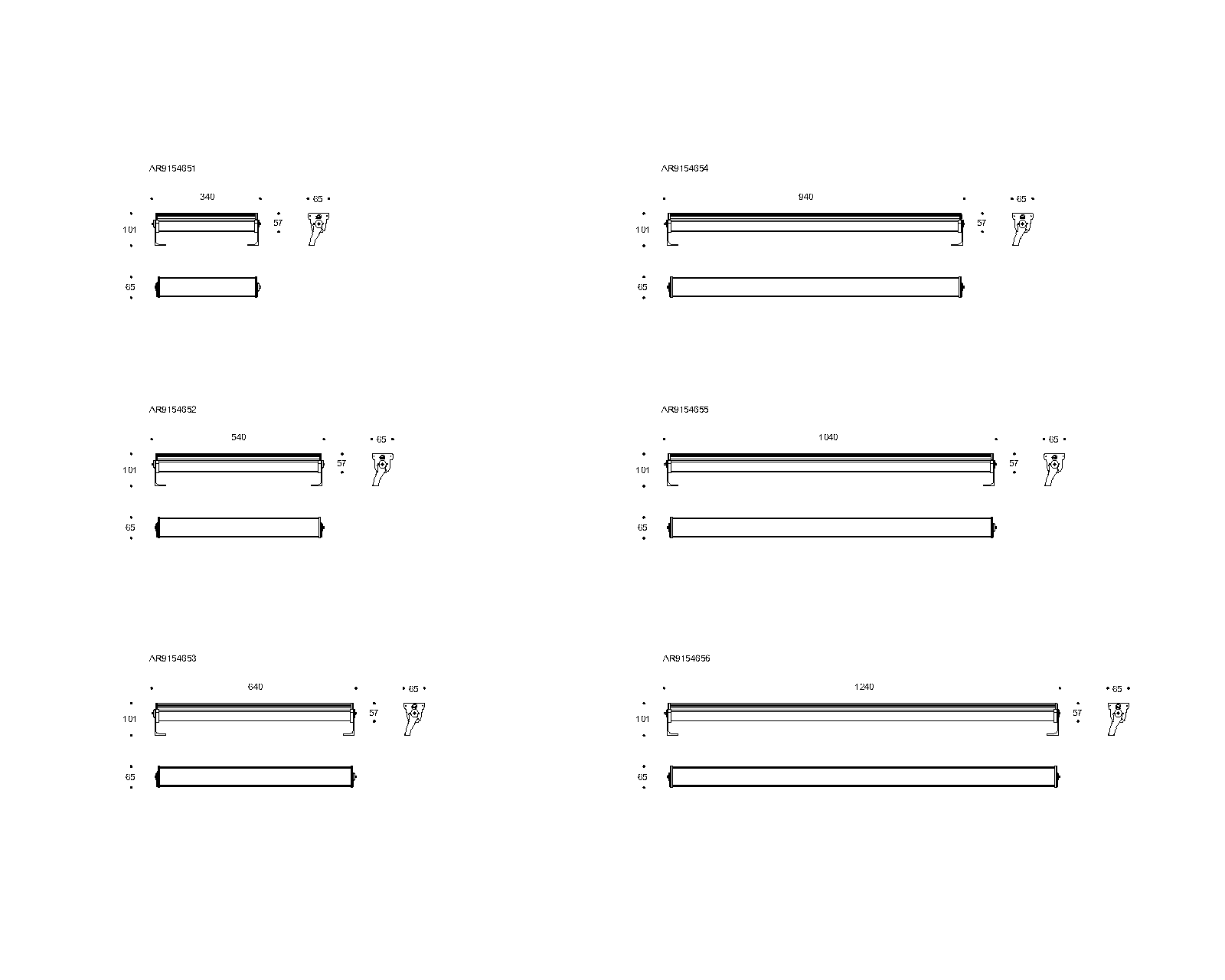

| CODE | LENGTH (mm) | PITCH (mm) | LED QTY | POWER CONSUMPTION 350mA | POWER CONSUMPTION 500mA | LUMEN OUTPUT (lm) 350mA | LUMEN OUTPUT (lm) 500mA | DOWNLOAD |
|---|---|---|---|---|---|---|---|---|

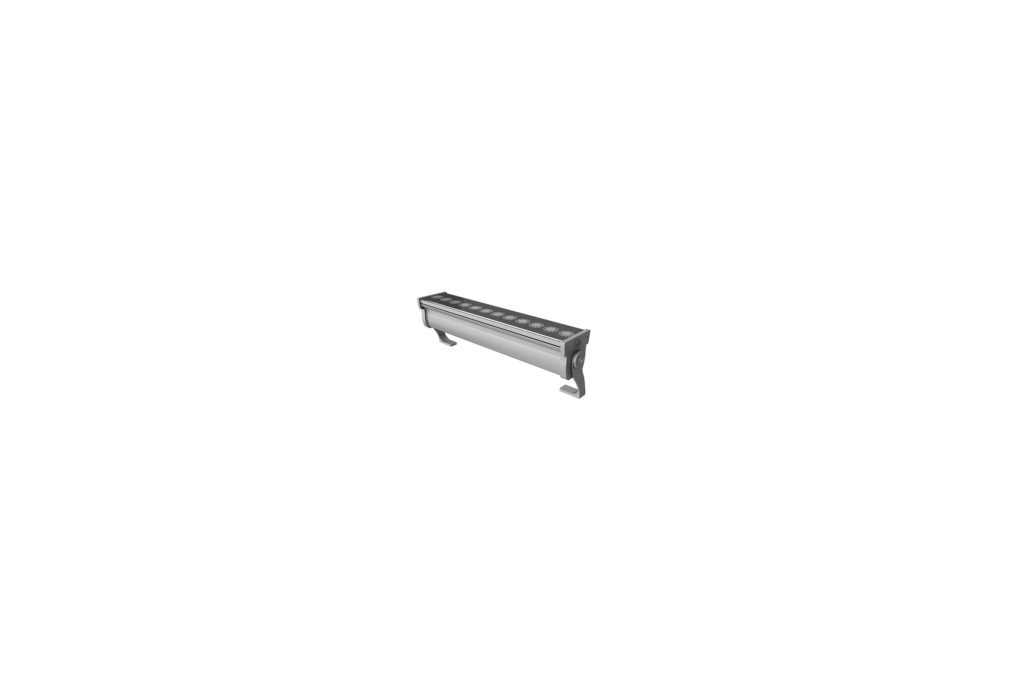

| AR9154651 | 340 | 25 | 12 | 12W | 18W | 1620 / 1704 | 2430 / 2556 | PRODUCT SHEET PHOTOMETRY |

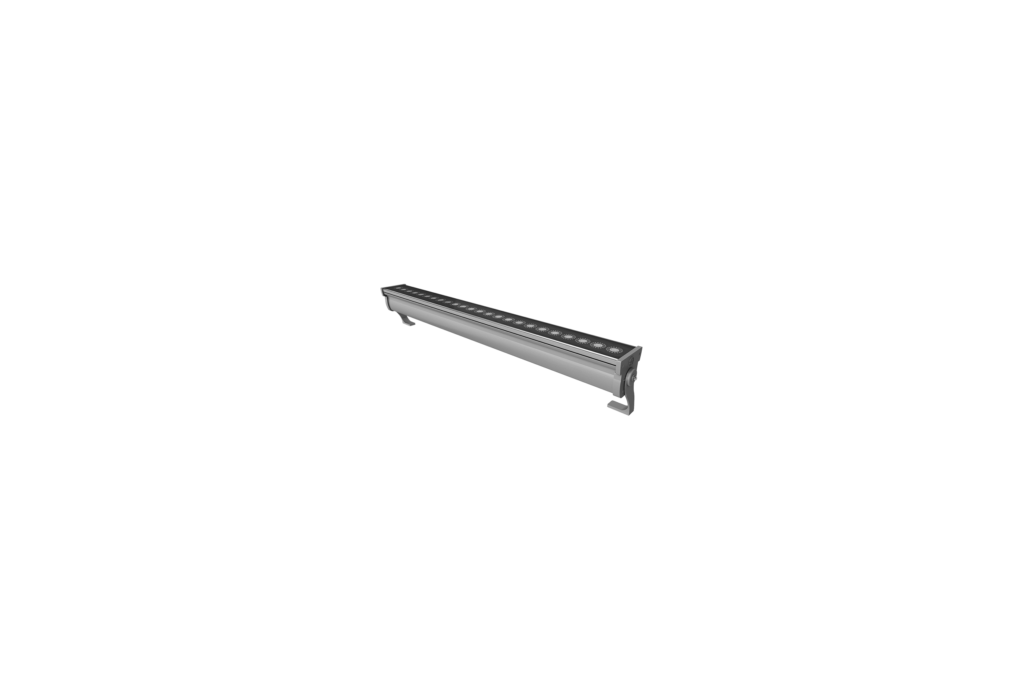

| AR9154653 | 640 | 25 | 24 | 24W | 36W | 3240 / 3408 | 4860 / 5112 | PRODUCT SHEET PHOTOMETRY |

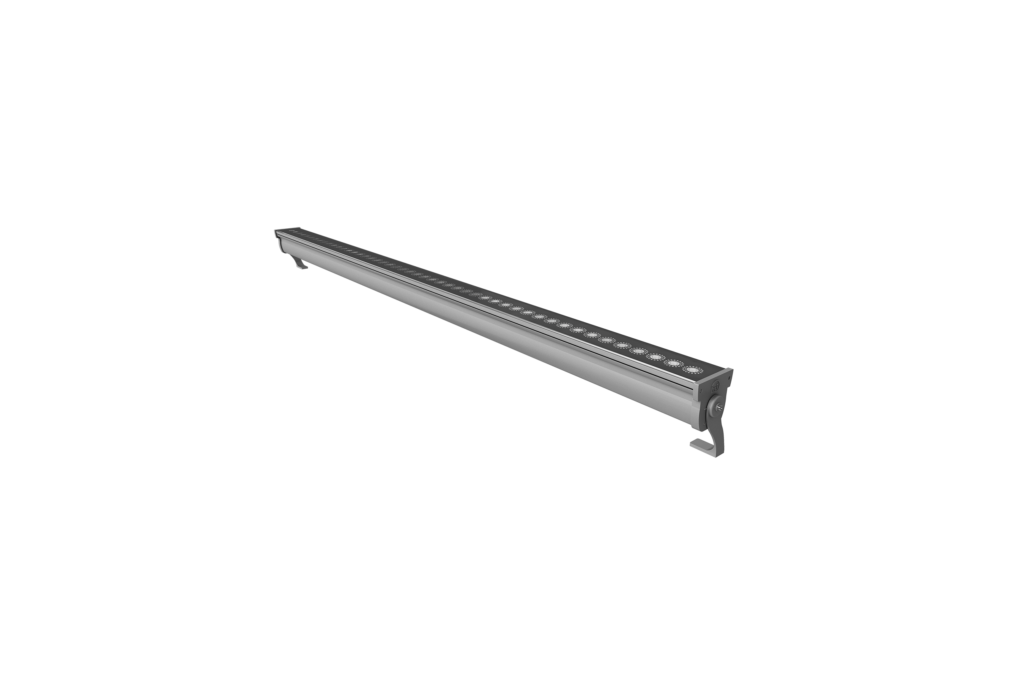

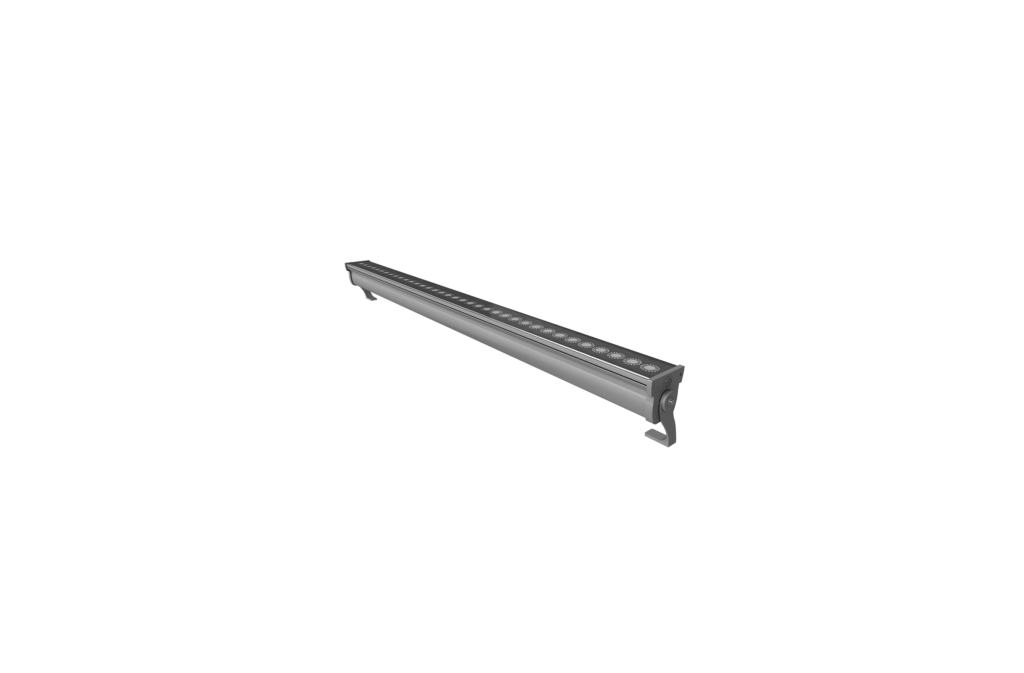

| AR9154654 | 940 | 25 | 36 | 36W | 54W | 4860 / 5112 | 7290 / 7668 | PRODUCT SHEET PHOTOMETRY |
| AR9154656 | 1240 | 25 | 48 | 48W | 54W | 6480 / 5112 | 6810 / 7668 | PRODUCT SHEET PHOTOMETRY |
