Defining architectural spaces with precision optics.
Architectural LED Washer range inspires architects, designers and system integrators with its exceptional quality, a variety of beam angles and remarkable creativity.

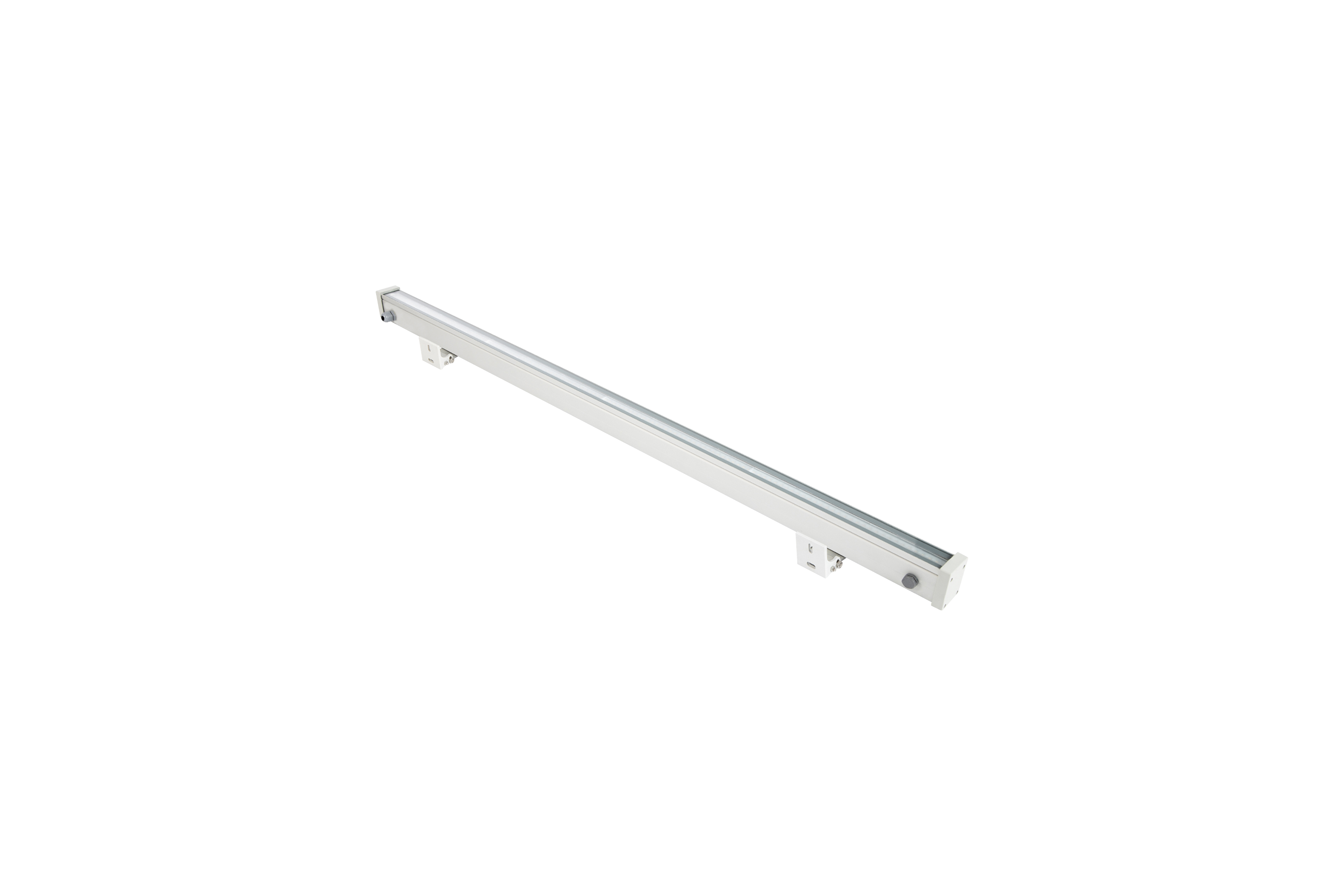

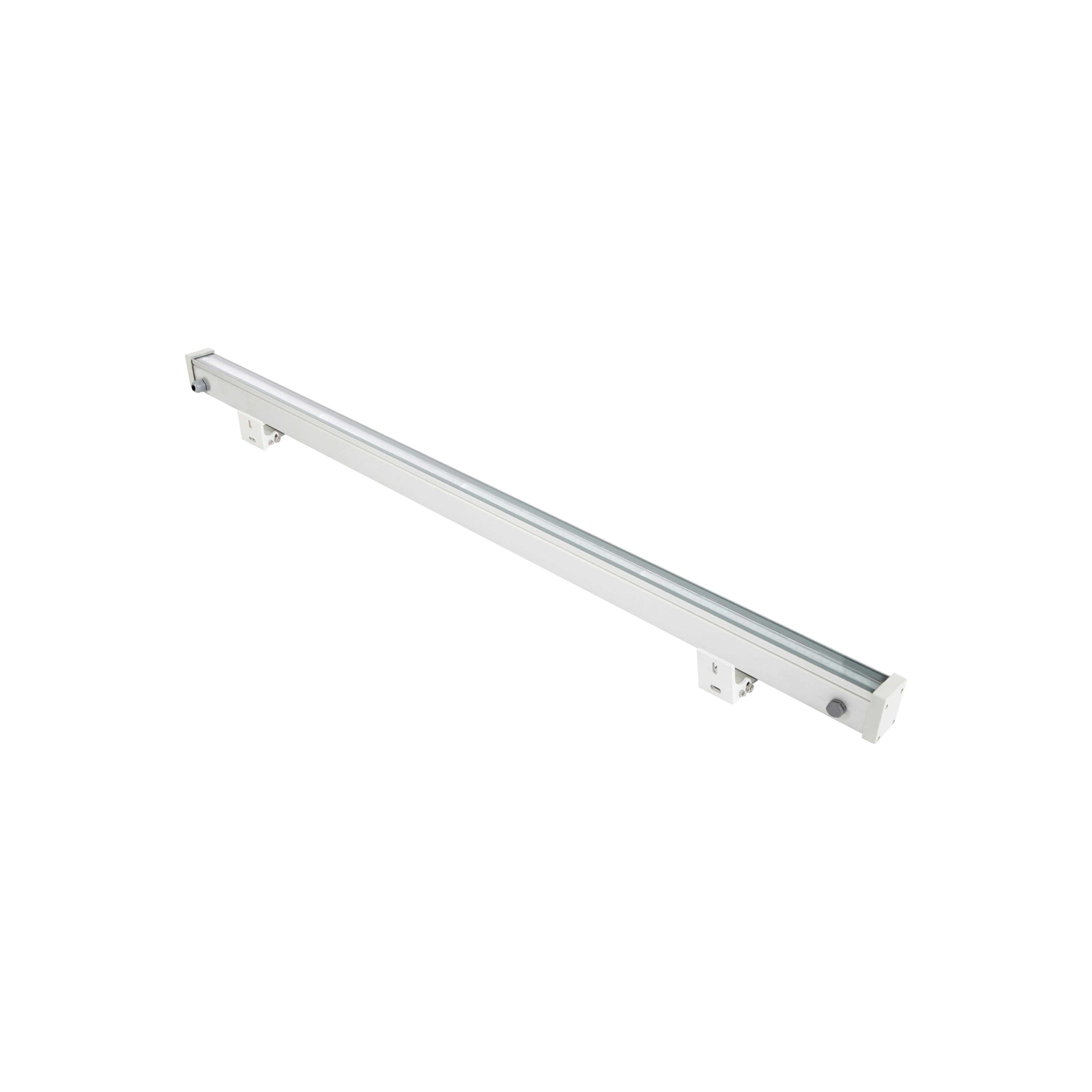

BS Linus DA

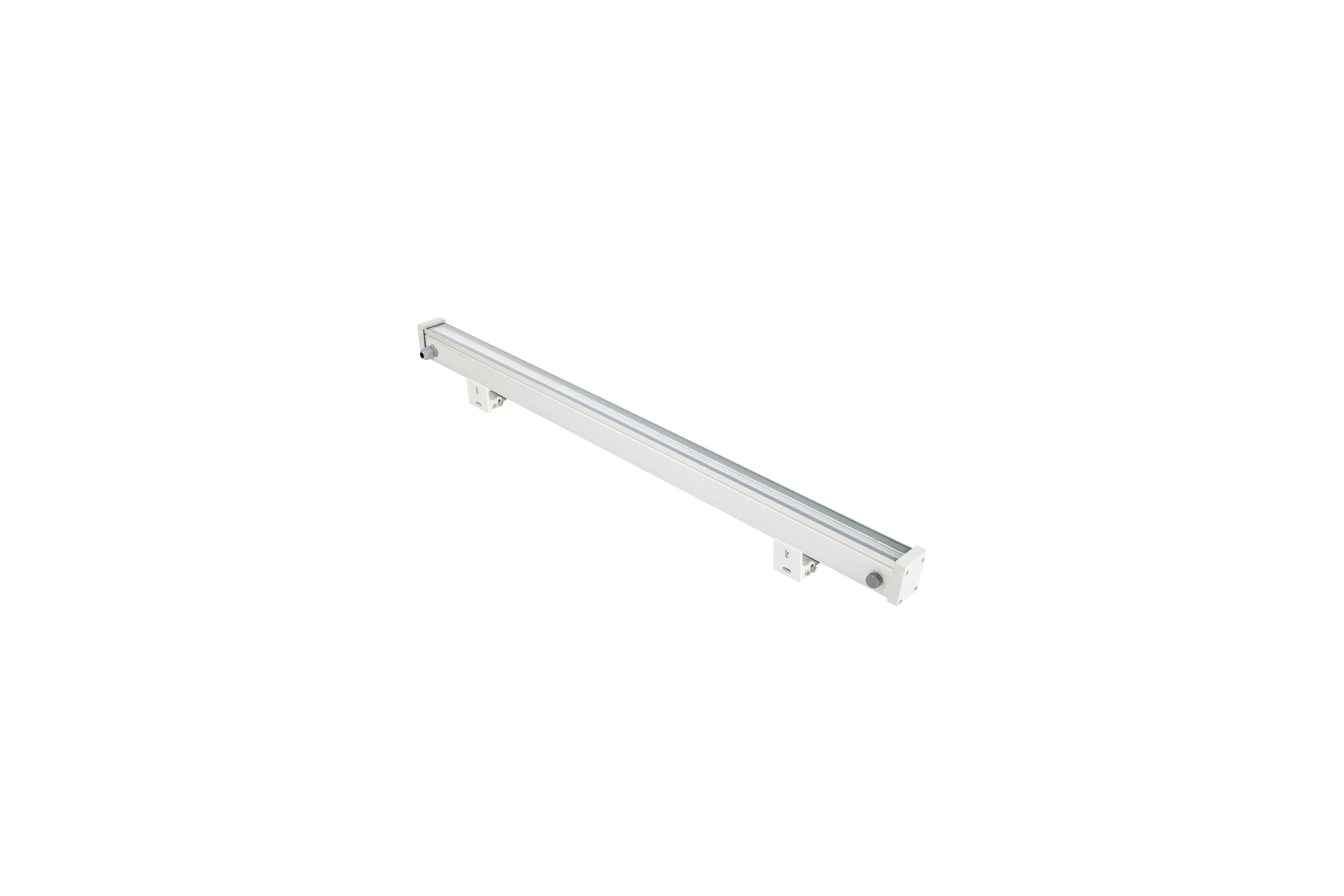

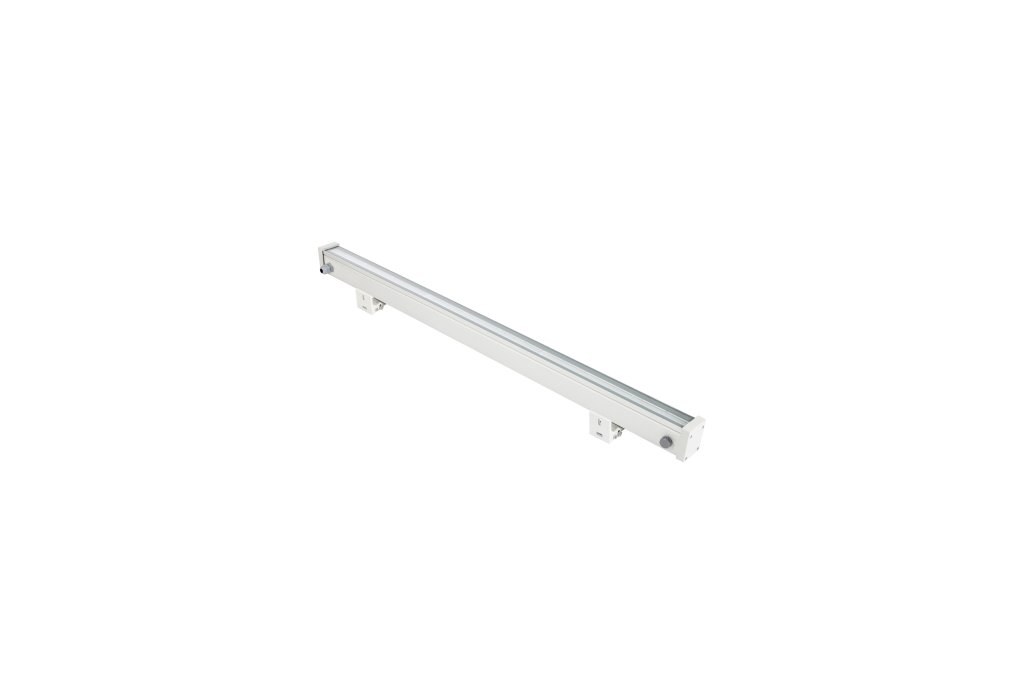

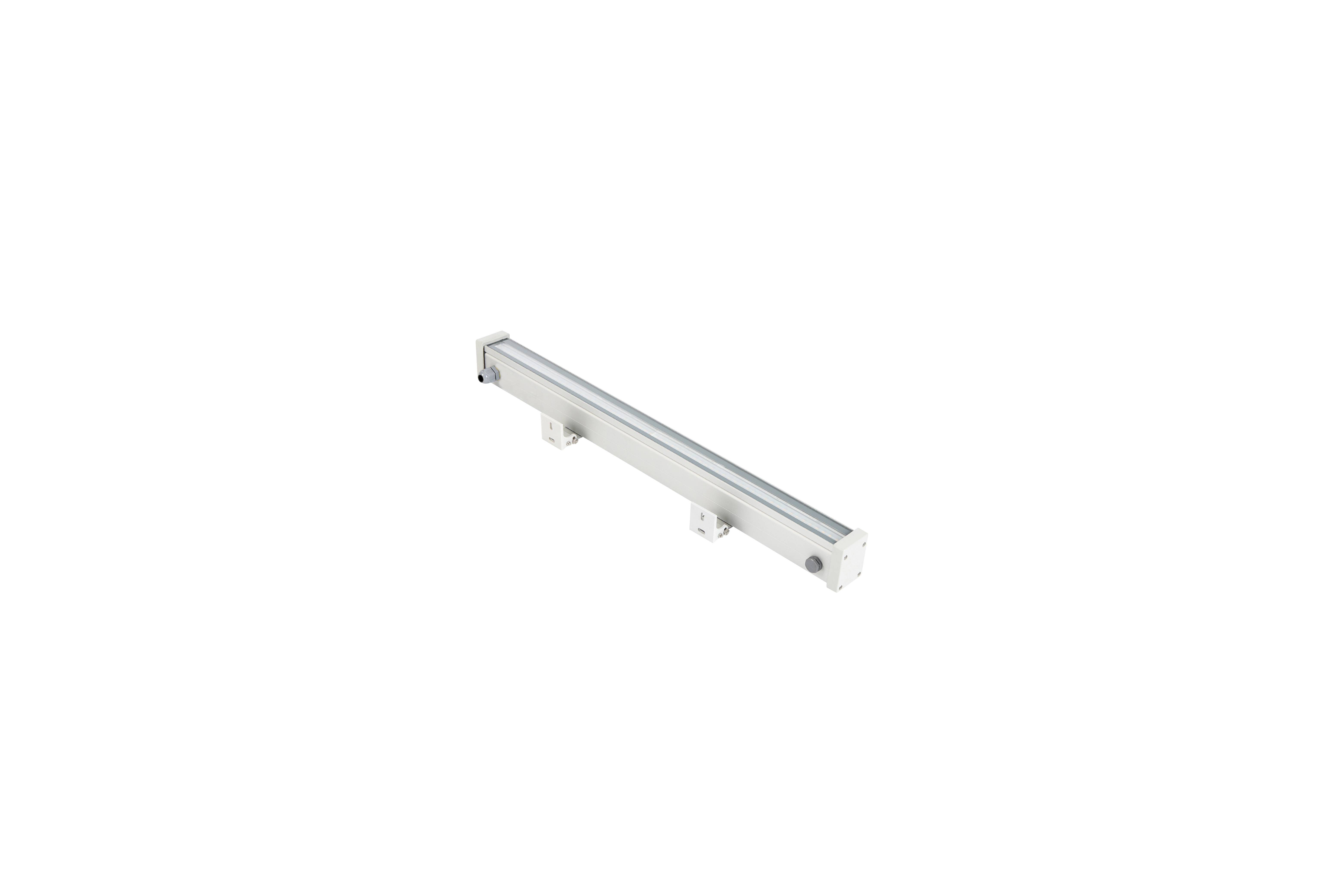

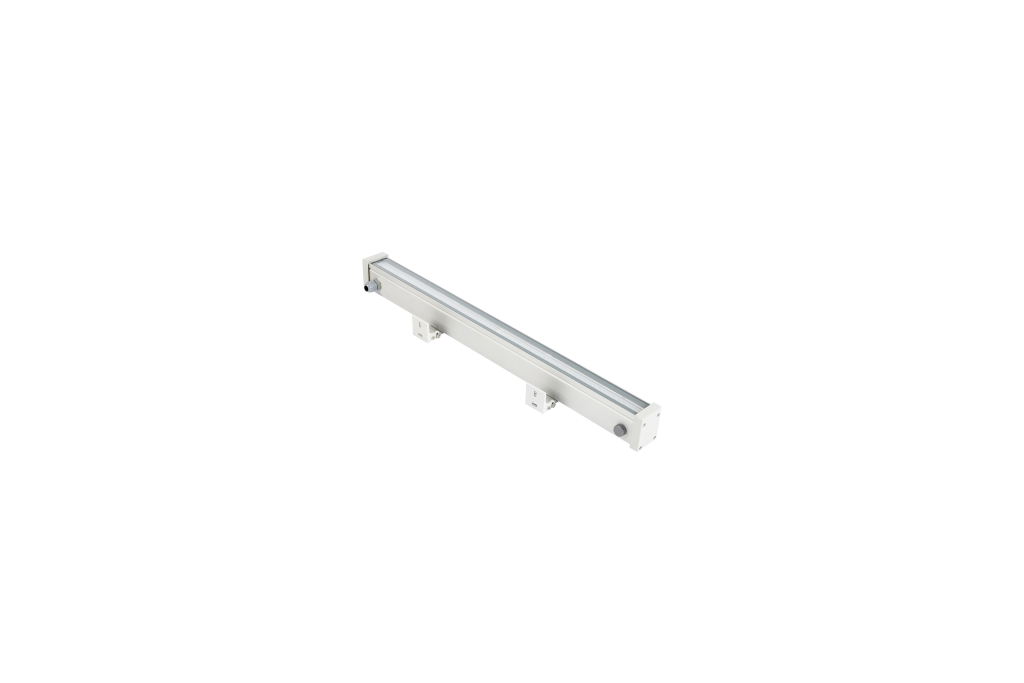

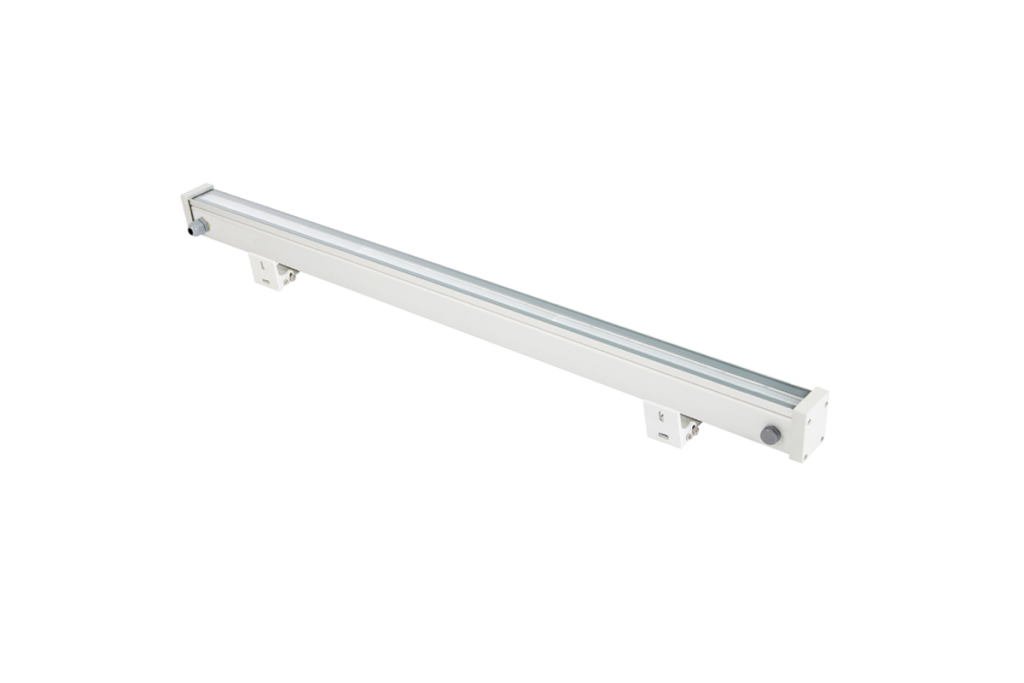

BS Linus DA is a high-performance linear luminaire suitable for a wide range of wall washing, accent, surface grazing, and indirect lighting applications in architectural,
hospitality, and retail environments.
It has multiple customization options to illuminate interior walls, exterior facades, and unique architectural details.
Compact and High Performance
High performance and compact linear wall washing and wall grazing luminaires with impressive versatility.
Innovative light sources and precise optical systems combine to form a high impact and low maintenance lighting system.
Striking dynamic lighting scenarios can be controlled via the DMX-RDM protocol.
Innovative light sources and precise optical systems combine to form a high impact and low maintenance lighting system.
Striking dynamic lighting scenarios can be controlled via the DMX-RDM protocol.
Integrated Solution and Easy to Install
Plug and play built-in system with the fully integrated universal power supply unit.
The watertight plug connector ensures easy, fast and secure installation The robust luminaire fits seamlessly into the architecture.
The watertight plug connector ensures easy, fast and secure installation The robust luminaire fits seamlessly into the architecture.
Individualize the System
We offer you extensive options for the individualization of the BS Linus range.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Linear outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.
Led Type
High efficiency LEDs, Monochrome, RGB or Tunable White available
in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step
MacAdams ellipse and LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant extruded anodized aluminium housing (EN AW-6060)
with stainless steel screws (A4 grade) and silicone rubber gaskets.

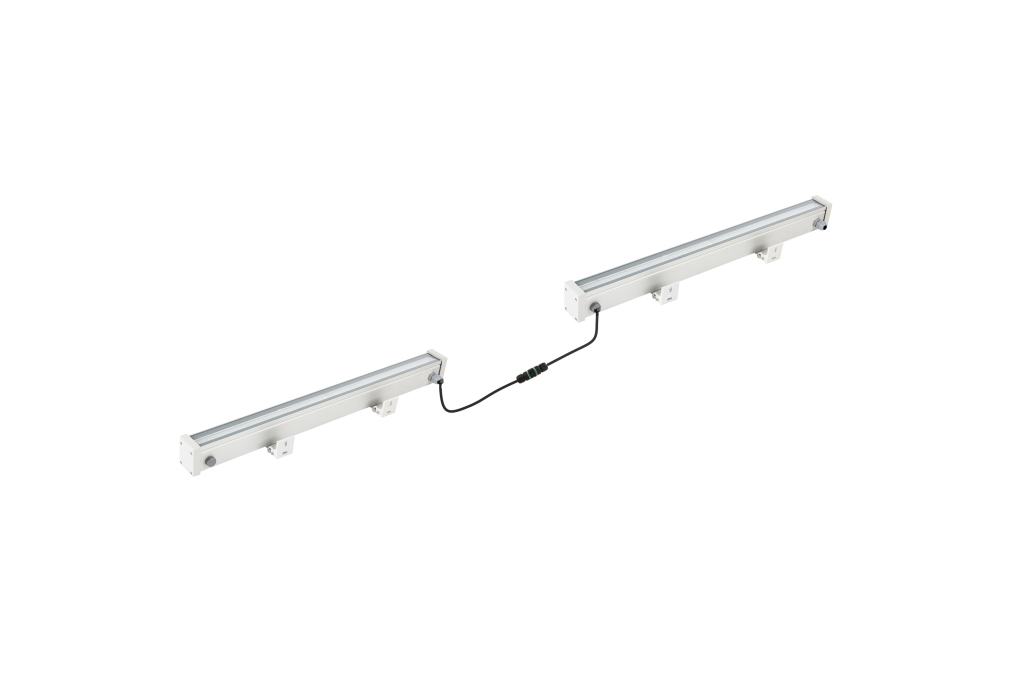

End to end connection via power connectors. Includes wall or ground
mounting brackets. Power unit is built in.
Optional Coating
Marine grade.
Diffuser
Thermal-shock resistant 5mm tempered glass.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP66
IK09
Class I
RGB
RGBW
Dynamic Tunable White
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
DMX / RDM
Color rendering index
198-264 V AC
24V DC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
Dimmable luminaire
LM-80

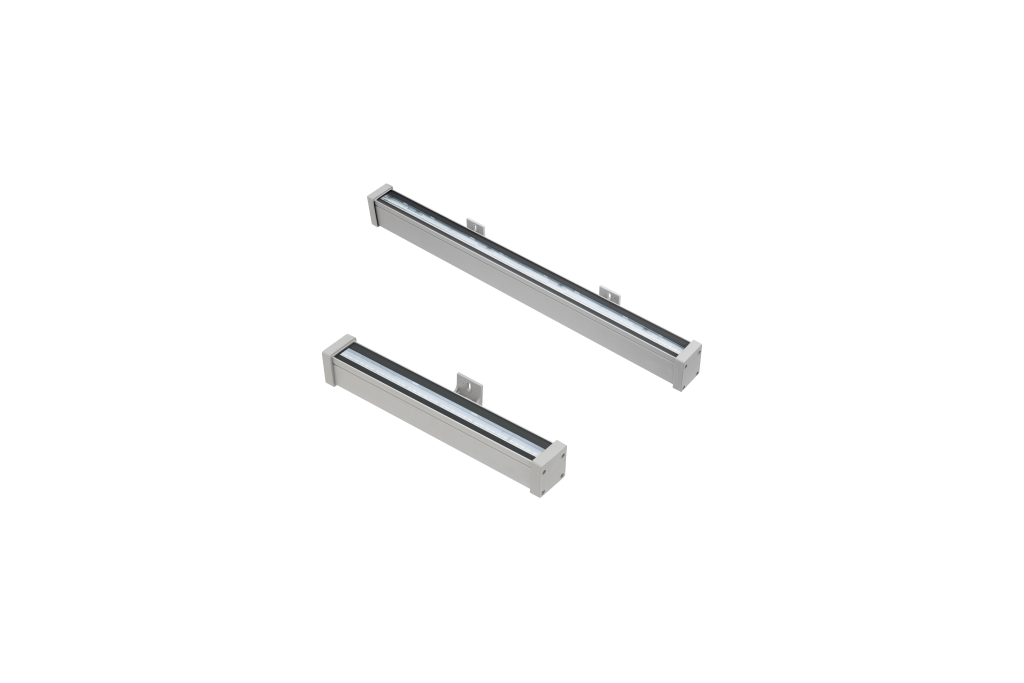

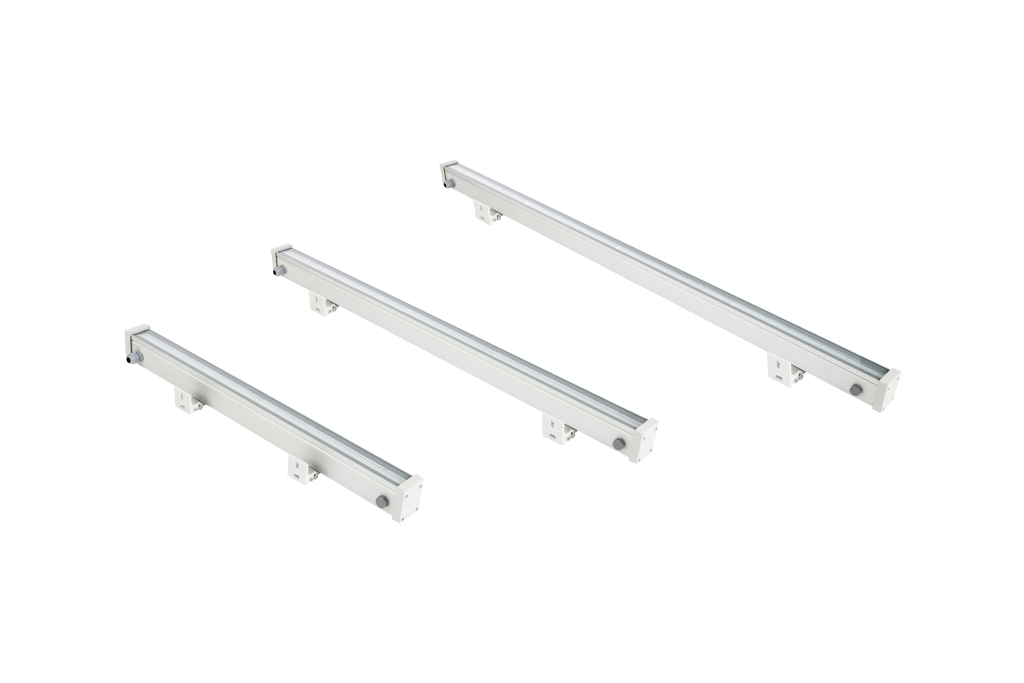

| CODE | LENGTH (mm) | LED QTY | POWER CONSUMPTION | LUMEN OUTPUT (lm) 3000K / 4000K | DOWNLOAD |
|---|---|---|---|---|---|
| AR9344501 MONO | 600 | 64 | 22W | 3295 / 3498 | PRODUCT SHEET PHOTOMETRY |
| AR9344502 MONO | 900 | 96 | 31W | 4670 / 4957 | PRODUCT SHEET PHOTOMETRY |
| AR9344503 MONO | 1200 | 120 | 47W | 6859 / 7280 | PRODUCT SHEET PHOTOMETRY |
| CODE | LENGTH (mm) | LED QTY | POWER CONSUMPTION | LUMEN OUTPUT (lm) RGB | DOWNLOAD |
| AR9344601 RGB | 600 | 72 | 35W | 1362 | PRODUCT SHEET PHOTOMETRY |
| AR9344602 RGB | 900 | 108 | 50W | 2045 | PRODUCT SHEET PHOTOMETRY |
| AR9344603 RGB | 1200 | 144 | 70W | 2863 | PRODUCT SHEET PHOTOMETRY |
| CODE | LENGTH (mm) | LED QTY | POWER CONSUMPTION | LUMEN OUTPUT (lm) RGB | DOWNLOAD |
| AR9344701 TUNABLE | 600 | 64 | 22W | 2911 | PRODUCT SHEET PHOTOMETRY |
| AR9344702 TUNABLE | 900 | 96 | 31W | 4101 | PRODUCT SHEET PHOTOMETRY |
| AR9344703 TUNABLE | 1200 | 128 | 47W | 6218 | PRODUCT SHEET PHOTOMETRY |
