iOtto – BSI Lighting

iOtto

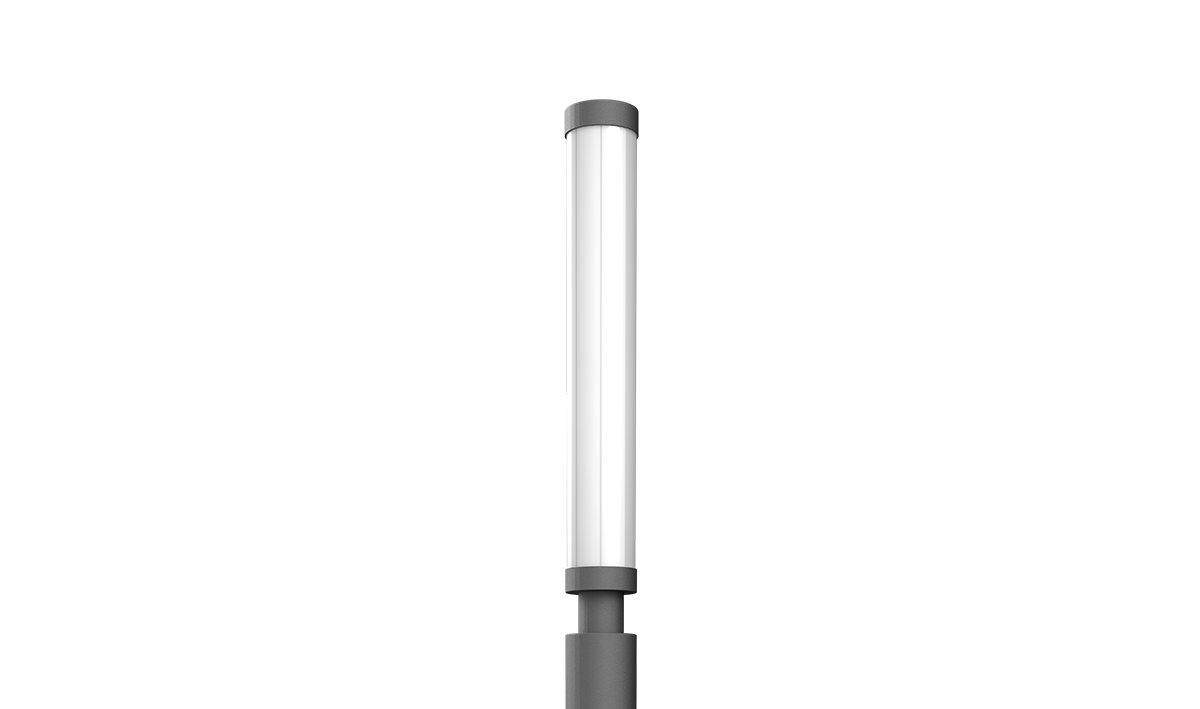

With its simple and attractive design, iOtto light element provides even and comfort lighting. Its slender, streamlined form and minimalist design helps it blend seamlessly into its surroundings.

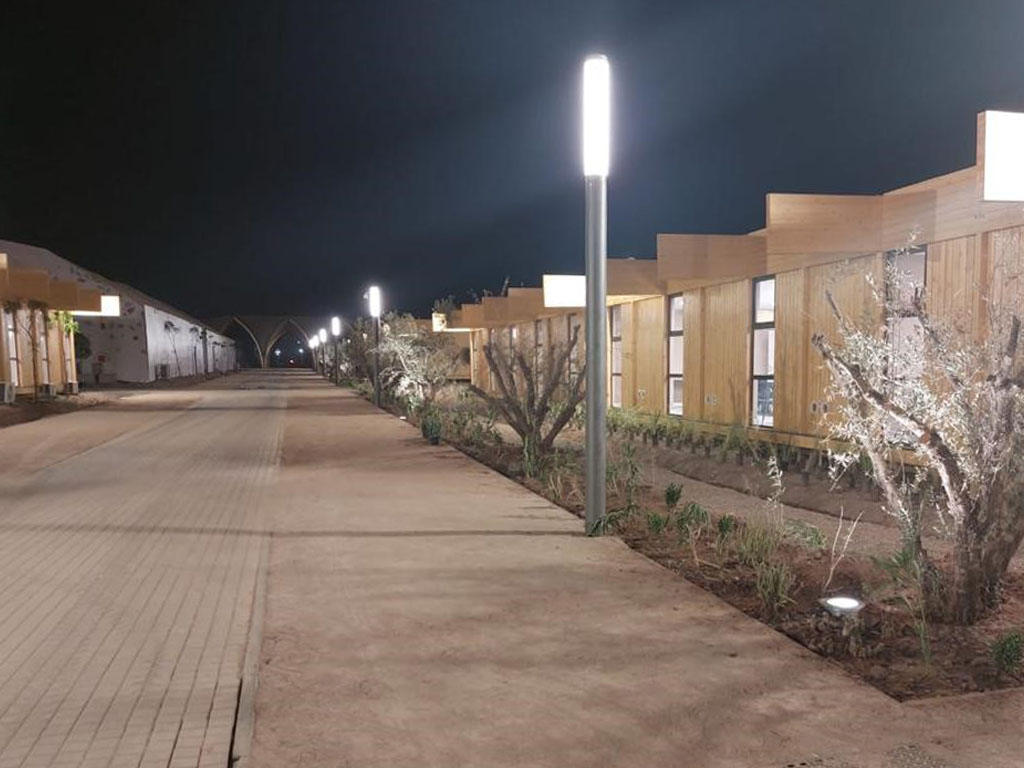

It is particularly suited to the lighting of busy areas such as squares, parks and pedestrian streets.

PRODUCT
GALLERY
OPTICAL
TECHNICAL DATA
CODES
DOWNLOAD FILES

Light column and bollard series with minimal and robust design in different heights, ideal for ambient illumination of squares, avenues, paths, parks, walkways and gardens.

Vertical diffused lighting distribution developed for iOtto guarantees visual comfort, safety and improved quality of space.

Architectural LED light column and bollard range inspires architects, designers and system integrators with its exceptional quality, functional lighting and remarkable creativity.

Designed to last in extremely harsh environments.

Smooth and Pure

Smooth, decorative bollard and light column with clear lines and opal diffusers provide high visual comfort and glare control. The modular luminaires, based on round shape aluminium profile and housing, offer various aesthetic and performance solutions.

For all its diversity and flexibility, iOtto with its purist look stands for an attractive structure that enhances urban environments both by day and by night with design and lighting effects. Basic form in geometry meets the most innovative technology to create this product with its ultra-modern style.

Solid Design and Easy to Install

The solid luminaire, which is equipped with an integral power supply unit, is optionally available with DALI control or in the user-friendly On-Off version.

The product is supplied pre-wired, permitting simple, rapid and safe installation.‎

Individualize the System

We offer you extensive options for the individualization of the iOtto range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.

Architectural

Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.

Sustainable

BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.

Durable

Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

OPTICAL

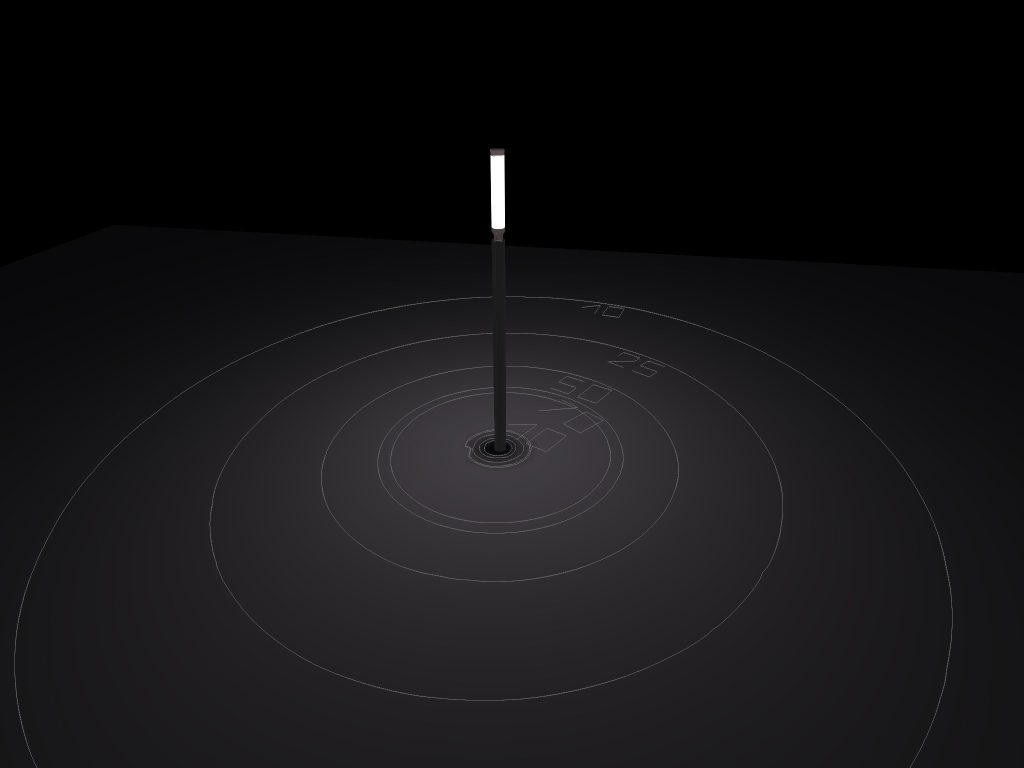

Rotational light distribution

TECHNICAL DATA

Led Type

High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.

Colour Rendering Index

CRI ≥ 80 standard and CRI ≥ 90 on request.

Materials

Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing, aluminium extruded column (EN AW-6060) with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour.

Optional Coating

Marine grade.

Diffuser

Shockproof PMMA UV Stabilised Diffuser.

LED Life Time

L90 - B10 > 100,000h

Operating Temperature

-40°C / +55°C

Power Factor

>0.95

Conformity

Complies with European Standards EN 60598 and CE certified.
