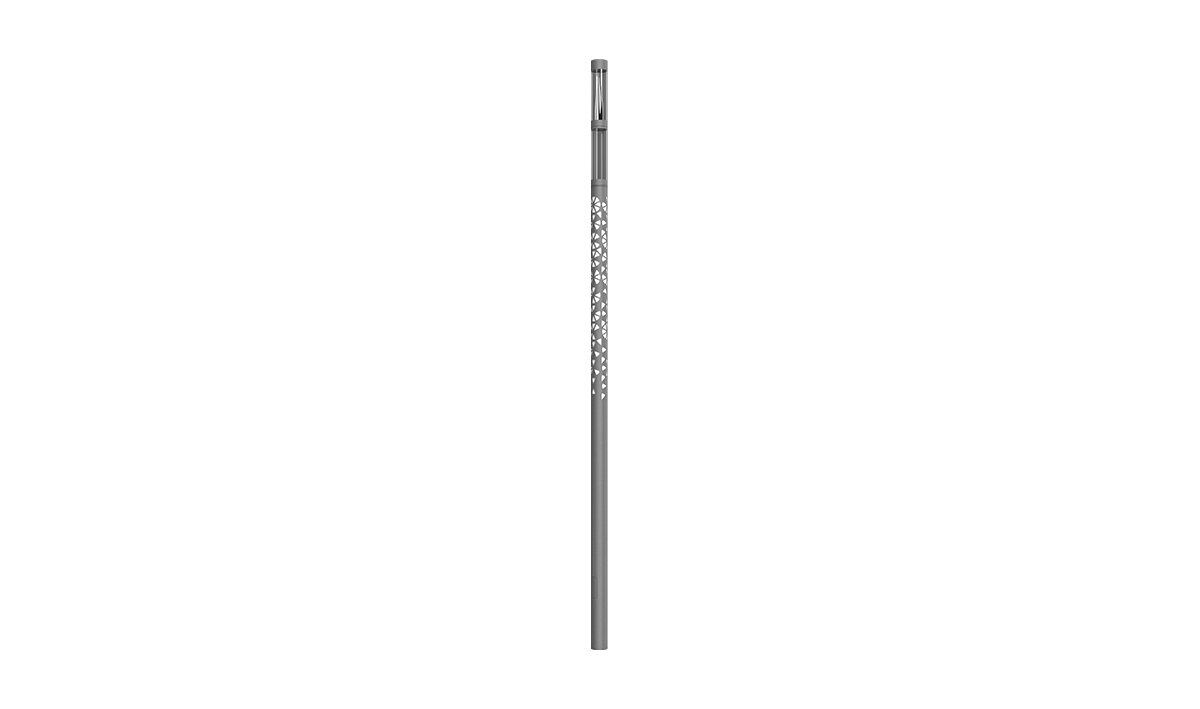

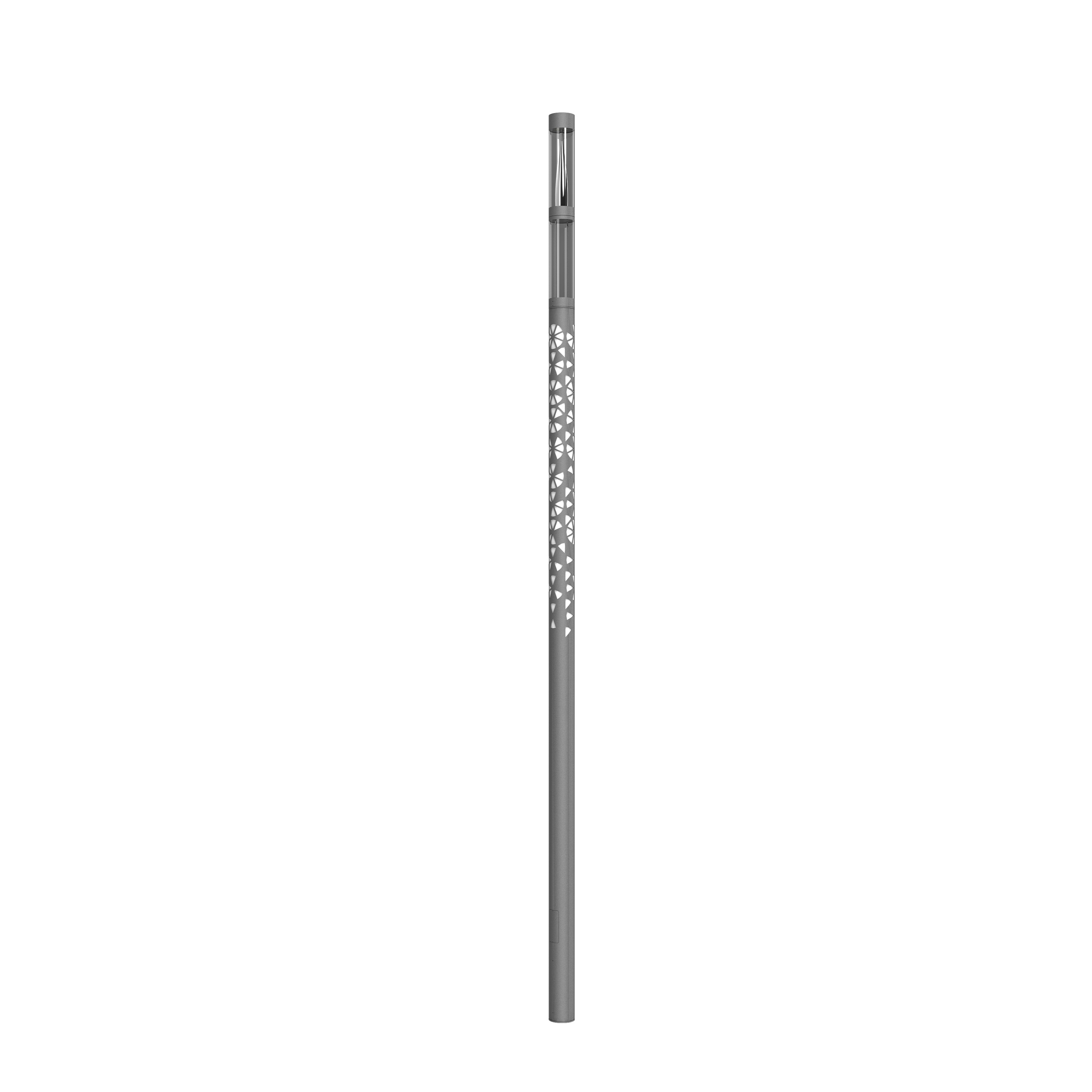

iLia Velur

Light column and bollard series with minimal and robust design in different heights, ideal for glare-free lighting of squares, avenues, paths, parks, walkways and gardens.

PRODUCT
GALLERY
OPTICAL
TECHNICAL DATA
CODES
DOWNLOAD FILES

The innovative optical systems developed for iLia guarantee visual comfort, safety and improved quality of space.

The system offers multiple technologies in one reformer column.

This smart design reduces any mix-up on public spaces while bringing an aesthetic touch to outdoor living spaces.

Architectural LED lighting column range inspires architects, designers and system integrators with its exceptional quality, functional light distribution and remarkable creativity.

Designed to last in extremely harsh environments.

Individual and Functional

The iLia collection is characterized by clean, pure and minimal lines that soberly articulate in space, while responding to a modular and flexible design. The columns are illuminated from the inside and light up the streets at night, while making a statement during the day.

iLia Velur uses high-precision laser cut patterns and improved aluminium reflectors with individual options such as integrated loudspeakers, CCTV cameras, WiFi, intercoms, chargers and more…

The possibility to use various lighting distribution with optional mounting heights allows designers to illuminate differing urban spaces with original system configurations.

Modern Design and Easy to Install

Modern design adapted to the requirements and conditions of the client and project (logo, emblem or any pattern adjusted to surrounding).

The luminaire is equipped with an integral power supply unit, is optionally available with DALI control or in the user-friendly On-Off version.

The columns can be illuminated from the inside by an independent light source, so that even at night the column is an interesting feature in the landscape.

The product is supplied pre-wired, permitting simple, rapid and safe installation.‎

Individualize the System

We offer you extensive options for the individualization of the iLia range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.

Architectural

Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.

Sustainable

BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.

Durable

Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

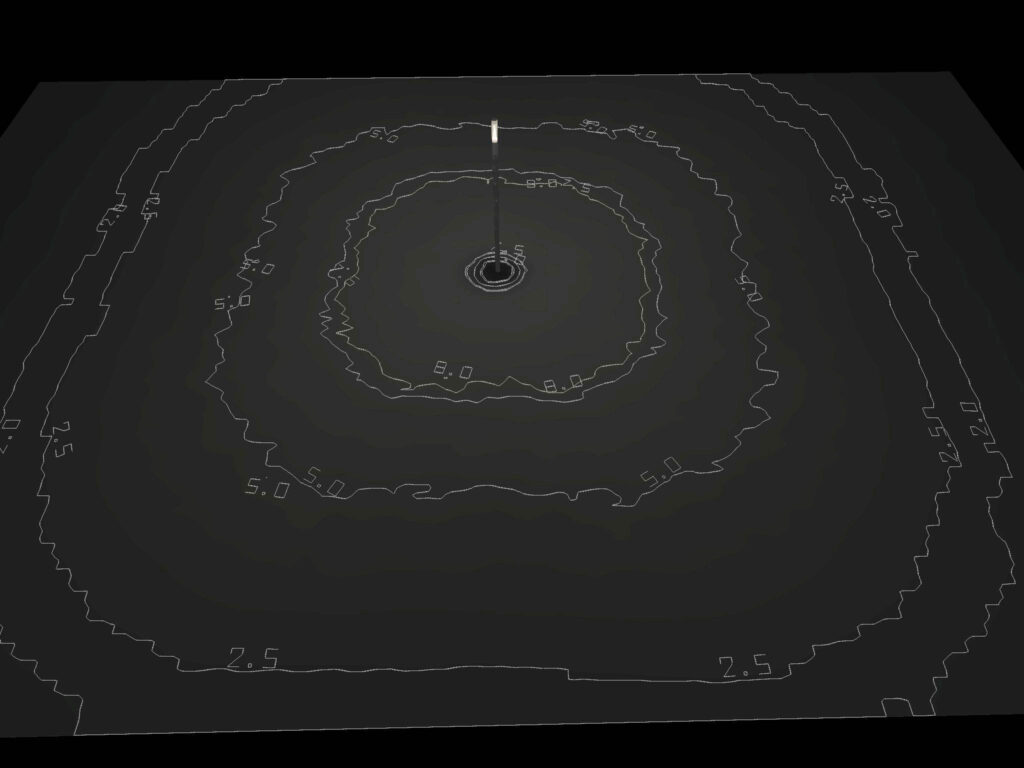

OPTICAL

45°

60°

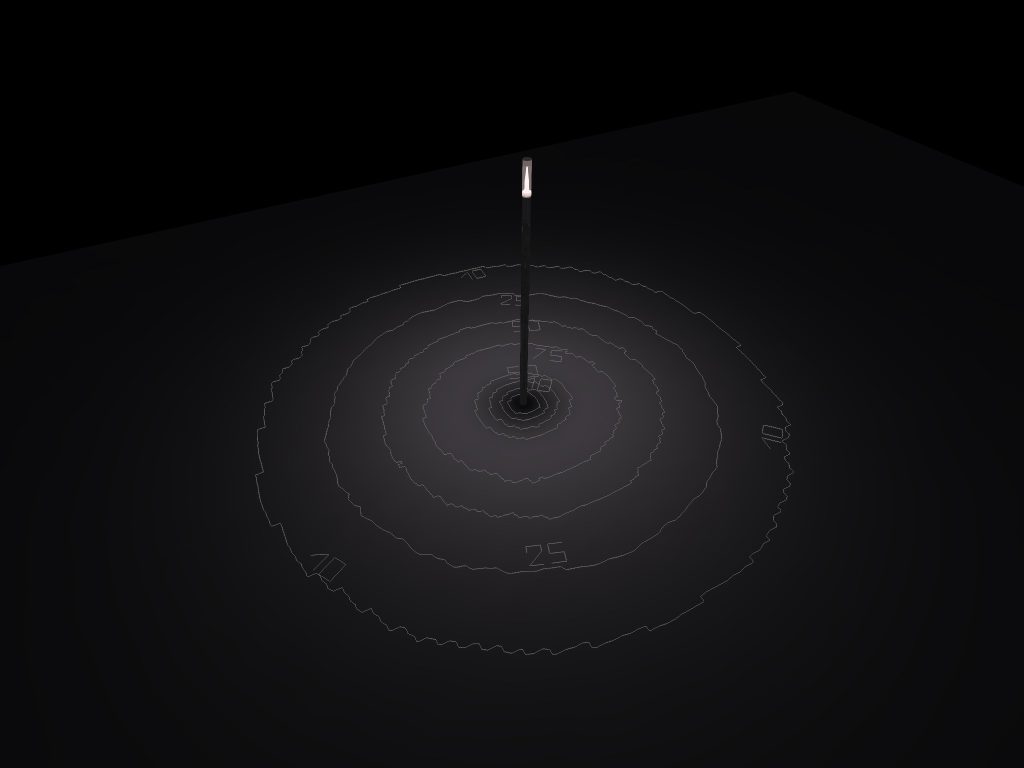

90°

Asymmetric M3

TECHNICAL DATA

Led Type

High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.

Colour Rendering Index

CRI ≥ 80 standard and CRI ≥ 90 on request.

Materials

Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing, aluminium extruded column (EN AW-6060) with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour.

Optional Coating

Marine grade.

Diffuser

Thermal-shock resistant tempered glass.

LED Life Time

L90 - B10 > 100,000h

Operating Temperature

-40°C / +55°C

Power Factor

>0.95

Conformity

Complies with European Standards EN 60598 and CE certified.
