iTubo FL

Compact LED floodlight range ideal to highlight and emphasize architectural details or plants and also perfect to illuminate walls, facades and monumental structures.

iTubo FL provides a high-intensity wash of light with customisable beam angles for architectural floodlighting.

The head is adjustable, making it easy to focus incident light on the exposed element.

Advanced thermal design with cutting-edge manufacturing process and materials.

PRODUCT
GALLERY
OPTICAL
TECHNICAL DATA
CODES
DOWNLOAD FILES

iTubo Series provide an elegant solution for lighting various environments in towns and cities such as urban and residential streets, squares, parks, pedestrian areas and car parks.

Architectural floodlight range inspires architects, designers and system integrators with its exceptional quality, a variety of beam angles and remarkable creativity.

Designed to last in extremely harsh environments.

Stylish and Creative

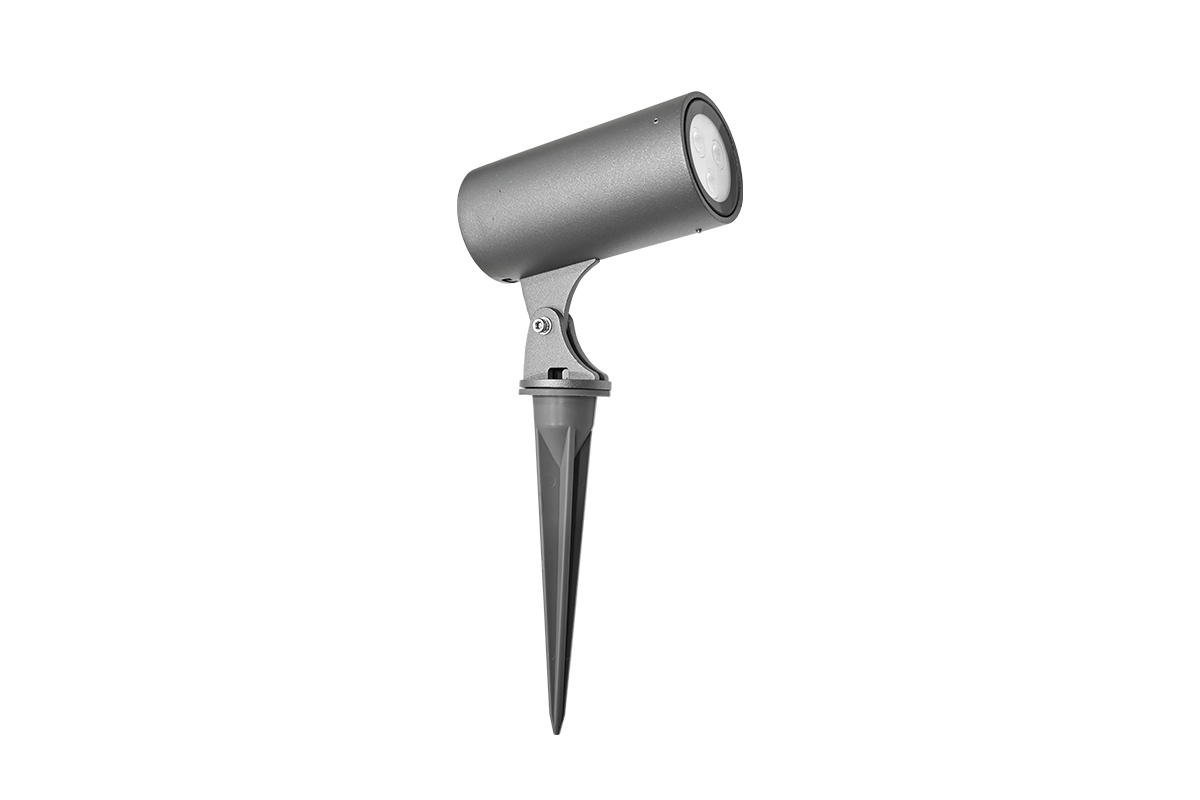

A stylish but discreet spotlight that will give your outdoor space the accent it deserves at night. Available as a wall lamp or a minimalist ground spike. The combination of floodlights with different optics makes creative lighting scenarios possible. Innovative optic technology with special lenses provides a combination of comfort, power and a clear, sharp light beam.‎

Integrated Solution and Elegant Design

Plug and play built-in system with the fully integrated universal power supply unit. iTubo is available with a mounting bracket which allows the spotlight to be precisely adjusted and tilted on site.

Individualize the System

We offer you extensive options for the individualization of the iTubo range. To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.

Architectural

Ensure aesthetic and technical coherence for all types of applications in urban areas. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.

Sustainable

BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.

Durable

Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

OPTICAL

12°

25°

30°

45°

60°

TECHNICAL DATA

Led Type

High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.

Colour Rendering Index

CRI ≥ 80 standard and CRI ≥ 90 on request.

Materials

Corrosion resistant double layer polyester powder coated paint finish aluminium housing (EN AW-6060) with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour.

Optional Coating

Marine grade.

Diffuser

Thermal-shock resistant tempered glass.

LED Life Time

L90 - B10 > 100,000h

Operating Temperature

-40°C / +55°C

Power Factor

>0.95

Conformity

Complies with European Standards EN 60598 and CE certified.

LED

IP67

IK08

Class I

European conformity

RoHS compliant

No IR

No UV

Durable

DALI interface

Color rendering index

220V AC

Suitable for extreme conditions

Temperature is suitable for contact

F mark

Luminaires with high visual comfort

Dimmable luminaire

LM-80

CODES

CODE
LENGTH (mm)
PITCH
(mm)
LED QTY
POWER
CONSUMPTION
350mA
POWER
CONSUMPTION
500mA
LUMEN OUTPUT (lm)
3000K / 4000K
350mA
LUMEN OUTPUT (lm)
3000K / 4000K
500mA
DOWNLOAD

CODES

CODE	POWER CONSUMPTION	LUMEN OUTPUT (lm) 3000K / 4000K	COLOUR TEMPERATURE	DOWNLOAD
FL938101	3W	405 / 426	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
FL938102	6W	810 / 852	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
FL938103	9W	1215 / 1278	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
