iSigma

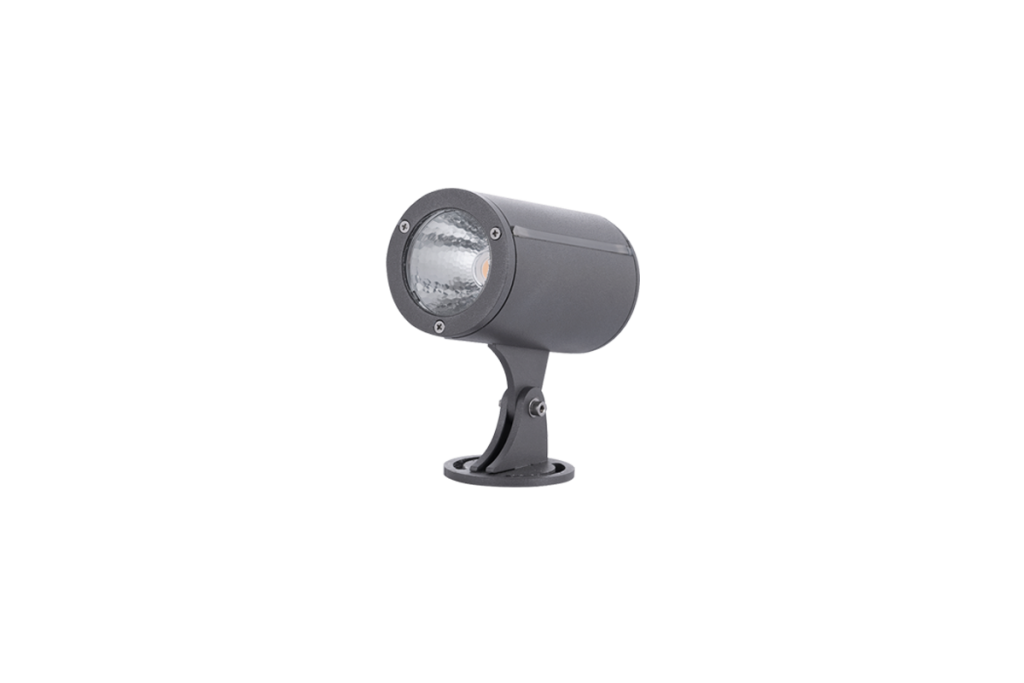

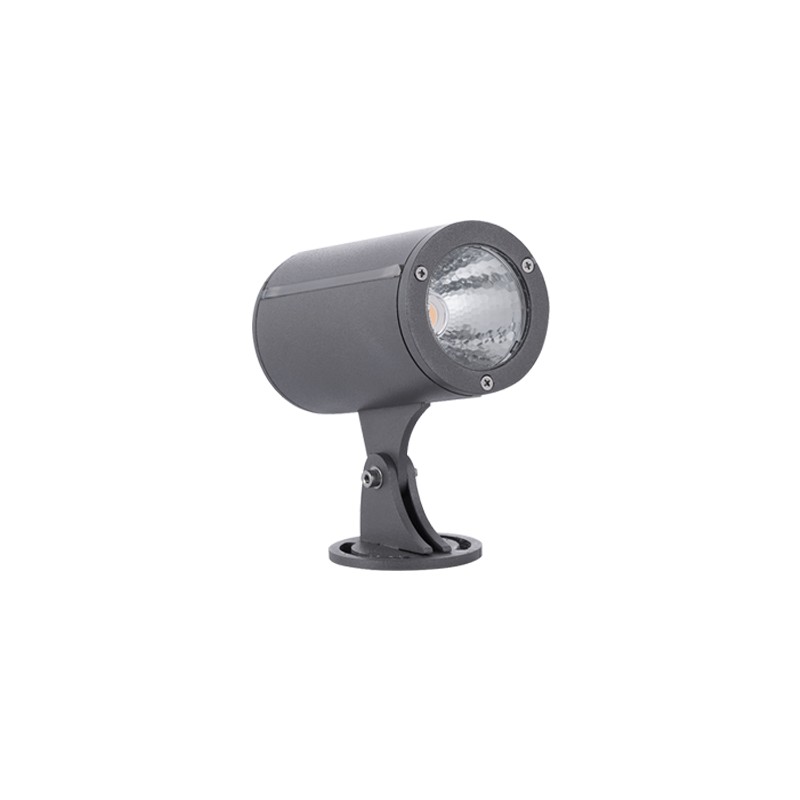

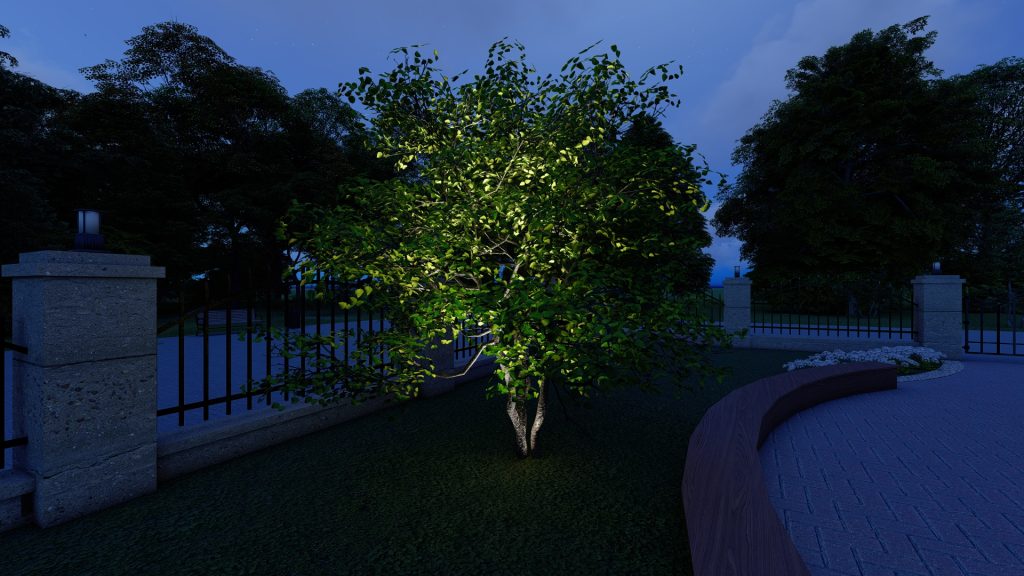

Compact LED floodlight range ideal to highlight and emphasize architectural details or plants and also perfect to illuminate walls, facades and monumental structures.

iSigma provides a high-intensity wash of light with customisable beam angles for architectural floodlighting.

The head is adjustable, making it easy to focus incident light on the exposed element.

PRODUCT
GALLERY
OPTICAL
TECHNICAL DATA
CODES
DOWNLOAD FILES

The iSigma floodlight is a reliable partner for any project, large or small.

Its compact size makes it the perfect solution and offers more than expected.

Architectural floodlight range inspires architects, designers and system integrators with its exceptional quality, a variety of beam angles and remarkable creativity.

Designed to last in extremely harsh environments.

Stylish and Creative

A stylish but discreet spotlight that will give your outdoor space the accent it deserves at night.

Available as a wall lamp or a minimalist ground spike.

The combination of floodlights with different optics makes creative lighting scenarios possible. Innovative optic technology with special lenses provides a combination of comfort, power and a clear, sharp light beam.‎

Integrated Solution and Elegant Design

Plug and play built-in system with the fully integrated universal power supply unit.

Adjustable micro spotlight is easily integrated into the gardens, facades and walkways, enhances the scene with quality light.

Individualize the System

We offer you extensive options for the individualization of the iSigma range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.

Architectural

Ensure aesthetic and technical coherence for all types of applications in urban areas. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.

Sustainable

BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.

Durable

Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

OPTICAL

15°

24°

36°

60°

TECHNICAL DATA

Led Type

High efficiency LEDs COB, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.

Colour Rendering Index

CRI ≥ 80 standard and CRI ≥ 90 on request.

Materials

Corrosion resistant double layer polyester powder coated paint fnish die cast aluminium housing with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour.

Optional Coating

Marine grade.

Diffuser

Thermal-shock resistant tempered glass.

LED Life Time

L90 - B10 > 100,000h

Operating Temperature

-40°C / +55°C

Power Factor

>0.95

Conformity

Complies with European Standards EN 60598 and CE certified.

LED

IP67

IK08

Class I

European conformity

RoHS compliant

No IR

No UV

Durable

DALI interface

Color rendering index

220V AC

Suitable for extreme conditions

Temperature is suitable for contact

F mark

Luminaires with high visual comfort

LM-80

CODES

CODE
LENGTH (mm)
PITCH
(mm)
LED QTY
POWER
CONSUMPTION
350mA
POWER
CONSUMPTION
500mA
LUMEN OUTPUT (lm)
3000K / 4000K
350mA
LUMEN OUTPUT (lm)
3000K / 4000K
500mA
DOWNLOAD

CODES

CODE	POWER CONSUMPTION	LUMEN OUTPUT (lm) 3000K / 4000K	COLOUR TEMPERATURE	DOWNLOAD
FL928101	3W	3330 / 360	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
FL928102	6W	660 / 720	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
FL928103	9W	990 / 1080	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
FL928104	12W	1320 / 1440	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
FL928105	18W	1980 / 2160	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
FL928106	24W	2640 / 2880	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
FL928107	38W	4180 / 4560	3000K / 4000K	PRODUCT SHEET PHOTOMETRY
