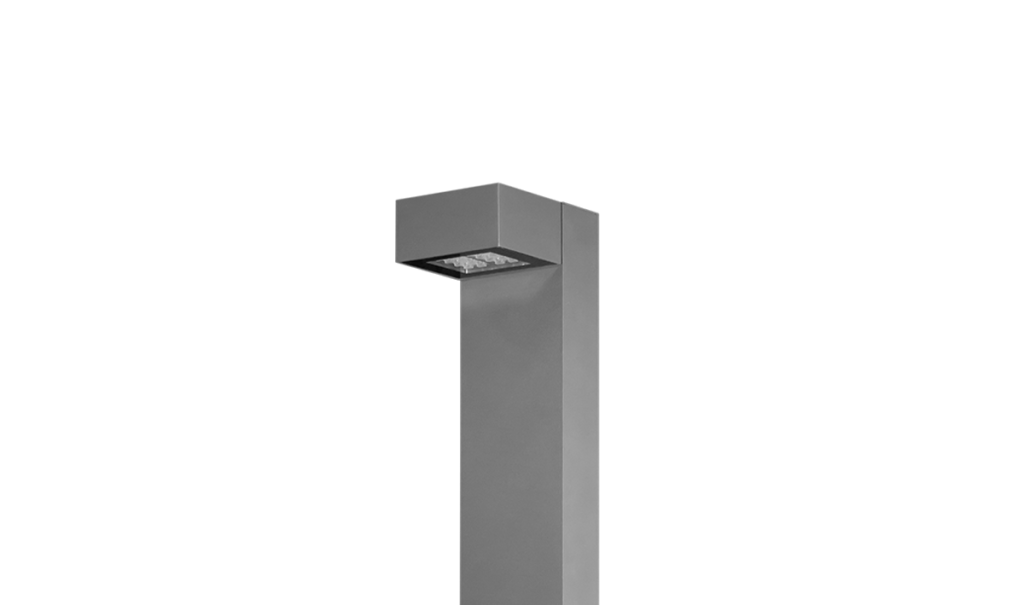

iMistral T

Rectangular shape LED lighting element and bollard with innovative technology and modern design.

iMistral-T offers outstanding light efficiency and integrates itself through the design into historic and modern surroundings with asymmetrical optics. The LED system offers durability and optimal lumen output. BSISQ® LED Module integrated.

Illuminating light design elements with modularity and multifunctionality.

iMistral is a family of robust and high-quality construction light elements, designed on the basis of rectangular shapes.

The series offers a high level of performance and visual comfort, creating the right atmosphere for all applications.

Its design gives a coherent and elegant identity to the cityscape.

Architectural LED lighting column range inspires architects, designers and system integrators with its exceptional quality, a variety of beam angles and remarkable creativity.

Versatile and High-Performance
With a minimalist lighting system and distinctive compact features, illuminates in a versatile way and discreetly blends into its surroundings. .

The luminaire with stylized appearance and with improvements in installation, maintenance and service life offers a wide variety of light distributions that ensure effective values, visual comfort and light output for pedestrian areas and streets without light pollution.

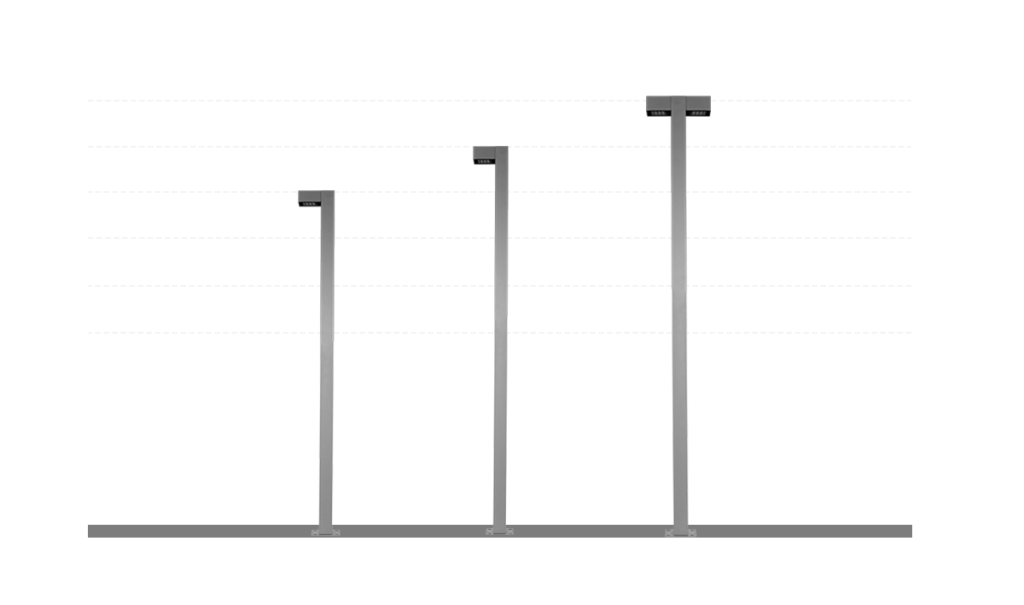

The possibility to use various photometric distribution with optional mounting heights allows designers to illuminate differing urban spaces with original system configurations.
Aesthetic and Easy to Install
Charming and independent: The light element is an aesthetic sight by day and night.

The luminaire is equipped with an integral power supply unit, is optionally available with DALI control or in the user-friendly On-Off version.

The product is supplied pre-wired, permitting simple, rapid and safe installation.‎
Individualize the System
We offer you extensive options for the individualization of the iMistral range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

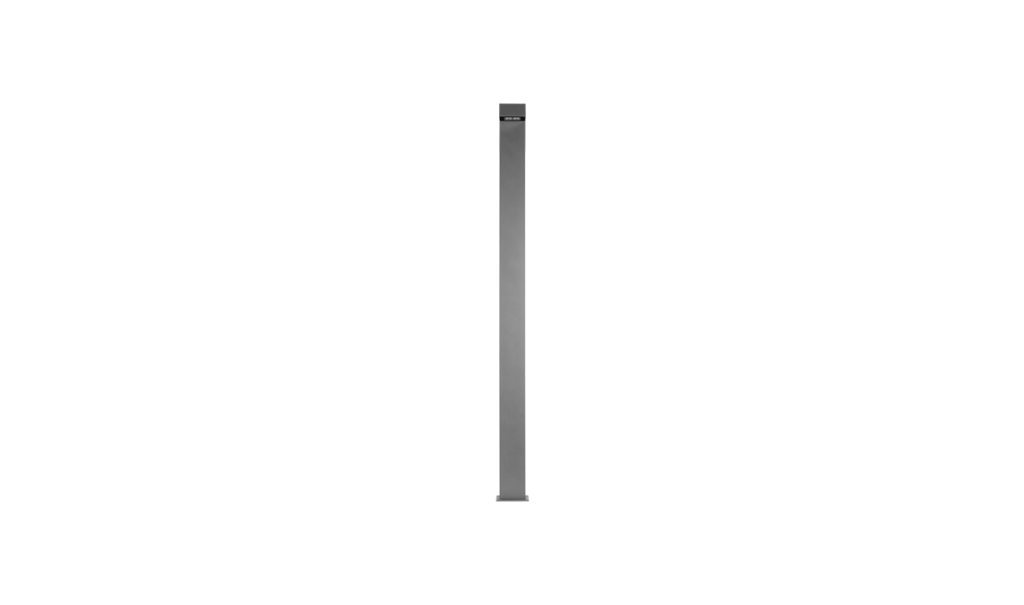

GALLERY

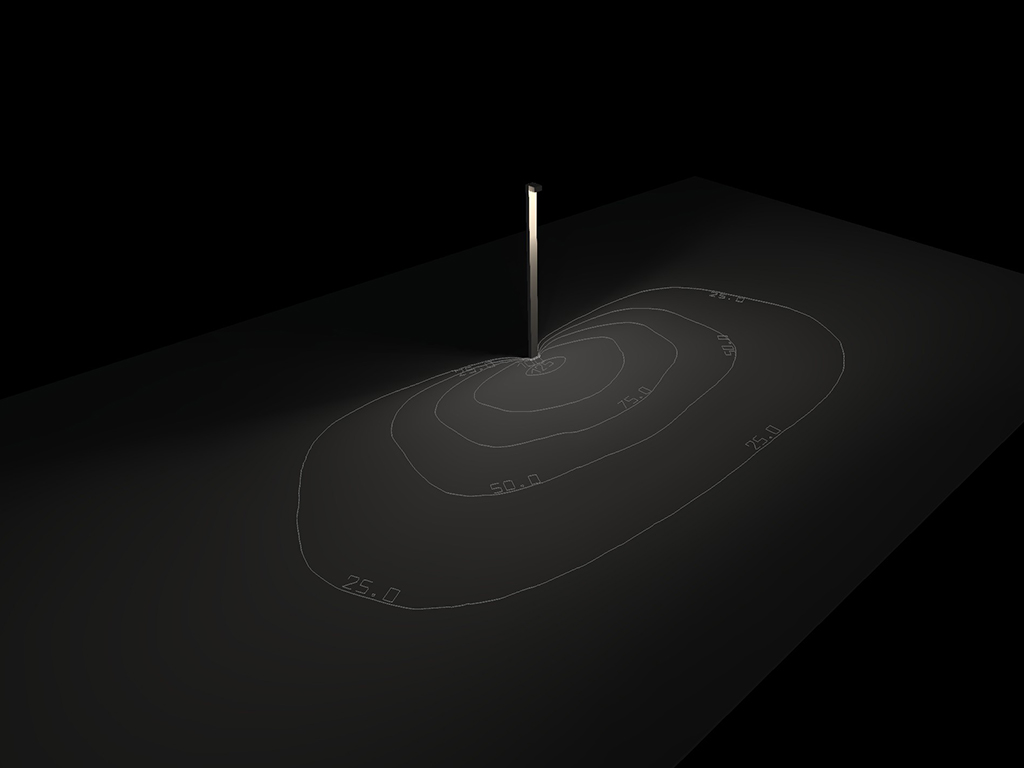

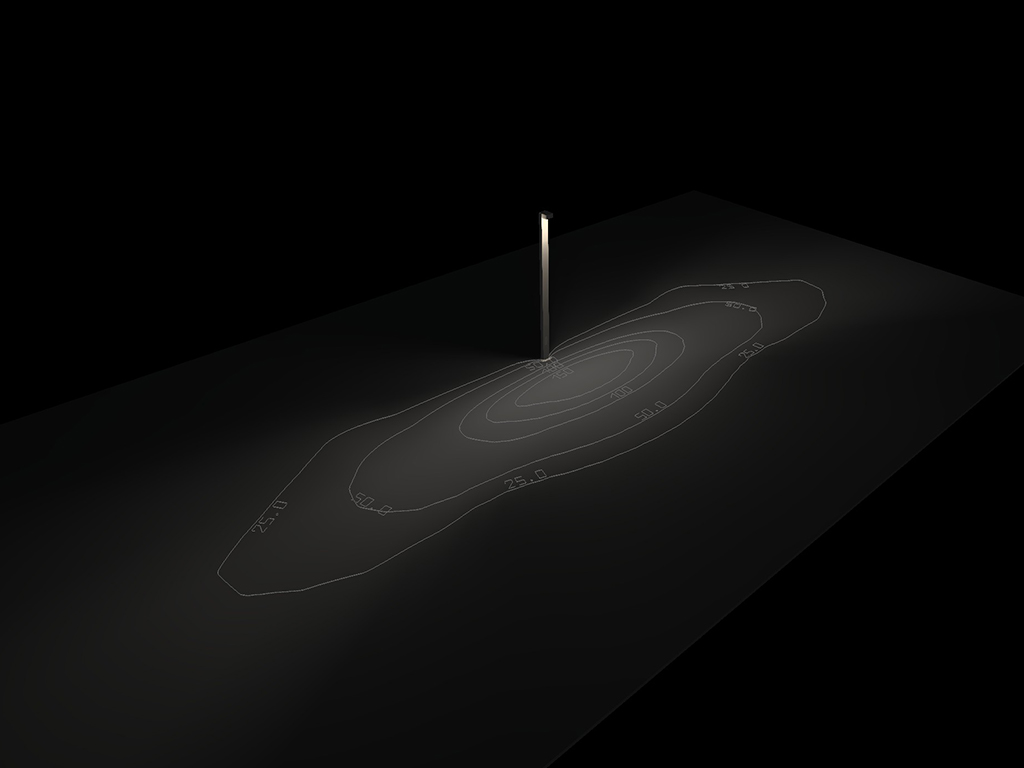

OPTICAL

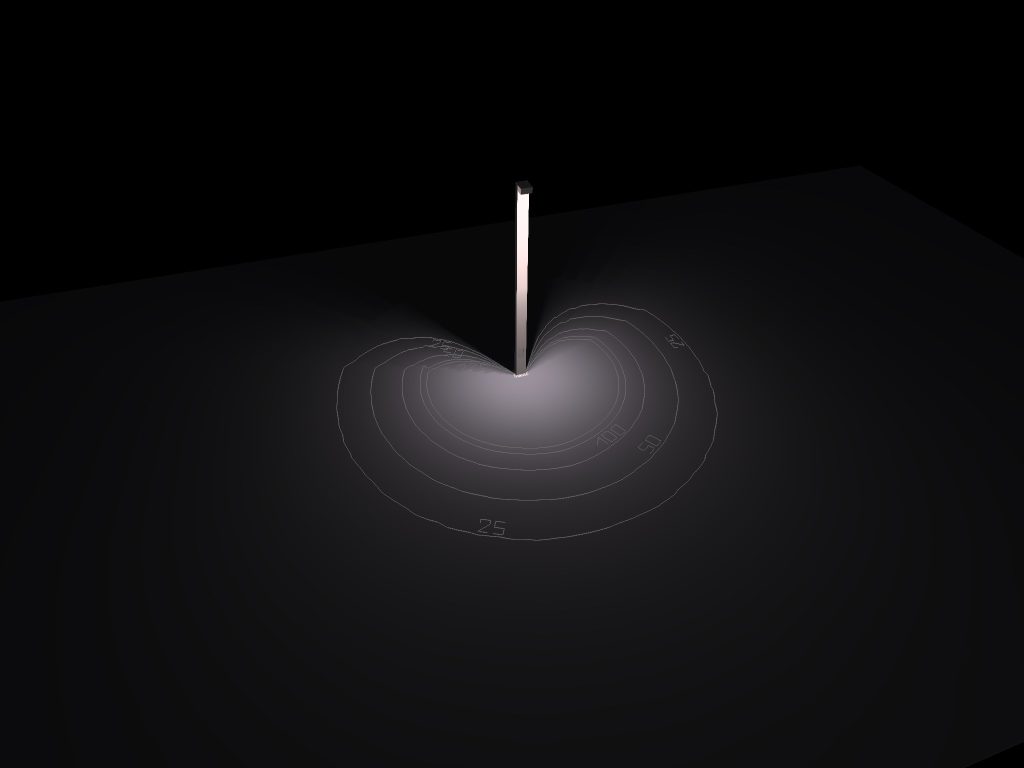

40°

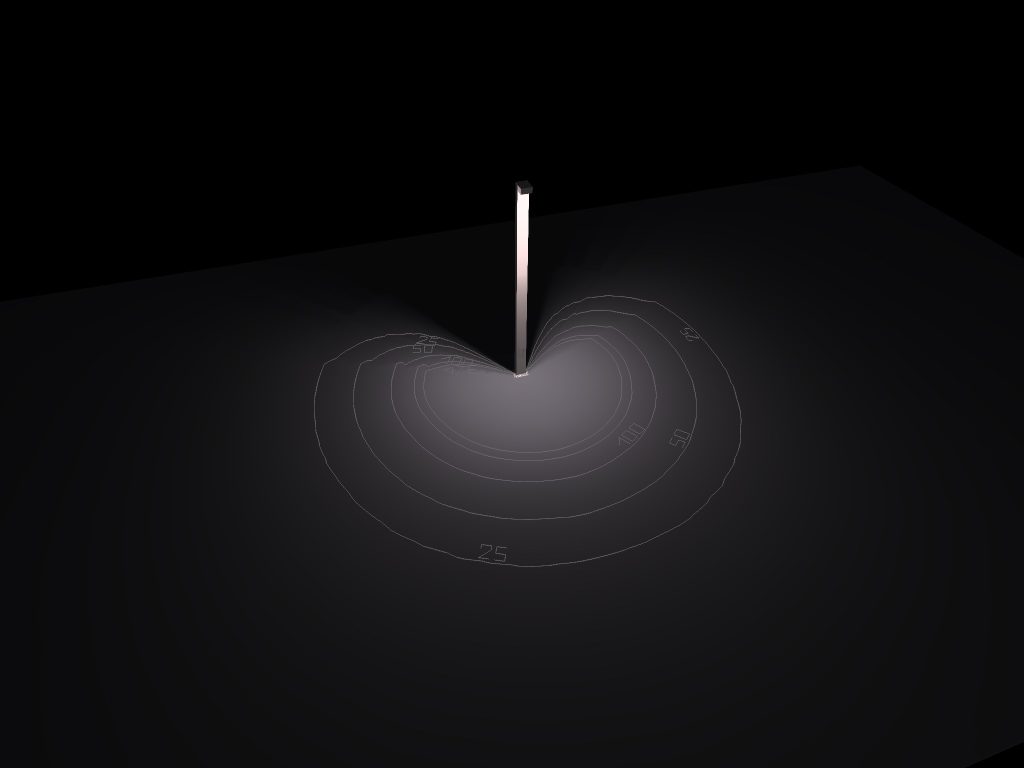

60°

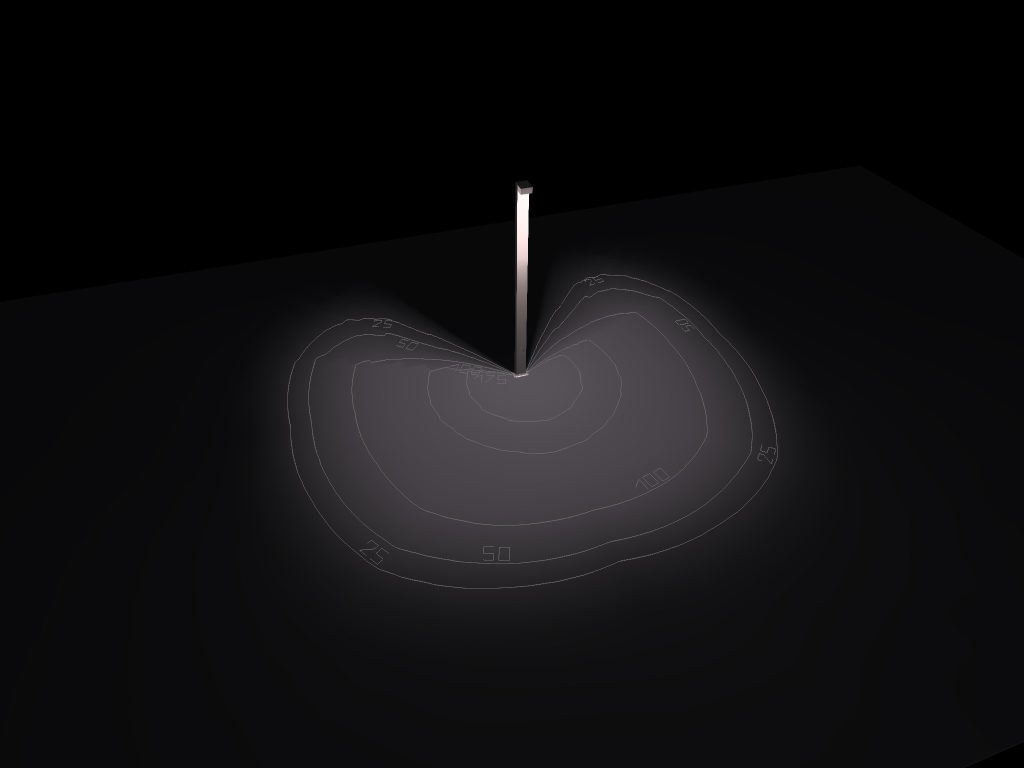

90°

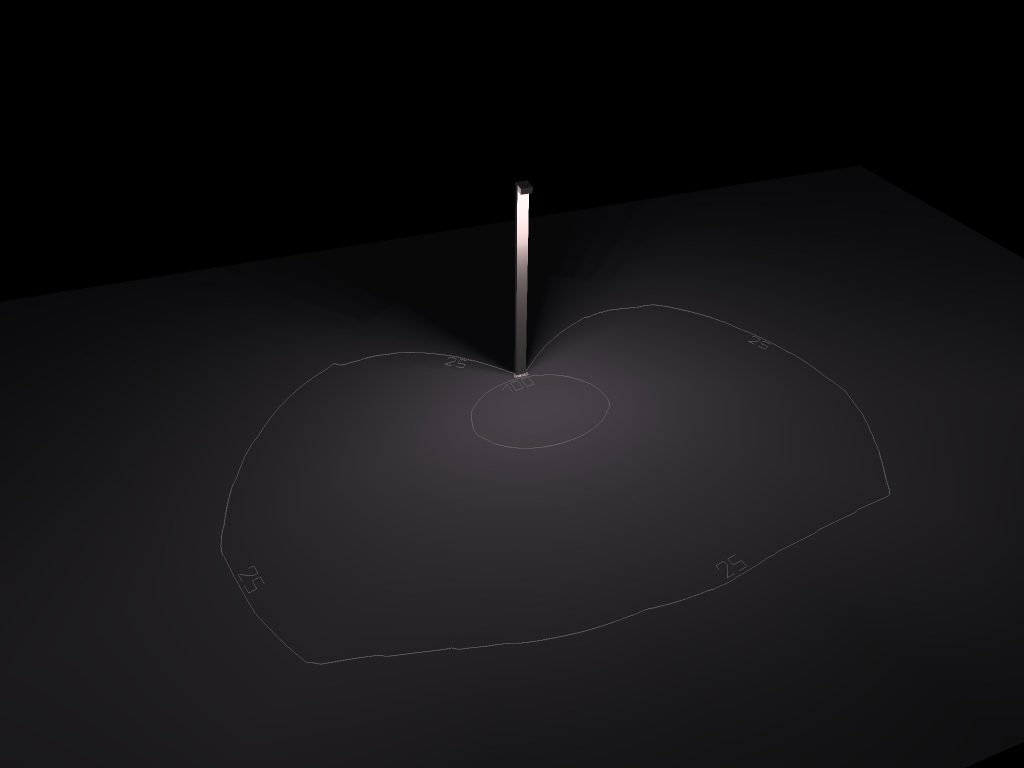

M3

TECHNICAL DATA

Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing, aluminium extruded column (EN AW-6060) with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour.
Optional Coating
Marine grade.
Diffuser
Thermal-shock resistant tempered glass.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP66
IK08
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
Color rendering index
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
Dimmable luminaire
LM-80

CODES

  • CODE
  • LENGTH (mm)
  • PITCH
    (mm)
  • LED QTY
  • POWER
    CONSUMPTION
    350mA
  • POWER
    CONSUMPTION
    500mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    350mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    500mA
  • DOWNLOAD
2

CODES

CODEPOWER
CONSUMPTION		LUMEN OUTPUT (lm)
3000K / 4000K		COLOUR TEMPERATUREDOWNLOAD
LB139554W7290 / 76683000K / 4000KPRODUCT SHEET PHOTOMETRY
LB139672W9720 / 102243000K / 4000KPRODUCT SHEET PHOTOMETRY

DOWNLOAD FILES

PHOTOMETRICS
PRODUCT CATALOGUE
CERTIFICATIONS
2D DXF
TECHNICAL DRAWING PDF
INSTALLATION GUIDE
RANGE CATALOGUE
PRODUCT IMAGE
3D MODEL
TECHNICAL DRAWING PNG
