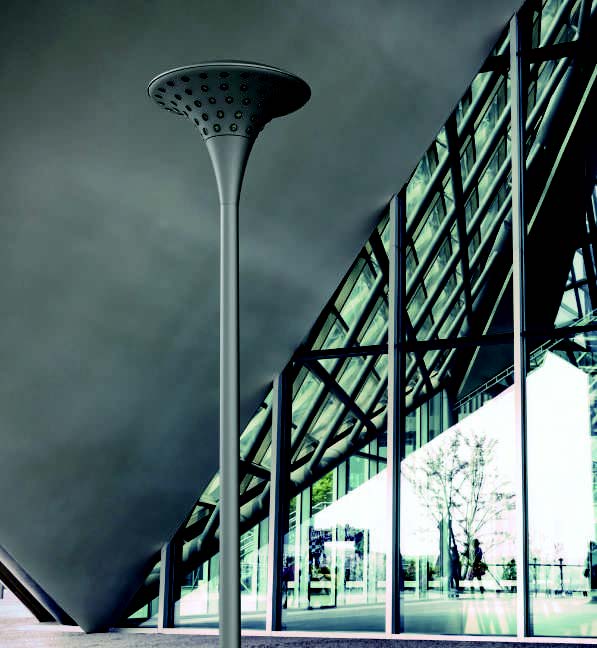

iFizy is a lighting system for urban areas with a unique architectural shape and a sophisticated light signature.
A harmonious balance between performance and comfort with the use of innovative LEDs. BSIFIX® Module integrated.

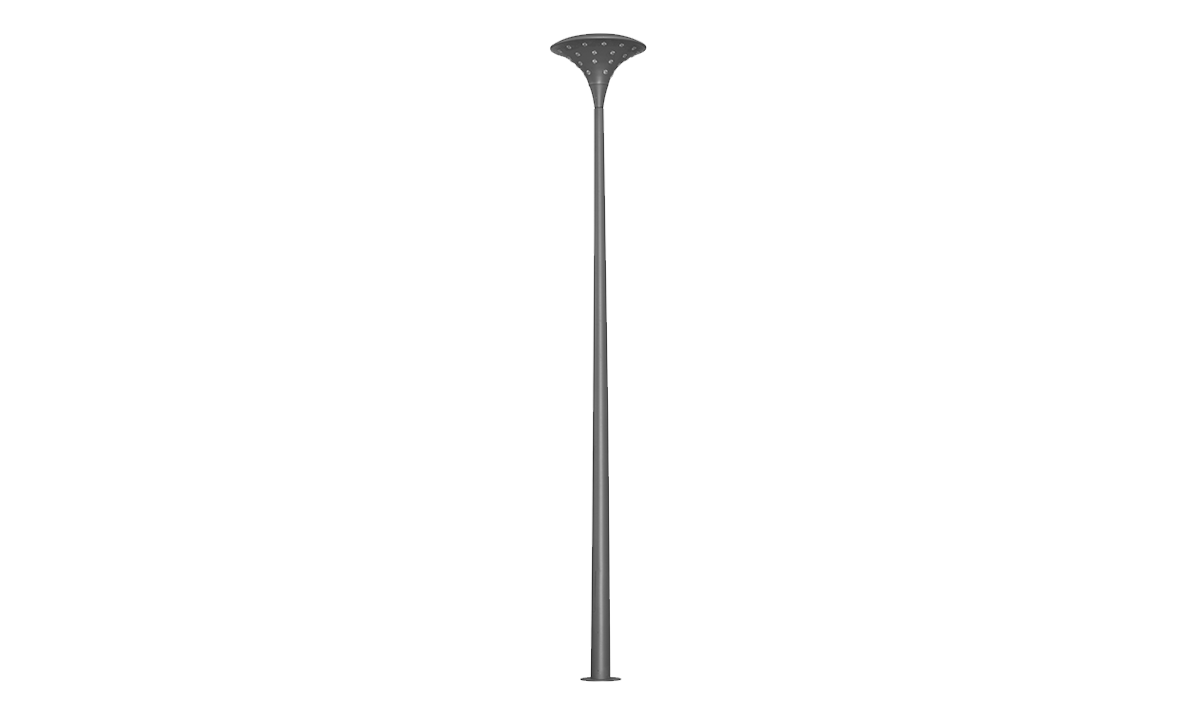

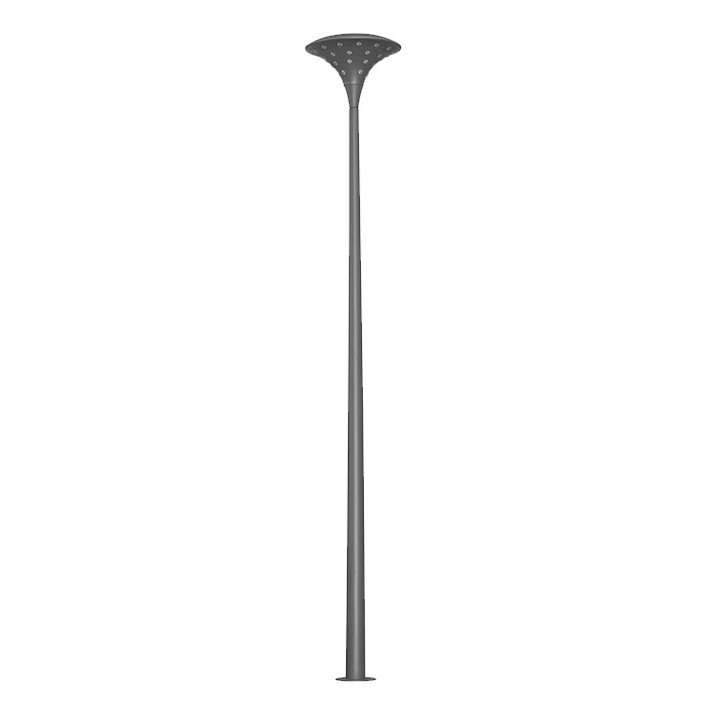

iFizy
Lighting system for large urban areas with asymmetrical and symmetrical optics with independent modules for excellent illuminance uniformity and optimum visual comfort.
The remarkably refined design of iFizy enhances the urban landscape. From residential areas, streets to squares, parks and public spaces, the system perfectly blends into various urban districts.
Architectural LED lighting luminaire range inspires architects, designers and system integrators with its exceptional quality, a variety of beam angles and remarkable creativity.
Designed to last in extremely harsh environments.
Distinctive and Effective

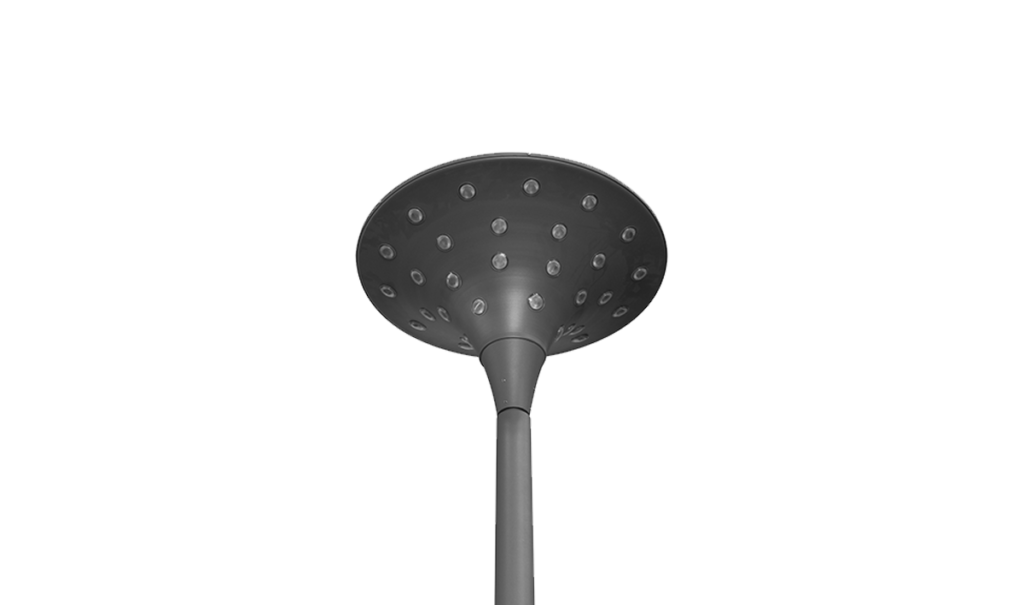

With its distinctive and elegant design, the iFizy luminaire is a plus for creating a unique identity for any environment. The luminaire with stylized appearance and with improvements in installation, maintenance and service life offers a wide variety of light distributions that ensure effective values, visual comfort and light output for pedestrian areas and streets without light pollution.

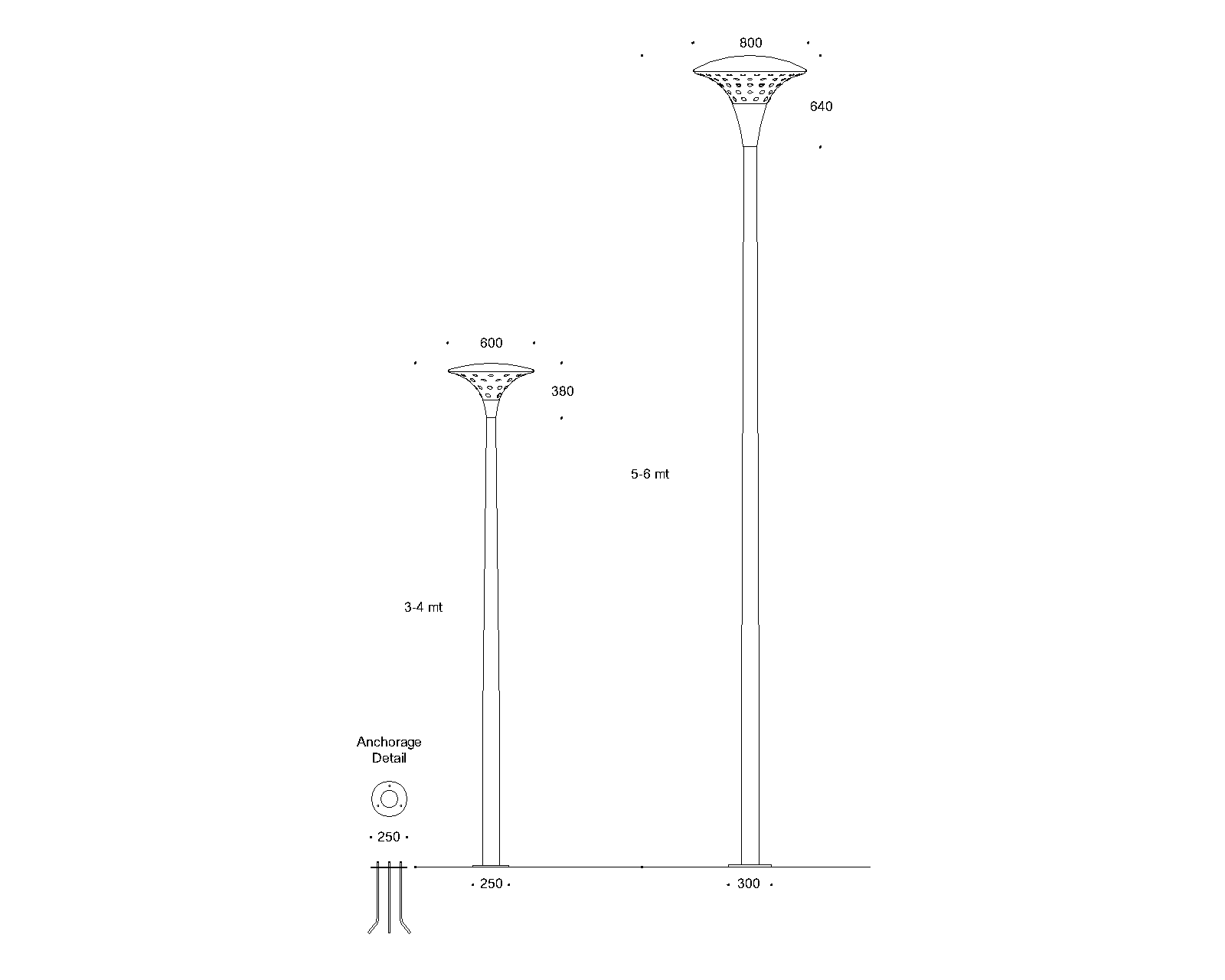

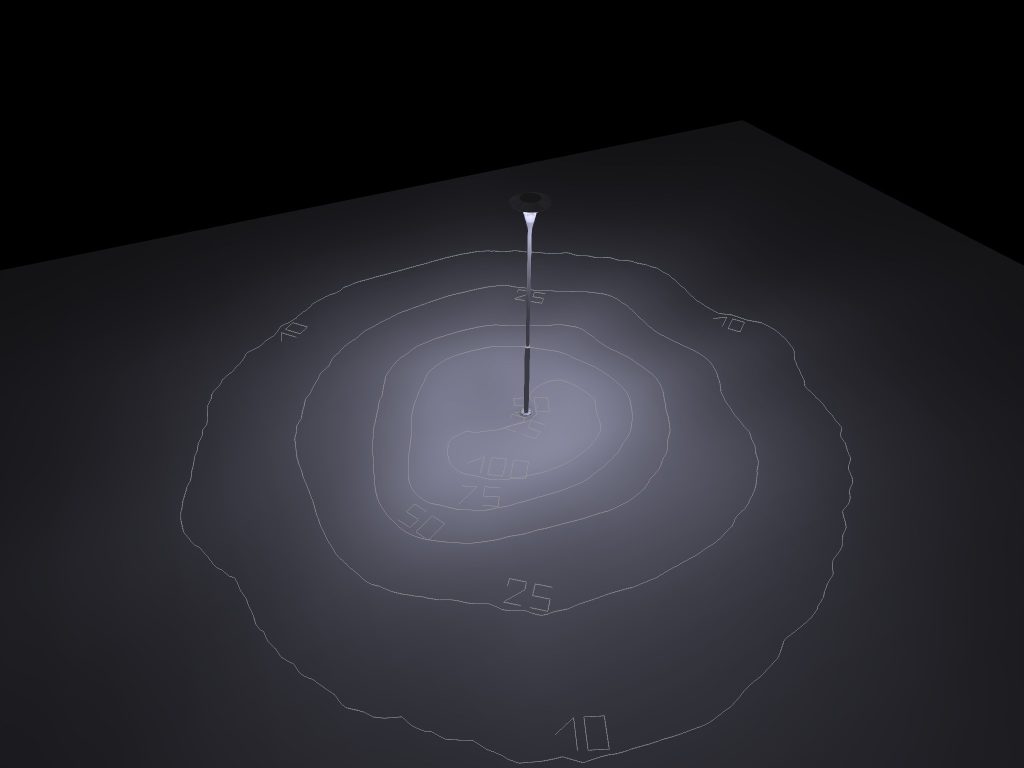

The possibility to use various photometric distribution with optional mounting heights allows designers to illuminate differing urban spaces with original system configurations.
The possibility to use various photometric distribution with optional mounting heights allows designers to illuminate differing urban spaces with original system configurations.

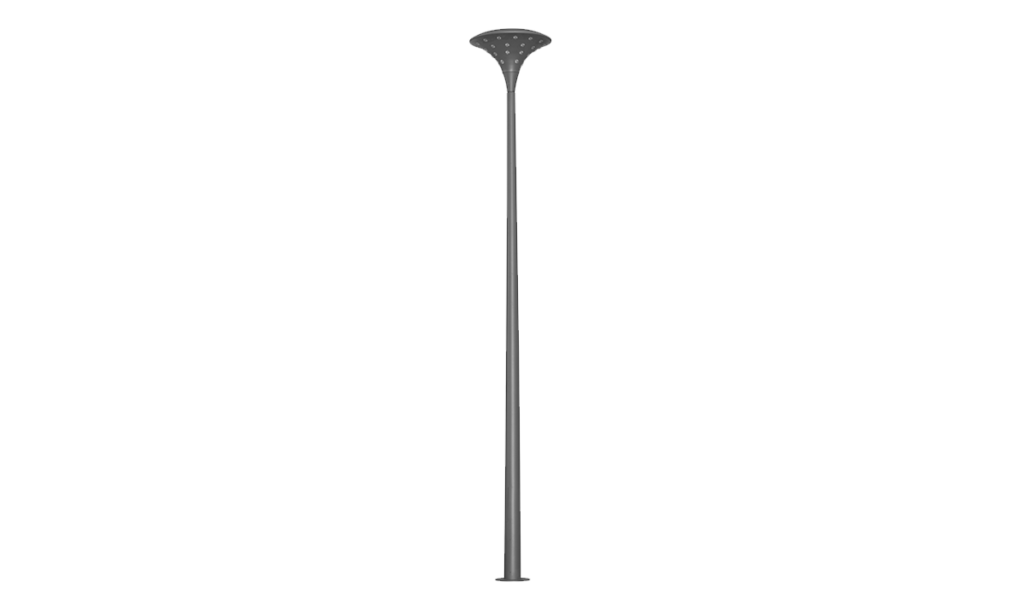

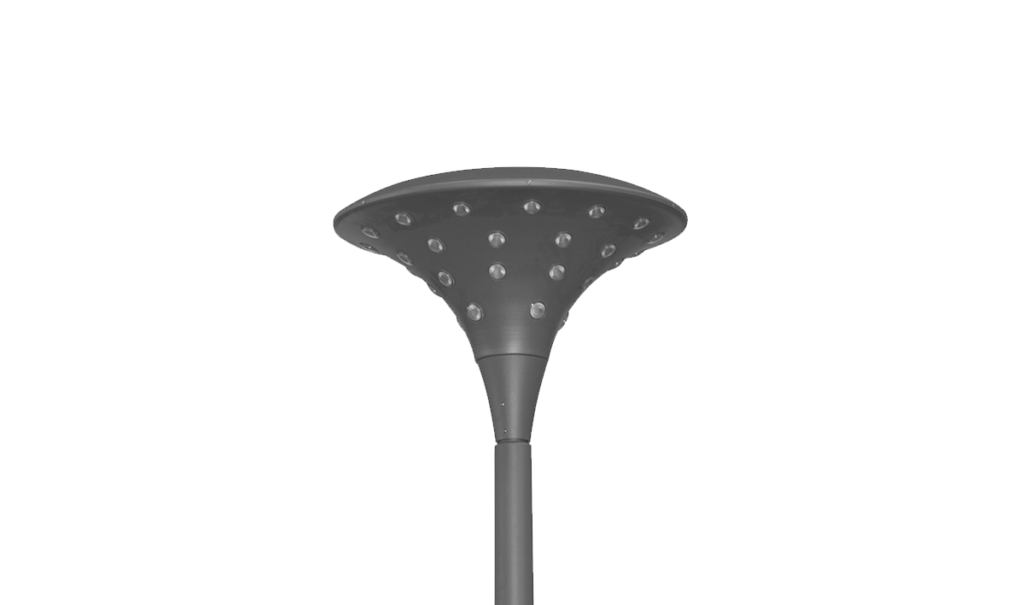

Modern Design and Easy to Install
The modernly designed luminaire, which is equipped with an integral power supply unit, is optionally available with DALI control or in the user-friendly On-Off version.
The product is supplied pre-wired, permitting simple, rapid and safe installation.
The product is supplied pre-wired, permitting simple, rapid and safe installation.
Individualize the System
We offer you extensive options for the individualization of the iFizy range.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.
Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K,
6500K CCT tolerance within a 3-step MacAdams ellipse and
LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint finish
die cast aluminium housing with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour. BSIFIX® LED Module.
Optional Coating
Marine grade.
Diffuser
High impact and heat resistant polycarbonate with UV protection.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP66
IK08
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
Color rendering index
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
Dimmable luminaire
LM-80
| CODE | POWER CONSUMPTION | LUMEN OUTPUT (lm) 3000K / 4000K | COLOUR TEMPERATURE | DOWNLOAD |
|---|---|---|---|---|
| UA1452/SYM | 72W | 9720 / 10224 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
| UA1453/ASY | 108W | 14580 / 15336 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
| UA1454/SYM | 54W | 7290 / 7668 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
| UA1455/ASY | 72W | 9720 / 10224 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
