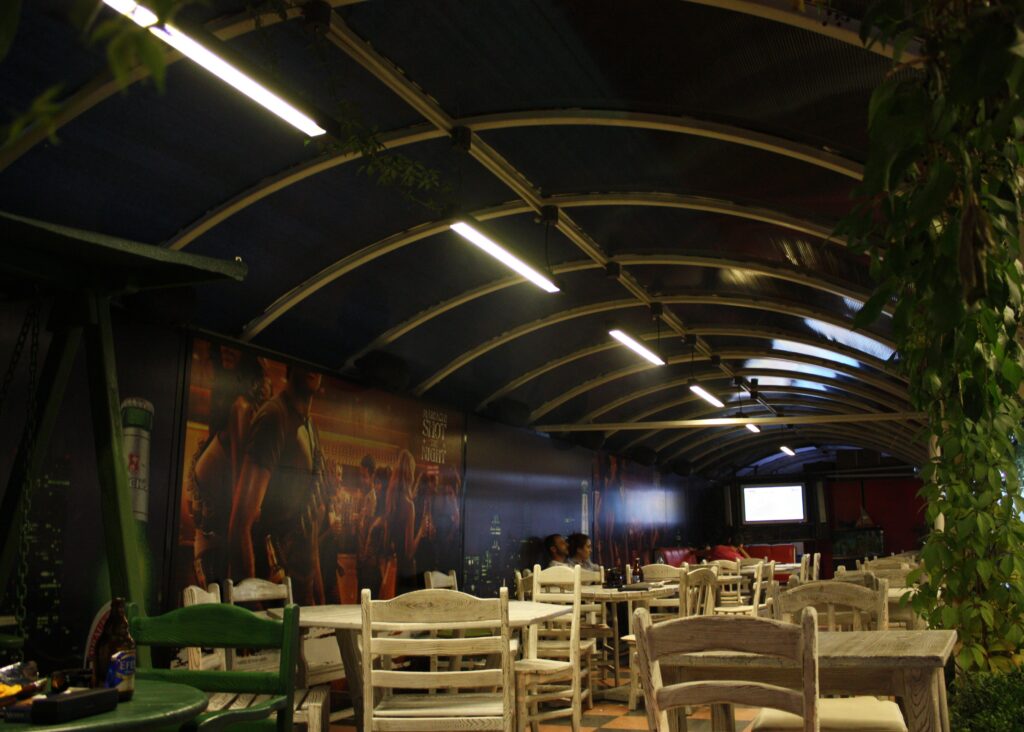

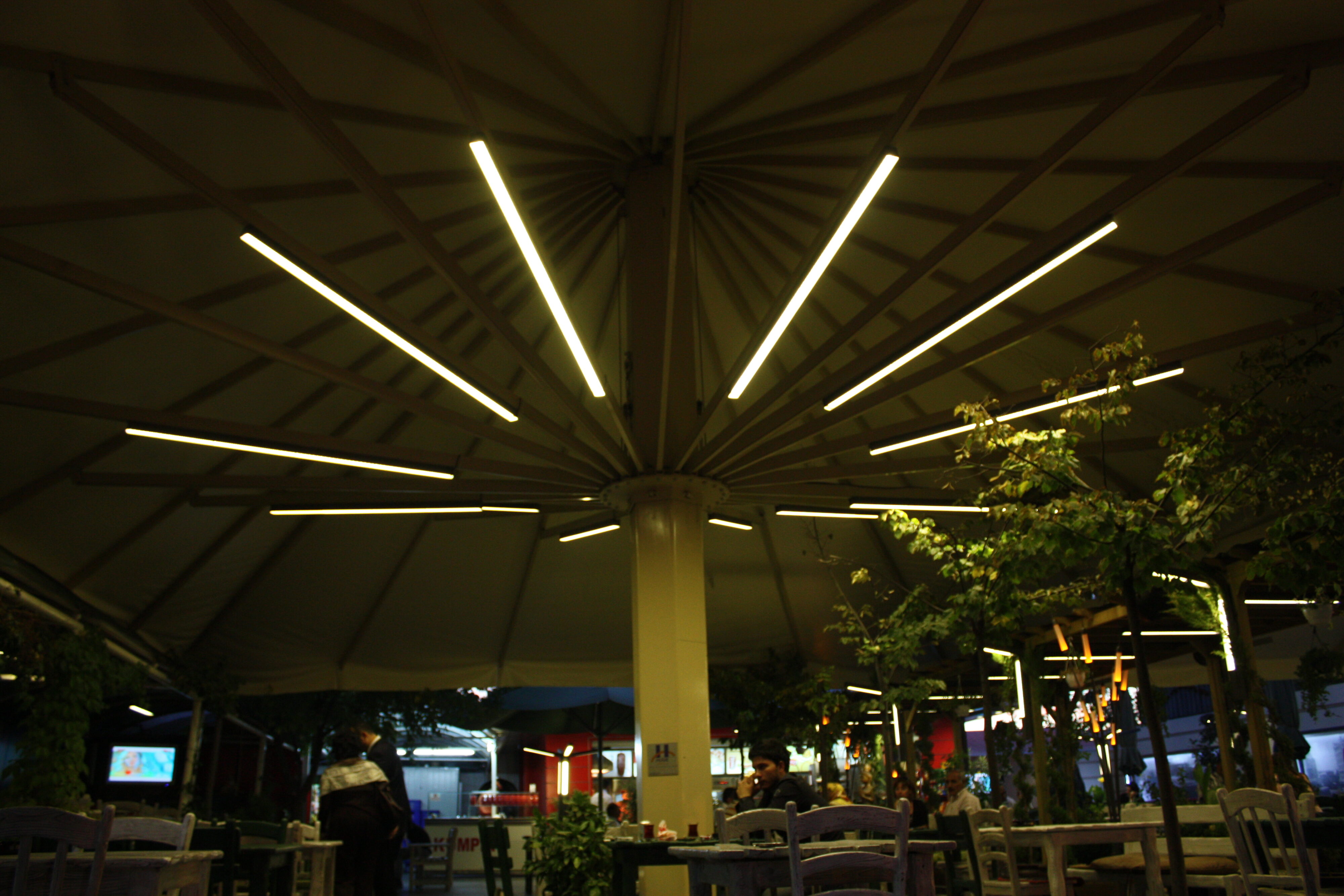

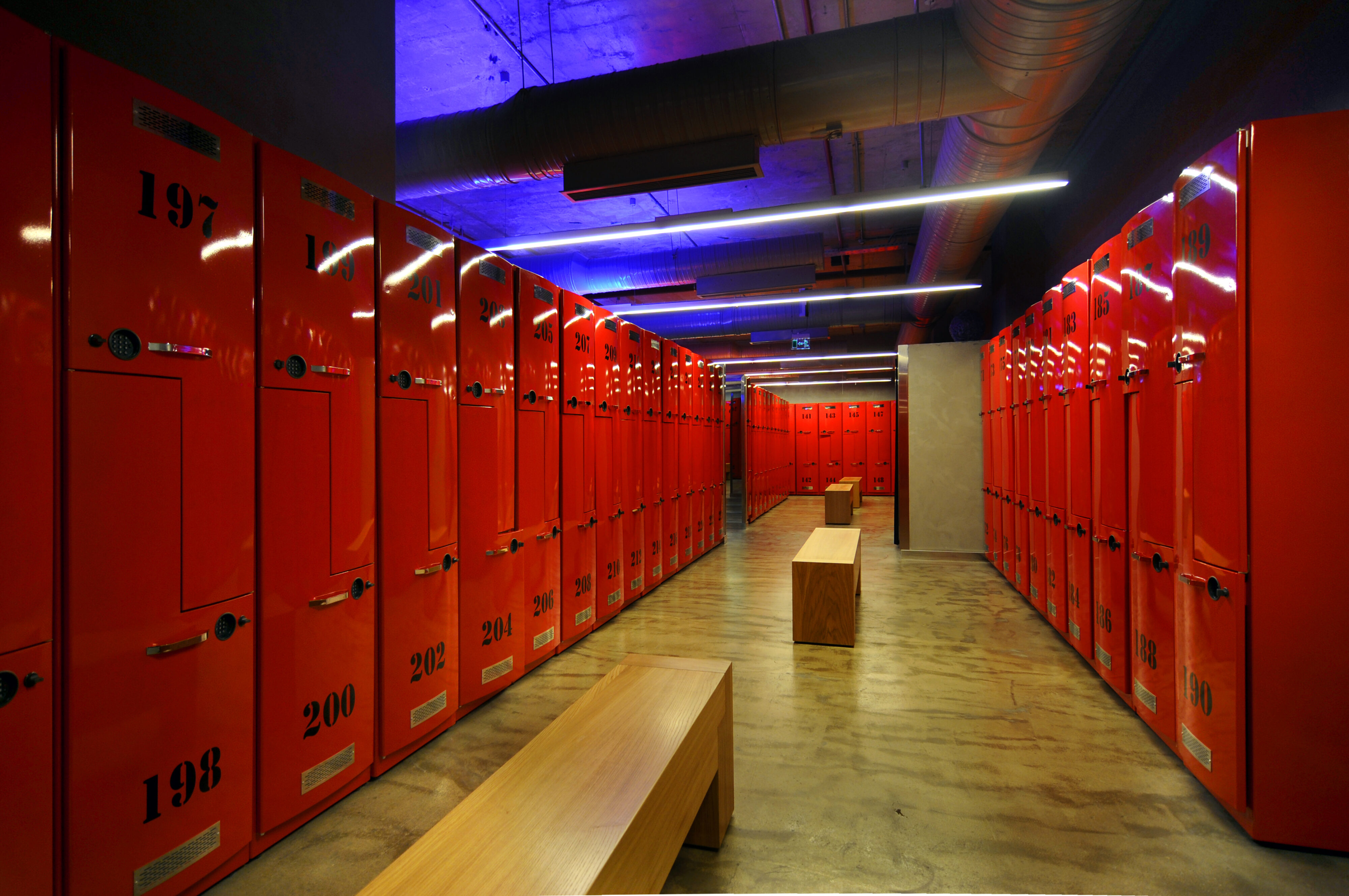

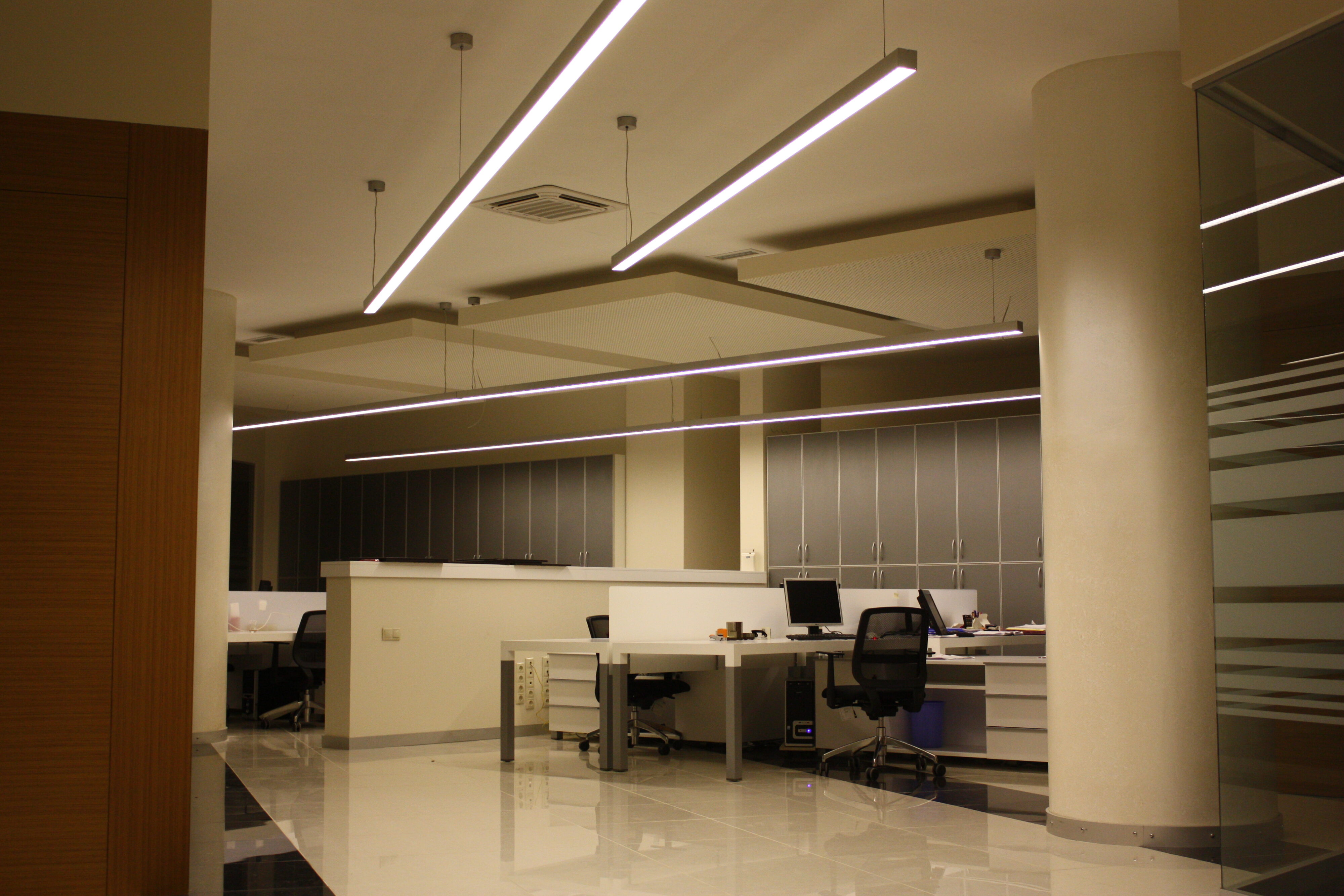

iBanda stands as the perfect lighting solution for various settings.
It adds a touch of style and pleasant illumination, enhancing environments with a modern and elegant design.

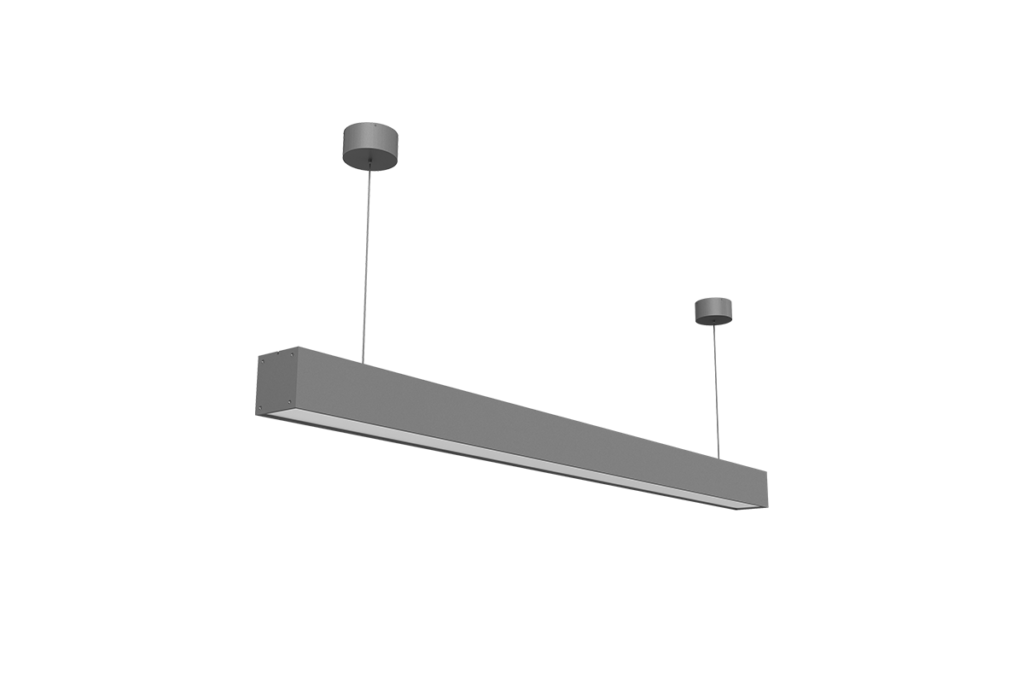

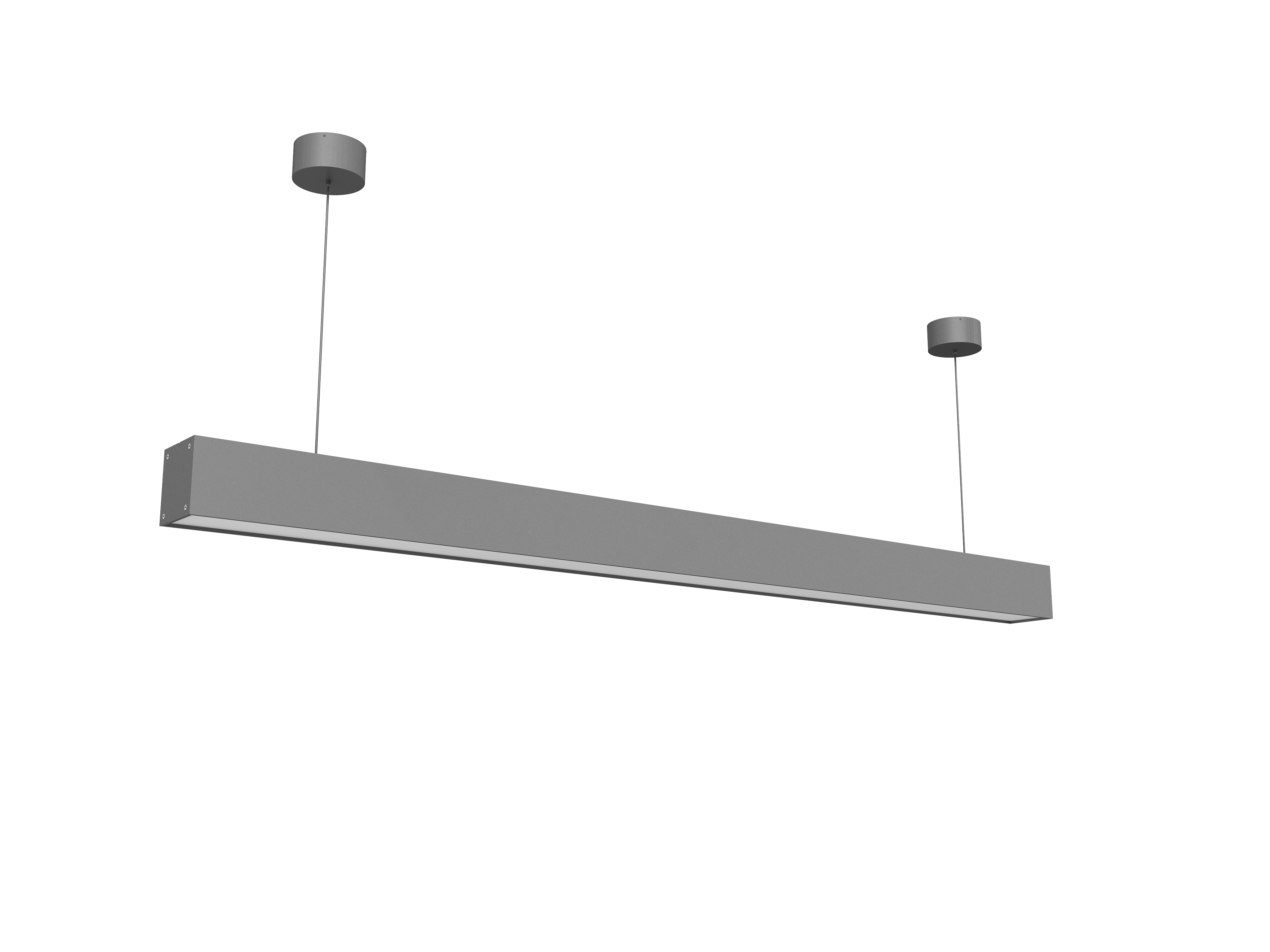

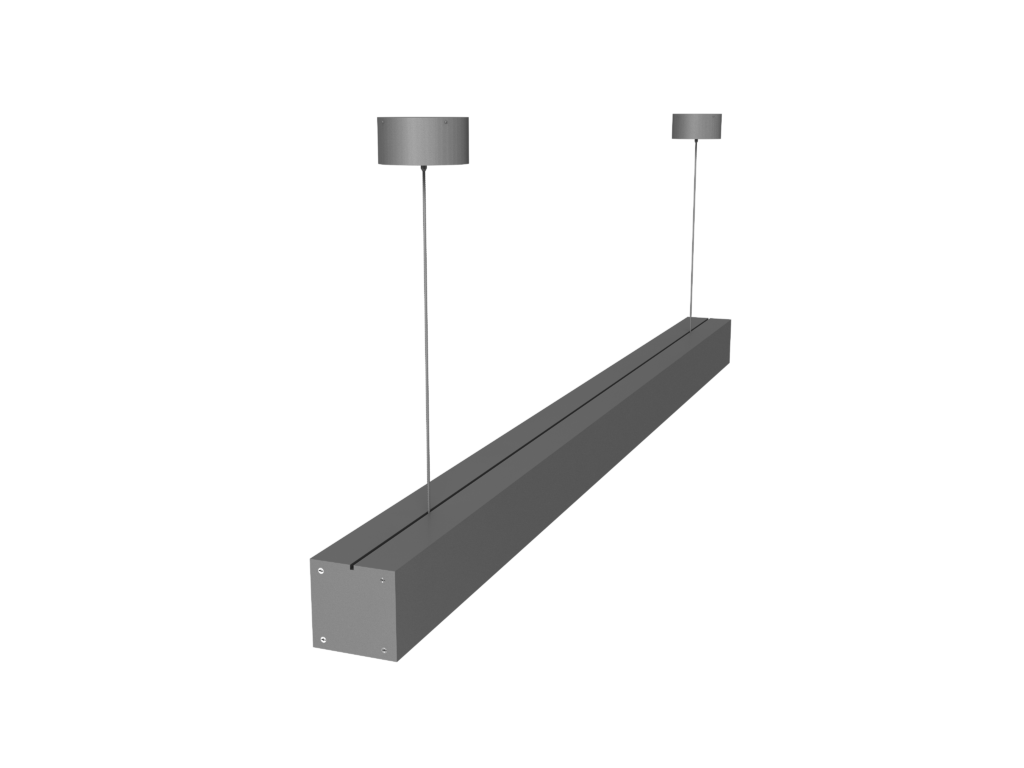

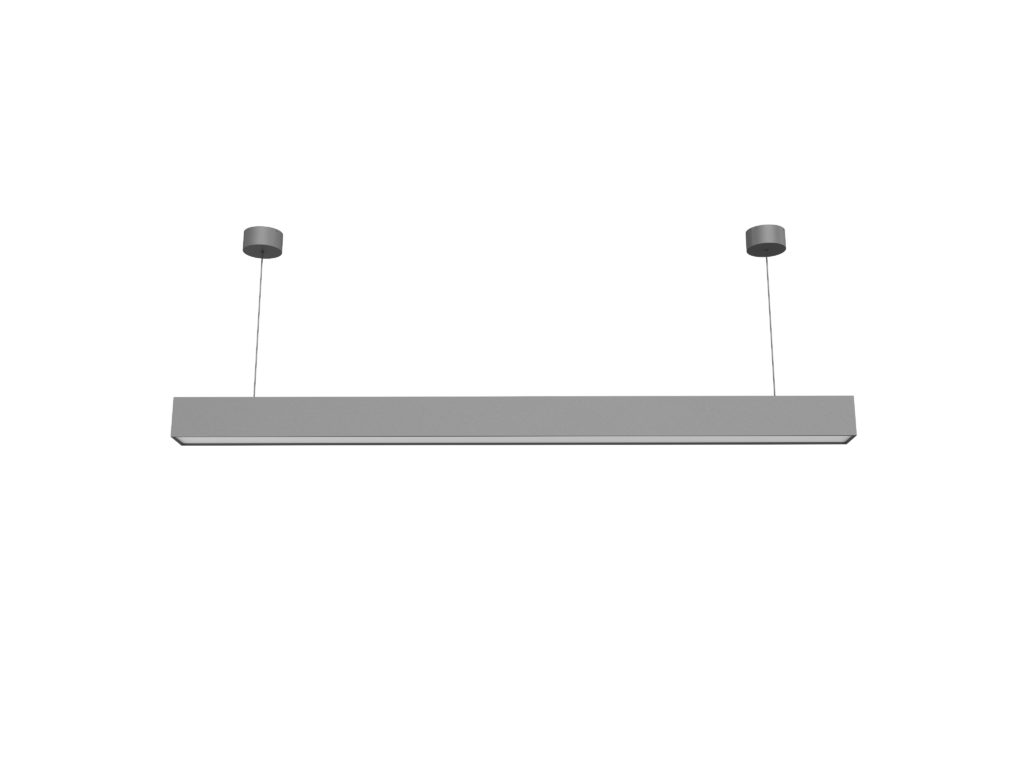

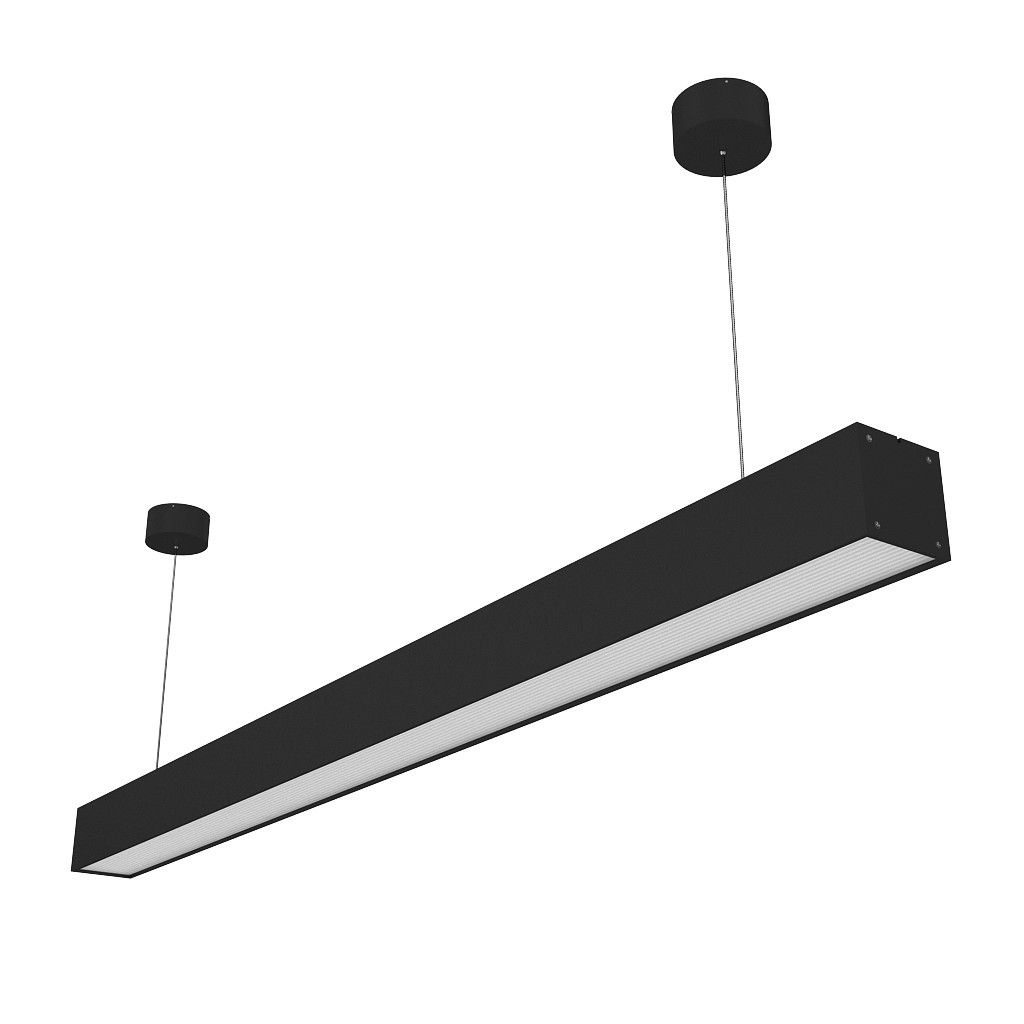

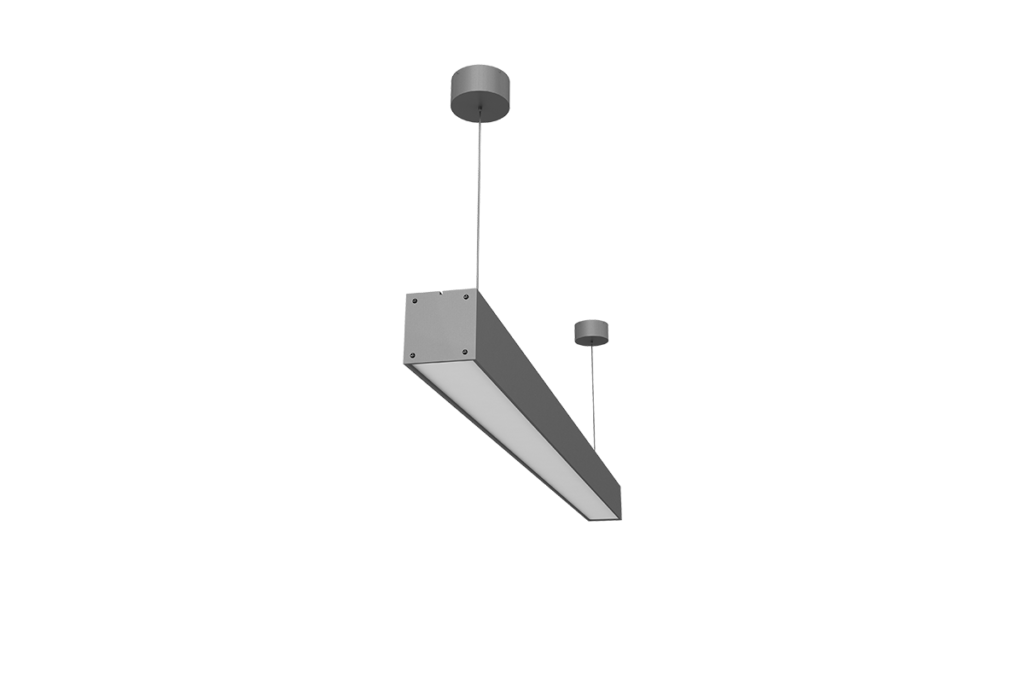

iBanda Pendant

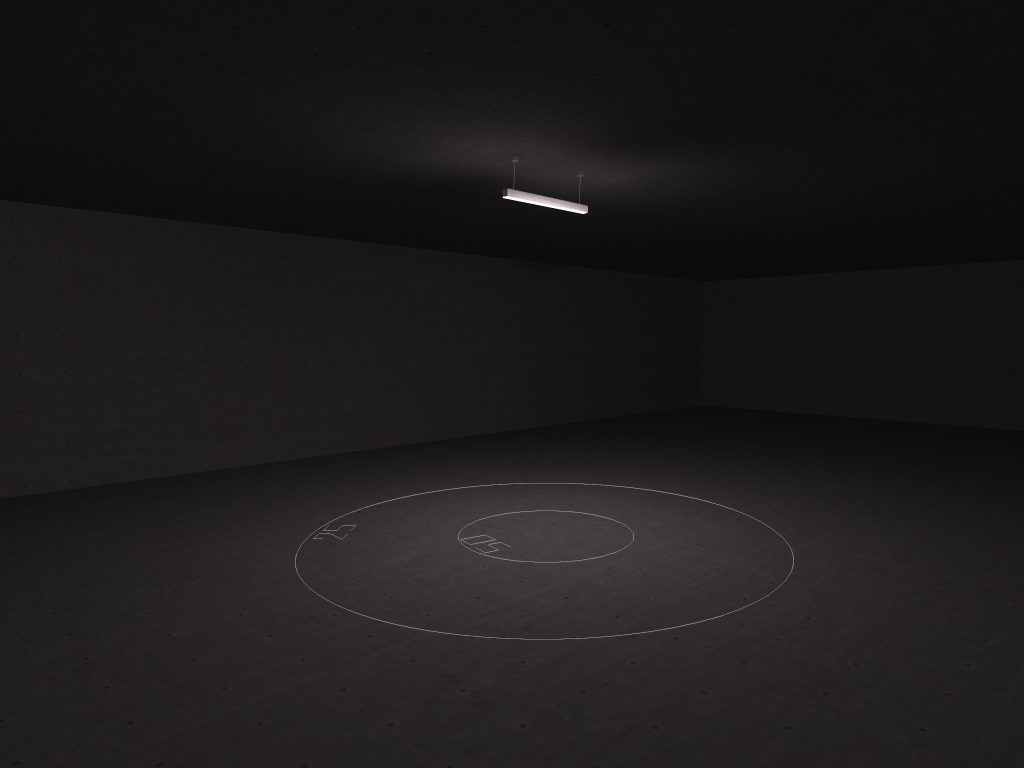

High Performance and Uniform

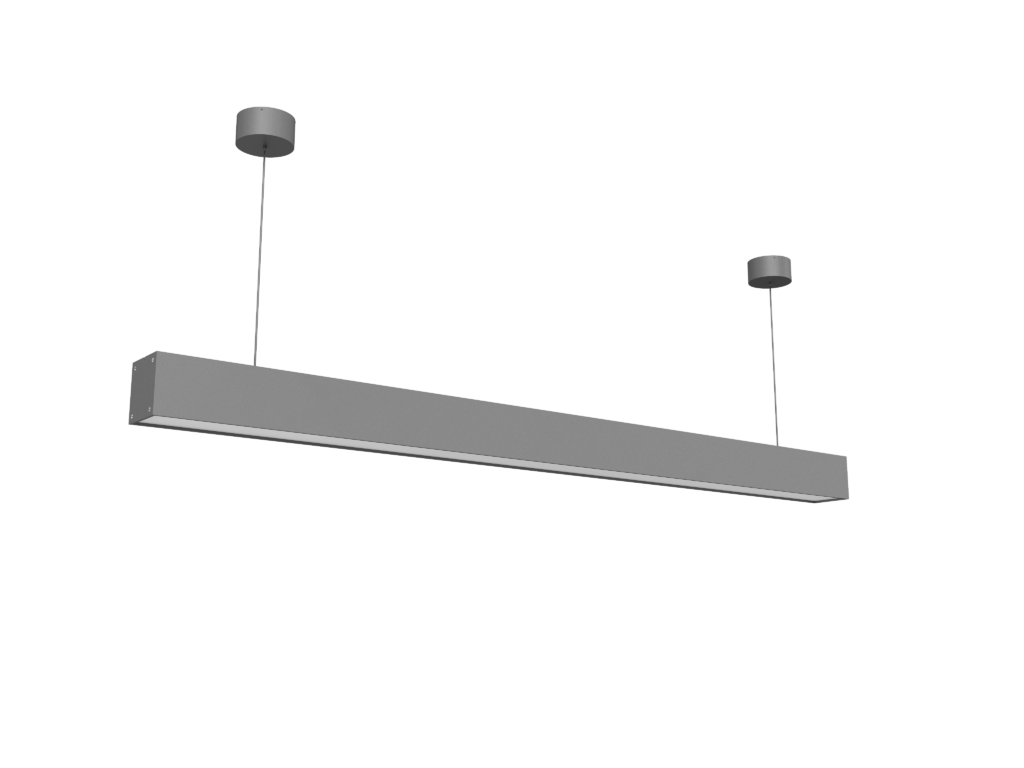

iBanda is a compact and high performance luminaire with impressive versatility. Suitable for easy installation on ceilings.
Continuous LED aluminium profiles installed continuously to create uniform lines of light and provide high visual comfort.
Continuous LED aluminium profiles installed continuously to create uniform lines of light and provide high visual comfort.
Integrated Solution and Easy to Install
Plug and play built-in system with the fully integrated universal power supply unit.
The watertight plug connector ensures easy, fast and secure installation. The robust luminaire fits seamlessly into the architecture.
The watertight plug connector ensures easy, fast and secure installation. The robust luminaire fits seamlessly into the architecture.

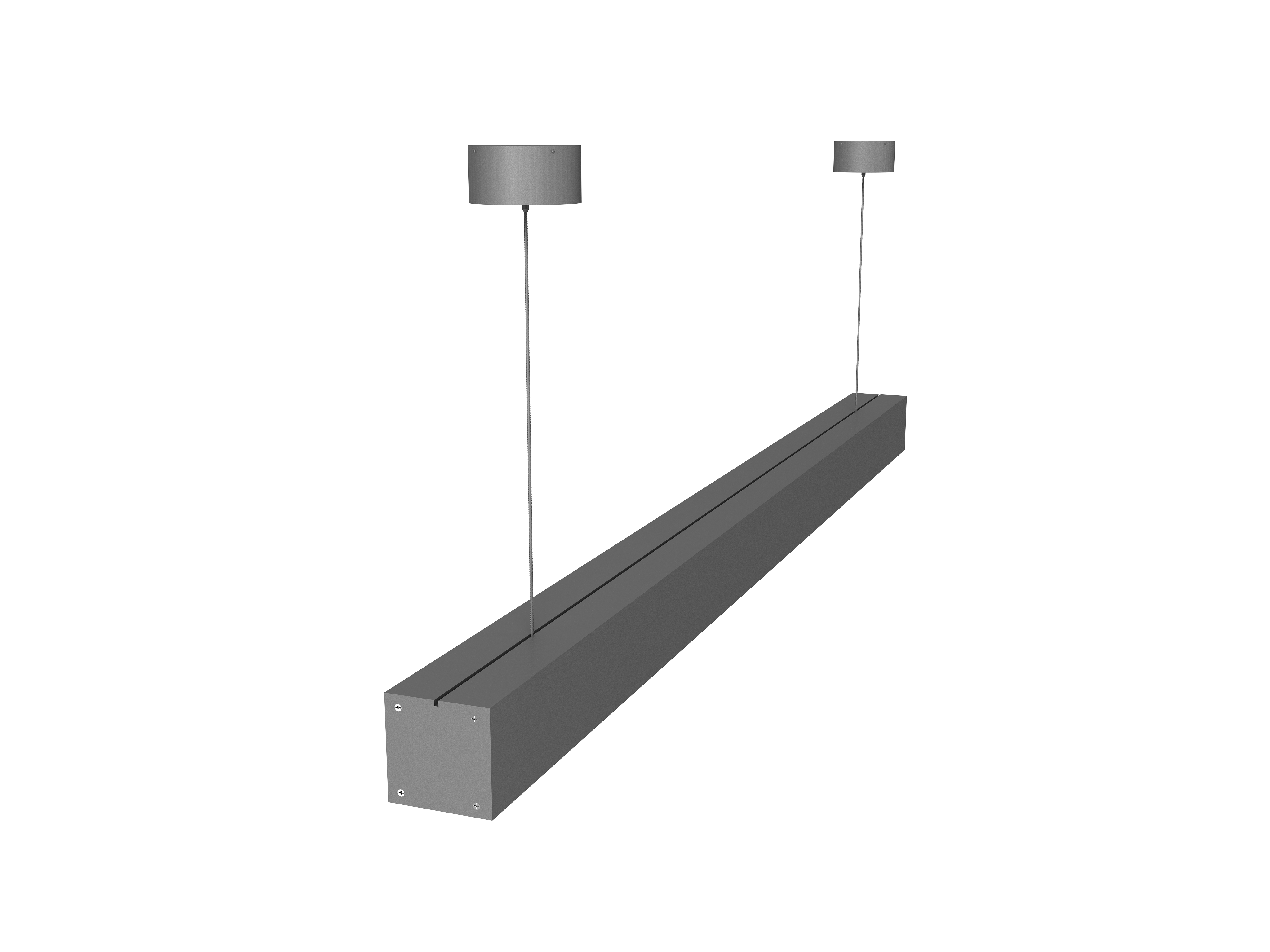

Individualize the System
We offer you extensive options for the individualization of the iBanda range.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.

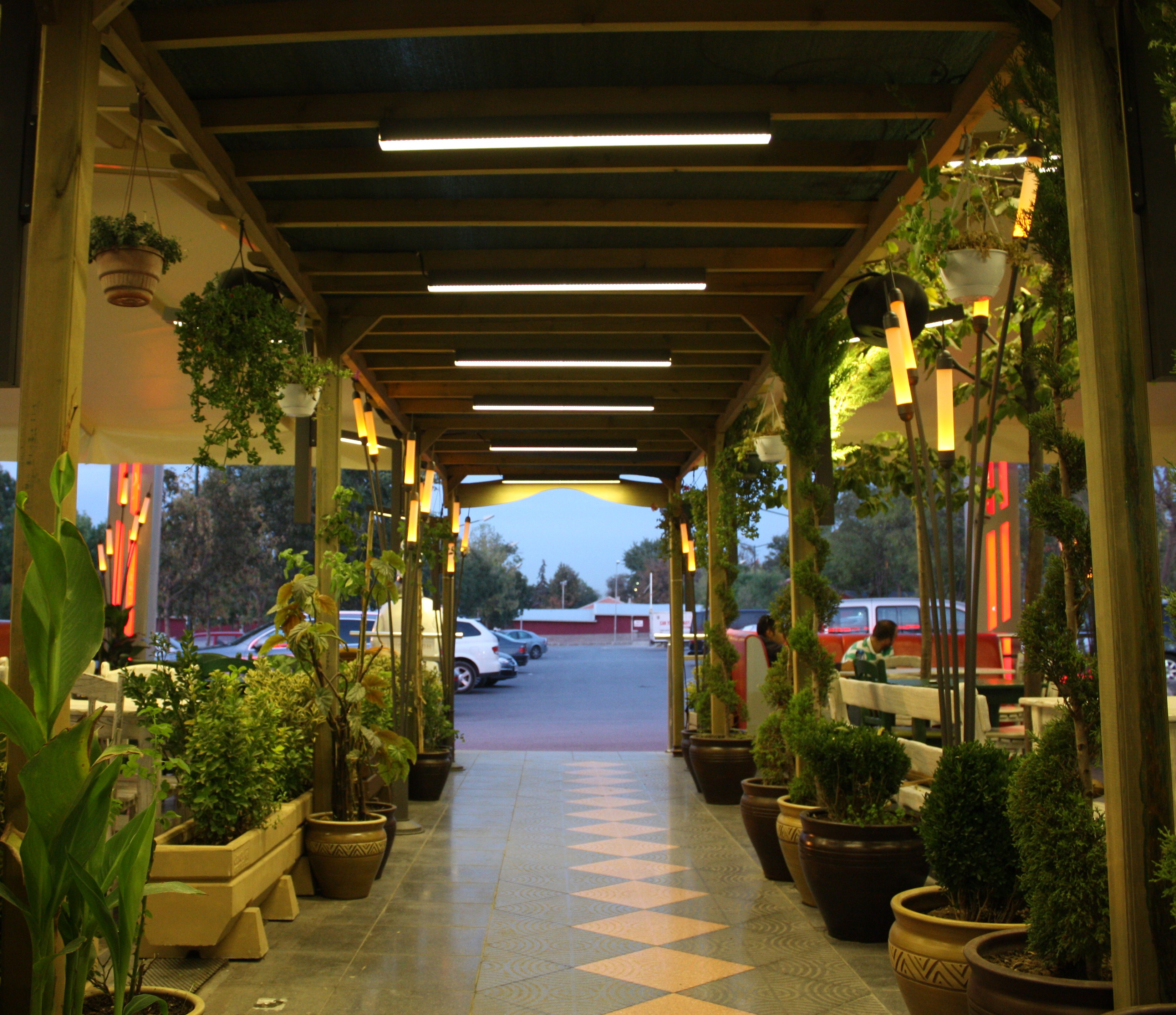

Architectural
Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.
Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint finish extruded aluminium housing with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour. BSITECH® LED Module.
Optional Coating
Marine grade.
Diffuser
High impact and heat resistant polycarbonate with UV protection.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP54
IK08
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
Color rendering index
DALI Interface
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
LM-80
| CODE | POWER CONSUMPTION | LUMEN OUTPUT (lm) 3000K / 4000K | COLOUR TEMPERATURE | DOWNLOAD |
|---|---|---|---|---|
| IC6051 | 18W | 1350 / 1530 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
