Sword media facade line enables an endless layout of patterns, graphics display and offers customizable solutions pixel mapping with DMX 512 and RDM protocol.
Sword PX

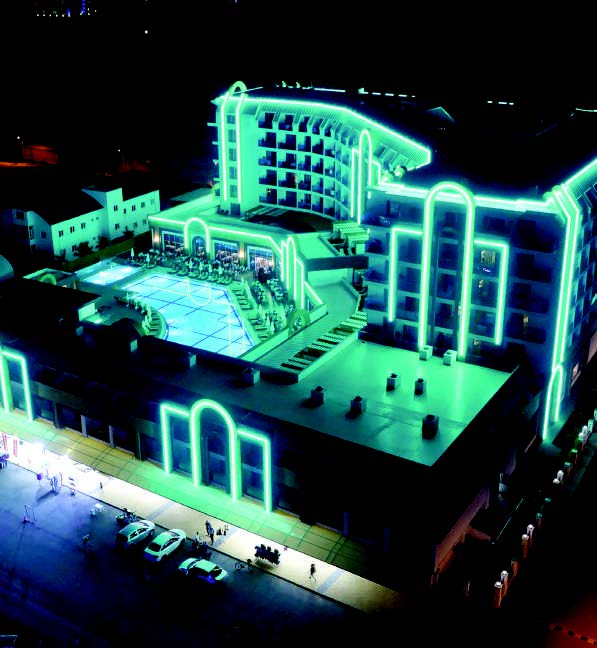

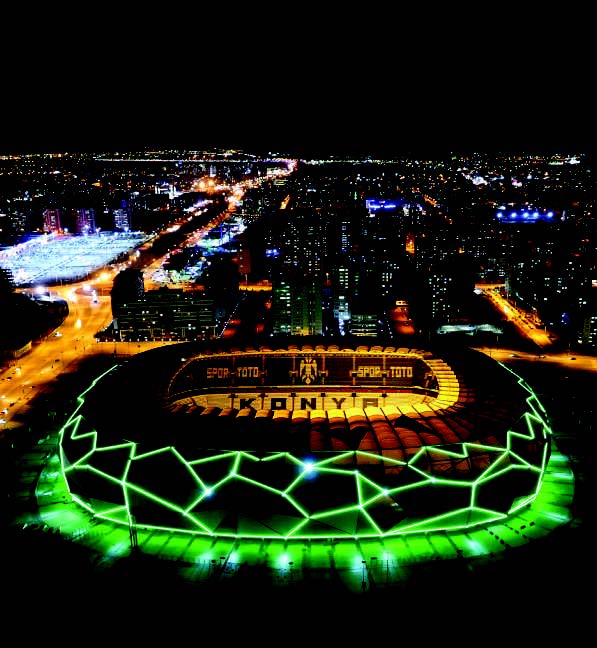

Encapsulated linear pixel luminaires designed to highlight the exceptional character of large-scale architectural structures and spaces such as skyscrapers, stadiums, theme parks, bridges, airports, and shopping malls.

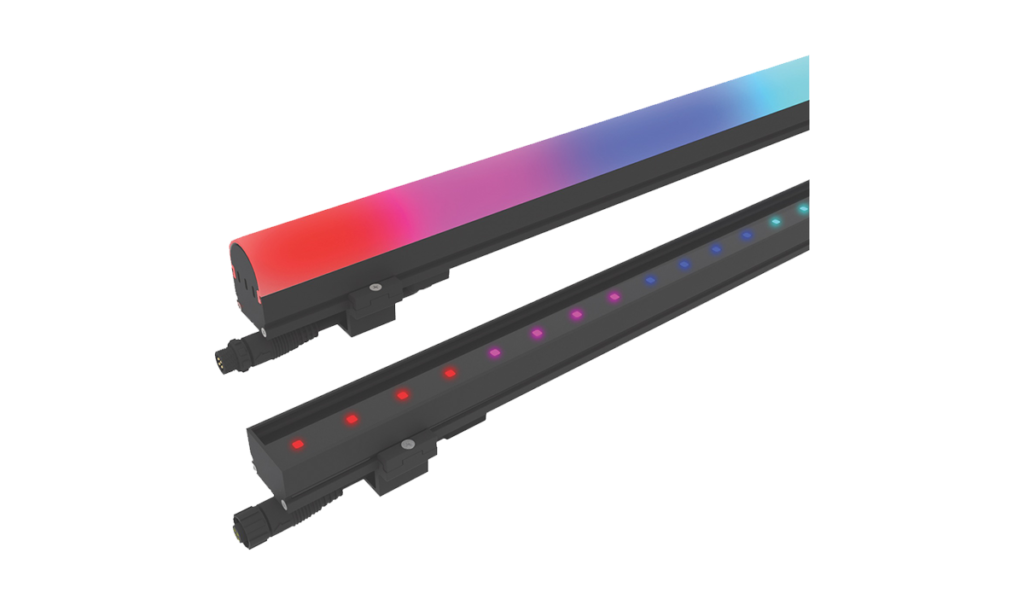

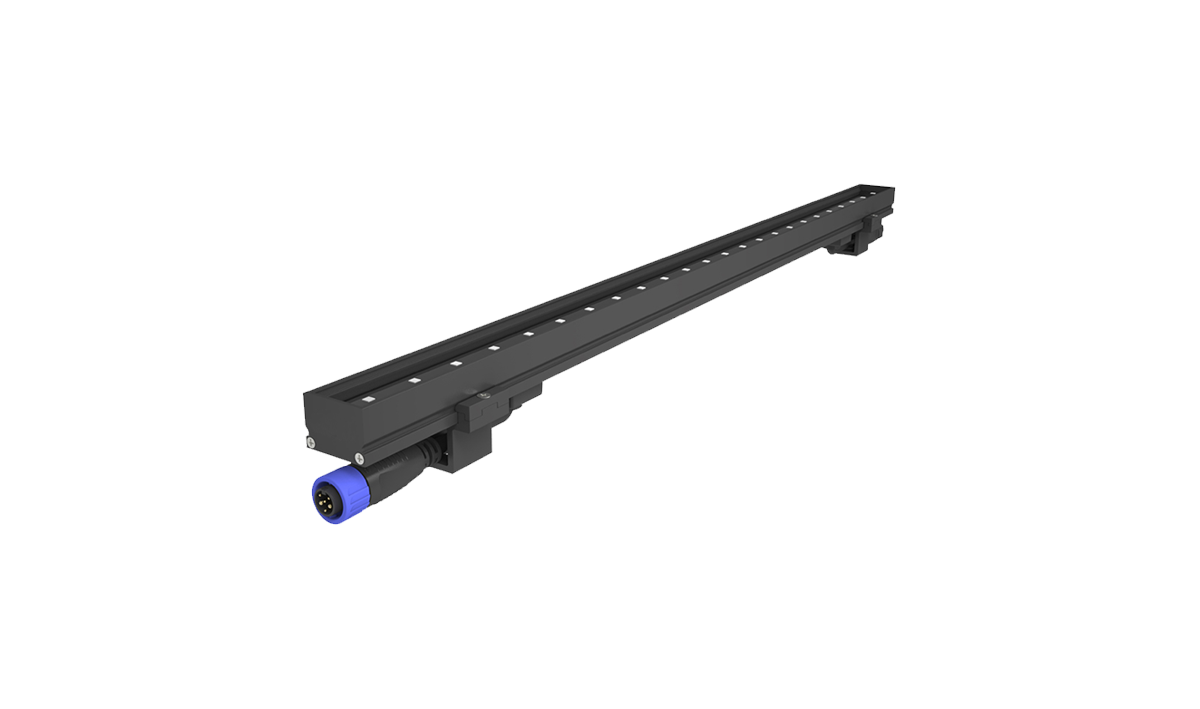

Sword PX video pixel linear engineered to provide powerful pixel mapping and media effects.
It is a versatile tool for linear and radial installations where high-visibility and a very flexible setup are essential.
Architectural LED linear range inspires architects, designers and system integrators with its exceptional quality, homogeneous light output and remarkable creativity.
Designed to last in extremely harsh environments.
Sleek and High-Performance

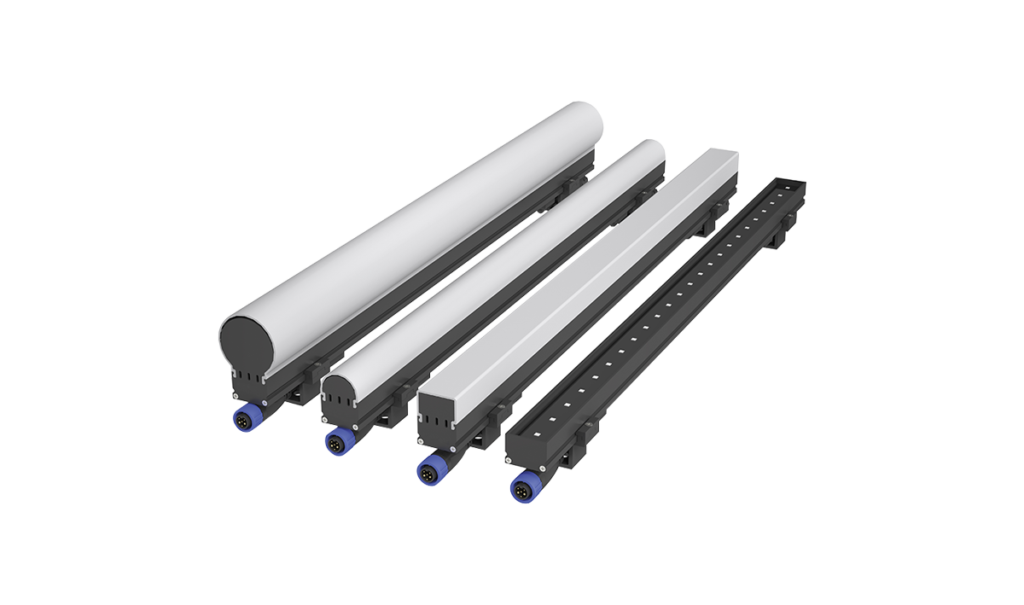

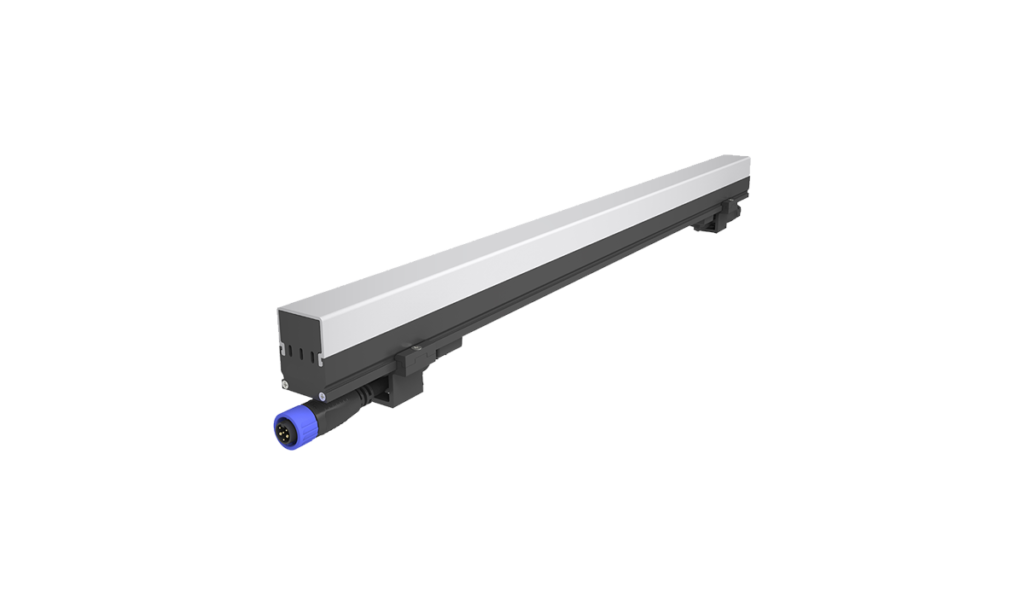

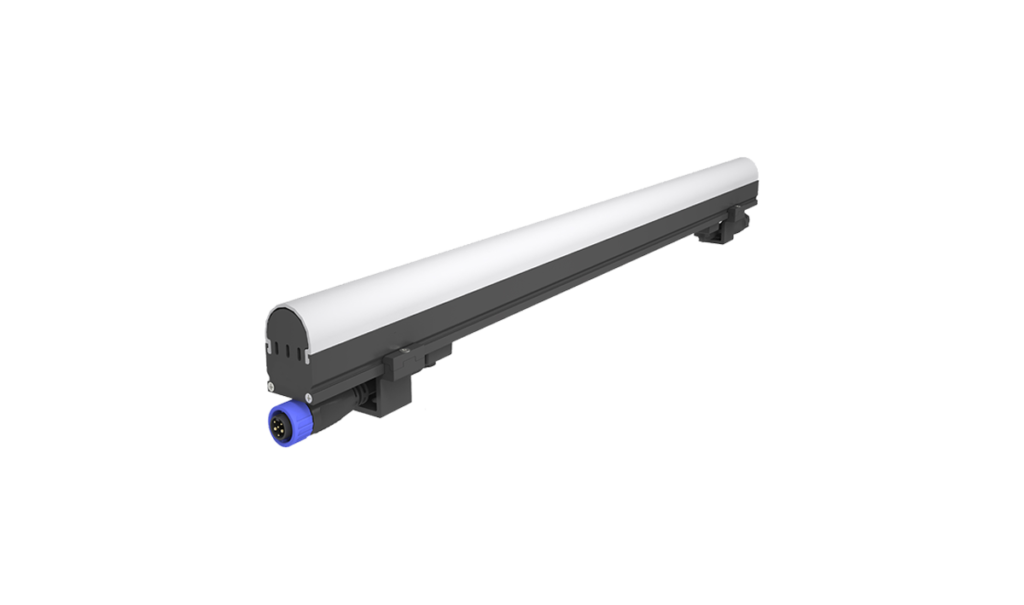

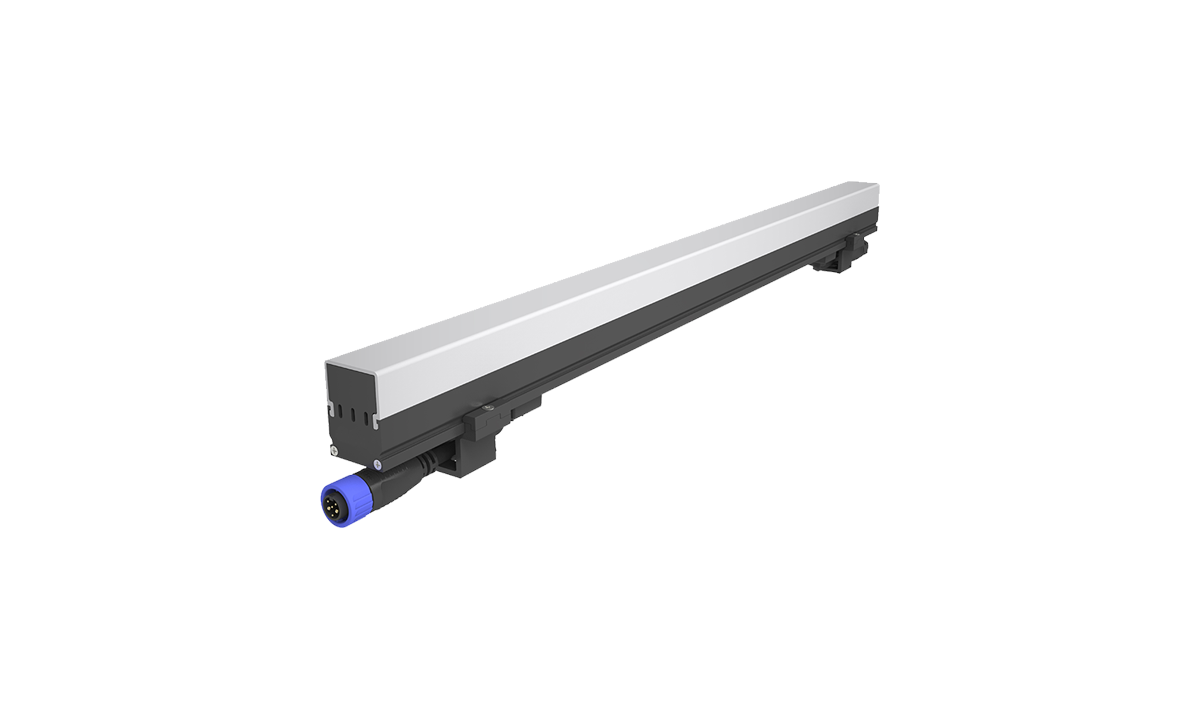

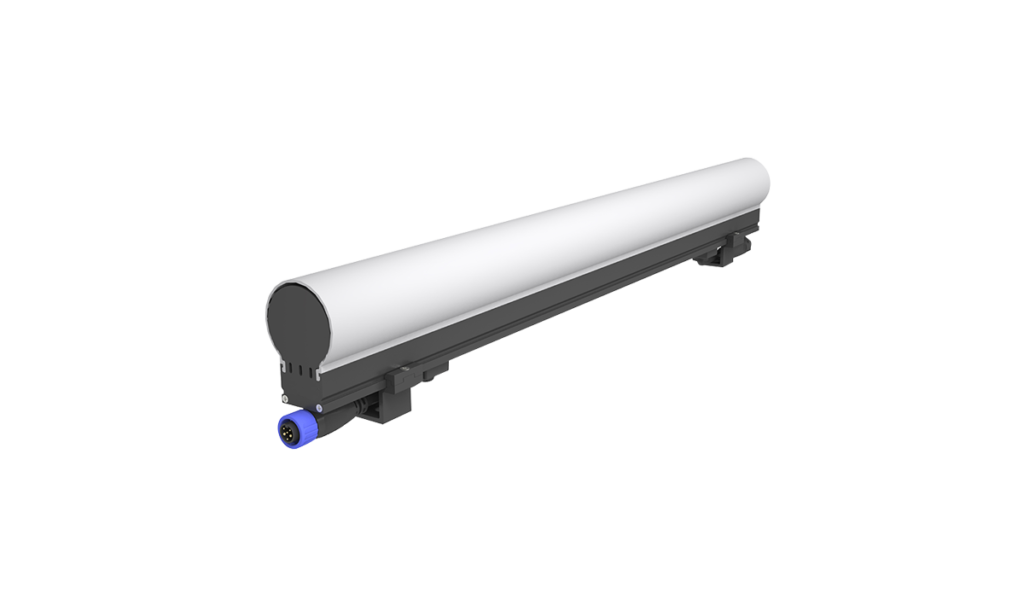

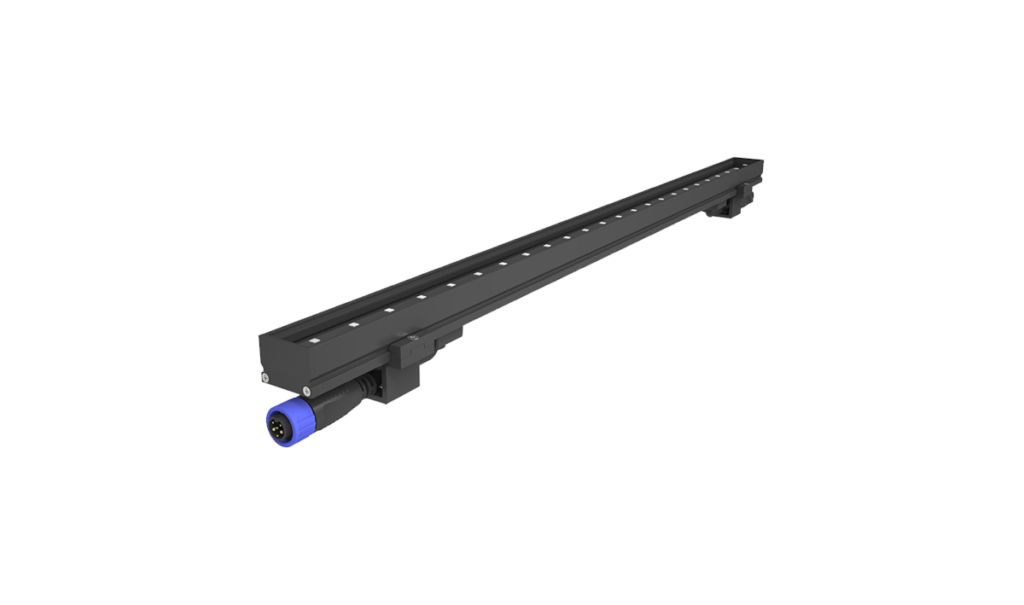

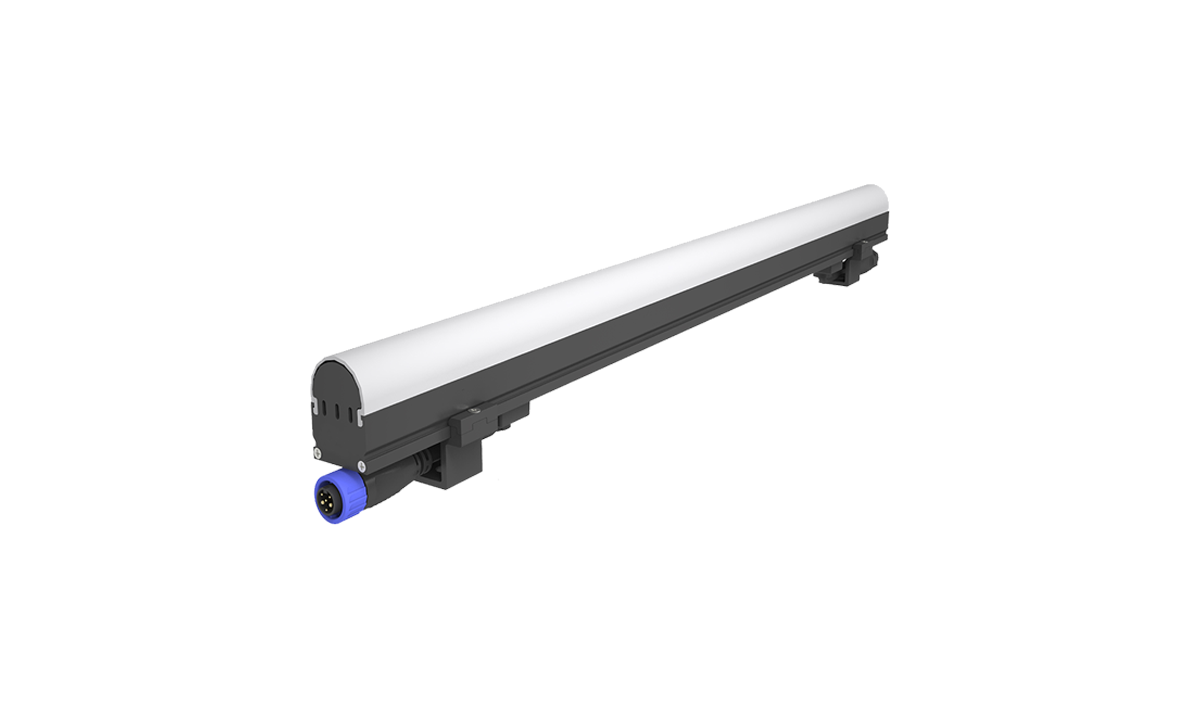

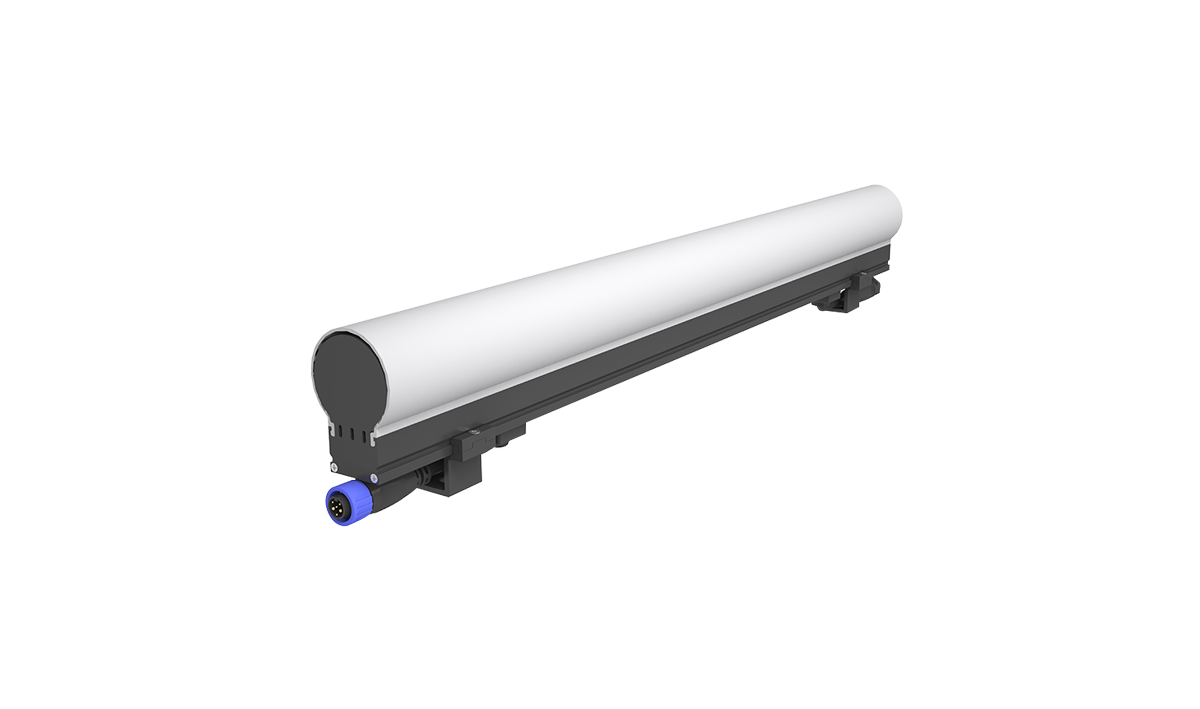

Efficient design luminaire that features tremendous modularity and ease of use. Sword PX is made of anodized aluminum, resulting in a form with simplicity matches its function. Available in different lengths with multiple accessories like opal lenses, brackets, and extension cables.
Exceptional performance and compact dot-free, homogeneous light-emitting surface with polyurethane encapsulation make it more resistant to salt water, UV light and solvents.
Exceptional performance and compact dot-free, homogeneous light-emitting surface with polyurethane encapsulation make it more resistant to salt water, UV light and solvents.
Functional and Easy to Install
Thanks to its ultra-flat profile, it blends perfectly into any architectural environment and is characterized by its functionality, versatility and exceptional appearance. By integrating exceptional pixel mapping features, it allows to create 3D elements and abstract images with solid artistic impact.

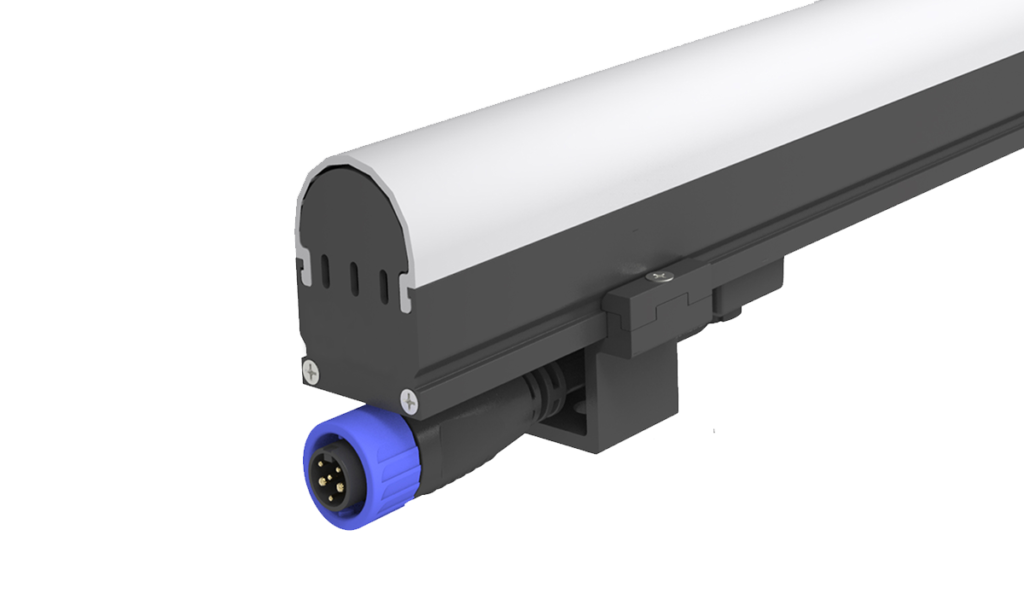

The watertight connector system ensures easy, fast and secure installation. The robust luminaire fits seamlessly into the architecture.
The watertight connector system ensures easy, fast and secure installation. The robust luminaire fits seamlessly into the architecture.
Individualize the System
We offer you extensive options for the individualization of the Sword PX range.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Linear outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.
Led Type
High efficiency 3 in 1 Chip RGB LEDs, 4 in 1 Chip RGBW LEDs, color temperatures ranging from 2700 K to 6500K, 3-step MacAdams ellipse and LM80 compliant. Each colour (RGB, RGBW, Dynamic White) can be controlled individually.
Maximum in Chain
Max 16 meters or 32 pieces (Varies by selected DMX)
Color Resolution
3x12-bit (Gamma correction)
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Monitoring
Voltage Monitoring, Temperature Monitoring, Status Monitoring, Power Cycle Monitoring, Lumen-Maintenance Life Monitoring.
Materials
Corrosion resistant extruded anodized aluminium housing with stainless
steel screws and silicone rubber gaskets. Back connection via XLR
connectors and no gaps between two products. Includes adjustable
mounting brackets. Confirms vibration standards for bridge applications.
Diffuser
Shockproof PMMA UV Stabilised Diffuser.
Pixel Pitch
Pixel pitch is configurable via RDM, max 40 pixel/m
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP67
IK10
Class II
European conformity
RoHS compliant
No IR
No UV
Durable
RGB
RGBW
Dynamic White
DMX / RDM
Color rendering index
48V DC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
LM-80

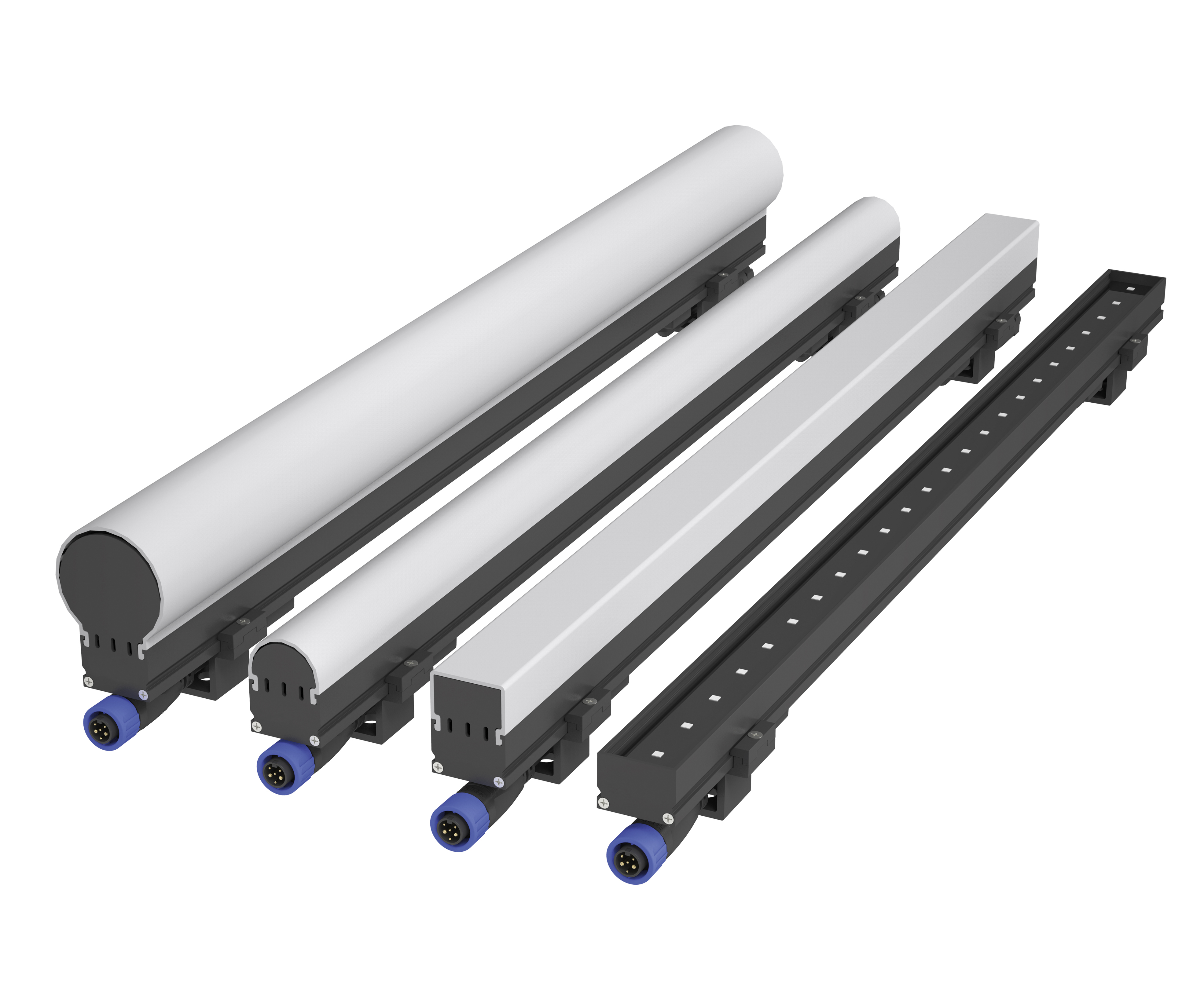

| CODE | POWER CONSUMPTION | LUMEN OUTPUT (lm) (RGB) | COLOUR TEMPERATURE | DOWNLOAD |
|---|---|---|---|---|
| AR106611 DIRECT | 21,1 W/m Full On | 409 lm/m | RGB | PRODUCT SHEET PHOTOMETRY |
| AR106613 RADIUS | 21,1 W/m Full On | 298 lm/m | RGB | PRODUCT SHEET PHOTOMETRY |
| AR106615 ROUND | 21,1 W/m Full On | 286 lm/m | RGB | PRODUCT SHEET PHOTOMETRY |
| AR106617 FLAT | 21,1 W/m Full On | 274 lm/m | RGB | PRODUCT SHEET PHOTOMETRY |
| CODE | POWER CONSUMPTION | LUMEN OUTPUT (lm) (RGBW) | COLOUR TEMPERATURE | DOWNLOAD |
| AR106711 DIRECT | 26,7 W/m Full On | 578 lm/m | RGBW | PRODUCT SHEET PHOTOMETRY |
| AR106713 RADIUS | 26,7 W/m Full On | 437 lm/m | RGBW | PRODUCT SHEET PHOTOMETRY |
| AR106715 ROUND | 26,7 W/m Full On | 407 lm/m | RGBW | PRODUCT SHEET PHOTOMETRY |
| AR106717 FLAT | 26,7 W/m Full On | 387 lm/m | RGBW | PRODUCT SHEET PHOTOMETRY |
| CODE | POWER CONSUMPTION | LUMEN OUTPUT (lm) (2700-6500K) | COLOUR TEMPERATURE | DOWNLOAD |
| AR106811 DIRECT | 15W/m Full On | 560 lm/m | White CCT 2700-6500K | PRODUCT SHEET PHOTOMETRY |
| AR106813 RADIUS | 15W/m Full On | 560 lm/m | White CCT 2700-6500K | PRODUCT SHEET PHOTOMETRY |
| AR106815 ROUND | 15W/m Full On | 560 lm/m | White CCT 2700-6500K | PRODUCT SHEET PHOTOMETRY |
| AR106817 FLAT | 15W/m Full On | 560 lm/m | White CCT 2700-6500K | PRODUCT SHEET PHOTOMETRY |
