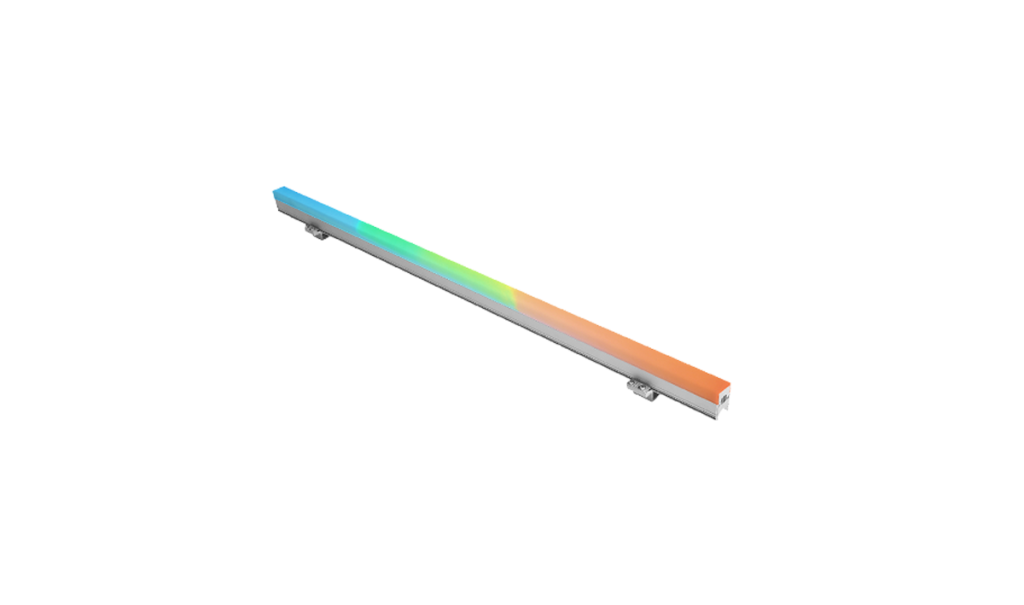

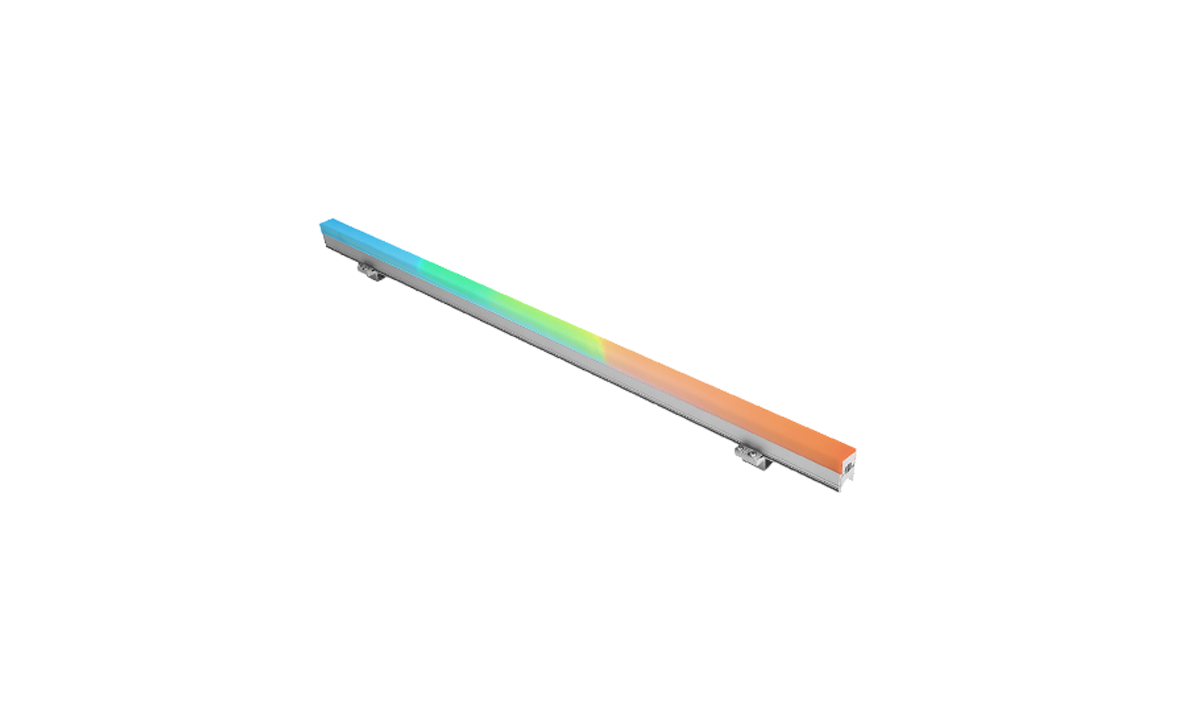

BS Line PX

Encapsulated linear pixel luminaires designed to highlight the exceptional character of large-scale architectural structures and spaces such as skyscrapers, stadiums, theme parks, bridges, airports, and shopping malls.

BS Line PX video pixel linear engineered to provide powerful pixel mapping and media effects.

It is a versatile tool for linear and radial installations where high-visibility and a very flexible setup are essential.

Architectural LED linear range inspires architects, designers and system integrators with its exceptional quality, homogeneous light output and remarkable creativity.

Designed to last in extremely harsh environments.

Sleek and High-Performance

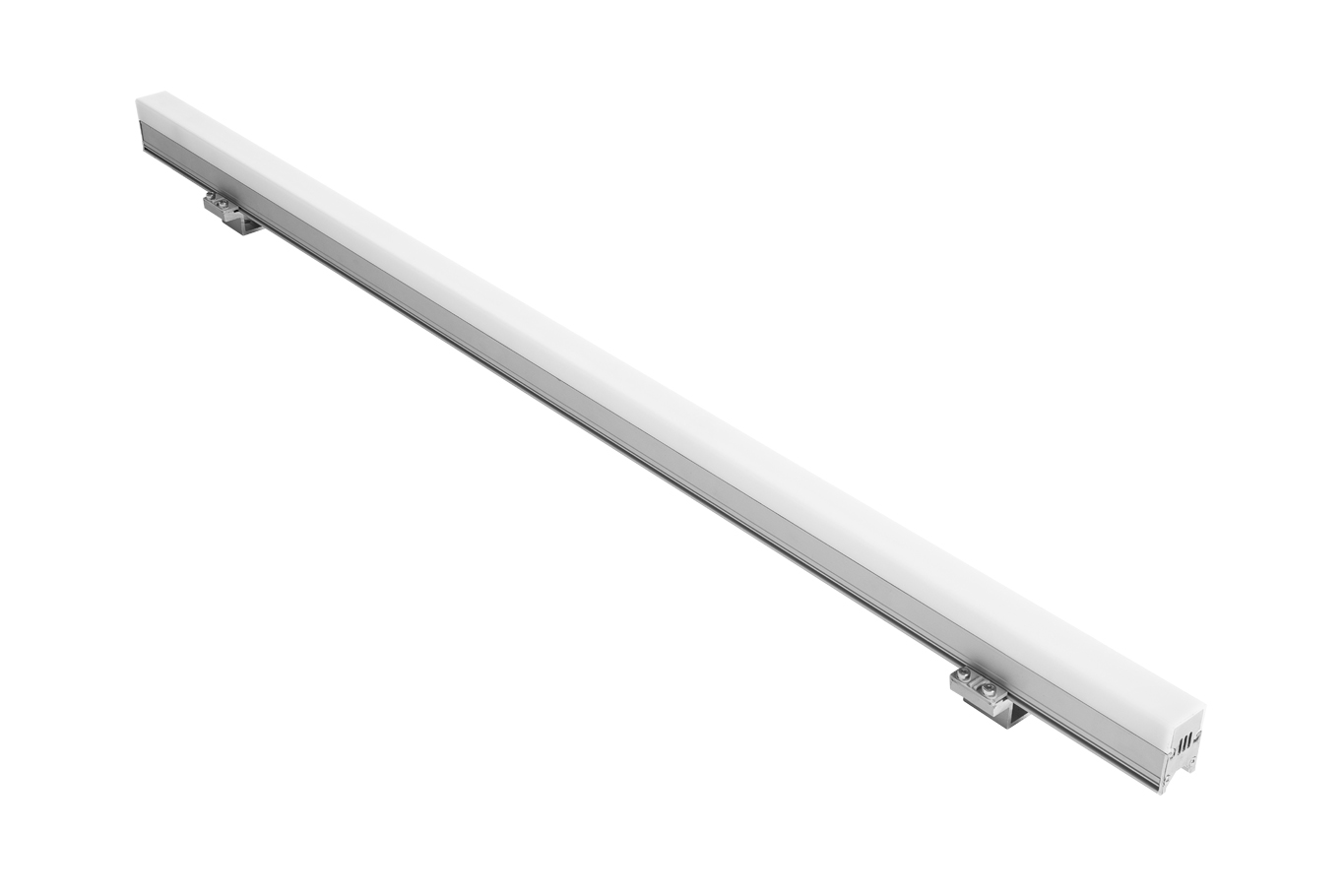

Efficient design luminaire that features tremendous modularity and ease of use. BS Line PX is made of anodized aluminum, resulting in a form with simplicity matches its function. Available in different lengths with multiple accessories like opal lenses, brackets, and extension cables.

Exceptional performance and compact dot-free, homogeneous light-emitting surface with polyurethane encapsulation make it more resistant to salt water, UV light and solvents.
Functional and Easy to Install
Thanks to its ultra-flat profile, it blends perfectly into any architectural environment and is characterized by its functionality, versatility and exceptional appearance. By integrating exceptional pixel mapping features, it allows to create 3D elements and abstract images with solid artistic impact.

The watertight connector system ensures easy, fast and secure installation. The robust luminaire fits seamlessly into the architecture.
Individualize the System
We offer you extensive options for the individualization of the BS Line PX range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Linear outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

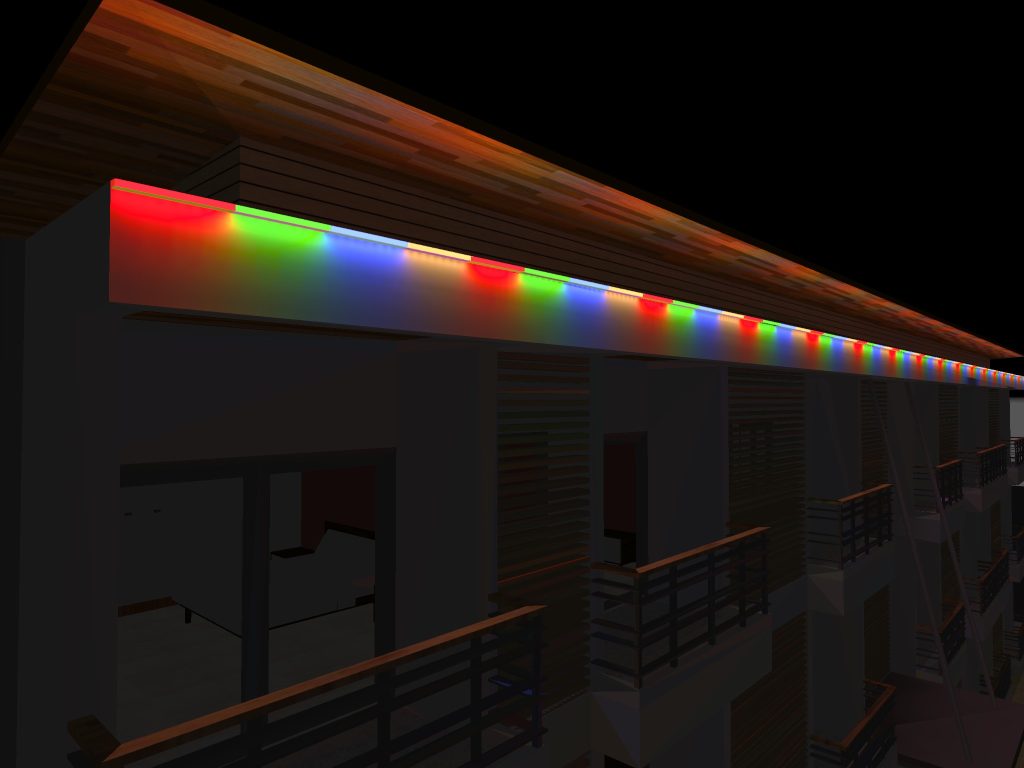

OPTICAL

120°

TECHNICAL DATA

Led Type
High efficiency 42 LEDs Per Meter, within a 3-step MacAdams ellipse and LM80 compliant.
Luminous Flux
464Lm/meter
Colour Rendering Index
CRI ≥ 80
Materials
Corrosion resistant extruded anodized aluminium housing (EN AW-6060) with stainless steel screws (A4 grade) and epoxy resin. Operates with a remote driver. Includes waterproof connectors and mounting bracket.
Diffuser
Shockproof PMMA UV Stabilised Diffuser.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP67
IK09
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
RGB
DALI Interface
DMX / RDM
Color rendering index
24V DC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
Dimmable luminaire
LM-80

CODES

  • CODE
  • LENGTH (mm)
  • PITCH
    (mm)
  • LED QTY
  • POWER
    CONSUMPTION
    350mA
  • POWER
    CONSUMPTION
    500mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    350mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    500mA
  • DOWNLOAD
2

CODES

CODELENGTH
(mm)
POWER
CONSUMPTION
COLOUR TEMPERATUREVIEWING ANGLEDOWNLOAD
AR9732101 PX15010W/m Full OnRGB180°PRODUCT SHEET PHOTOMETRY
AR9732102 PX30010W/m Full OnRGB180°PRODUCT SHEET PHOTOMETRY
AR9732103 PX45010W/m Full OnRGB180°PRODUCT SHEET PHOTOMETRY
AR9732104 PX60010W/m Full OnRGB180°PRODUCT SHEET PHOTOMETRY
AR9732105 PX75010W/m Full OnRGB180°PRODUCT SHEET PHOTOMETRY
AR9732106 PX90010W/m Full OnRGB180°PRODUCT SHEET PHOTOMETRY
AR9732107 PX105010W/m Full OnRGB180°PRODUCT SHEET PHOTOMETRY
AR9732108 PX120010W/m Full OnRGB180°PRODUCT SHEET PHOTOMETRY
AR9732109 PX135010W/m Full OnRGB180°PRODUCT SHEET PHOTOMETRY
AR9732110 PX150010W/m Full OnRGB180°PRODUCT SHEET PHOTOMETRY
AR9732111 PX165010W/m Full OnRGB180°PRODUCT SHEET PHOTOMETRY
AR9732112 PX180010W/m Full OnRGB180°PRODUCT SHEET PHOTOMETRY
