Create a feeling of well-being and comfort in outdoor areas with the iVoli bollard.
Its simple, modern design blends successfully into any landscape.

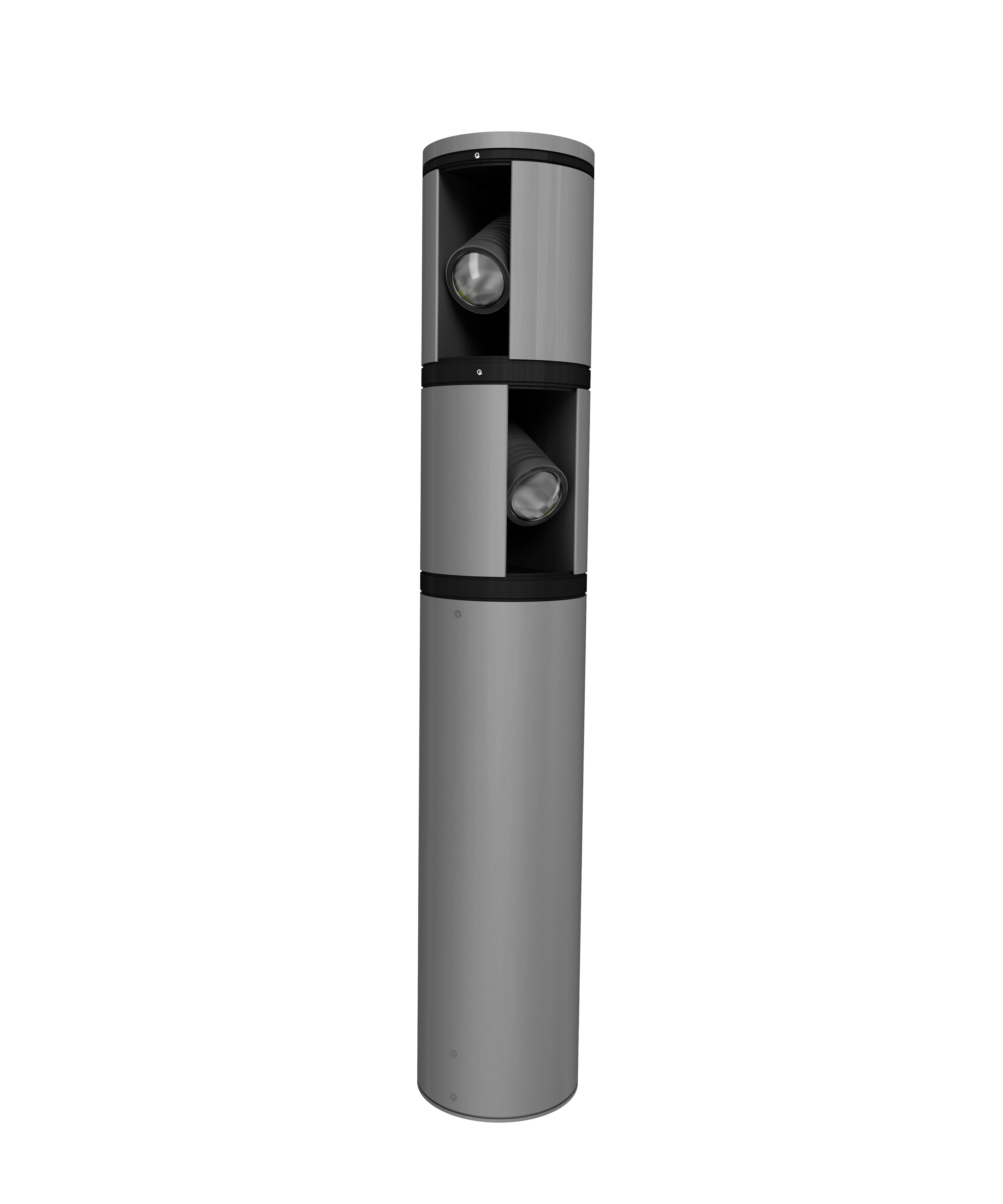

iVoli
Directed beam technology with innovative optical modules developed for iVoli guarantees visual comfort, safety and improved quality of space.
Architectural LED lighting bollard range inspires architects, designers and system integrators with its exceptional quality, functional lighting and remarkable creativity.
Designed to last in extremely harsh environments.
Modular and Creative
Elegant bollard with clear lines and directed beam provide high visual comfort and glare control. The modular luminaires, based on elegant design aluminium profile and housing, offer various aesthetic and performance solutions.
For all its diversity and flexibility, iVoli with its purist look stands for an attractive structure that enhances urban environments both by day and by night with design and lighting effects. Basic form in geometry meets the most innovative technology to create this product with its ultra-modern style.
For all its diversity and flexibility, iVoli with its purist look stands for an attractive structure that enhances urban environments both by day and by night with design and lighting effects. Basic form in geometry meets the most innovative technology to create this product with its ultra-modern style.
Solid Design and Easy to Install
The solid luminaire, which is equipped with an integral power supply unit, is optionally available with DALI control or in the user-friendly On-Off version.
The product is supplied pre-wired, permitting simple, rapid and safe installation.
The product is supplied pre-wired, permitting simple, rapid and safe installation.
Individualize the System
We offer you extensive options for the individualization of the iVoli range.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.
Led Type
High efficiency LEDs COB, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint finish
aluminium housing (EN AW-6060) with stainless steel screws (A4 grade)
and silicone gaskets. Power unit is built in. Available in anthracite gray as
a standard finish or any desired RAL colour.
Optional Coating
Marine grade.
Diffuser
Thermal-shock resistant tempered glass.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP66
IK08
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
Color rendering index
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
Dimmable luminaire
LM-80
| CODE | POWER CONSUMPTION | LUMEN OUTPUT (lm) 3000K / 4000K | COLOUR TEMPERATURE | DOWNLOAD |
|---|---|---|---|---|
| LB2757 | 12W | 1320 / 1440 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
| LB2758 | 2 x 12W | 2640 / 2880 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
