iFlute

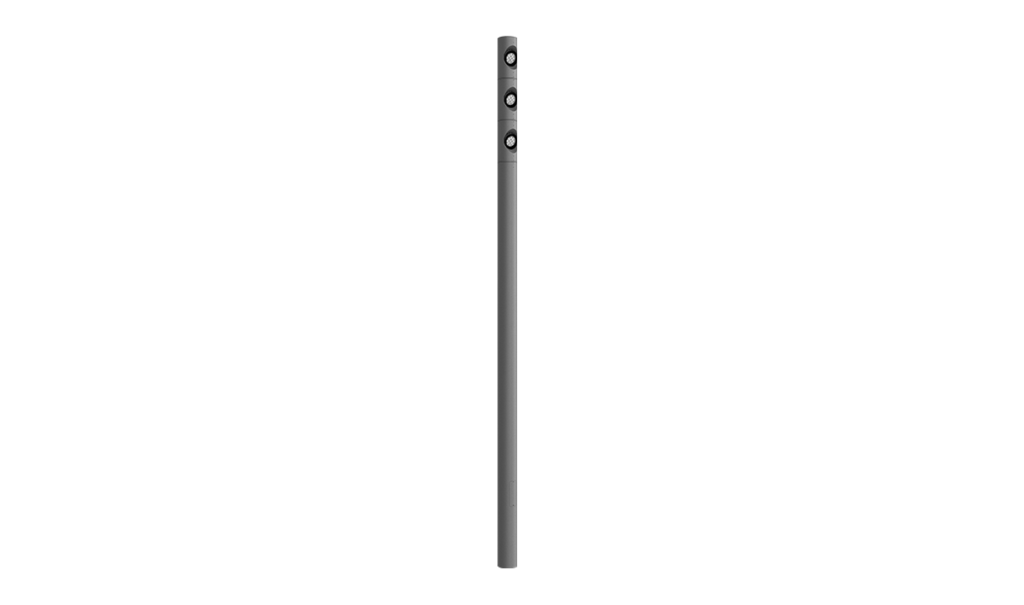

iFlute Column is a multi purpose urban lighting element suitable for squares, roads, pedestrian precincts, car parks and sports areas.

Modules are fully rotatable and adjustable. Advanced thermal design with cutting-edge manufacturing process and materials.

Light column series with minimal and robust design in different heights, ideal for ambient illumination of squares, avenues, paths, parks, walkways and gardens.

Directed beam technology with innovative optical modules developed for iFlute guarantees visual comfort, safety and improved quality of space.

Architectural LED light column range inspires architects, designers and system integrators with its exceptional quality, functional lighting and remarkable creativity.

Designed to last in extremely harsh environments.

Elegant and Attractive
Elegant light column with clear lines and directed beam provide high visual comfort and glare control. The modular luminaires, based on elegant design aluminium profile and housing, offer various aesthetic and performance solutions.

For all its diversity and flexibility, iFlute with its purist look stands for an attractive structure that enhances urban environments both by day and by night with design and lighting effects. Basic form in geometry meets the most innovative technology to create this product with its ultra-modern style.
Solid Design and Easy to Install
The solid luminaire, which is equipped with an integral power supply unit, is optionally available with DALI control or in the user-friendly On-Off version.

The product is supplied pre-wired, permitting simple, rapid and safe installation.‎
Individualize the System
We offer you extensive options for the individualization of the iFlute range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

OPTICAL

45°
60°
90°

TECHNICAL DATA

Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing, aluminium extruded column (EN AW-6060) with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour. Adjustable joint for beam direction 0° - 30°. BSIEN® LED Module
Optional Coating
Marine grade.
Diffuser
Thermal-shock resistant tempered glass.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP66
IK08
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
Color rendering index
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
Dimmable luminaire
LM-80

CODES

  • CODE
  • LENGTH (mm)
  • PITCH
    (mm)
  • LED QTY
  • POWER
    CONSUMPTION
    350mA
  • POWER
    CONSUMPTION
    500mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    350mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    500mA
  • DOWNLOAD
2

CODES

CODEPOWER
CONSUMPTION		LUMEN OUTPUT (lm)
3000K / 4000K		COLOUR TEMPERATUREDOWNLOAD
LB5716011x48W5280 / 129603000K / 4000KPRODUCT SHEET PHOTOMETRY
LB5716022x48W10560 / 115203000K / 4000KPRODUCT SHEET PHOTOMETRY
LB5716033x48W15840 / 172803000K / 4000KPRODUCT SHEET PHOTOMETRY

DOWNLOAD FILES

PHOTOMETRICS
PRODUCT CATALOGUE
CERTIFICATIONS
2D DXF
TECHNICAL DRAWING PDF
INSTALLATION GUIDE
RANGE CATALOGUE
PRODUCT IMAGE
3D MODEL
TECHNICAL DRAWING PNG
