Architectural wall lighting range inspires architects, designers and system integrators with its exceptional quality, unique light effects and remarkable creativity.
iTrace
Compact and High Performance

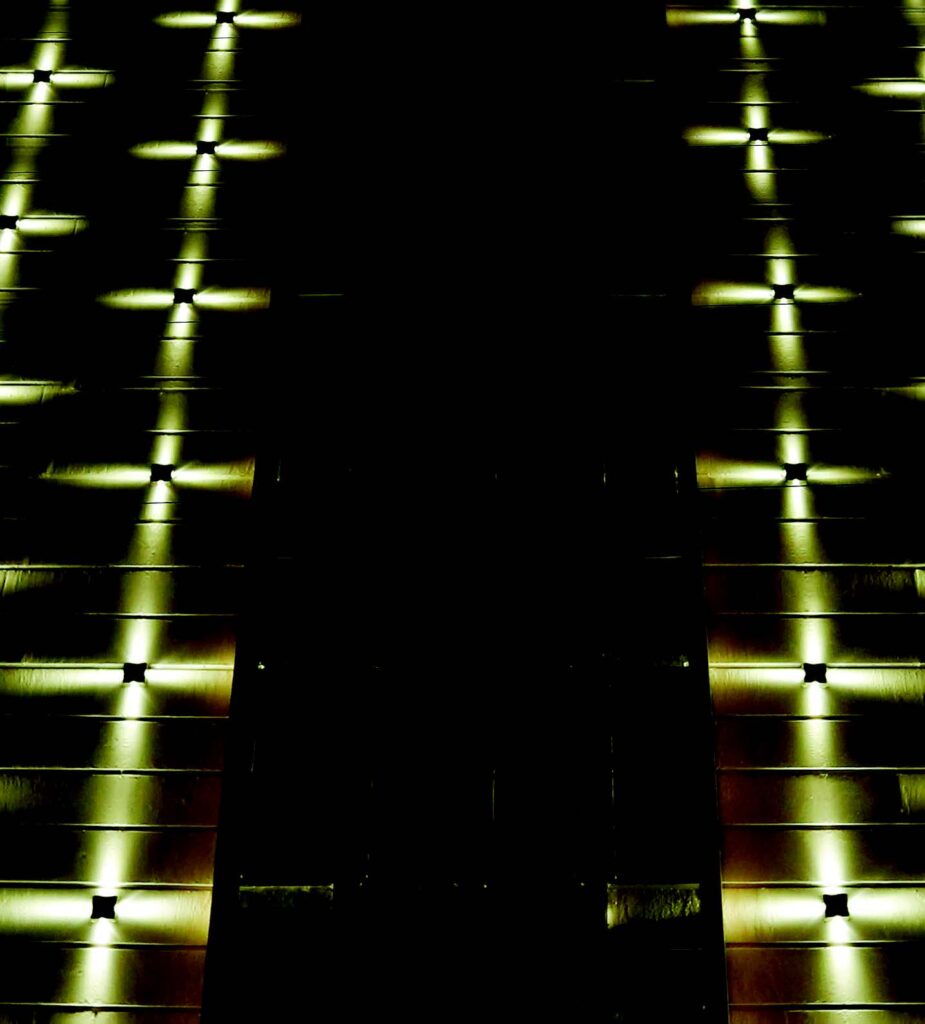

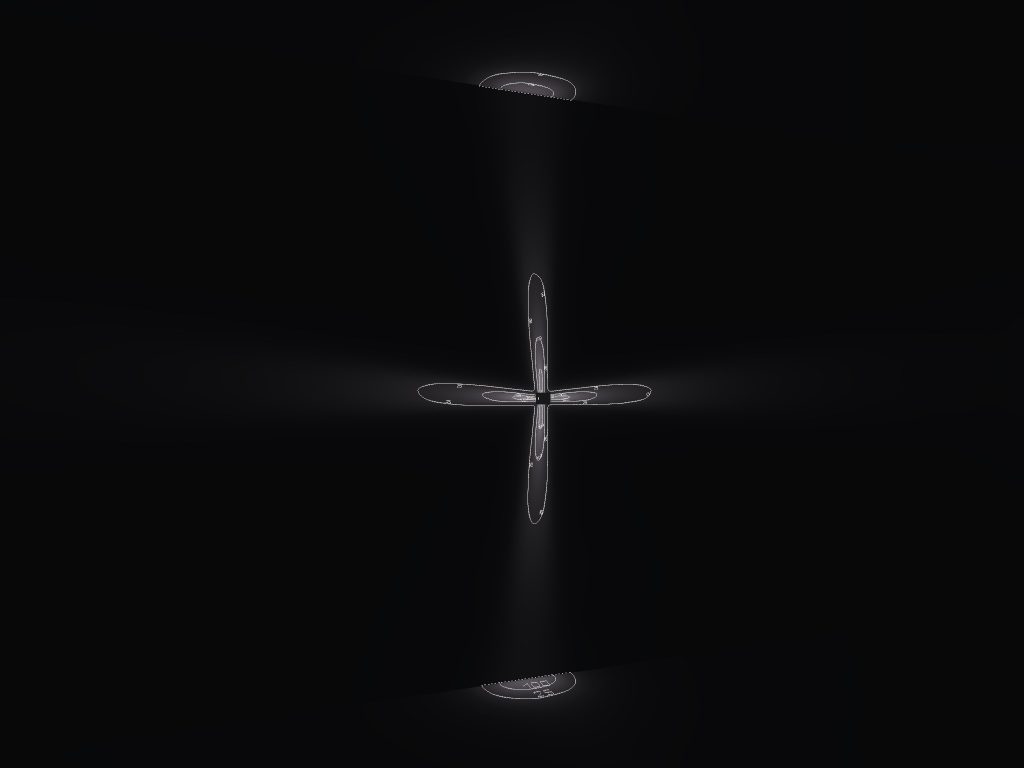

Defining architectural spaces with precision optics. Innovative light sources and precise narrow lenses combine to form a high impact and low maintenance lighting system.

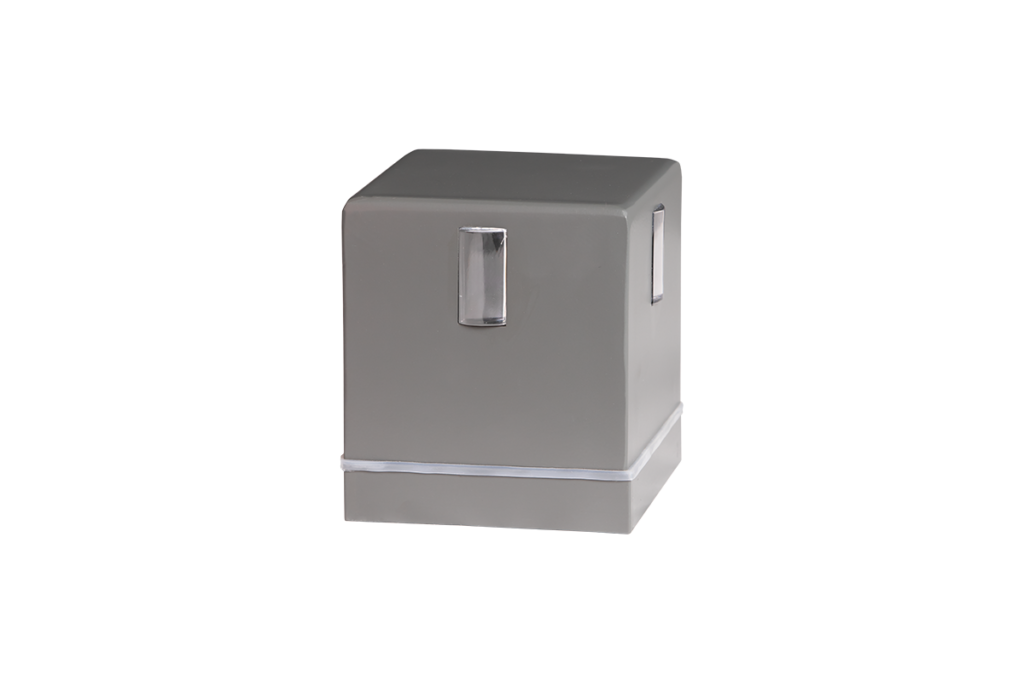

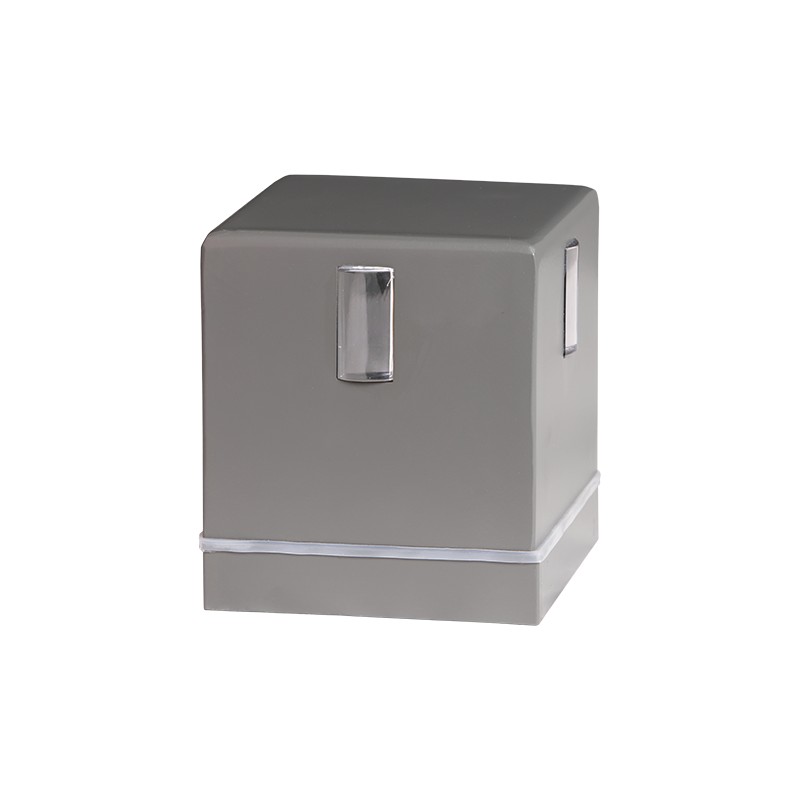

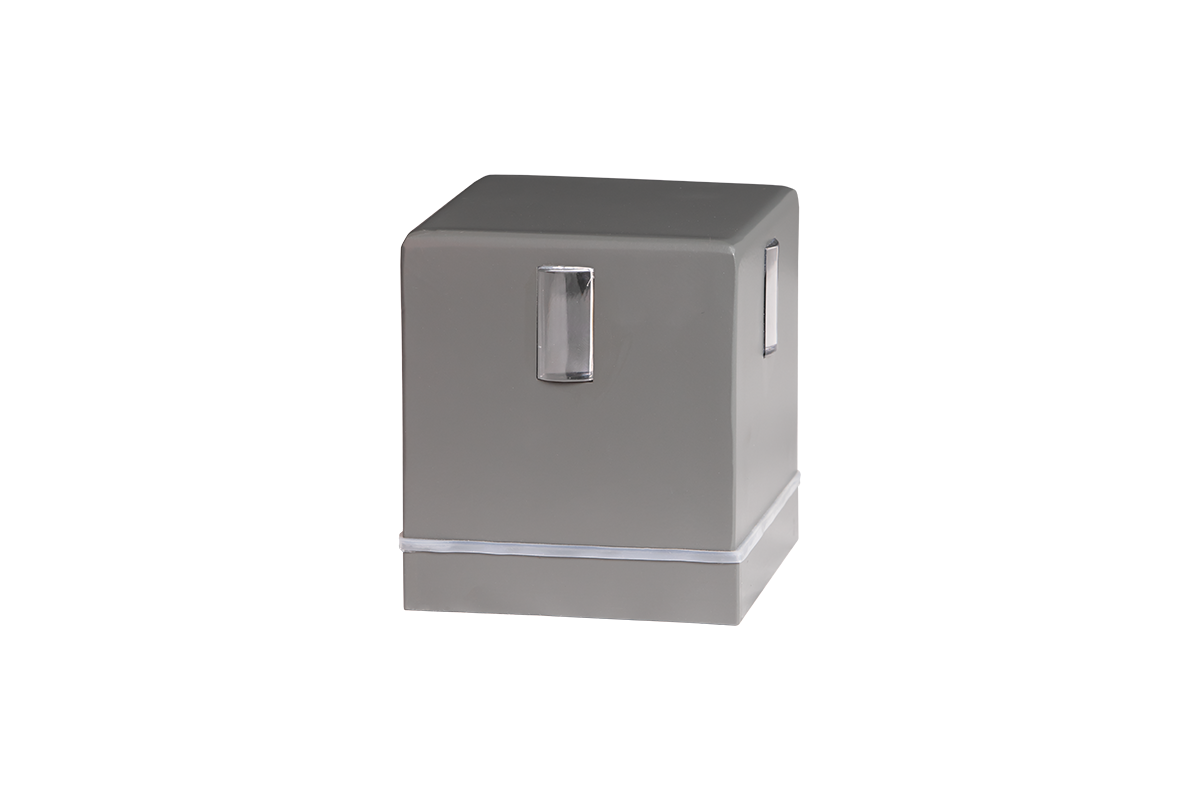

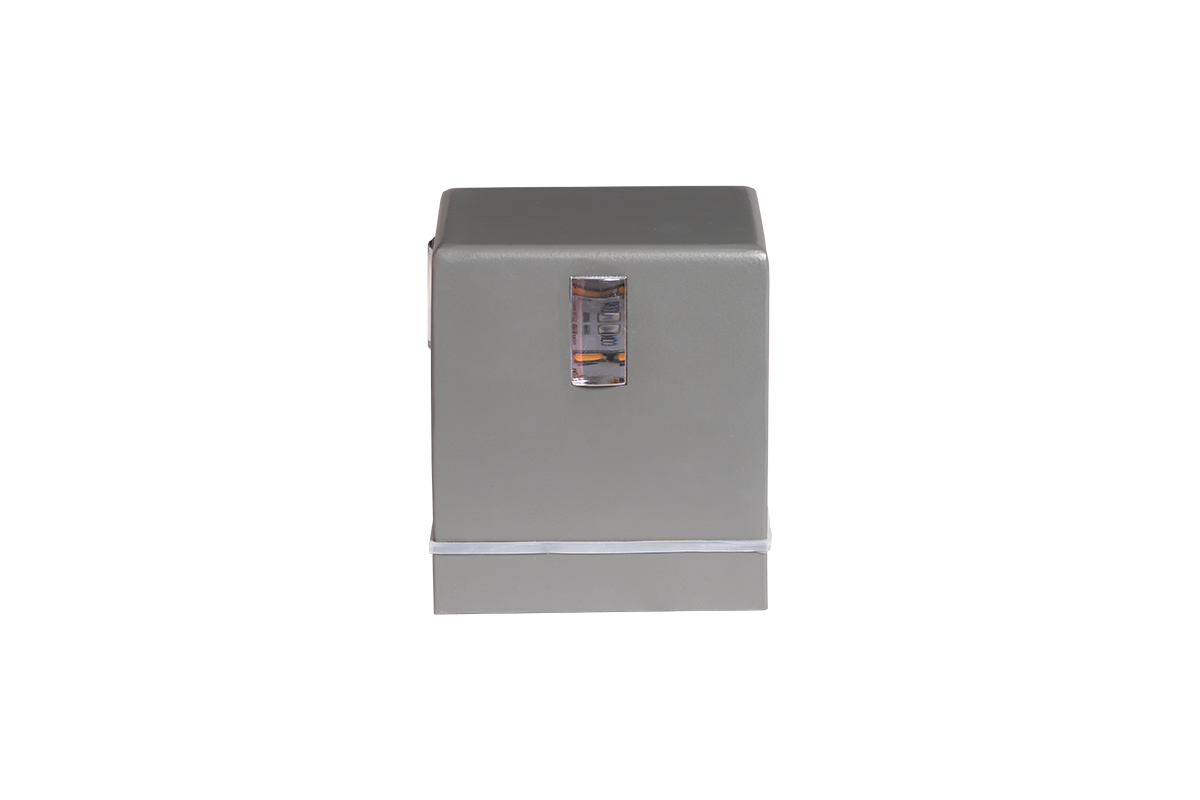

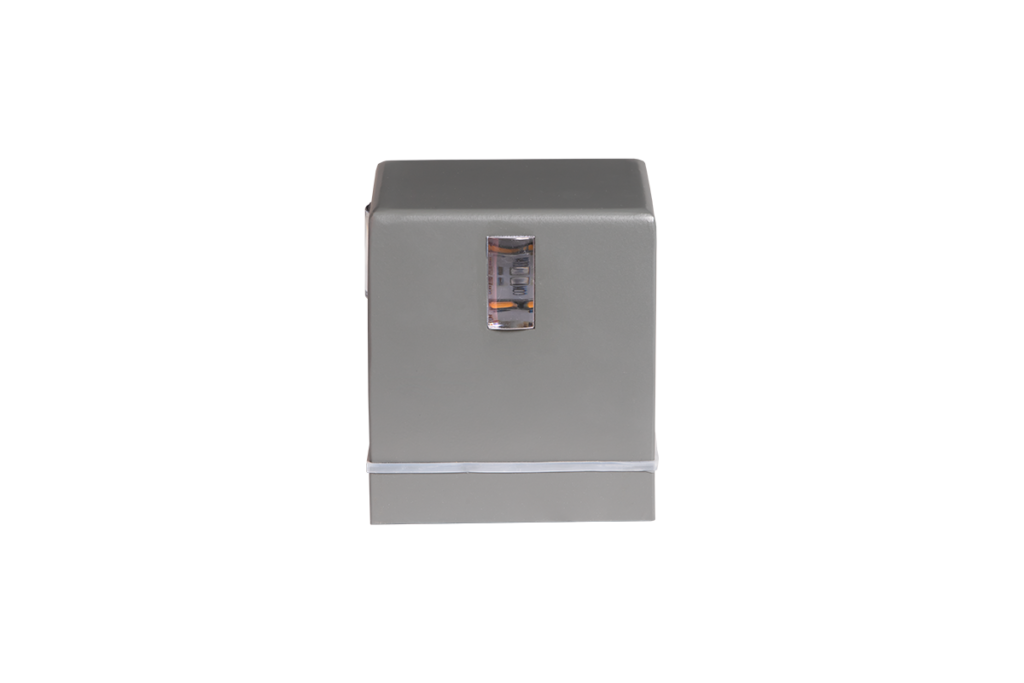

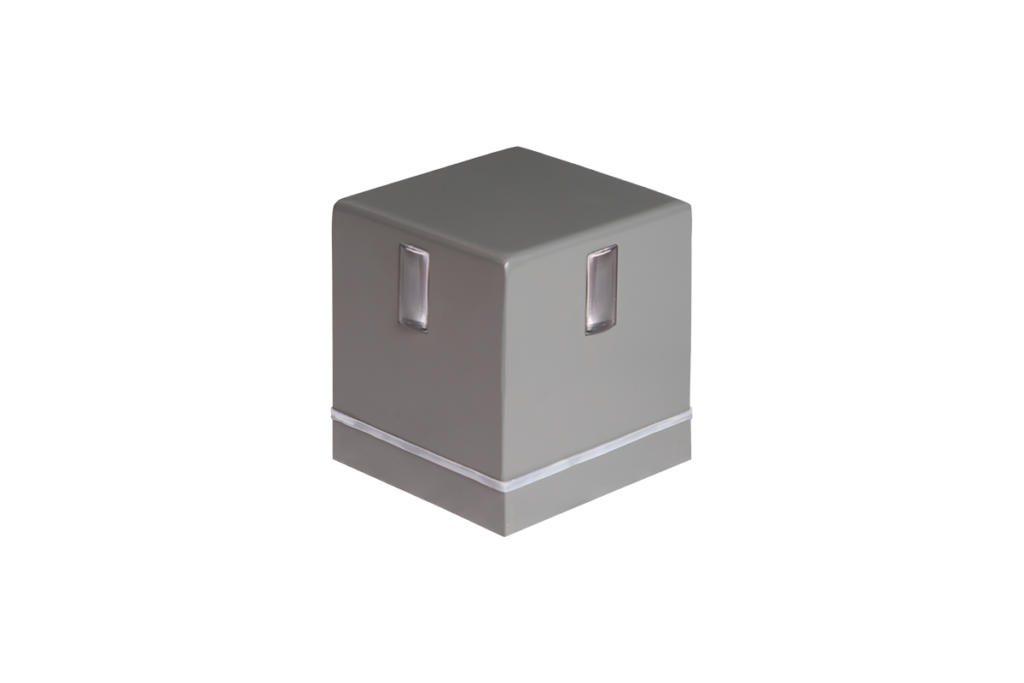

iTrace is a compact and high performance luminaire with impressive versatility. Suitable for easy installation on walls.
Integrated Solution and Easy to Install
Plug and play built-in system with the fully integrated universal power supply unit.
The watertight plug connector ensures easy, fast and secure installation The robust luminaire fits seamlessly into the architecture.
Individualize the System
We offer you extensive options for the individualization of the iTrace range. To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.
Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K,
6500K CCT tolerance within a 3-step MacAdams ellipse and
LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint finish
die cast aluminium housing with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour.
Optional Coating
Marine grade.
Diffuser
Thermal-shock resistant tempered glass.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP66
IK10
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
Color rendering index
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
LM-80
| CODE | POWER CONSUMPTION | LUMEN OUTPUT (lm) 3000K / 4000K | COLOUR TEMPERATURE | DOWNLOAD |
|---|---|---|---|---|

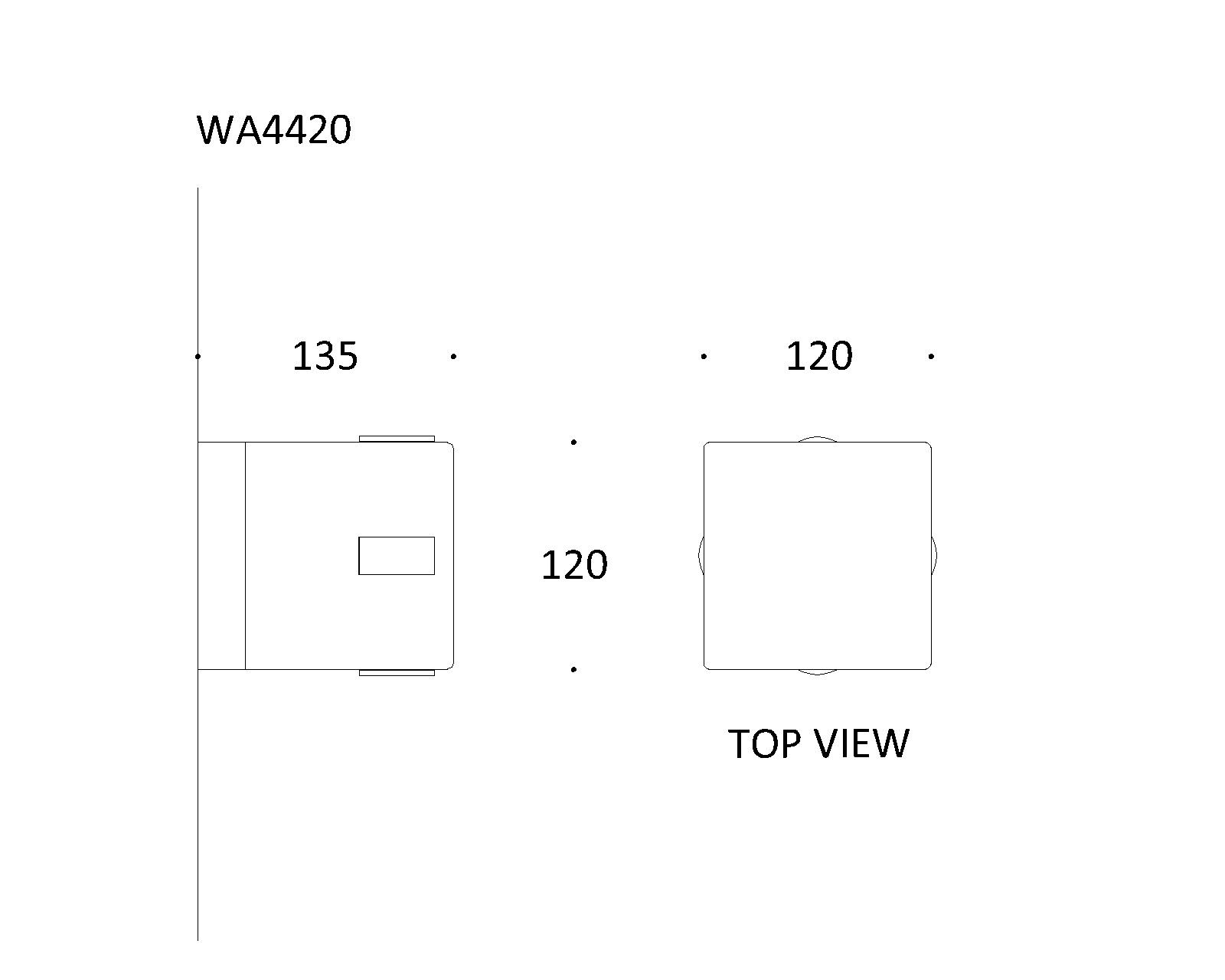

| WA4420 | 4 x 3W | 900 / 1020 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
