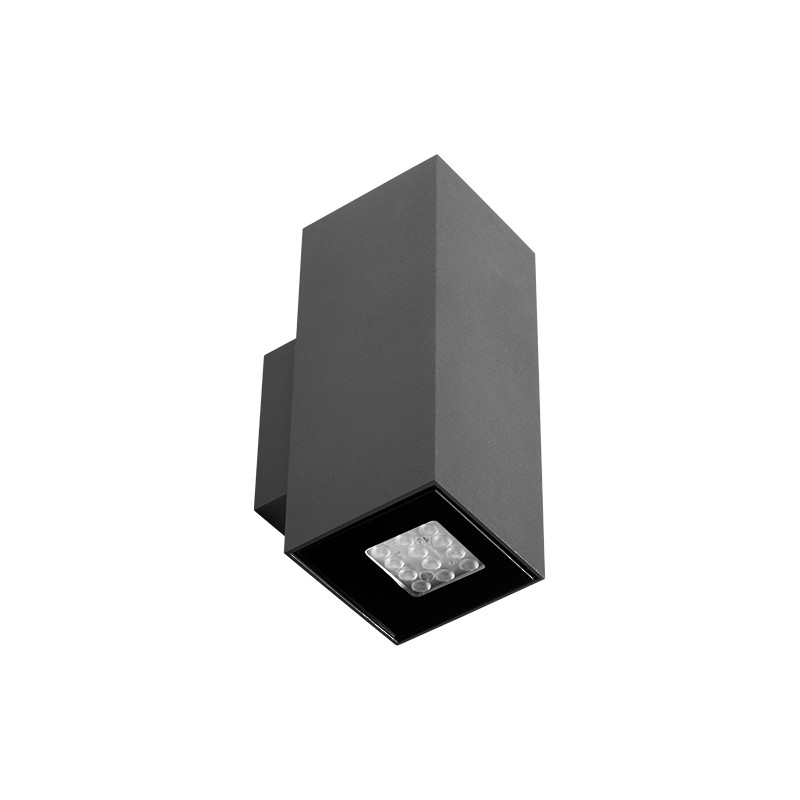

iTetta

iTetta secures functional down lighting with excellent light output.

Manufactured in different sizes.

Architectural wall lighting range inspires architects, designers and system integrators with its exceptional quality, a variety of beam angles and remarkable creativity.

The iTetta series is a range of aluminium cubic volumes presented in different combinations.

The defining characteristic of this lighting range is its timeless formal purity, which makes it ideal for use in both living and contract spaces.

Available in three sizes.

Designed to last in extremely harsh environments.

Innovative and High Performance
Defining architectural spaces with precision optics. Innovative light sources and precise optical systems combine to form a high impact and low maintenance lighting system.

iTetta is a compact and high performance luminaire with impressive versatility. Suitable for easy installation on walls.
Integrated Solution and Easy to Install
Plug and play built-in system with the fully integrated universal power supply unit.

The watertight plug connector ensures easy, fast and secure installation. The robust luminaire fits seamlessly into the architecture.
Individualize the System
We offer you extensive options for the individualization of the iTetta range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

OPTICAL

10x60°
12°
18x38°
30°
45°
60°
90°

TECHNICAL DATA

Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint finish aluminium housing (EN AW-6060) with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour.
Optional Coating
Marine grade.
Diffuser
Thermal-shock resistant tempered glass.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP66
IK10
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
Color rendering index
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
LM-80

CODES

  • CODE
  • LENGTH (mm)
  • PITCH
    (mm)
  • LED QTY
  • POWER
    CONSUMPTION
    350mA
  • POWER
    CONSUMPTION
    500mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    350mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    500mA
  • DOWNLOAD
2

CODES

CODEPOWER
CONSUMPTION		LUMEN OUTPUT (lm)
3000K / 4000K		COLOUR TEMPERATUREDOWNLOAD
WA41121 x 6W810 / 8523000K / 4000KPRODUCT SHEET PHOTOMETRY
WA41141 x 9W1215 / 12783000K / 4000KPRODUCT SHEET PHOTOMETRY
WA41161 x 14W1890 / 19883000K / 4000KPRODUCT SHEET PHOTOMETRY
WA41181 x 24W3240 / 34083000K / 4000KPRODUCT SHEET PHOTOMETRY
WA41201 x 39W5265 / 55383000K / 4000KPRODUCT SHEET PHOTOMETRY
WA41221 x 54W7290 / 76683000K / 4000KPRODUCT SHEET PHOTOMETRY
WA41242 x 6W1620 / 17043000K / 4000KPRODUCT SHEET PHOTOMETRY
WA41262 x 9W2430 / 25563000K / 4000KPRODUCT SHEET PHOTOMETRY
WA41282 x 14W3780 / 39763000K / 4000KPRODUCT SHEET PHOTOMETRY
WA41302 x 24W6480 / 68163000K / 4000KPRODUCT SHEET PHOTOMETRY
WA41322 x 39W10530 / 110763000K / 4000KPRODUCT SHEET PHOTOMETRY
WA41342 x 54W14580 / 153363000K / 4000KPRODUCT SHEET PHOTOMETRY

DOWNLOAD FILES

PHOTOMETRICS
PRODUCT CATALOGUE
CERTIFICATIONS
2D DXF
TECHNICAL DRAWING PDF
INSTALLATION GUIDE
RANGE CATALOGUE
PRODUCT IMAGE
3D MODEL
TECHNICAL DRAWING PNG
