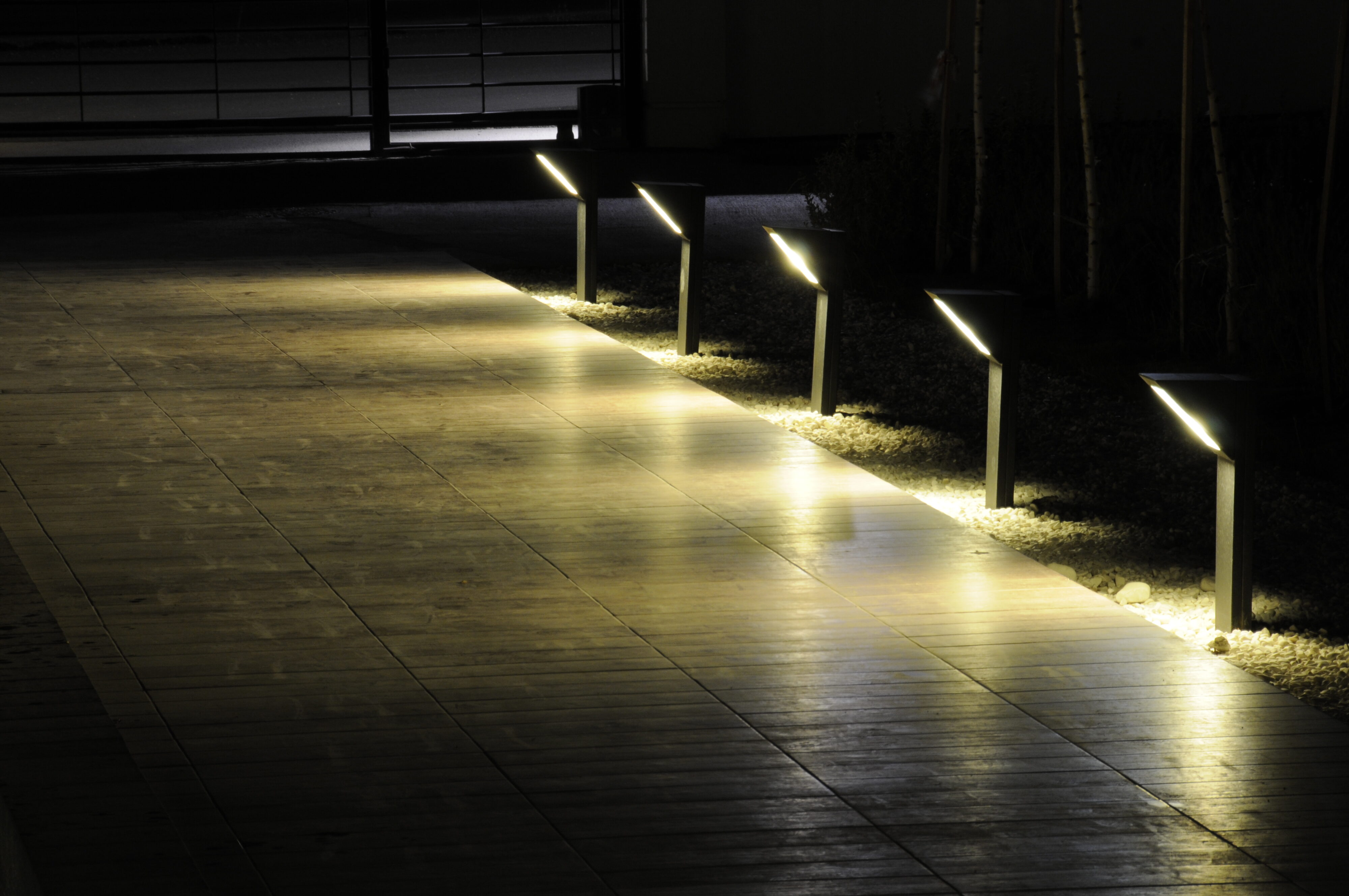

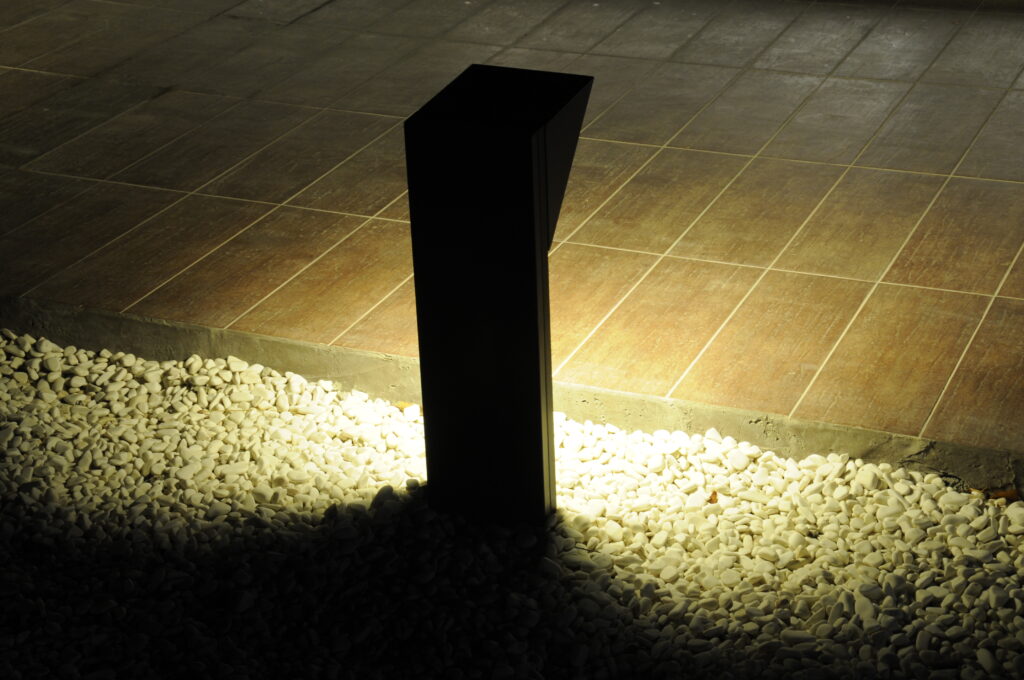

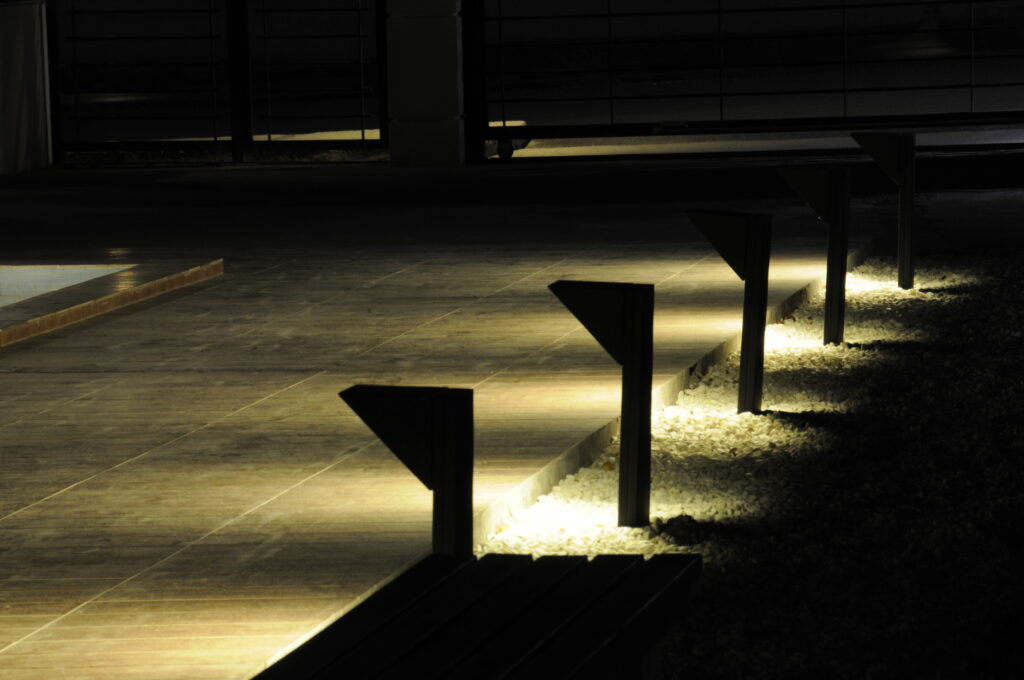

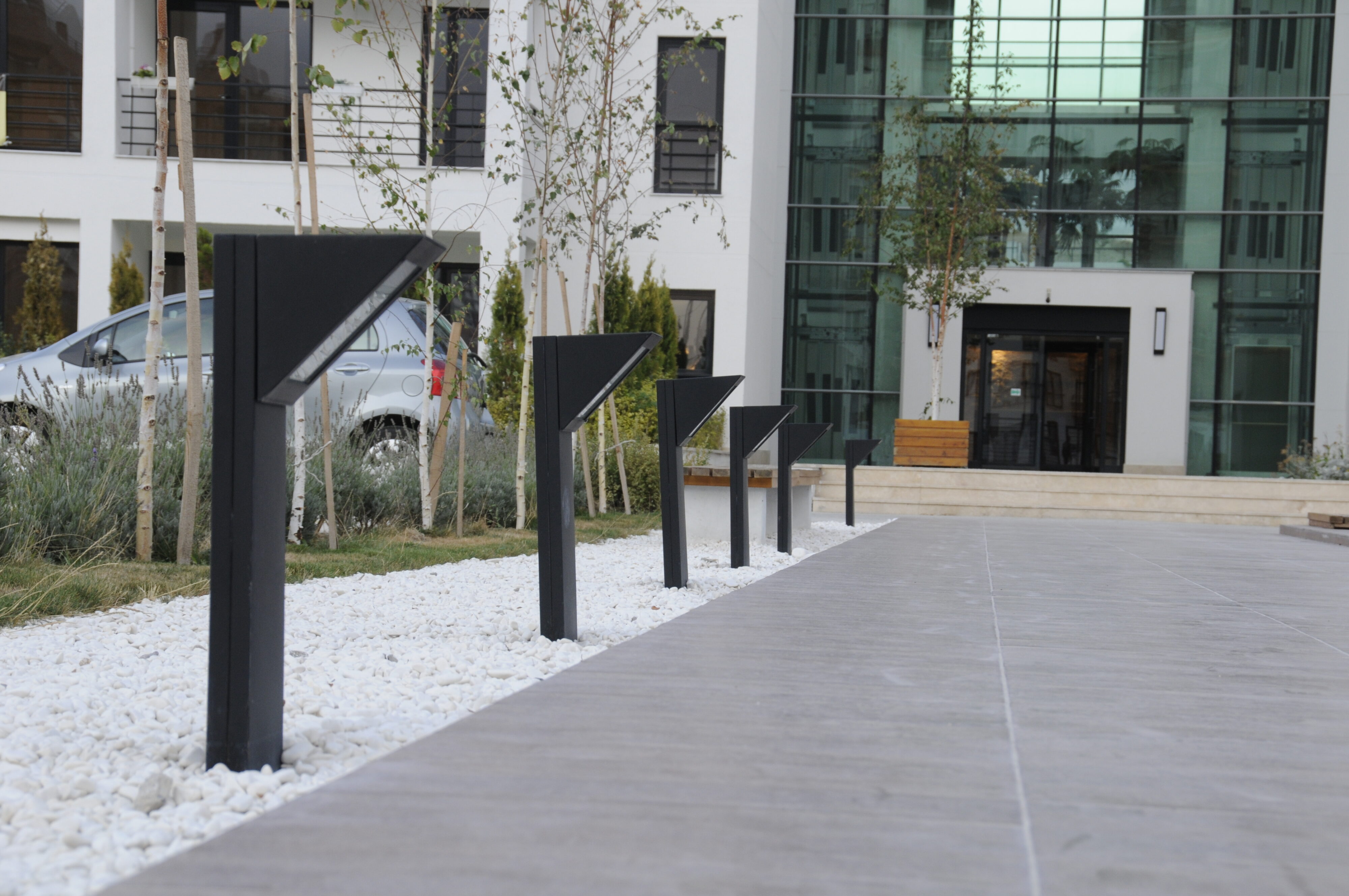

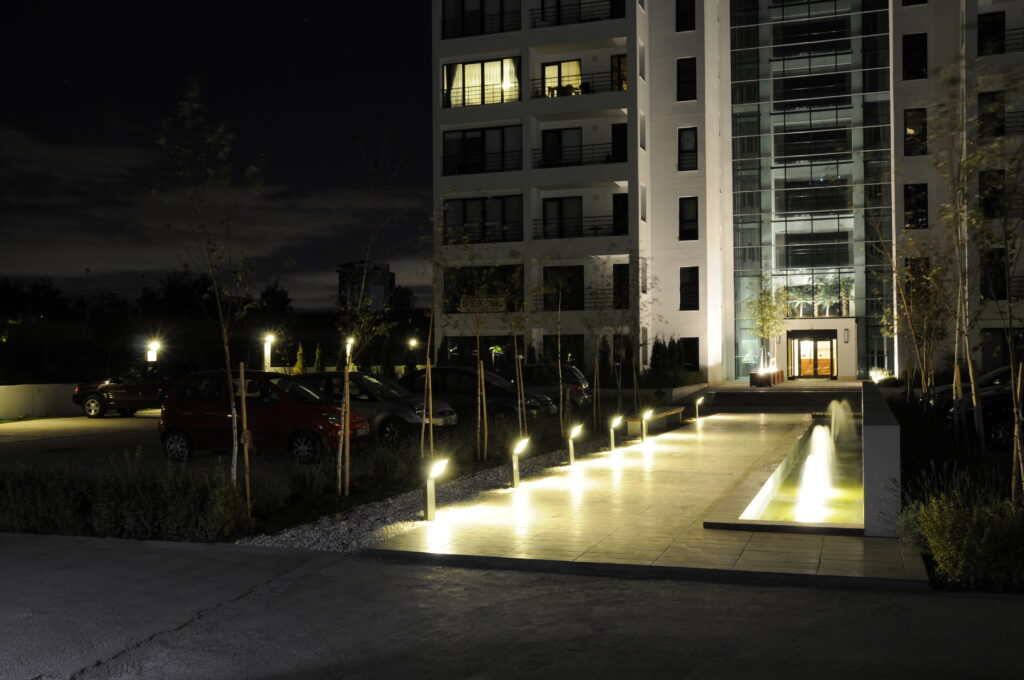

iPark light prfile is a component for attractive outdoor lighting for garden paths and in entrance areas, on terraces or green areas.
iPark

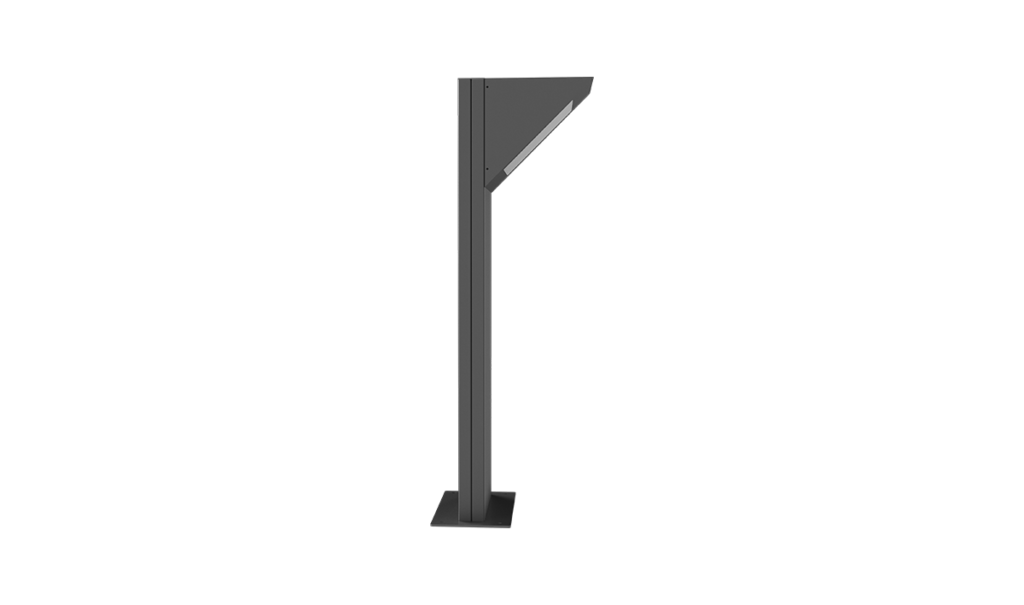

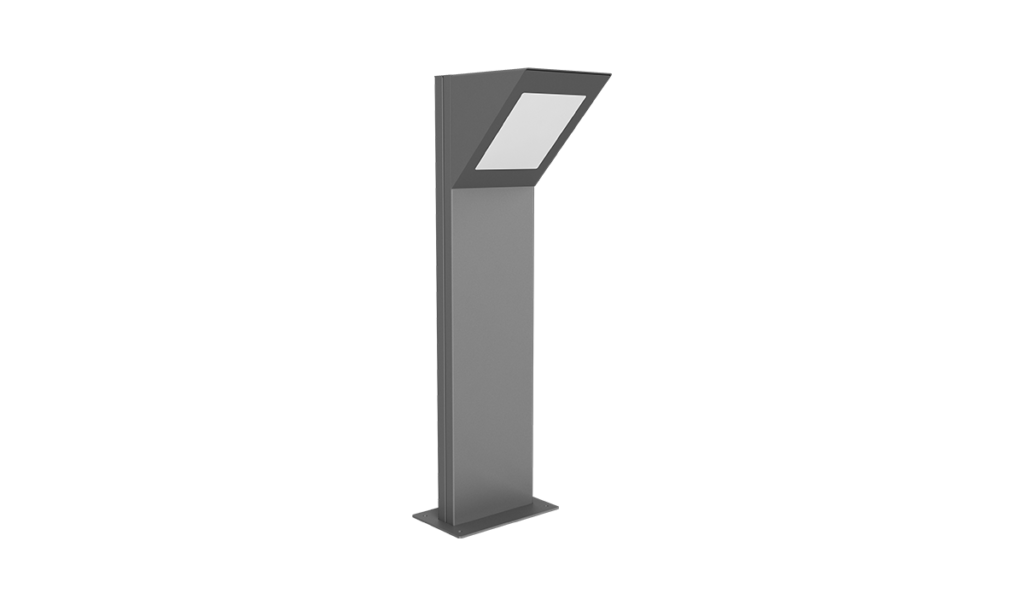

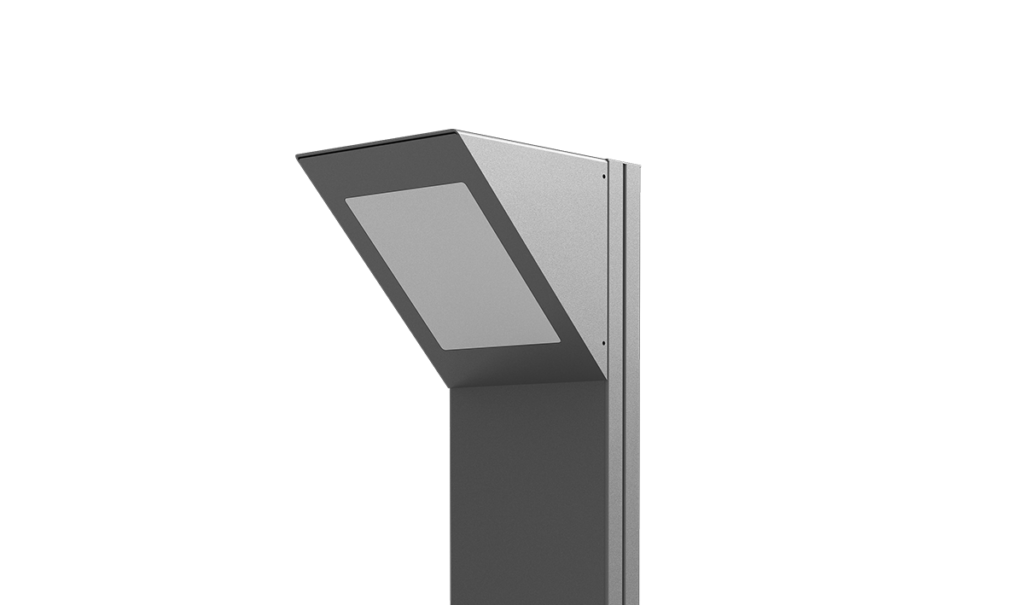

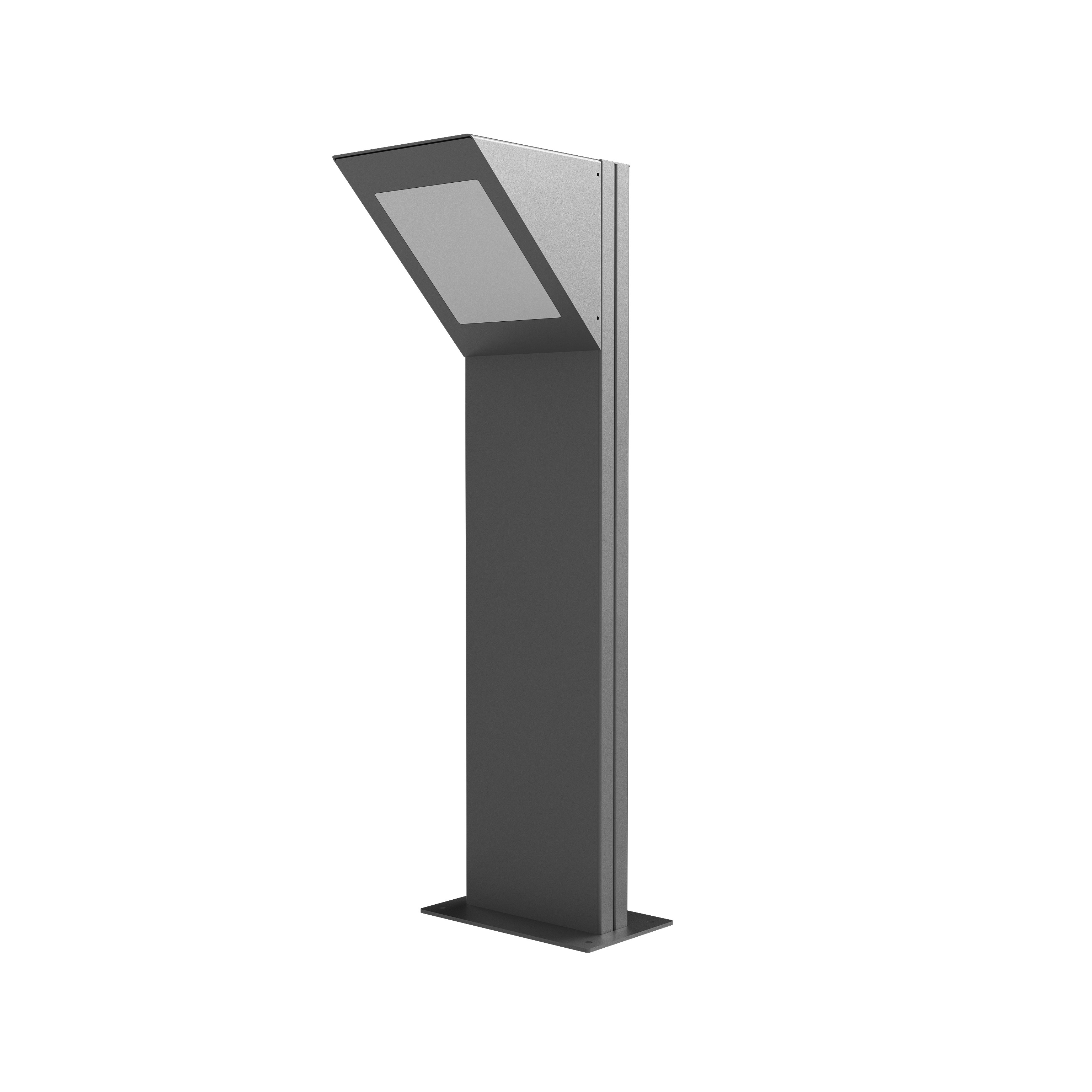

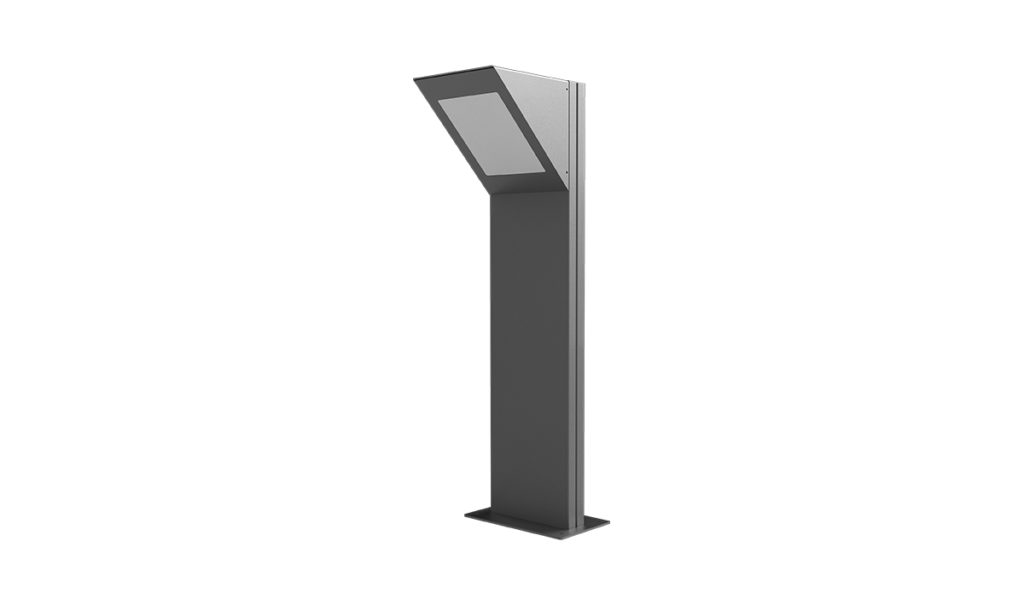

iPark is a family of robust and high-quality construction bollards, designed on the basis of rectangular shapes. Offers LED technology solutions for the lighting of pathways and urban areas.
The innovative optical systems designed for the iPark line guarantee visual comfort, safety and enhanced quality of space.
Architectural LED bollard and wall luminaire range inspires architects, designers and system integrators with its exceptional quality, functional light distribution and remarkable creativity.
Designed to last in extremely harsh environments.
Modular and Refined
Efficient design that features tremendous modularity and ease of use. iPark is made of extruded aluminum, resulting in a form with simplicity matches its function.

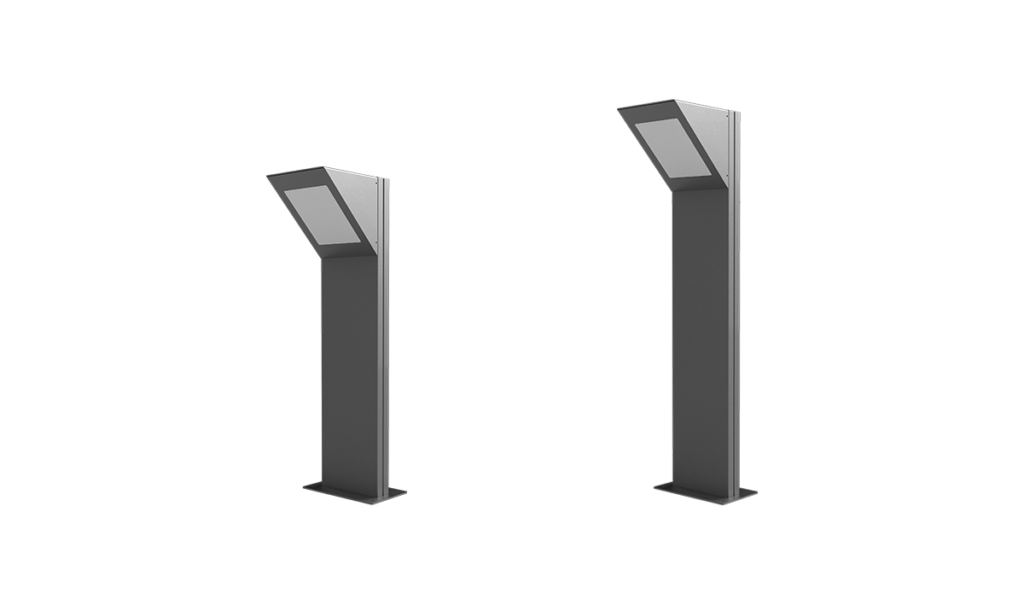

The iPark family of luminaires creates beautiful and intentional light emanating from a refined design. The various modes of installation and the orientability of the product respond to specific functional and architectural requirements of every urban context.
The iPark family of luminaires creates beautiful and intentional light emanating from a refined design. The various modes of installation and the orientability of the product respond to specific functional and architectural requirements of every urban context.
Integrated Solution and Easy to Install
The iconic luminaire, which is equipped with an integral power supply unit, is optionally available with DALI control or in the user-friendly On-Off version.
The product is supplied pre-wired, permitting simple, rapid and safe installation.
The product is supplied pre-wired, permitting simple, rapid and safe installation.
Individualize the System
We offer you extensive options for the individualization of the iPark range.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.
Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K,
6500K CCT tolerance within a 3-step MacAdams ellipse and
LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint finish
die cast aluminium housing, aluminium extruded column (EN AW-6060) with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour.
Optional Coating
Marine grade.
Diffuser
Shockproof PMMA UV Stabilised Diffuser.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP65
IK08
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
Color rendering index
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
Dimmable luminaire
LM-80
| CODE | POWER CONSUMPTION | LUMEN OUTPUT (lm) 3000K / 4000K | COLOUR TEMPERATURE | DOWNLOAD |
|---|---|---|---|---|
| LB2112 | 12W | 900 / 1020 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
