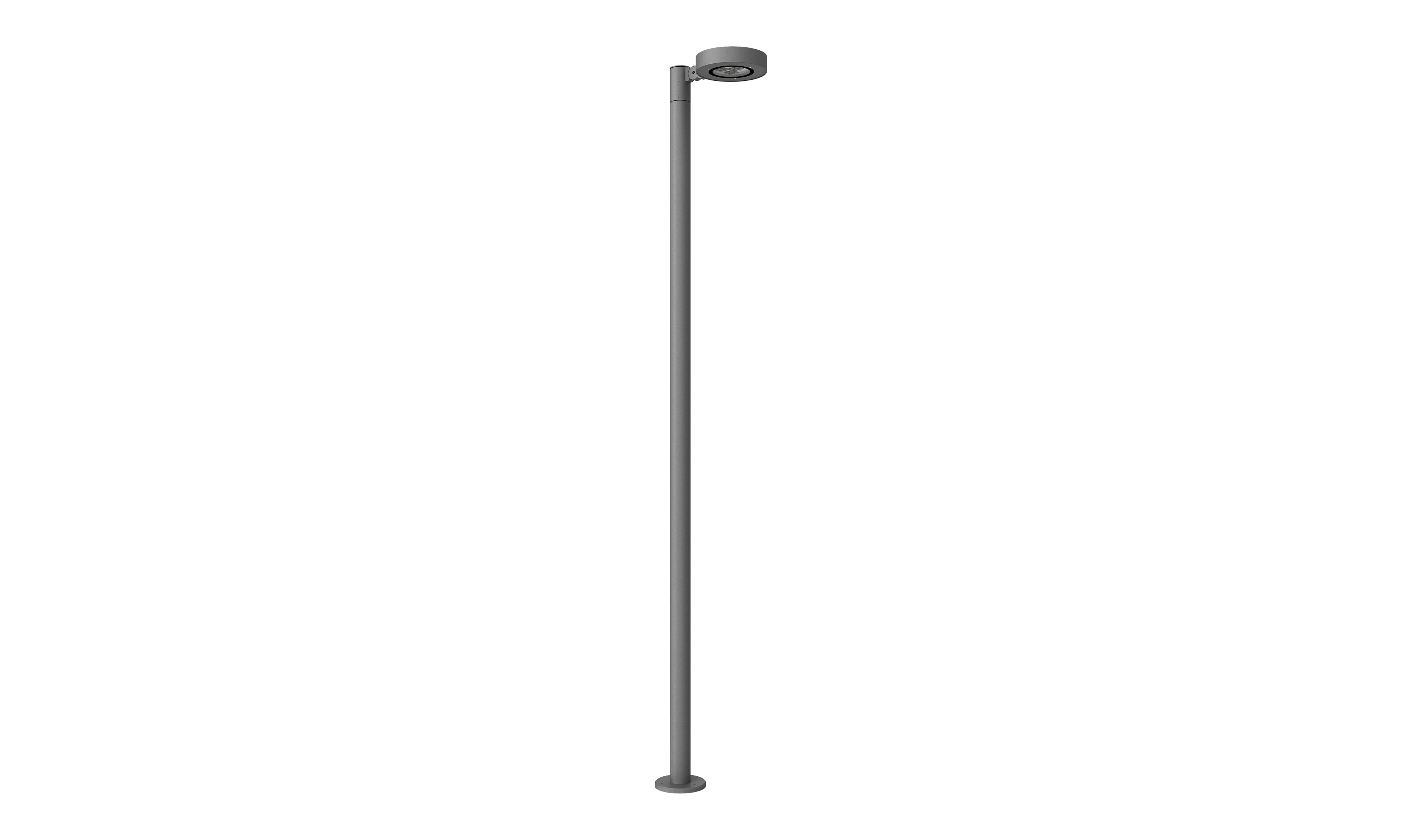

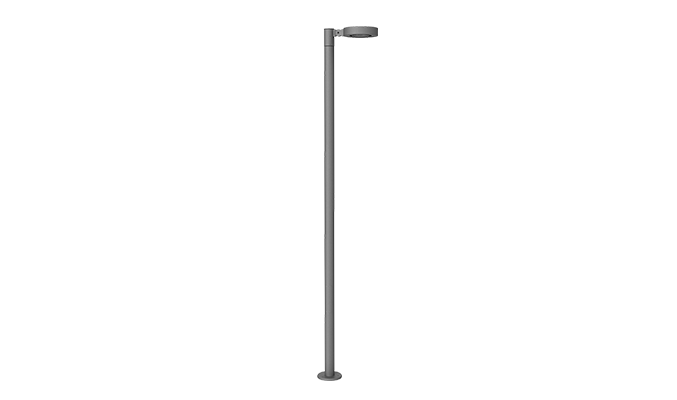

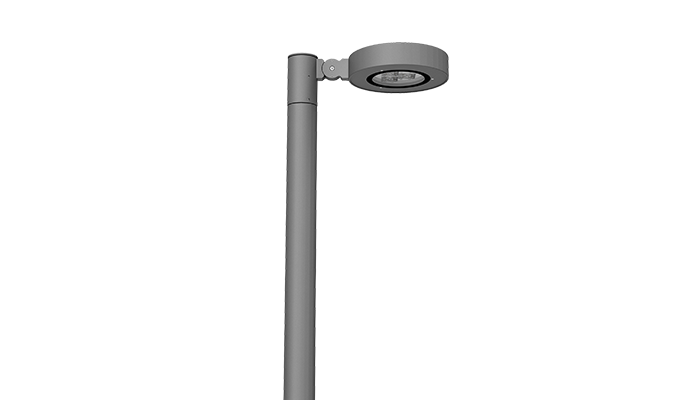

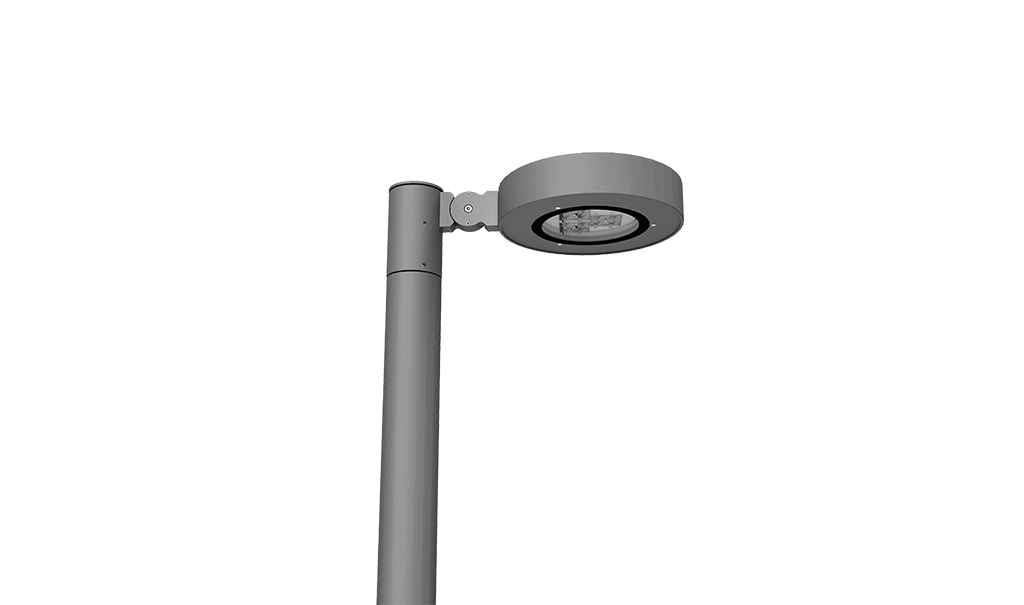

iLeno Slim

Contemporary LED luminaire designed to provide efficient and comfortable illumination in urban and architectural outdoor environments. Its refined form integrates seamlessly into different spaces while delivering controlled and uniform light distribution.

BSISQ® LED Module integrated.

PRODUCT
GALLERY
OPTICAL
TECHNICAL DATA
CODES
DOWNLOAD FILES

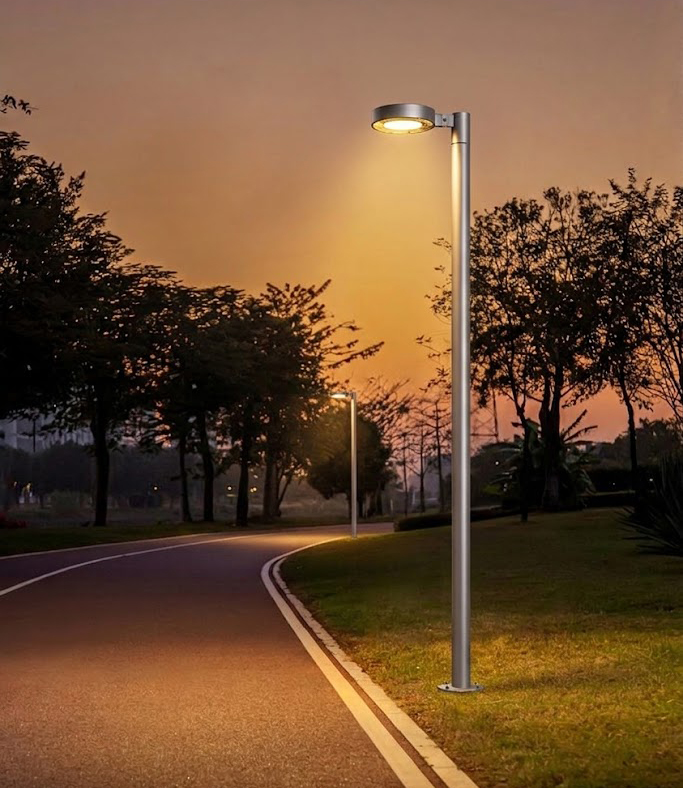

iLeno Slim combines a minimalist design with high lighting performance, offering an efficient solution for pathways, pedestrian areas, public spaces, parks and gardens.

Its compact and elegant structure provides both functional illumination and visual harmony, making it suitable for a wide range of outdoor applications.

Different optical options and configurations allow designers to create effective lighting solutions tailored to various architectural and urban environments.

Designed to provide reliable performance and durability in demanding outdoor conditions.

Innovative and Effective

The iLeno Slim is equipped with advanced optical solutions that provide homogeneous and comfortable illumination with precise light distribution. Its carefully designed optics ensure effective light output while minimizing unwanted glare and unnecessary light dispersion.

The robust construction and high protection level make the luminaire suitable for challenging outdoor environments. Its refined appearance, combined with practical installation and maintenance features, offers an efficient lighting solution for pedestrian areas, pathways and urban spaces.

Various photometric distributions and mounting options provide designers with the flexibility to create different lighting configurations while maintaining visual comfort and high lighting performance.

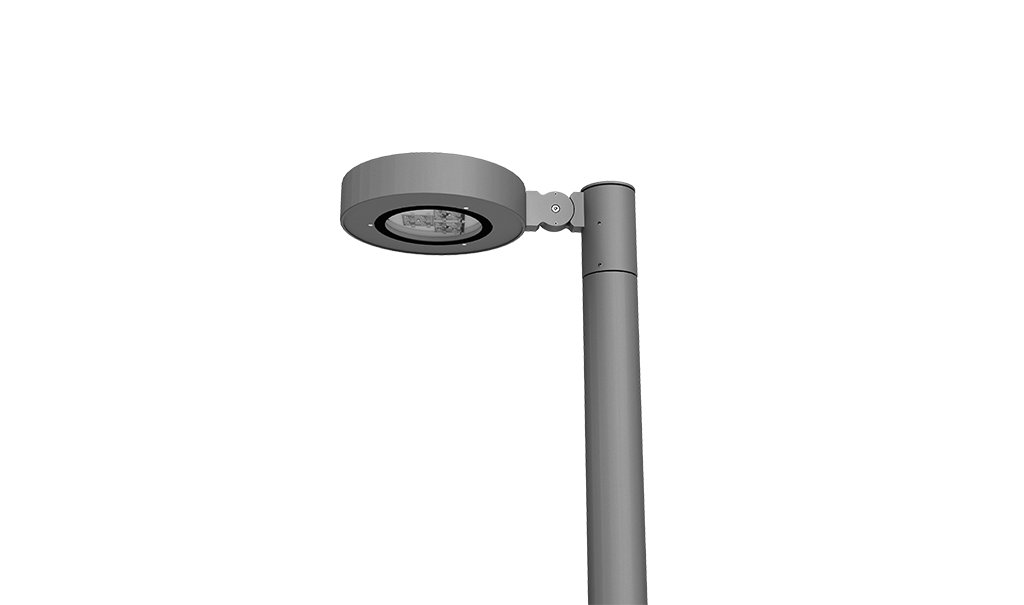

Modern Design and Easy to Install

The modernly designed luminaire, which is equipped with an integral power supply unit, is optionally available with DALI control or in the user-friendly On-Off version.

The product is supplied pre-wired, permitting simple, rapid and safe installation.

Individualize the System

We offer you extensive options for the individualization of the iLeno Slim range.

To adapt the luminaire precisely to different project requirements, various configurations, optical options and mounting solutions are available. Additional variants can also be provided on request to create customized lighting solutions for specific applications.

Architectural

Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.

Sustainable

BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.

Durable

Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

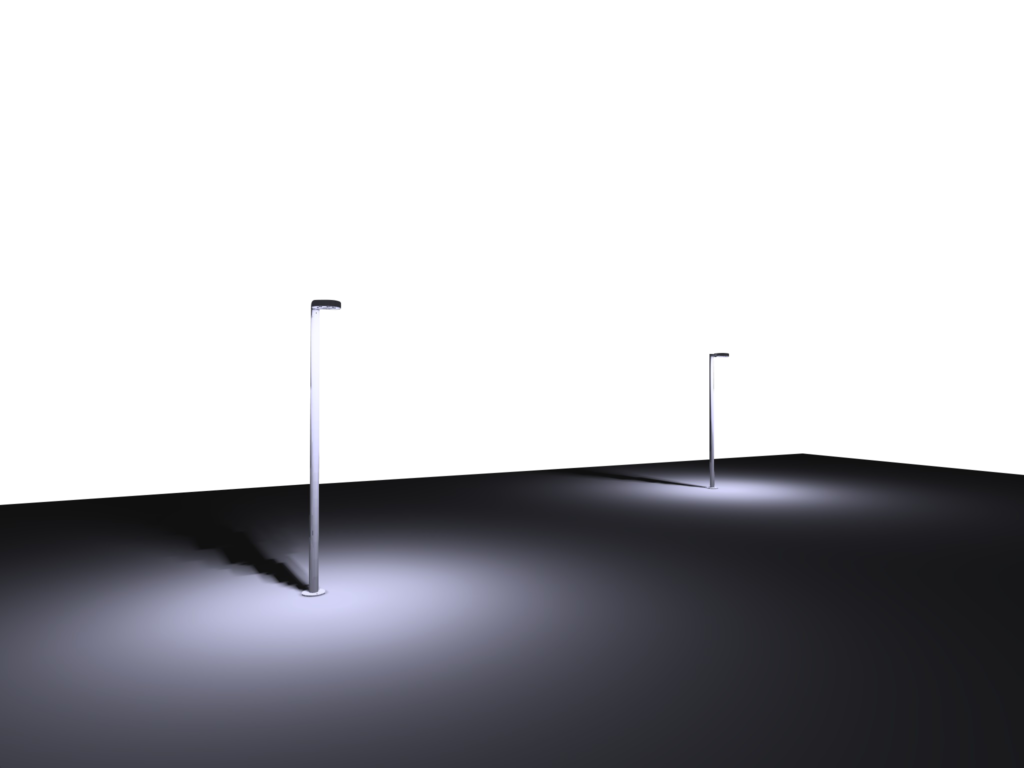

OPTICAL

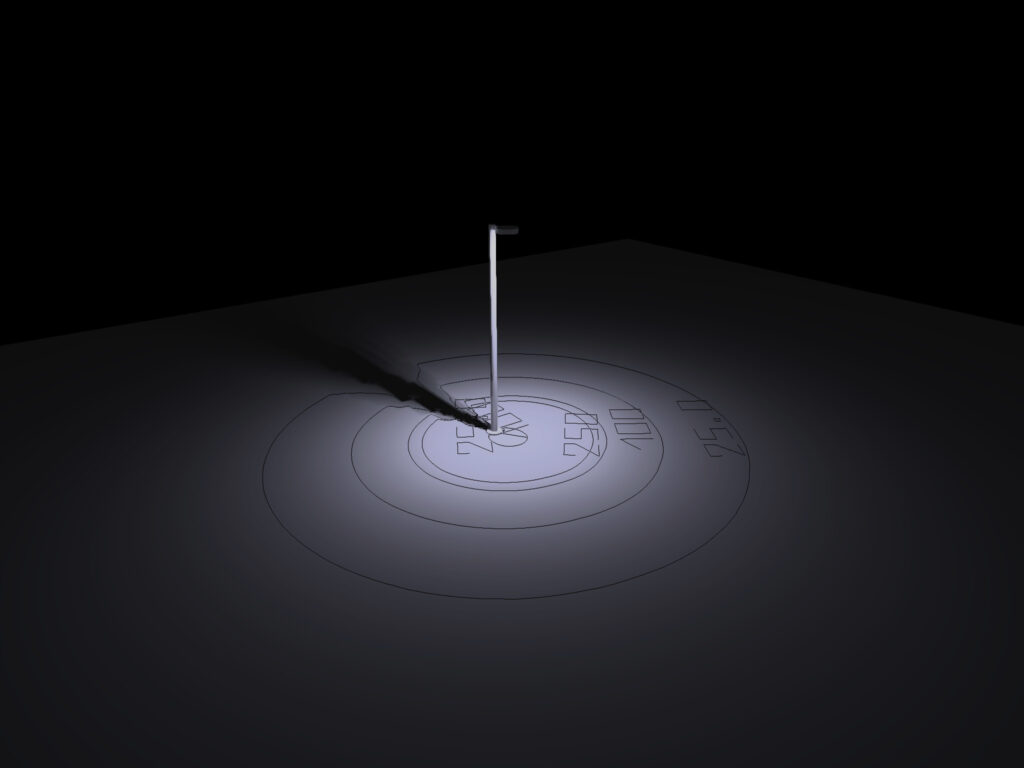

60°

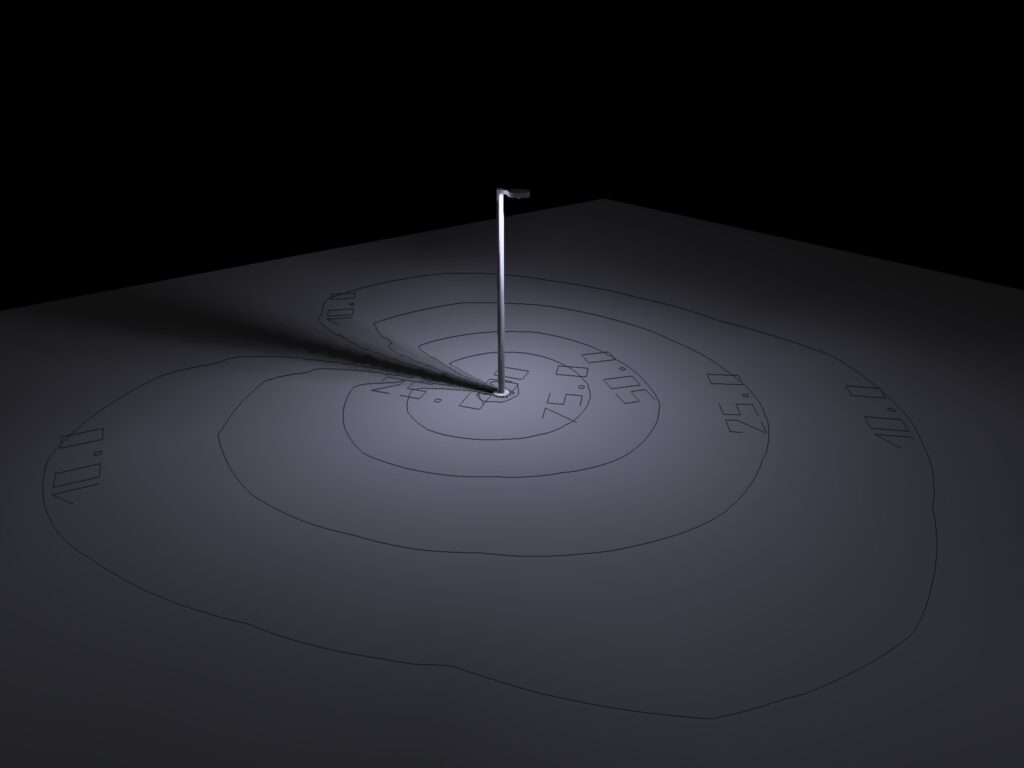

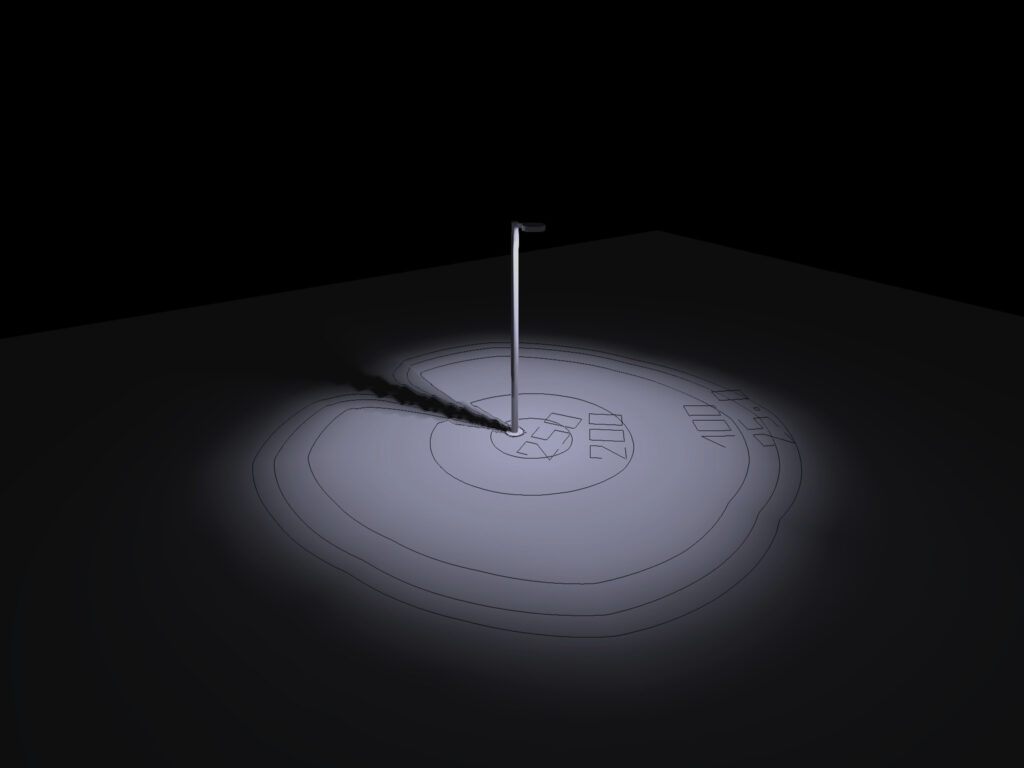

90°

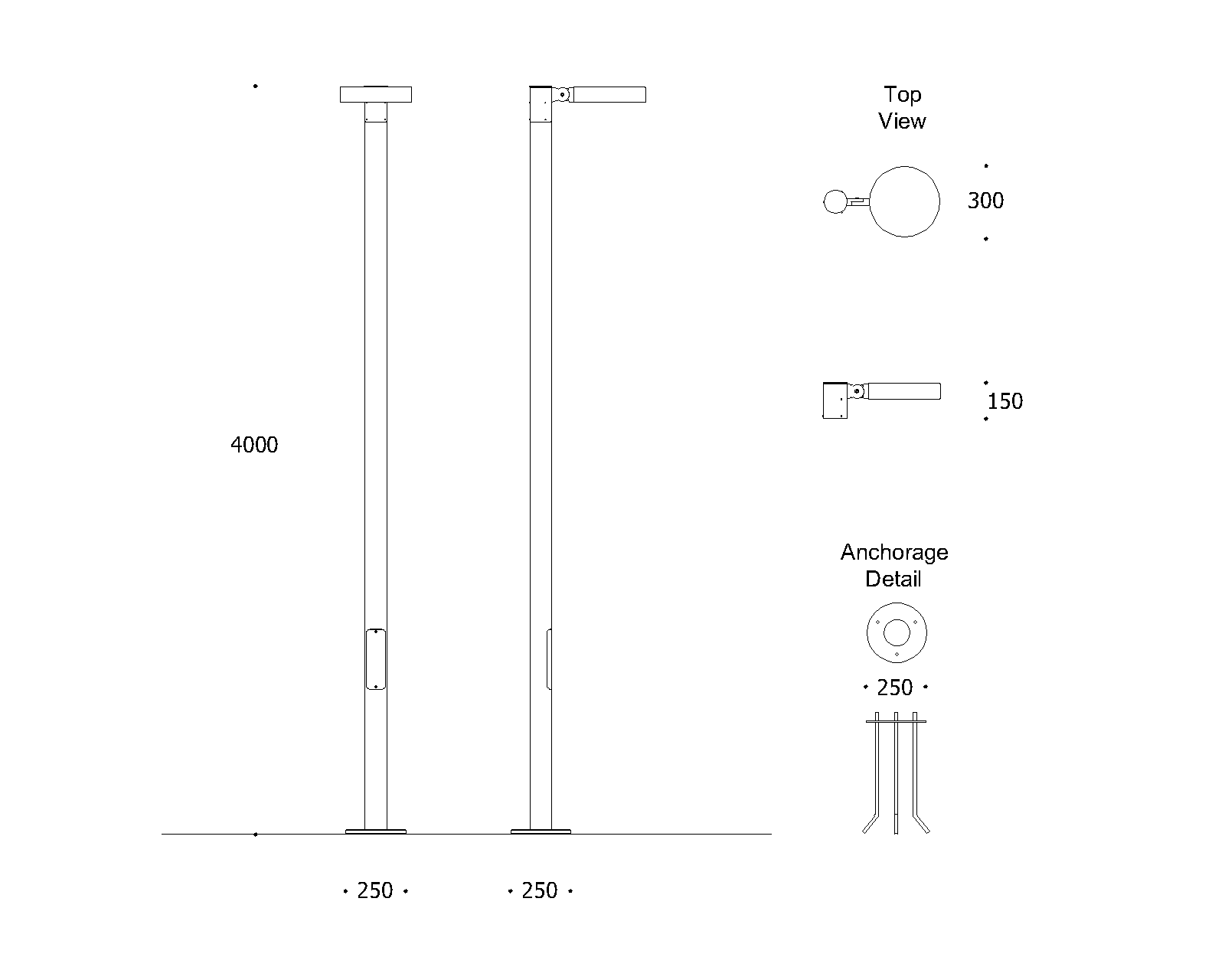

TECHNICAL DATA

Led Type

High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.

Colour Rendering Index

CRI ≥ 80 standard and CRI ≥ 90 on request.

Materials

Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour. BSISQ® LED Module.

Optional Coating

Marine grade.

Diffuser

Thermal-shock resistant tempered glass.

LED Life Time

L90 - B10 > 100,000h

Operating Temperature

-40°C / +55°C

Power Factor

>0.95

Conformity

Complies with European Standards EN 60598 and CE certified.
