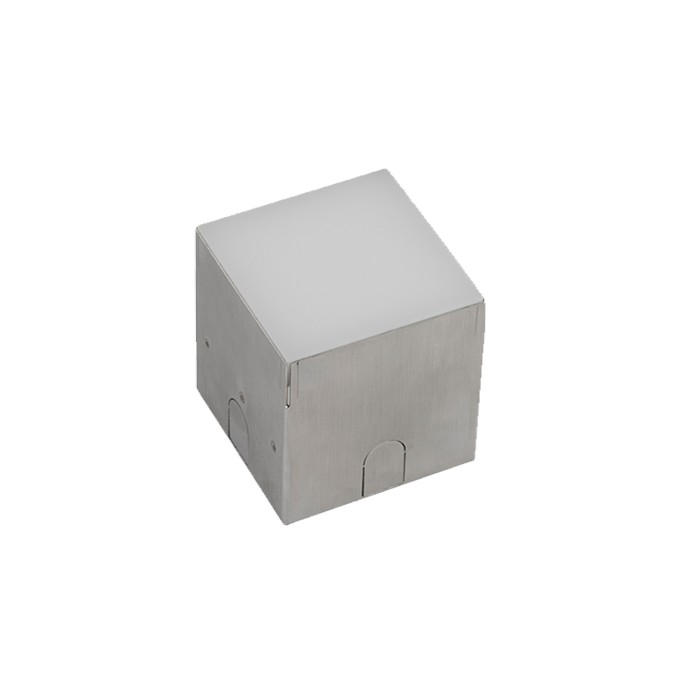

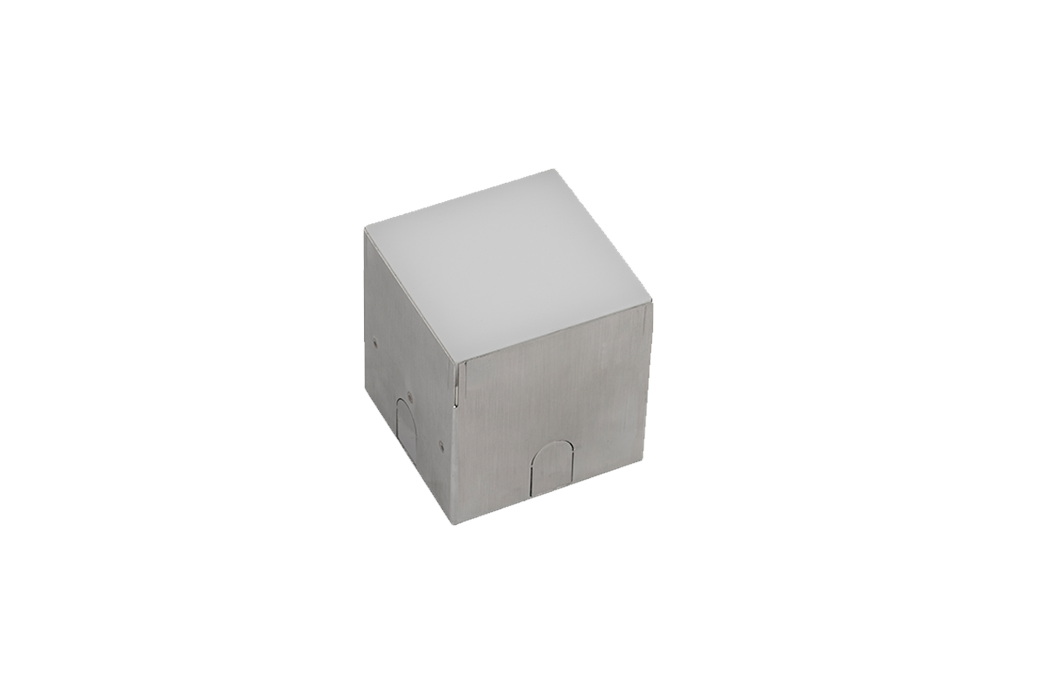

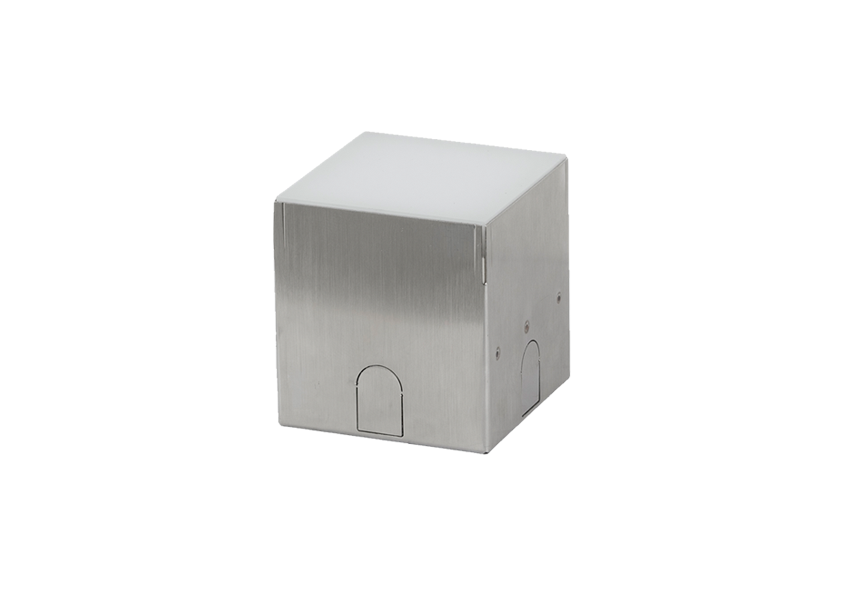

Recessed luminaire for outdoor installation in ground.

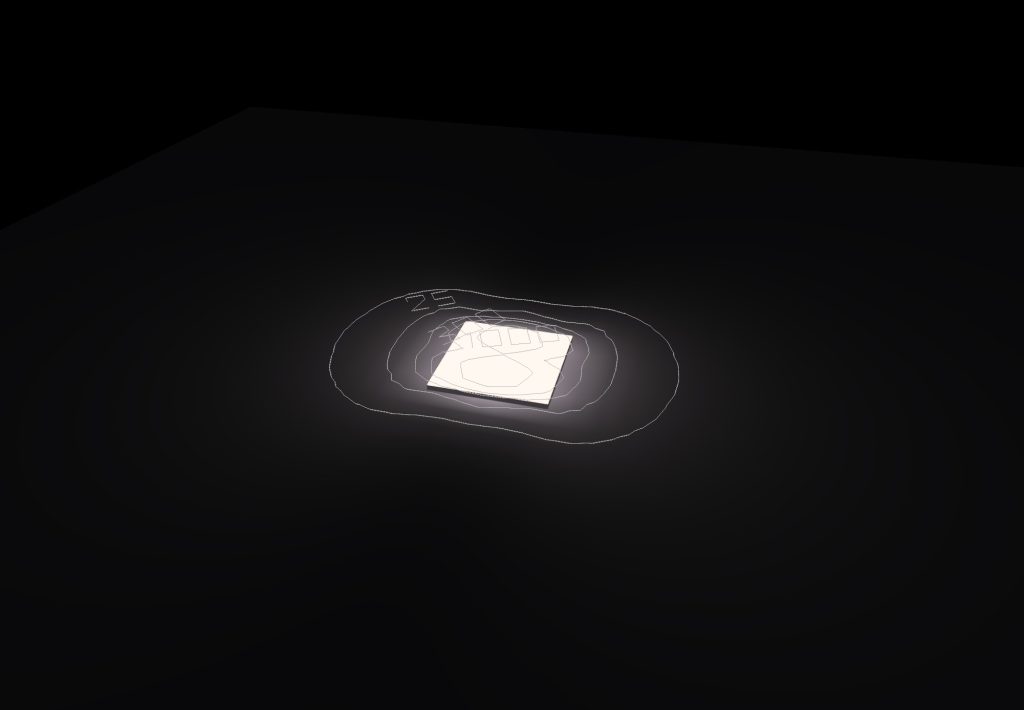

Ambient illumination with a special visual effect.
iFrame
iFrame series is a versatile solution for all architectural areas. New generation recessed floor mounting luminaire features innovative technologies and design solutions that guarantee very low temperatures on the outer surface of the luminaire.
Architectural in-ground die-cast aluminium LED recessed range inspires architects, designers and system integrators with its exceptional quality, homogeneous beam and remarkable creativity.
Designed to last in extremely harsh environments.

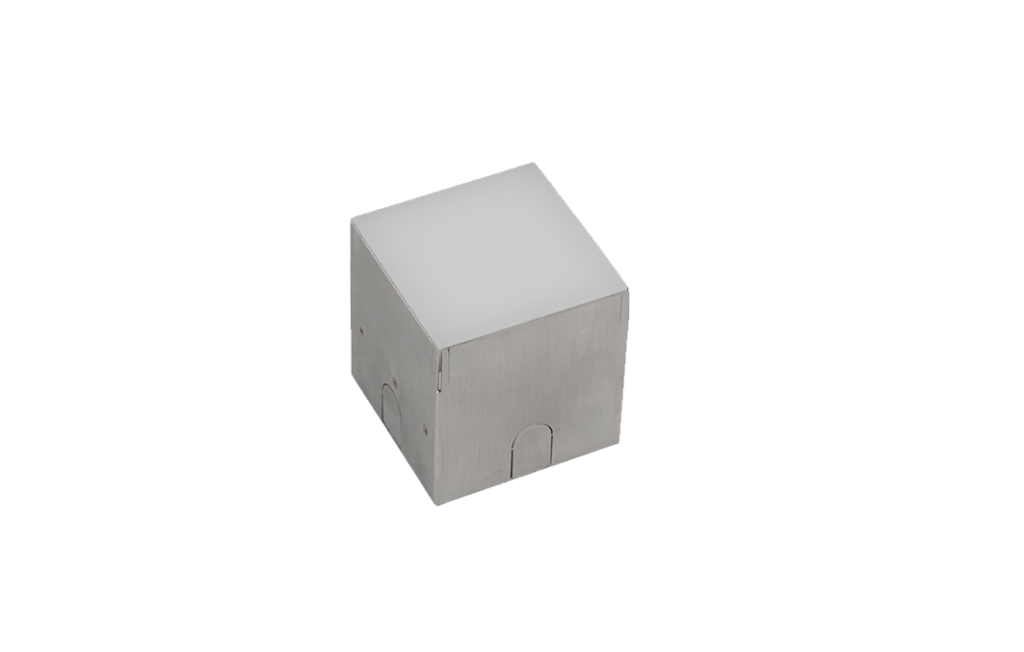

High Impact and Compact
Innovative light sources with low recessing depth combine to form a high impact and low maintenance product.

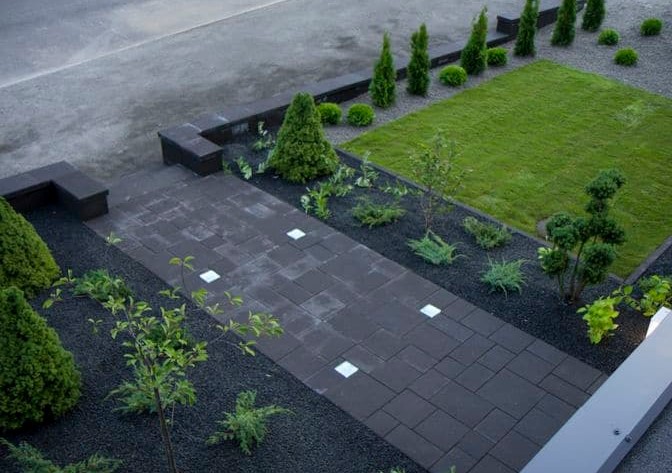

iFrame is a compact and high performance luminaire with impressive versatility. Suitable for easy installation on walkways, promenades and squares.
iFrame is a compact and high performance luminaire with impressive versatility. Suitable for easy installation on walkways, promenades and squares.

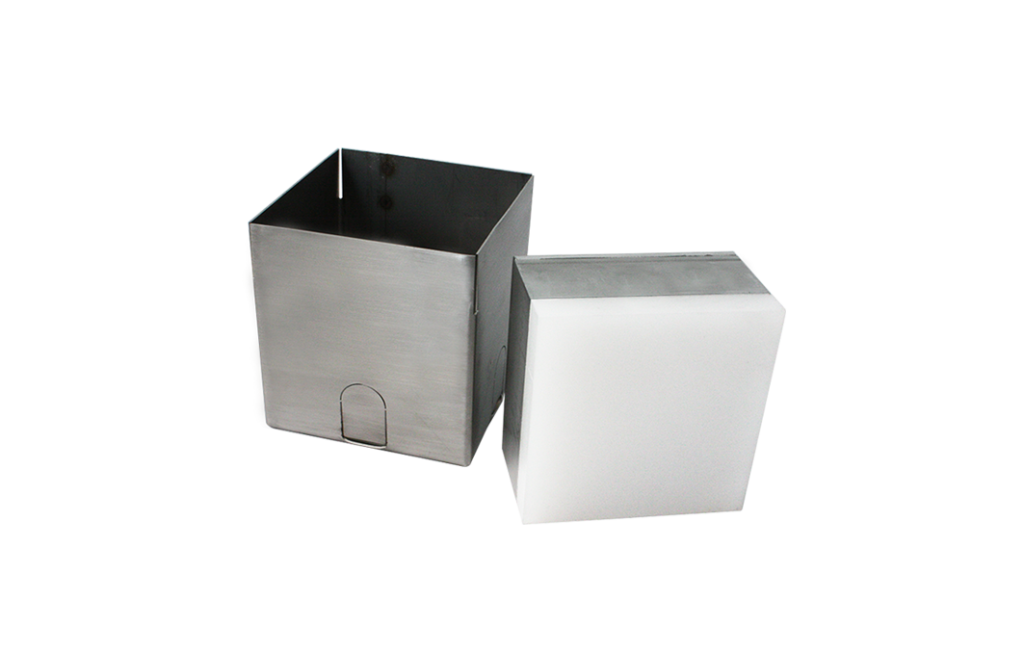

Integrated Solution and Easy to Install
Plug and play built-in system with the fully integrated universal power supply unit.
The watertight plug connector ensures easy, fast and secure installation The robust luminaire fits seamlessly into the architecture.
The watertight plug connector ensures easy, fast and secure installation The robust luminaire fits seamlessly into the architecture.
Individualize the System
We offer you extensive options for the individualization of the iFrame range.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.
Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint fnish
die cast aluminium housing with stainless steel screws (A4 grade) and
silicone gaskets. Power unit is built in. Available in anthracite gray as a

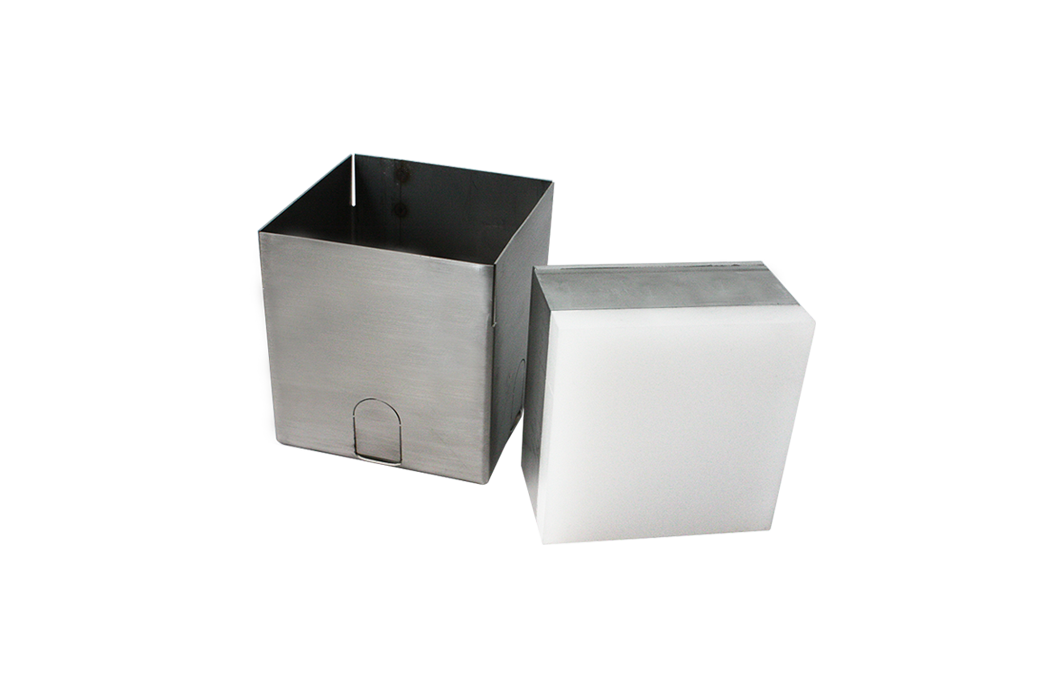

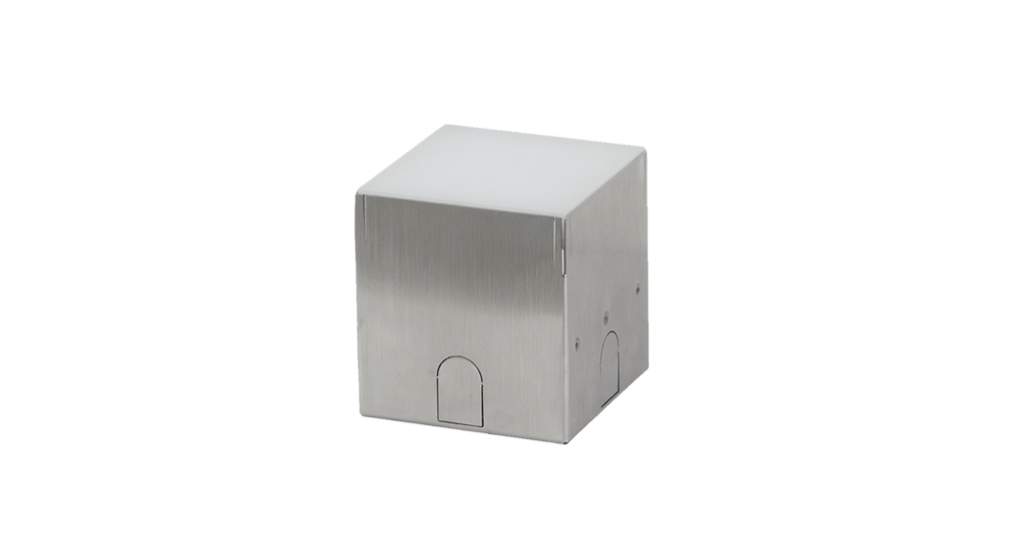

standard finish or any desired RAL colour. Includes inox recessing box.
Diffuser
UV resistant encapsulated opal.
Installation
Recessing box to be placed at ground level 20 cm drainage gravel for
water evacuation. Connection via junction boxes.
Load Rating
30 kN
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP67
IK10
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
Color rendering index
220V AC
Suitable for extreme conditions
Static load resistance
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
LM-80
| CODE | POWER CONSUMPTION | LUMEN OUTPUT (lm) 3000K / 4000K | COLOUR TEMPERATURE | DOWNLOAD |
|---|---|---|---|---|
| AC8152 | Max 3W | 225 / 255 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
