iFlat

iFlat is a functional LED lighting solution for exterior lighting applications.

By using the same lighting platform and incorporating a new and unique BSISQ® LED Module; the luminaire achieves the required illumination levels and distribution in pedestrian, site, roadway environments.

iFlat is a modular urban lighting system with the perfect combination of design and innovation. The different installation configurations and the wide range of optics ensure lighting for urban environments that guarantees energy savings and respect for the ecosystem.

The compact design and reduced size of the luminaire allow its addition with balance and discretion to any urban context, from big cities to small district towns.

Architectural LED lighting luminaire range inspires architects, designers and system integrators with its exceptional quality, a variety of beam angles and remarkable creativity.

Designed to last in extremely harsh environments.

Innovative and Effective
iFlat has been designed to offer better lighting performances, simplify the installation and the maintenance of the lighting devices and promote the maximum energy-saving. It is the ideal solution to all types of urban and interurban road lighting, round-about, outdoor areas and parking lots, both for new and existing installations.

The luminaire with stylized appearance and with improvements in installation, maintenance and service life offers a wide variety of light distributions that ensure effective values, visual comfort and light output for pedestrian areas and streets without light pollution. The possibility to use various photometric distribution with optional mounting heights allows designers to illuminate differing urban spaces with original system configurations.
Modern Design and Easy to Install
The modernly designed luminaire, which is equipped with an integral power supply unit, is optionally available with DALI control or in the user-friendly On-Off version.

The product is supplied pre-wired, permitting simple, rapid and safe installation.‎
Individualize the System
We offer you extensive options for the individualization of the iFlat range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

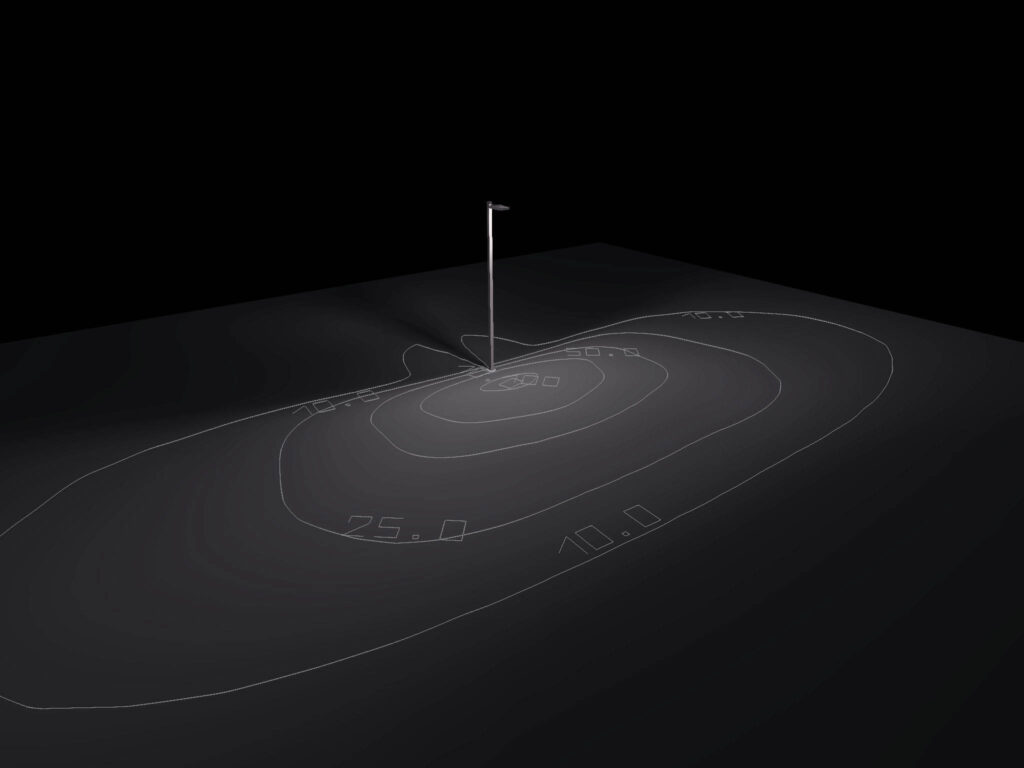

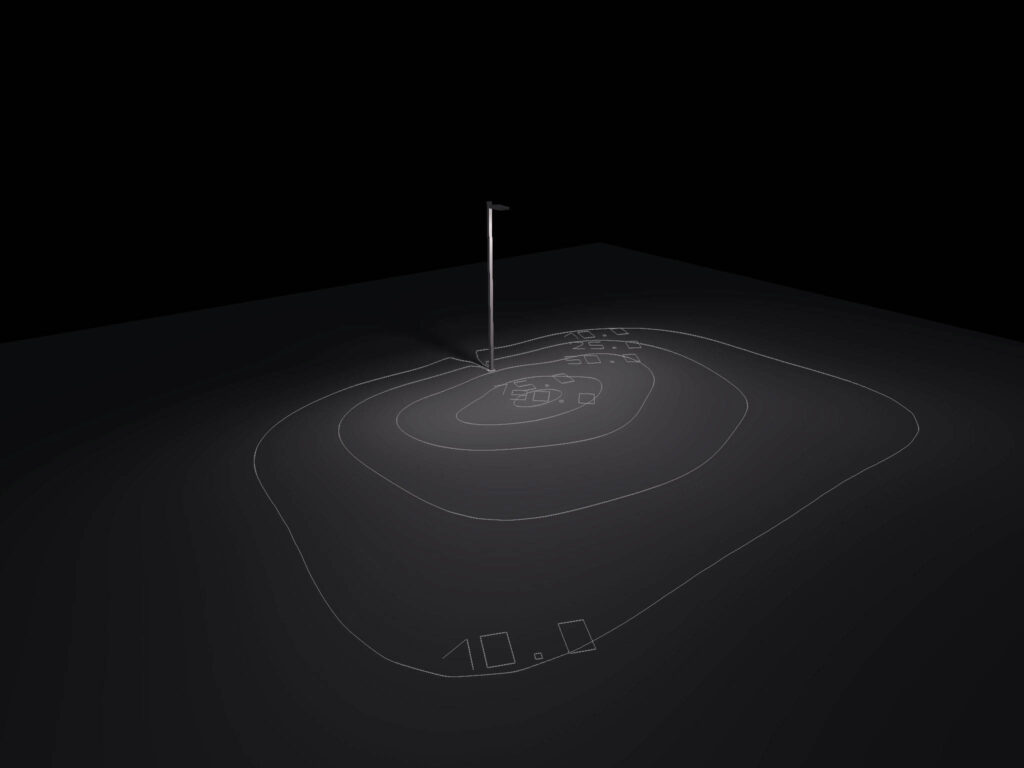

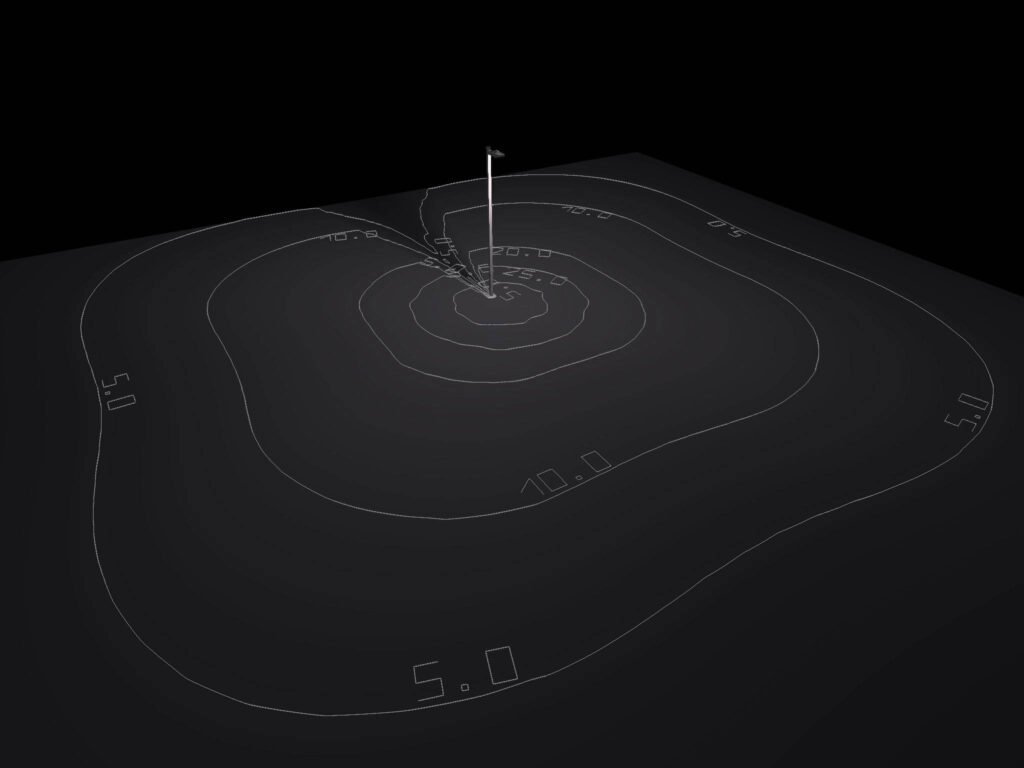

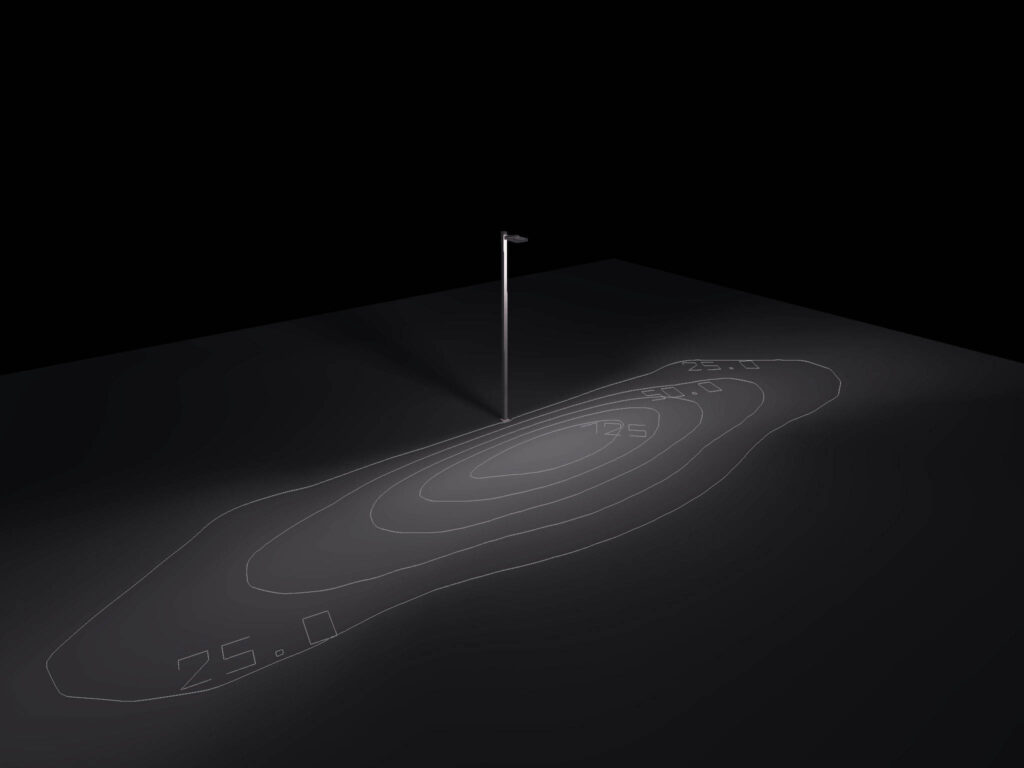

OPTICAL

40°
60°
90°
M3

TECHNICAL DATA

Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour. Adjustable joint for beam direction 0° - 30°. BSISQ® LED Module.
Optional Coating
Marine grade.
Diffuser
Thermal-shock resistant tempered glass.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP66
IK08
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
Color rendering index
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
Dimmable luminaire
LM-80

CODES

  • CODE
  • LENGTH (mm)
  • PITCH
    (mm)
  • LED QTY
  • POWER
    CONSUMPTION
    350mA
  • POWER
    CONSUMPTION
    500mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    350mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    500mA
  • DOWNLOAD
2

CODES

CODEPOWER
CONSUMPTION
LUMEN OUTPUT (lm)
3000K / 4000K
COLOUR TEMPERATUREDOWNLOAD
UA116054W7290 / 76683000K / 4000KPRODUCT SHEET PHOTOMETRY
UA116184W11340 / 119283000K / 4000KPRODUCT SHEET PHOTOMETRY
UA116296W12960 / 136323000K / 4000KPRODUCT SHEET PHOTOMETRY
UA1163122W16470 / 173243000K / 4000KPRODUCT SHEET PHOTOMETRY
UA1164158W21330 / 224363000K / 4000KPRODUCT SHEET PHOTOMETRY
UA1165206W27810 / 292523000K / 4000KPRODUCT SHEET PHOTOMETRY
