iFlat

iFlat is a functional LED lighting solution for exterior lighting applications. By using the same lighting platform and incorporating a new and unique BSISQ® LED Module; the luminaire achieves the required illumination levels and distribution in pedestrian, site, roadway environments.

PRODUCT
GALLERY
OPTICAL
TECHNICAL DATA
CODES
DOWNLOAD FILES

iFlat is a modular urban lighting system with the perfect combination of design and innovation. The different installation configurations and the wide range of optics ensure lighting for urban environments that guarantees energy savings and respect for the ecosystem.

The compact design and reduced size of the luminaire allow its addition with balance and discretion to any urban context, from big cities to small district towns.

Architectural LED lighting luminaire range inspires architects, designers and system integrators with its exceptional quality, a variety of beam angles and remarkable creativity.

Designed to last in extremely harsh environments.

Innovative and Effective

iFlat has been designed to offer better lighting performances, simplify the installation and the maintenance of the lighting devices and promote the maximum energy-saving. It is the ideal solution to all types of urban and interurban road lighting, round-about, outdoor areas and parking lots, both for new and existing installations.

The luminaire with stylized appearance and with improvements in installation, maintenance and service life offers a wide variety of light distributions that ensure effective values, visual comfort and light output for pedestrian areas and streets without light pollution.

Modern Design and Easy to Install

The modernly designed luminaire, which is equipped with an integral power supply unit, is optionally available with DALI control or in the user-friendly On-Off version.

The product is supplied pre-wired, permitting simple, rapid and safe installation.‎

Individualize the System

We offer you extensive options for the individualization of the iFlat range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.

Architectural

Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.

Sustainable

BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.

Durable

Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

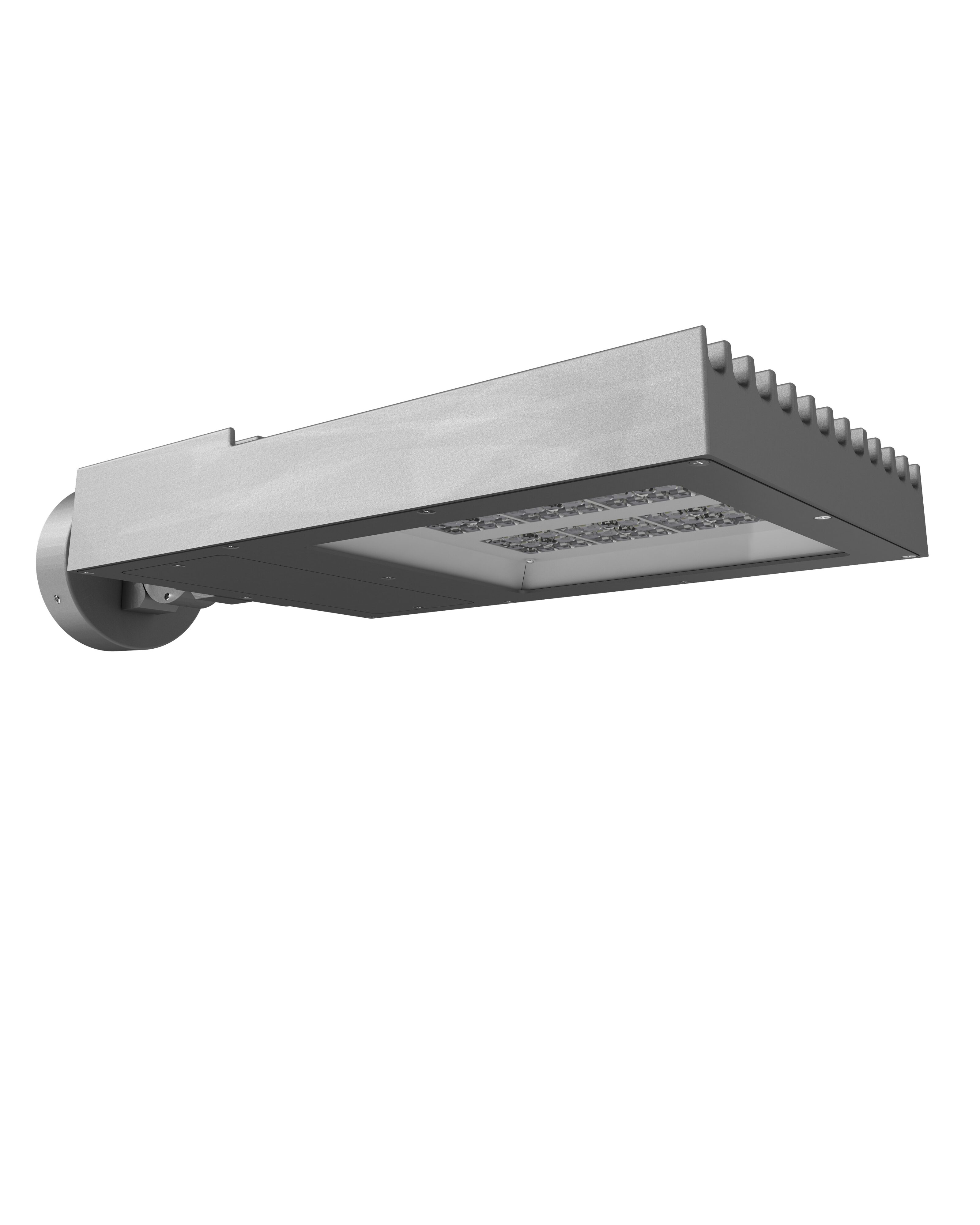

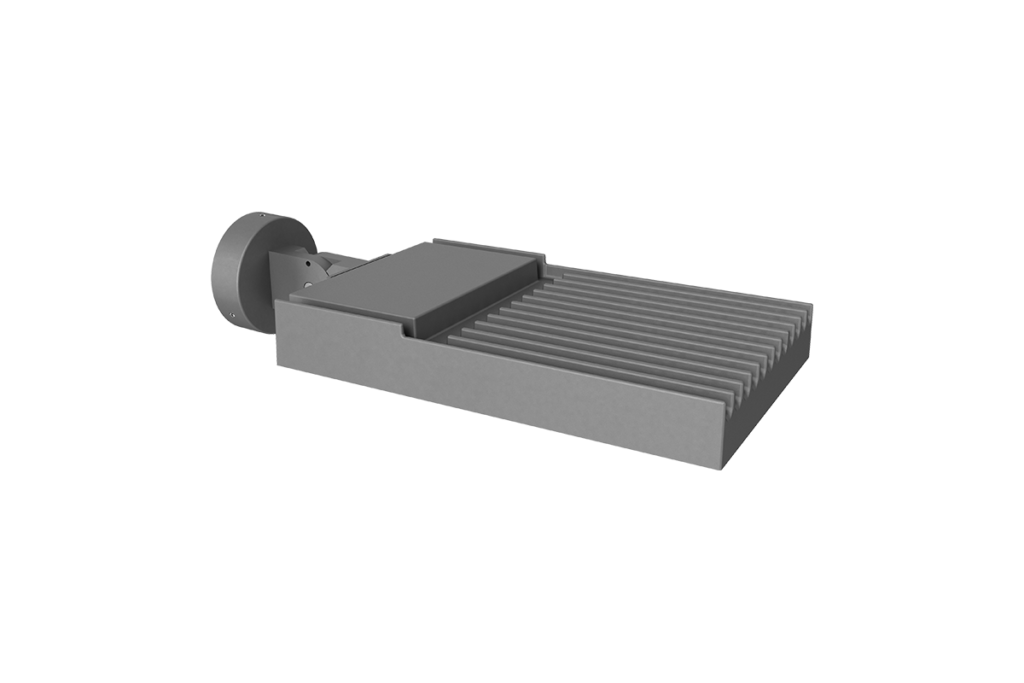

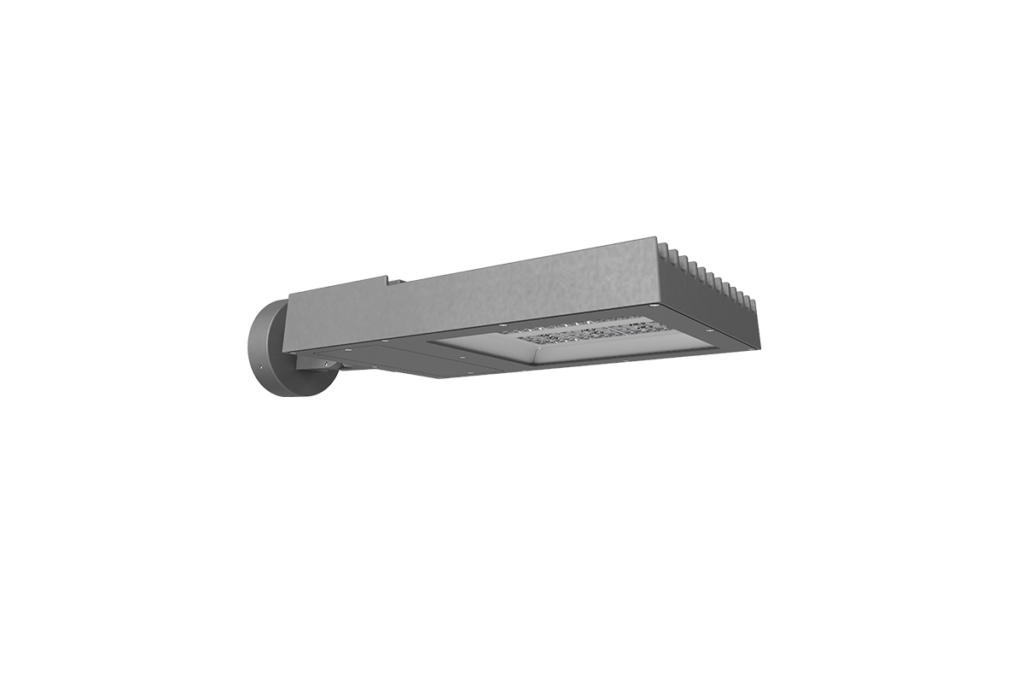

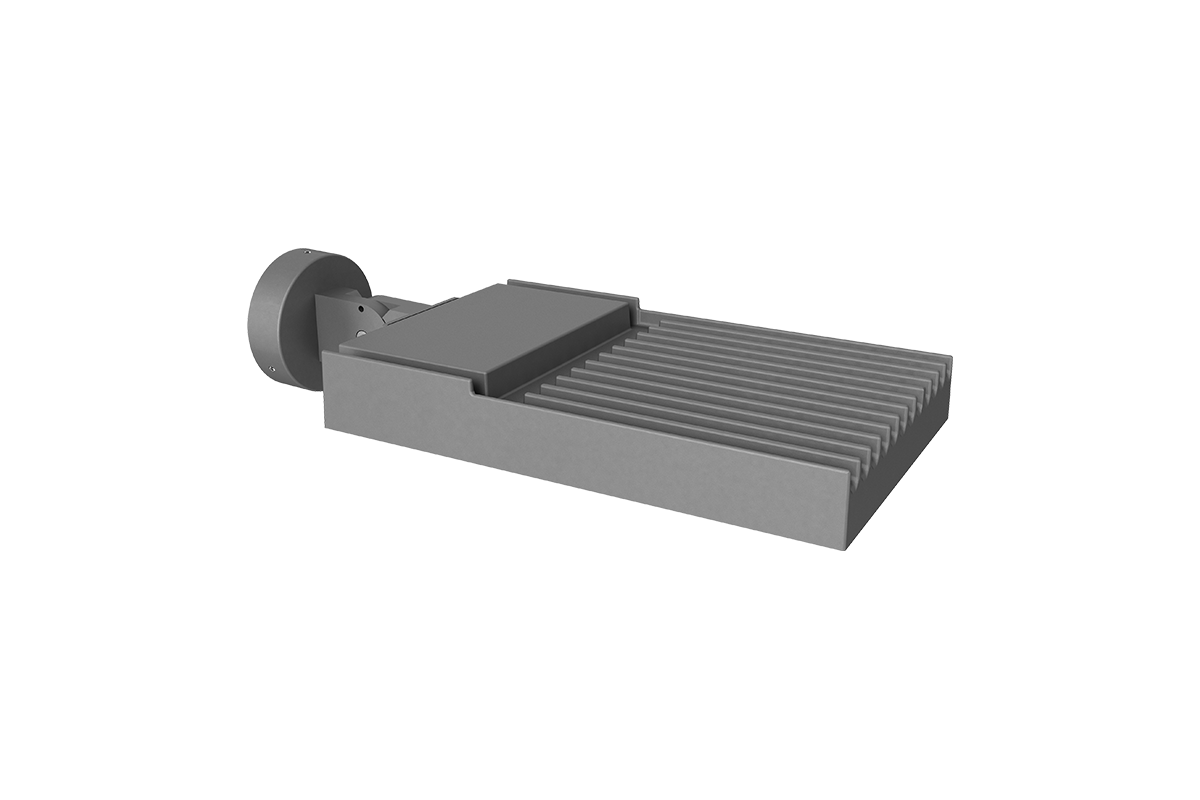

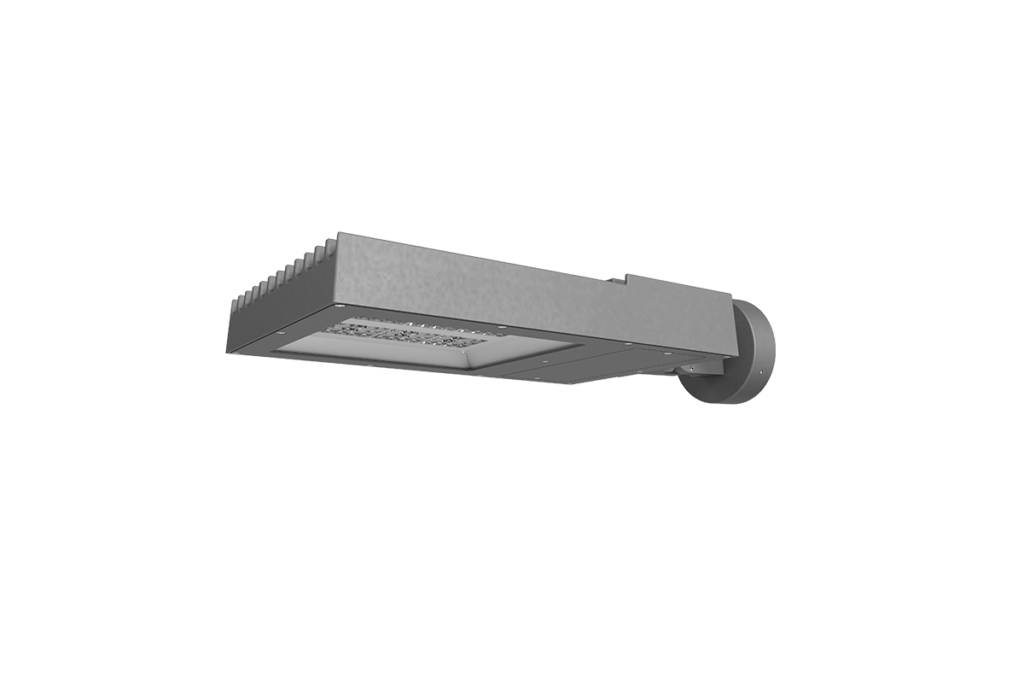

GALLERY

OPTICAL

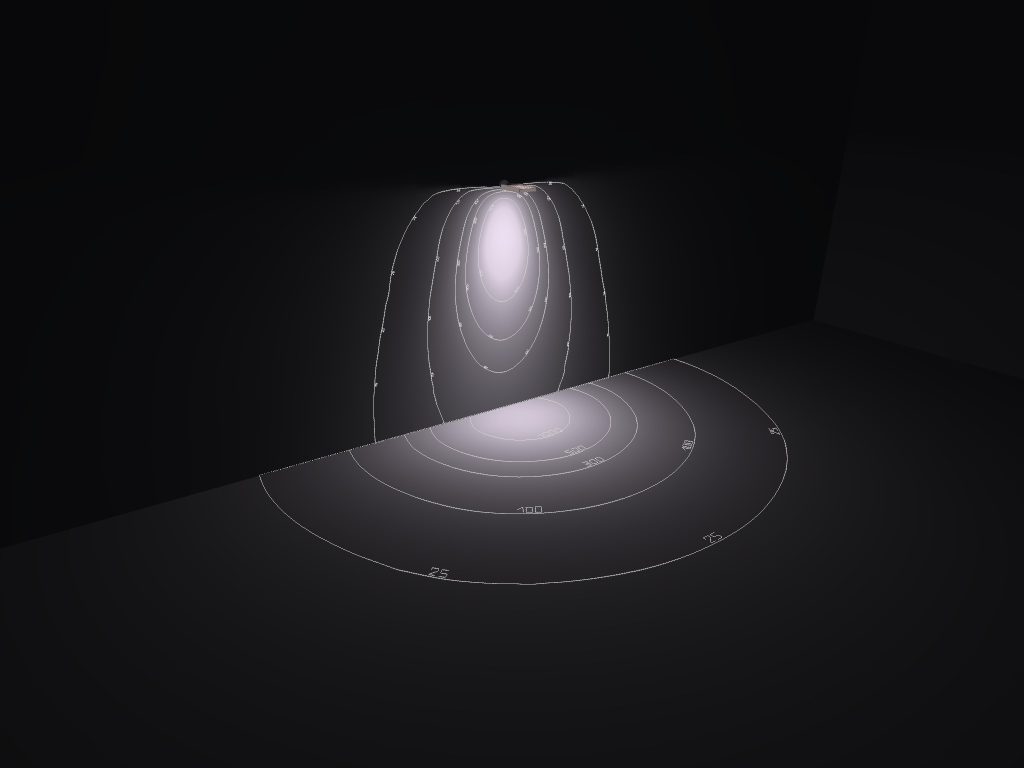

40°

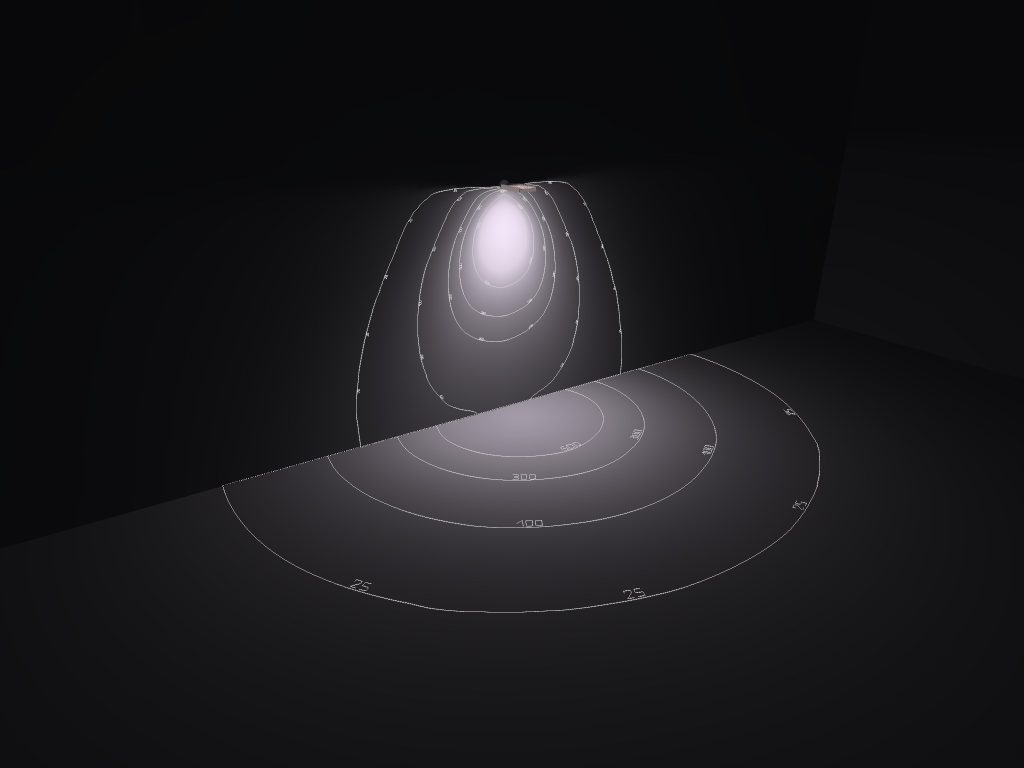

60°

90°

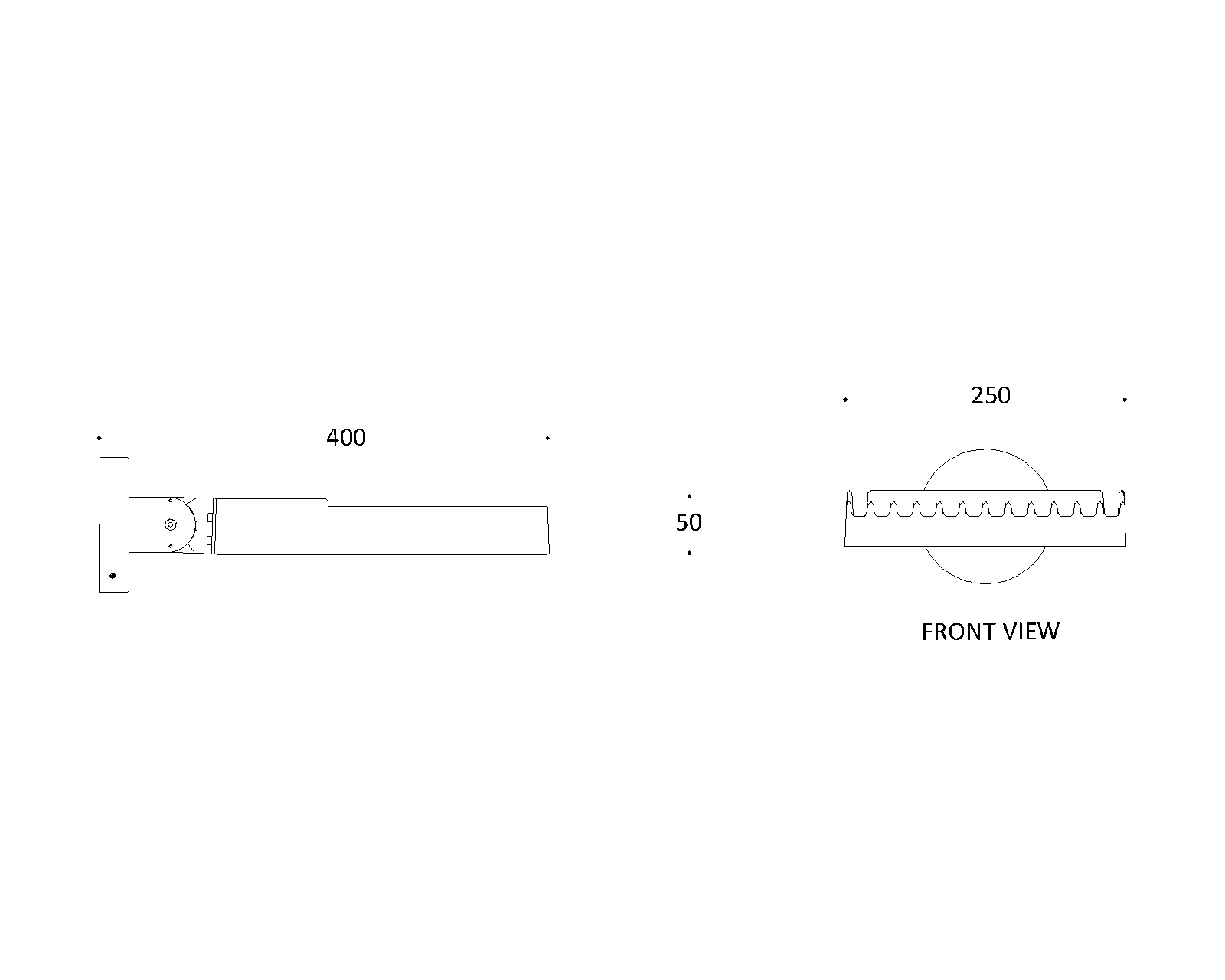

TECHNICAL DATA

Led Type

High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.

Colour Rendering Index

CRI ≥ 80 standard and CRI ≥ 90 on request.

Materials

Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour. Adjustable joint for beam direction 0° - 30°. BSISQ® LED Module.

Optional Coating

Marine grade.

Diffuser

Thermal-shock resistant tempered glass.

LED Life Time

L90 - B10 > 100,000h

Operating Temperature

-40°C / +55°C

Power Factor

>0.95

Conformity

Complies with European Standards EN 60598 and CE certified.
