Architectural pillar LED range inspires architects, designers and system integrators with its exceptional quality, functional light distribution and remarkable creativity.

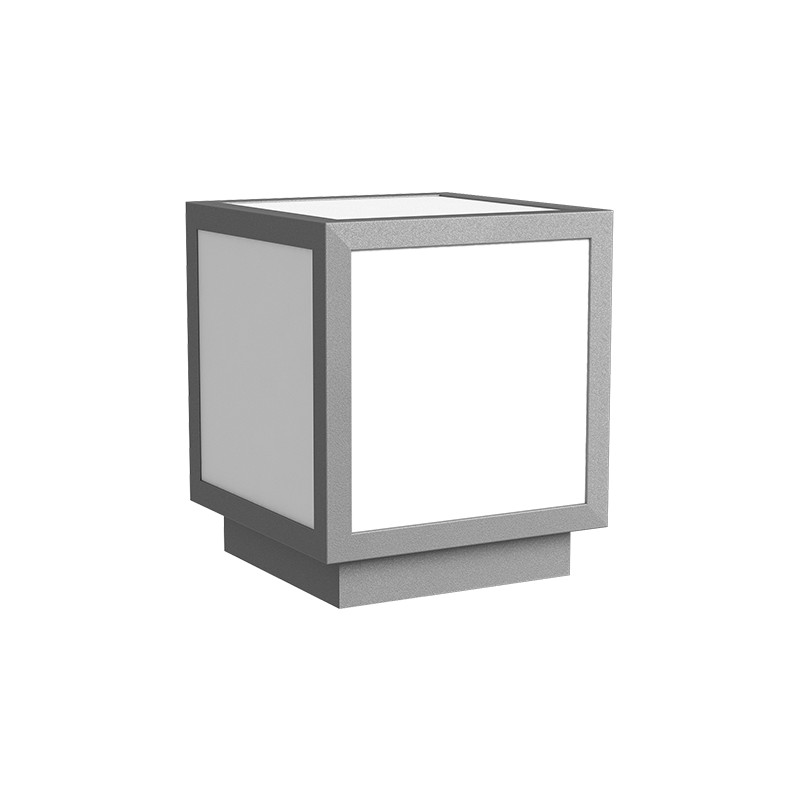

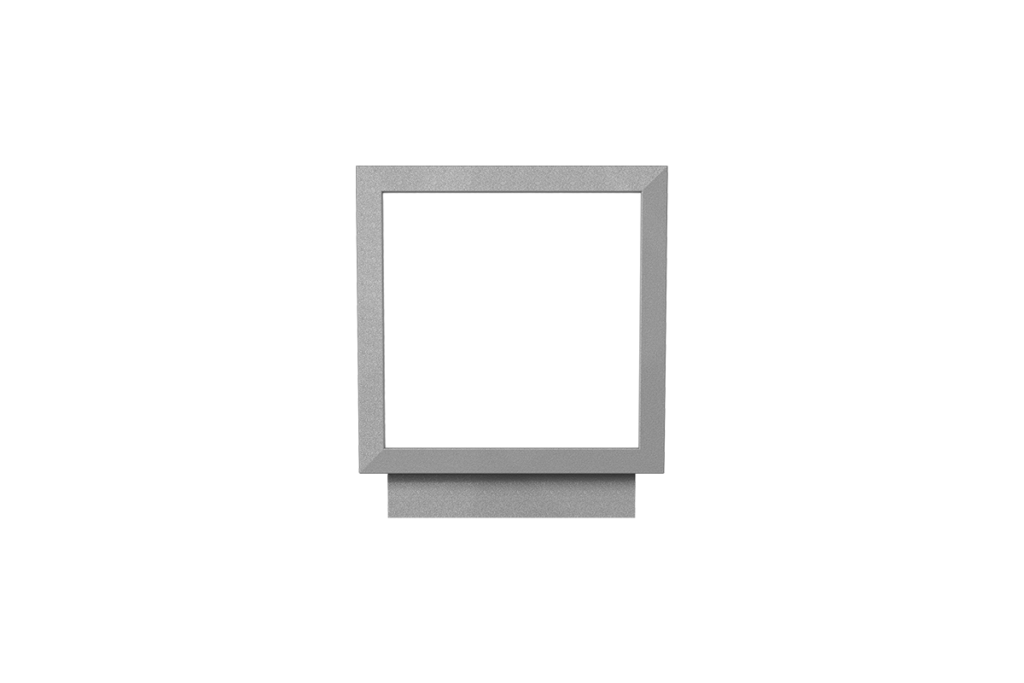

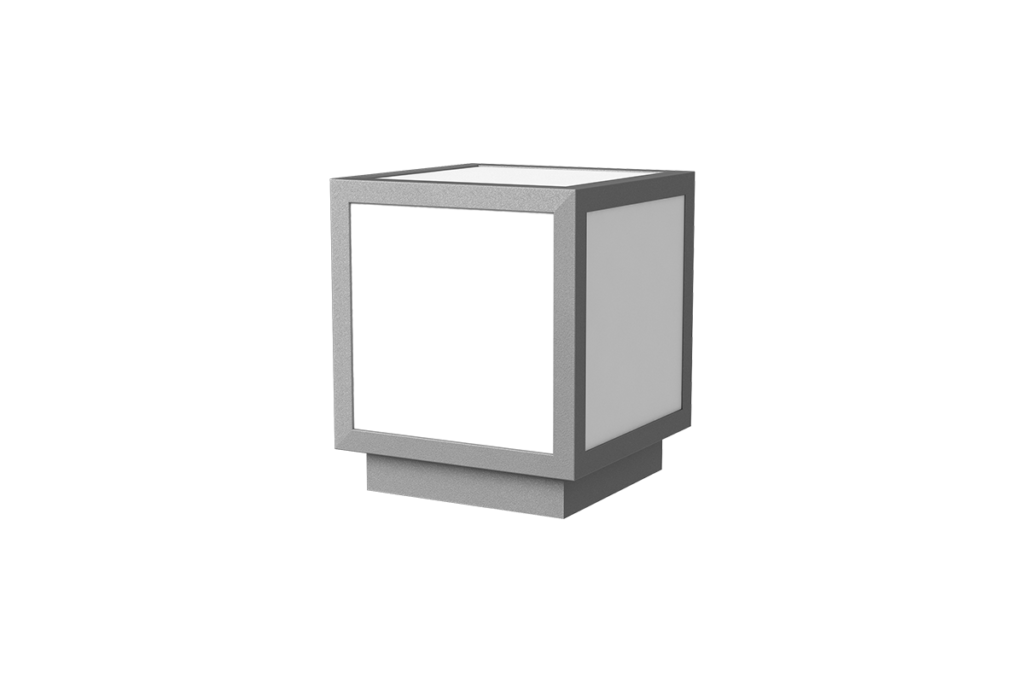

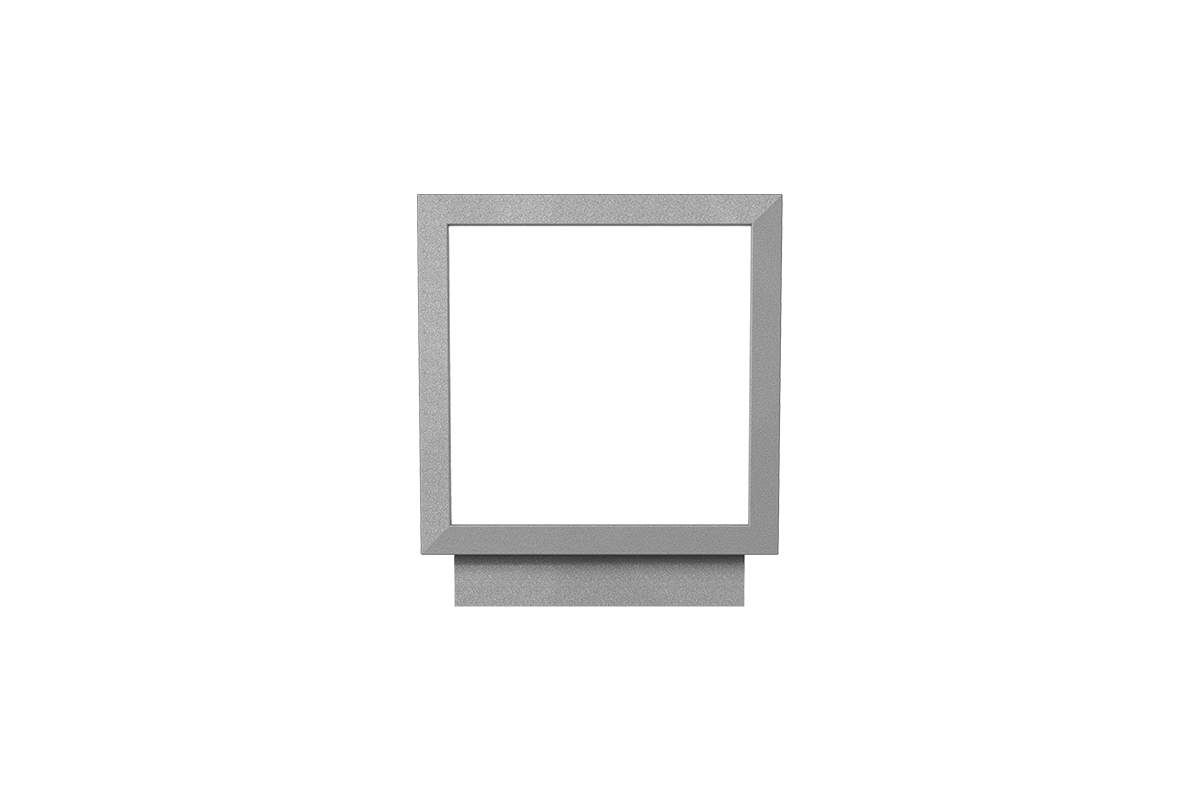

iCube
Cubic and Modular
Smooth, cubic, decorative pillar with clear lines and pure architectural volumes of light provides high visual comfort.
Modularity and refined look unleash creativity while delivering high performance for a wide range of applications. Basic form in geometry meets the most innovative technology to create this product with its ultra-modern style.
Modularity and refined look unleash creativity while delivering high performance for a wide range of applications. Basic form in geometry meets the most innovative technology to create this product with its ultra-modern style.
Solid Design and Easy to Install
The solid luminaire, which is equipped with an integral power supply unit, is optionally available with DALI control or in the user-friendly On-Off version.
The product is supplied pre-wired, permitting simple, rapid and safe installation.
The product is supplied pre-wired, permitting simple, rapid and safe installation.
Individualize the System
We offer you extensive options for the individualization of the iCube range.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.
Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K
CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant double layer polyester powder coated paint finish
die cast aluminium housing, aluminium extruded column (EN AW-6060)
with stainless steel screws (A4 grade) and silicone gaskets. Power unit
is built in. Available in anthracite gray as a standard finish or any desired
RAL colour.
Optional Coating
Marine grade.
Diffuser
Shockproof PMMA UV Stabilised Diffuser.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP65
IK08
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
Color rendering index
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
LM-80
| CODE | POWER CONSUMPTION | LUMEN OUTPUT (lm) (3000K / 4000K) | COLOUR TEMPERATURE | DOWNLOAD |
|---|---|---|---|---|
| PA3012 | 15W | 1125 / 1275 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
