iAxis Diffused Recessed

iAxis Diffused Recessed linear recessed luminaire has a minimalist appearance emphasizes architectural details in a discreet way, offers a diffused and homogeneous light emission without shadows.

Drive-over 4000 Kg at max 40 Km/h.

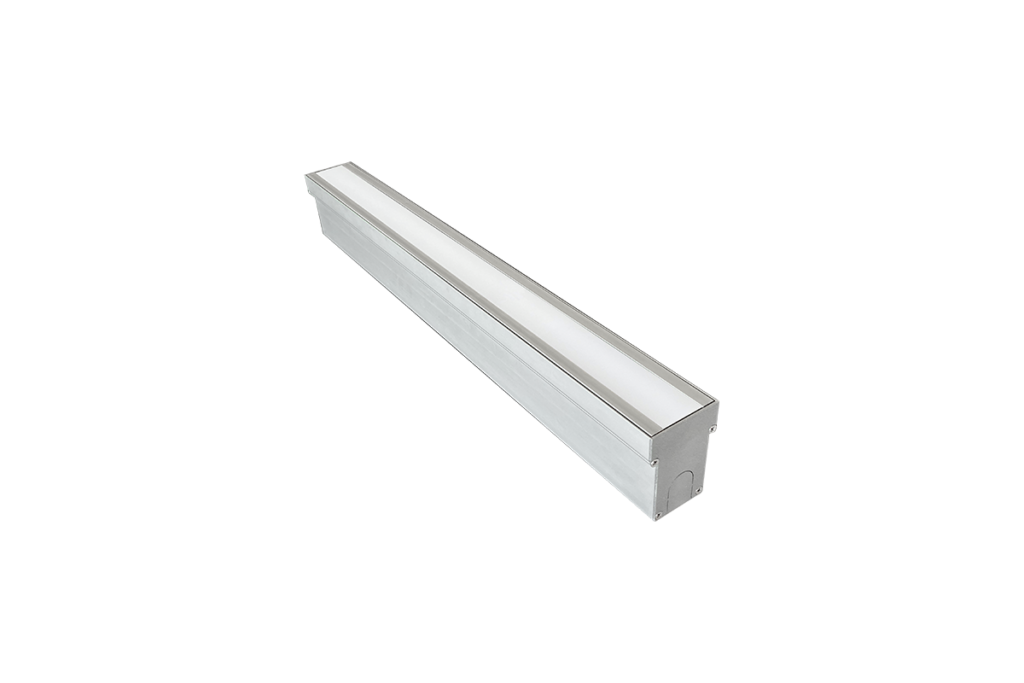

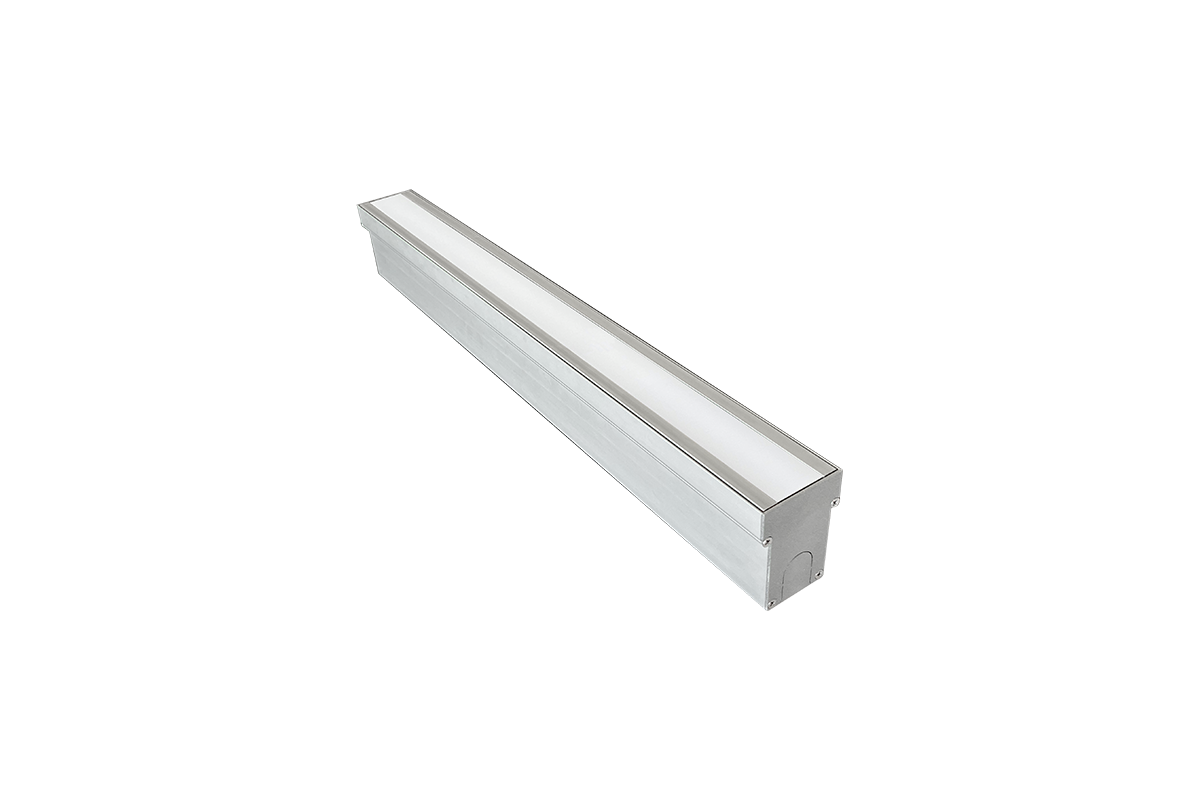

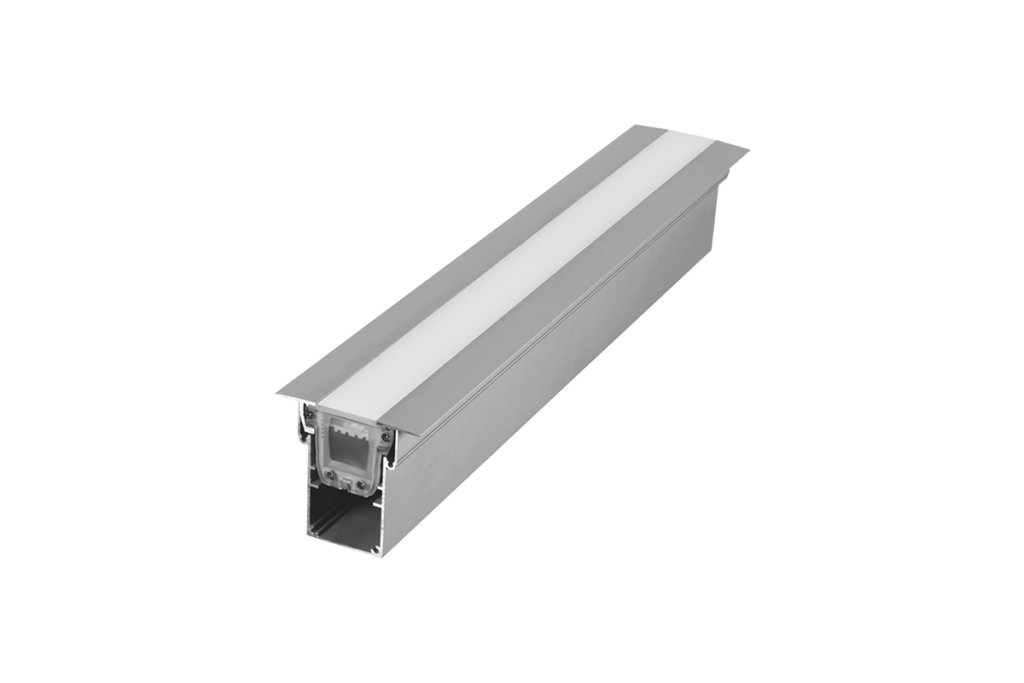

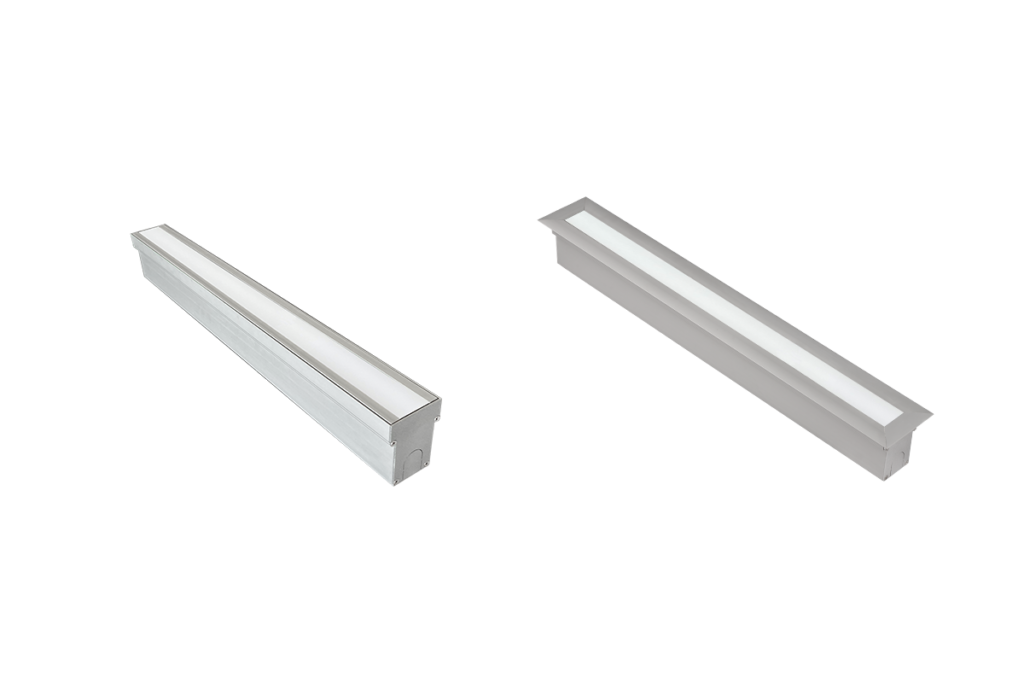

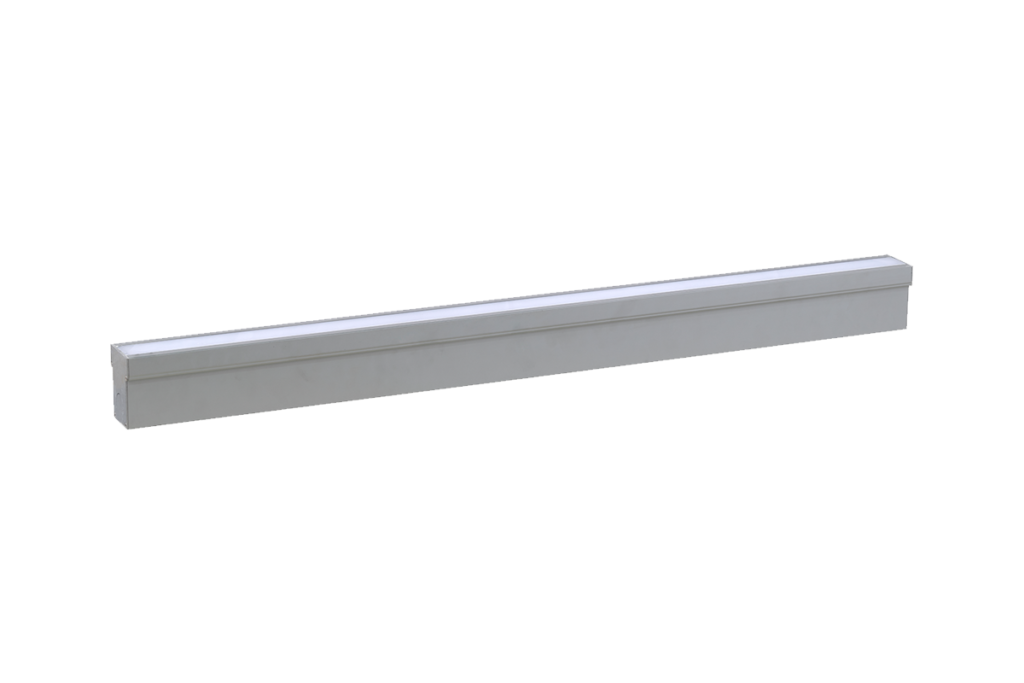

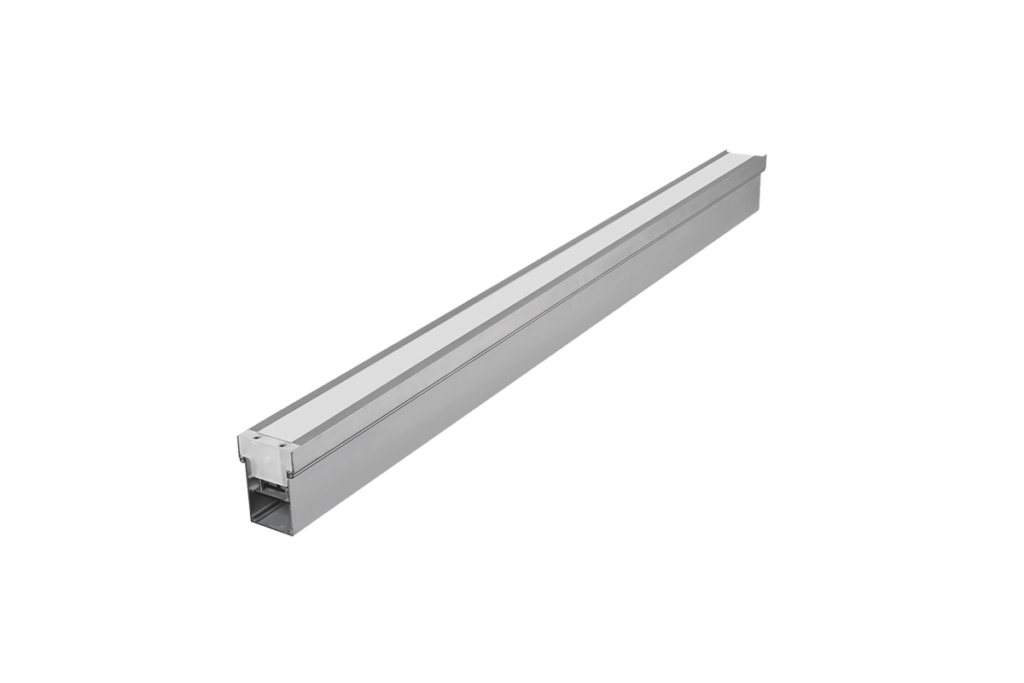

The luminaire is available with frame and frameless versions.

Linear ground-recessed luminaire for outdoor installation.

Architectural LED in-ground linear range inspires architects, designers and system integrators with its exceptional quality, homogeneous light output and remarkable creativity.

Designed to last in extremely harsh environments.

Versatile and High Impact
Extremely versatile walk-over and drive-over linear luminaire with diffused lighting effects.

Innovative light sources and efficient design combine to form a high impact and low maintenance lighting system.
Integrated Solution and Easy to Install
Plug and play built-in system with the fully integrated universal power supply unit.

The watertight plug connector ensures easy, fast and secure installation.

The robust luminaire fits seamlessly into the architecture.
Individualize the System
We offer you extensive options for the individualization of the iAxis range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Linear outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

OPTICAL

120°

TECHNICAL DATA

Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant. Custom LED color combinations available.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant extruded anodized aluminium housing (EN AW-6060) with stainless steel screws (A4 grade) and silicone rubber gaskets. Power unit is built in. End-to-end connection via power connectors. Includes recessing box.
Optional Coating
Marine grade.
Diffuser
High impact and heat resistant opal diffuser.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP67
IK10
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
DALI interface
Color rendering index
220V AC
Suitable for extreme conditions
Static load resistance
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
Dimmable luminaire
LM-80

CODES

  • CODE
  • LENGTH (mm)
  • PITCH
    (mm)
  • LED QTY
  • POWER
    CONSUMPTION
    350mA
  • POWER
    CONSUMPTION
    500mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    350mA
  • LUMEN OUTPUT (lm)
    3000K / 4000K
    500mA
  • DOWNLOAD
2

CODES

CODELENGTH
(Frameless)
(mm)
LENGTH
(With Frame)
(mm)
POWER
CONSUMPTION
LUMEN OUTPUT (lm)
3000K / 4000K
COLOUR TEMPERATUREDOWNLOAD
AR8126011014106718W1620 / 17643000K / 4000KPRODUCT SHEET PHOTOMETRY
AR8126021014106736W3240 / 35283000K / 4000KPRODUCT SHEET PHOTOMETRY
AR8126035145679W810 / 8823000K / 4000KPRODUCT SHEET PHOTOMETRY
AR81260451456718W1620 / 17643000K / 4000KPRODUCT SHEET PHOTOMETRY
