BS Dot

BS Dot pixel fixture with diffused version provides special video effects with maximum brightness. Enables endless layout of patterns, graphics display and offers customizable solutions pixel mapping with DMX 512 and RDM protocol.

High-performance media LED Dot for large locations allows for long fixture runs with variable pixel pitches for flexible designs. An inventive instrument for video display setups. Perfect viewing without pixel gap or shade in the connection points.

PRODUCT
GALLERY
OPTICAL
TECHNICAL DATA
CODES
DOWNLOAD FILES

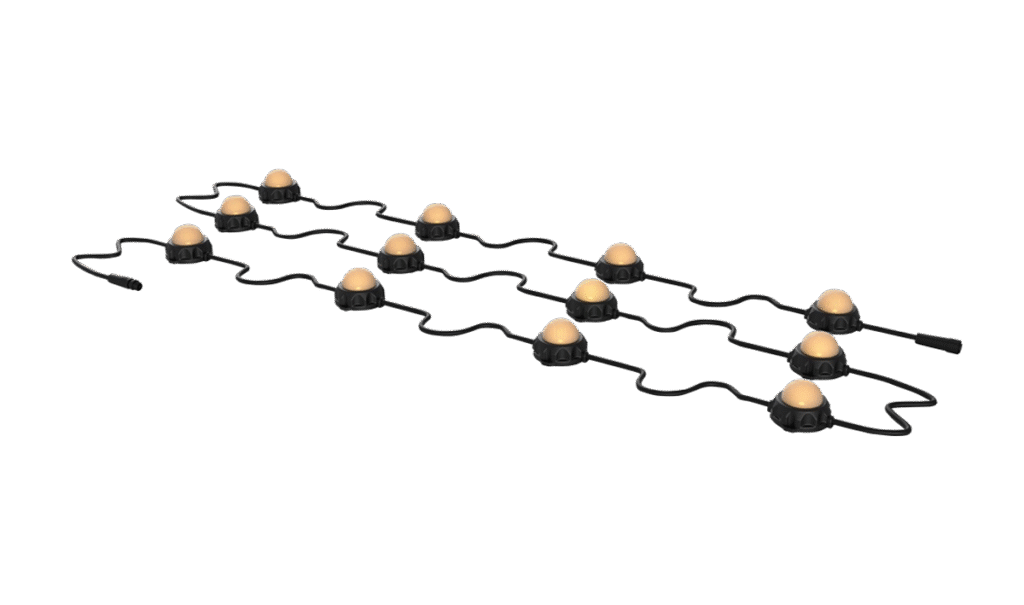

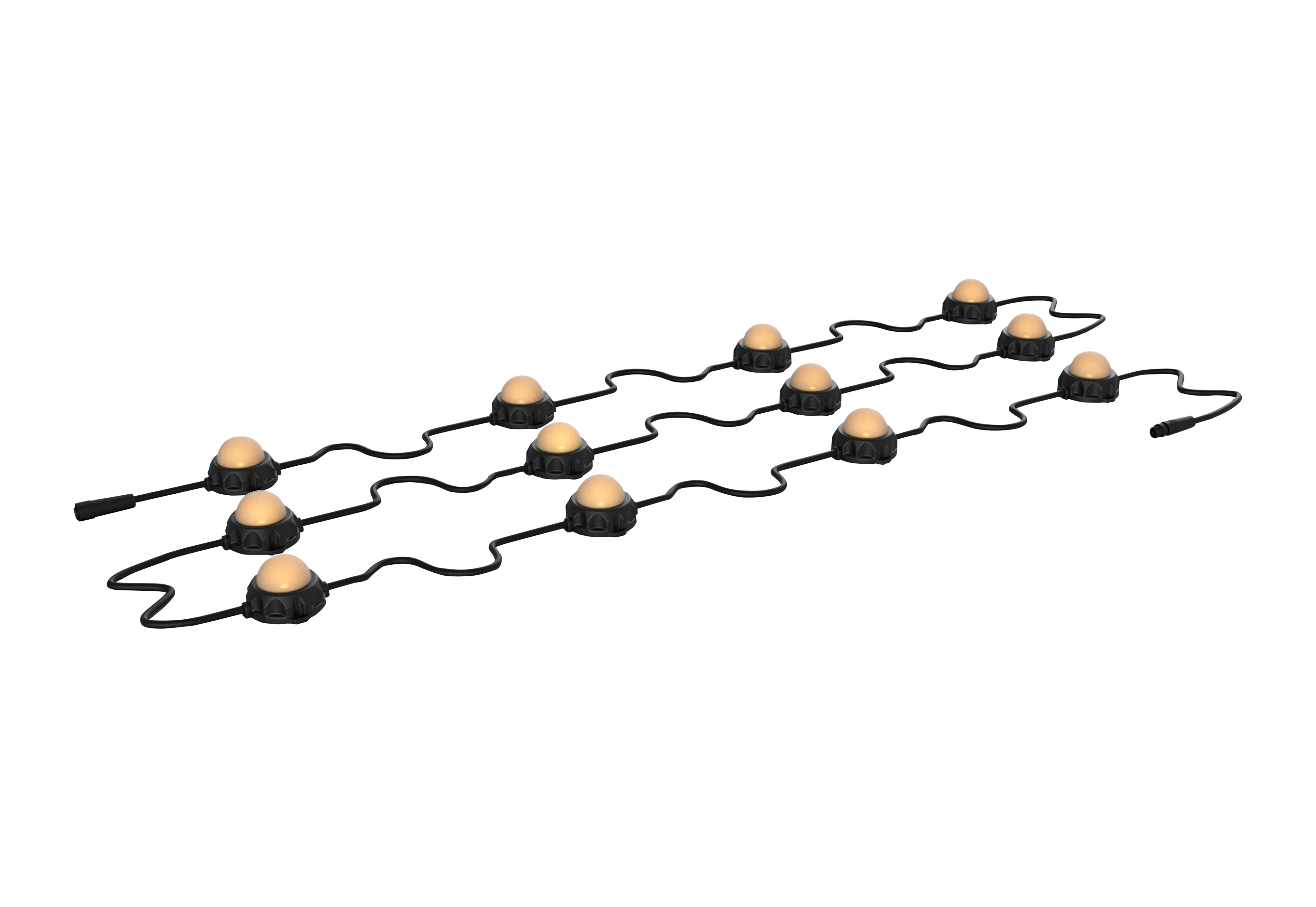

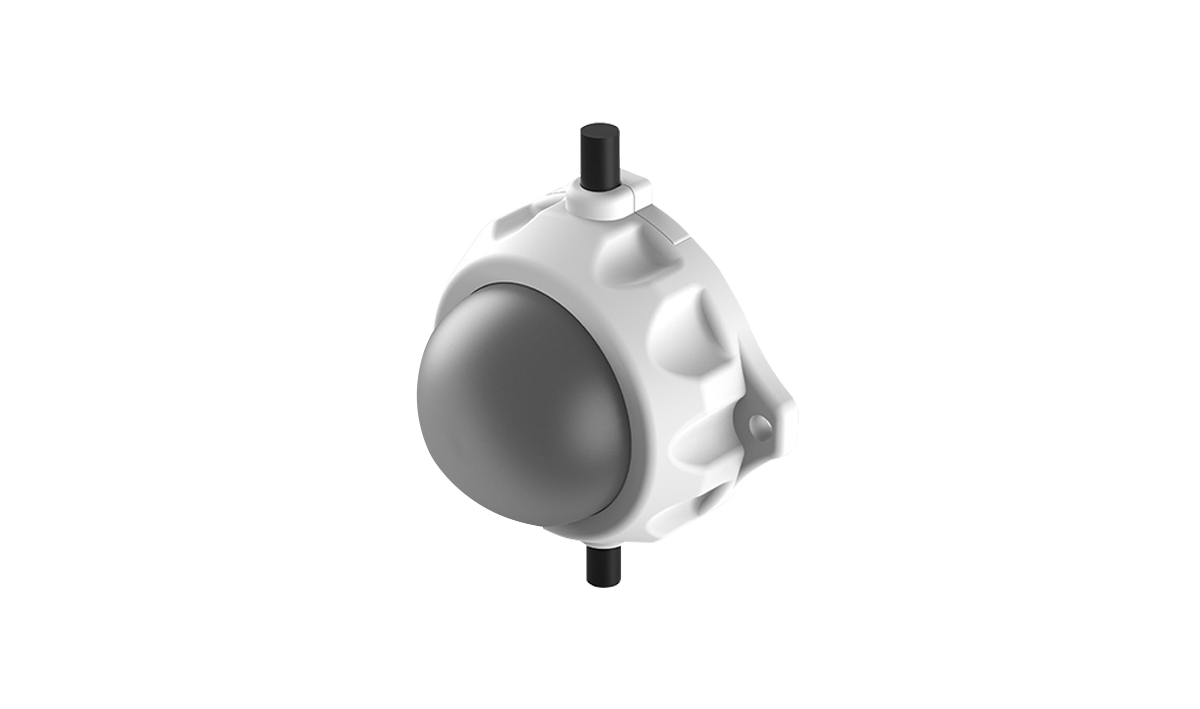

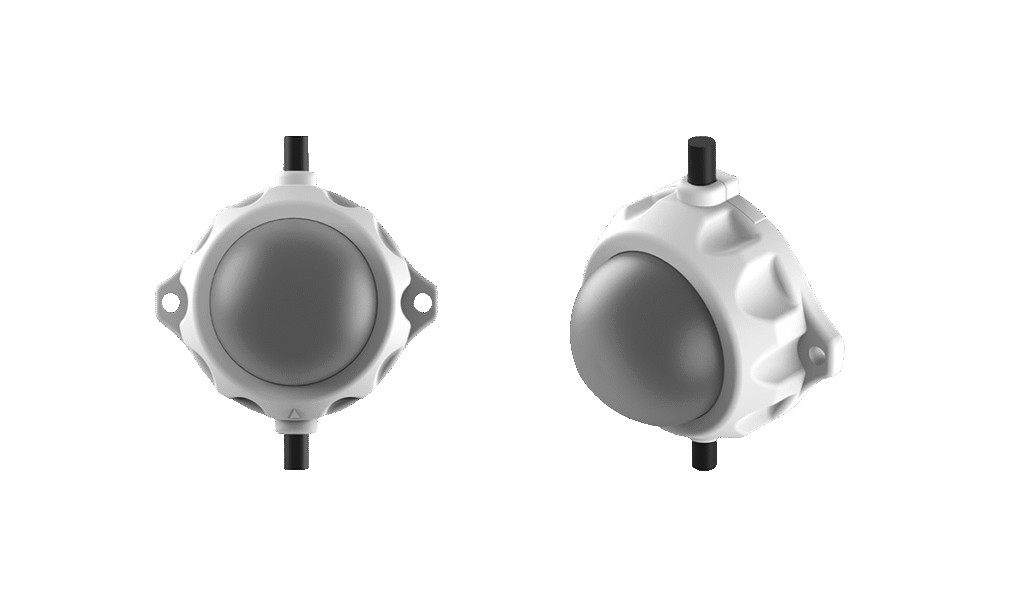

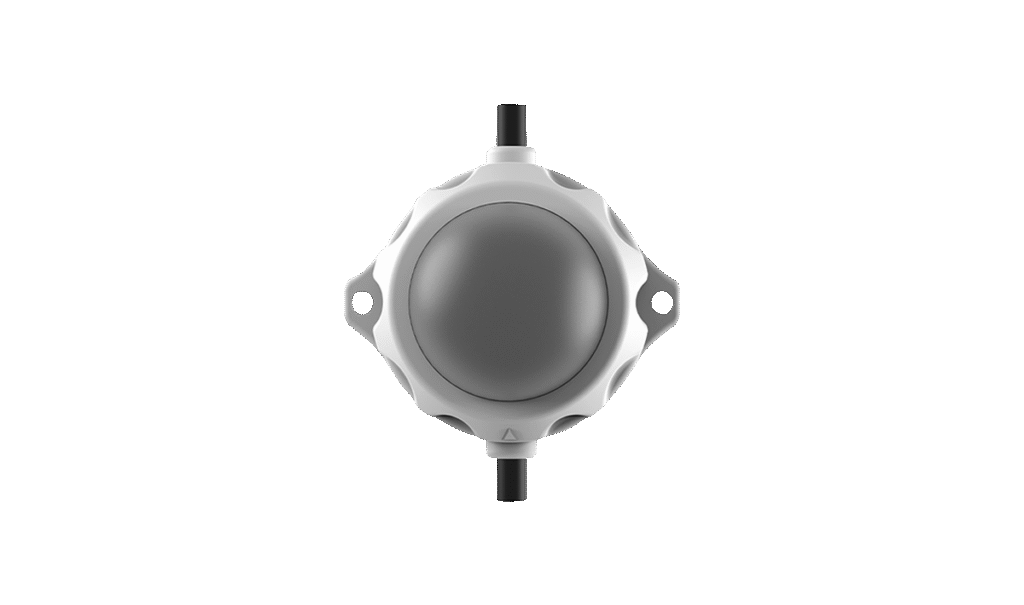

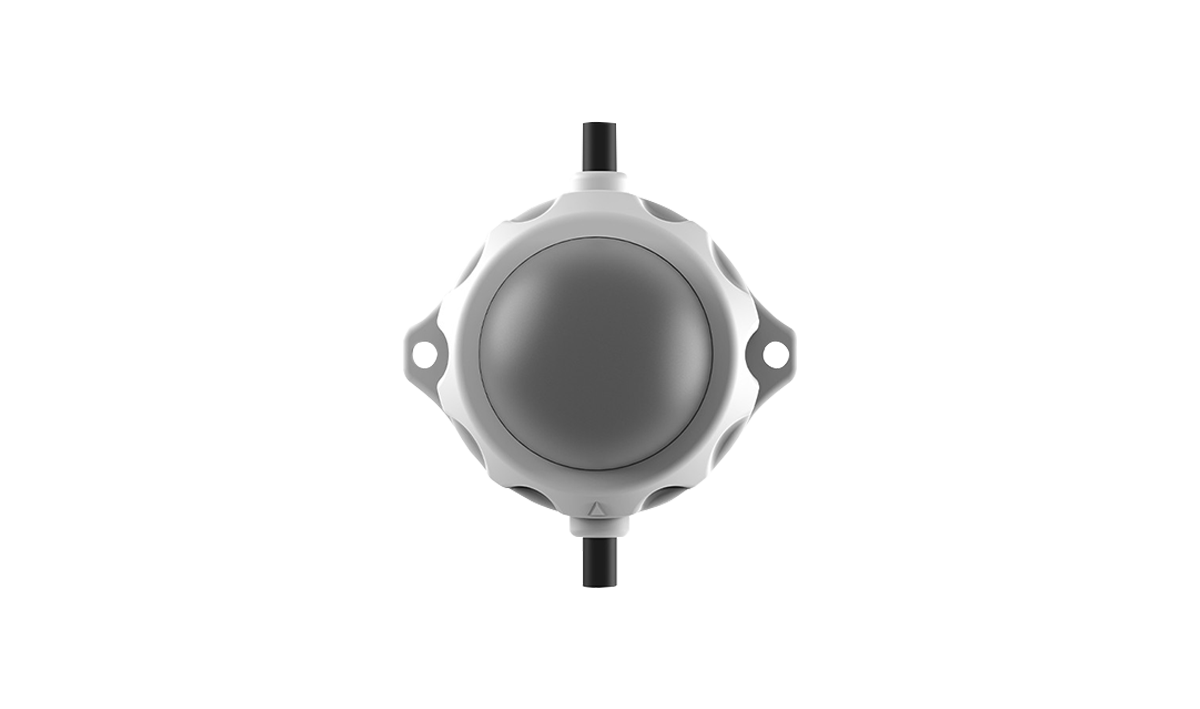

Compact LED module providing ultra-bright spot light output. BS Dot is the ideal solution for displaying video files, stunning visual effects and graphic patterns.

The luminaire has an adjustable pixel pitch and is suitable for outdoor use.

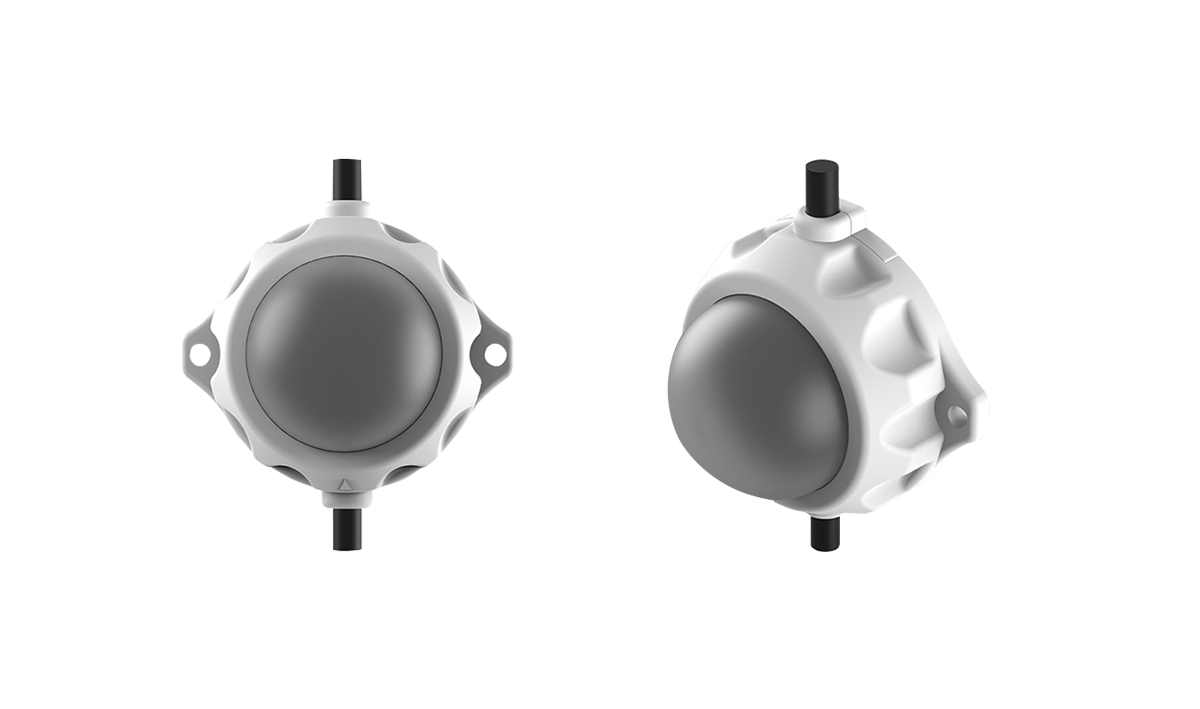

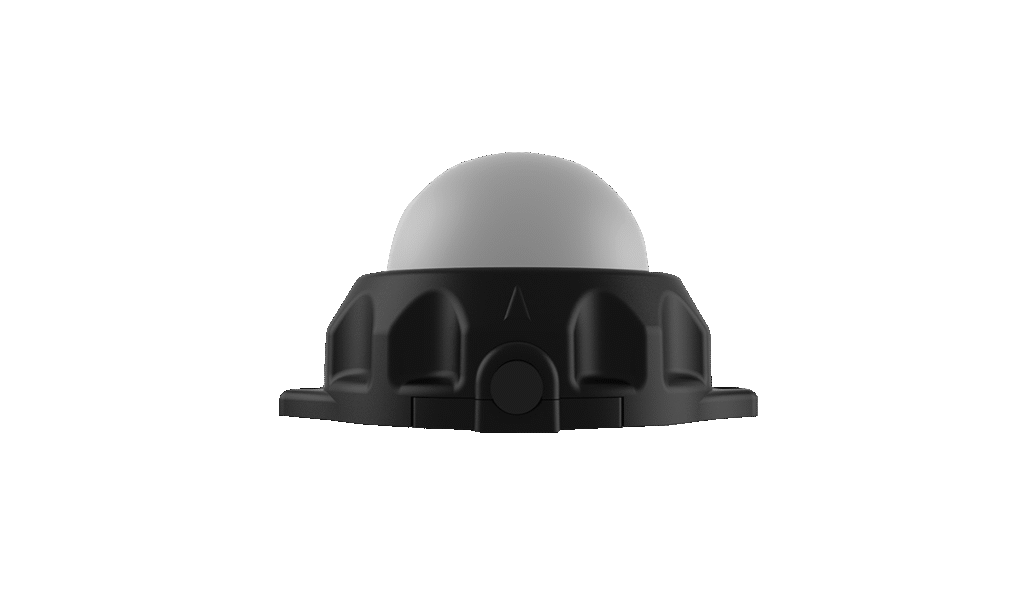

It is also available with an alternative opal dome that allows for maximum adaptability and design flexibility.

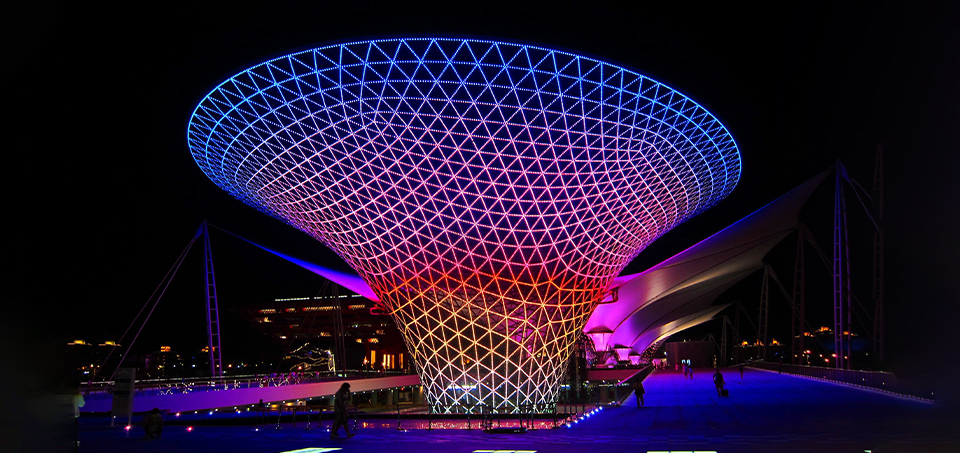

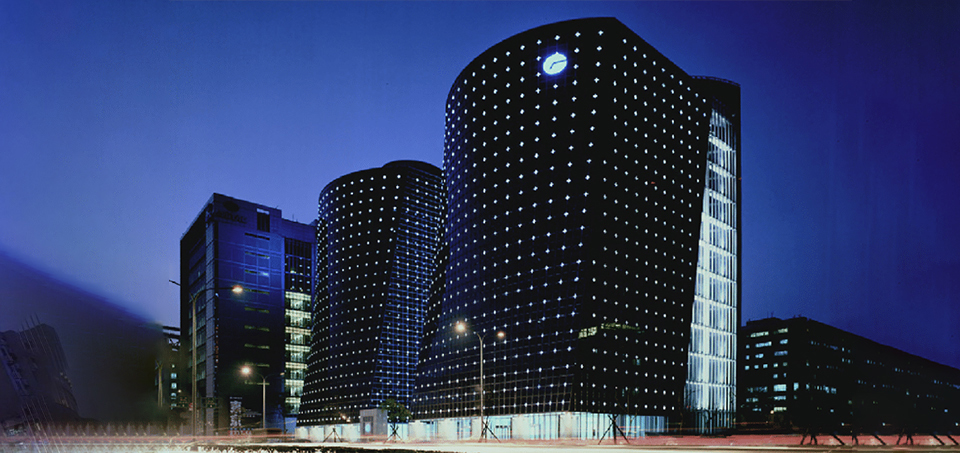

Widely used in large-scale projects for the production of point-pixel solutions with direct view, such as media facade lighting and special lighting applications.

Designed to last in extremely harsh environments.

Highly Efficient and Flexible

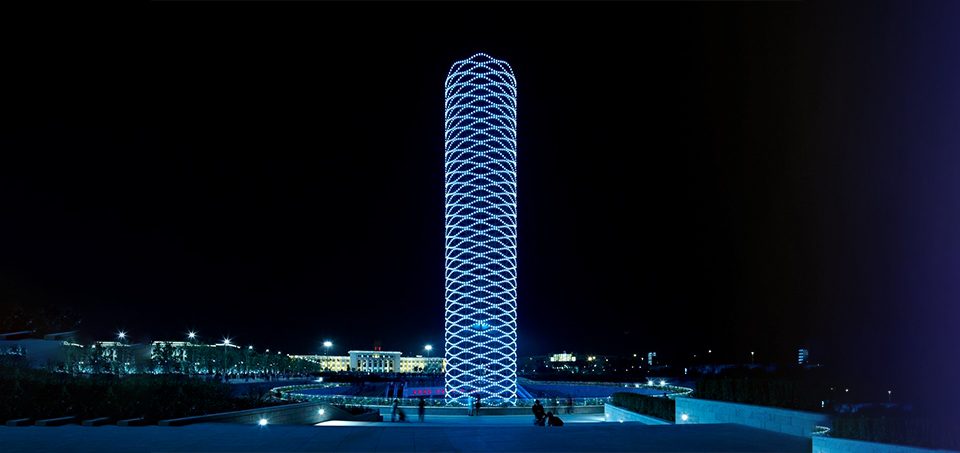

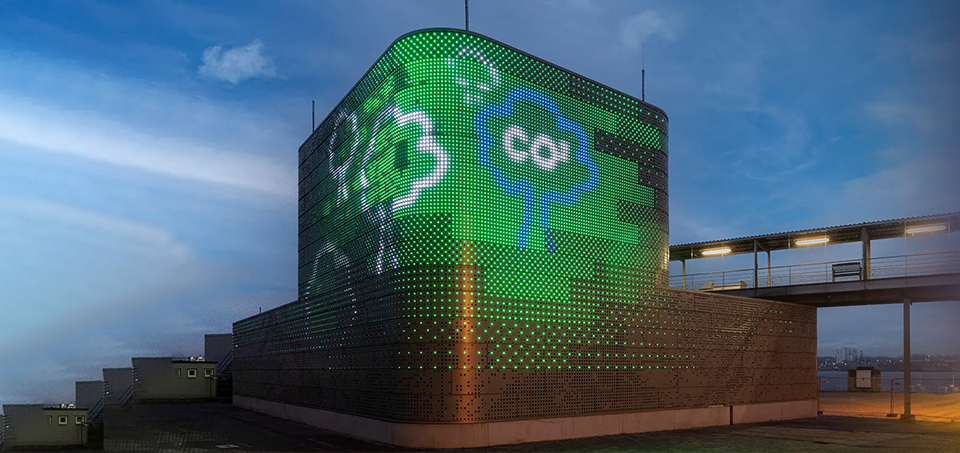

Possible to create the appearance of facades or highlight details. Facades illuminated with subtle coloured or properly white light are important elements of architecture.

This powerful outdoor LED spot for large venues enables long runtimes with variable pixel pitches for flexible designs.

Easy Set-Up and Innovative

Easy setup and long cable runs for clean installation. Flexible mounting system allows for customized solutions.

Provides power and data transmission via input and output connectors. IP67 connectors are in push-lock structure and can be easily dismantled and assembled. There is no need to use extra junction-box via input and output.

Individualize the System

We offer you extensive options for the individualization of the BS Dot.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.

Architectural

Ensure aesthetic and technical coherence for all types of applications in urban areas. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.

Sustainable

BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.

Durable

Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

OPTICAL

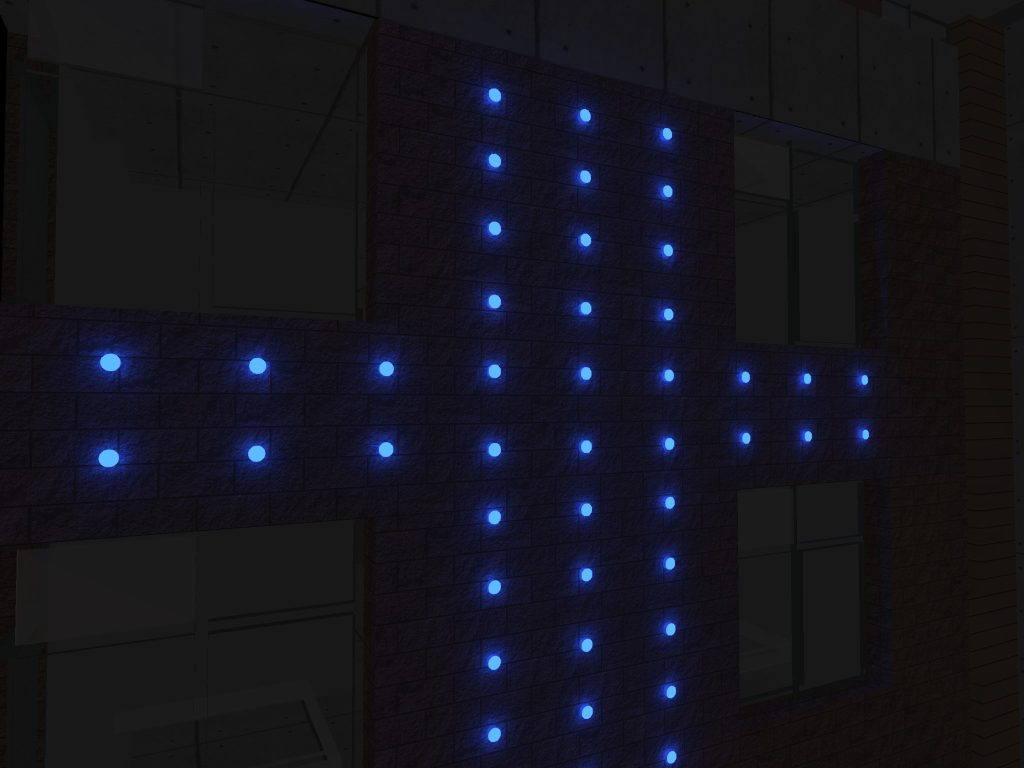

Diffused beam

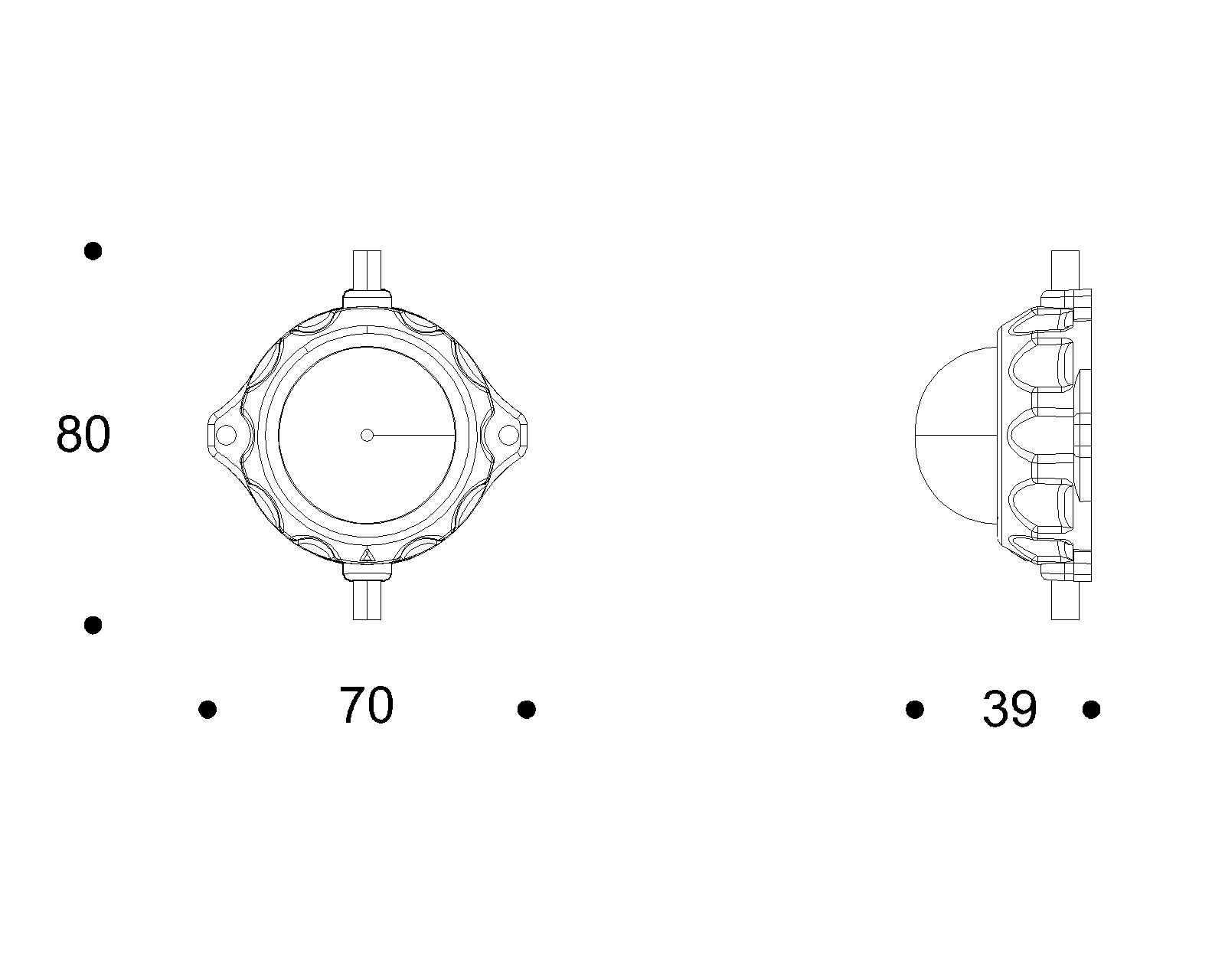

TECHNICAL DATA

Led Type

High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.

Colour Rendering Index

CRI ≥ 80 standard and CRI ≥ 90 on request.

Materials

Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing with stainless steel screws (A4 grade) and silicone gaskets. Operates with a remote driver Any desired RAL colour.

Optional Coating

Marine grade.

Diffuser

Shockproof PMMA UV Stabilised Diffuser.

LED Life Time

L90 - B10 > 100,000h

Operating Temperature

-40°C / +55°C

Power Factor

>0.95

Conformity

Complies with European Standards EN 60598 and CE certified.

LED

IP67

IK08

Class II

European conformity

RoHS compliant

No IR

No UV

Durable

DMX / RDM

DALI interface

Dynamic White

RGB

RGBW

Color rendering index

24V DC

Suitable for extreme conditions

Temperature is suitable for contact

F mark

Luminaires with high visual comfort

Dimmable luminaire

LM-80

CODES

CODE
LENGTH (mm)
PITCH
(mm)
LED QTY
POWER
CONSUMPTION
350mA
POWER
CONSUMPTION
500mA
LUMEN OUTPUT (lm)
3000K / 4000K
350mA
LUMEN OUTPUT (lm)
3000K / 4000K
500mA
DOWNLOAD

CODES

CODE	POWER CONSUMPTION	LUMEN OUTPUT (lm)	COLOUR TEMPERATURE	DOWNLOAD
AR642201 DIFFUSED	6W	540	MONO	PRODUCT SHEET PHOTOMETRY
AR642202 DOME	6W	540	MONO	PRODUCT SHEET PHOTOMETRY
CODE	POWER CONSUMPTION	LUMEN OUTPUT (lm) (2700-6500K)	COLOUR TEMPERATURE	DOWNLOAD
AR642203 DIFFUSED	6W	540	White CCT 2700-6500K	PRODUCT SHEET PHOTOMETRY
AR642204 DOME	6W	540	White CCT 2700-6500K	PRODUCT SHEET PHOTOMETRY
CODE	POWER CONSUMPTION	LUMEN OUTPUT (lm) (RGB)	COLOUR TEMPERATURE	DOWNLOAD
AR642205 DIFFUSED	6W	420	RGB	PRODUCT SHEET PHOTOMETRY
AR642206 DOME	6W	420	RGB	PRODUCT SHEET PHOTOMETRY
CODE	POWER CONSUMPTION	LUMEN OUTPUT (lm) (RGBW)	COLOUR TEMPERATURE	DOWNLOAD
AR642207 DIFFUSED	6W	480	RGBW	PRODUCT SHEET PHOTOMETRY
AR642208 DOME	6W	480	RGBW	PRODUCT SHEET PHOTOMETRY
