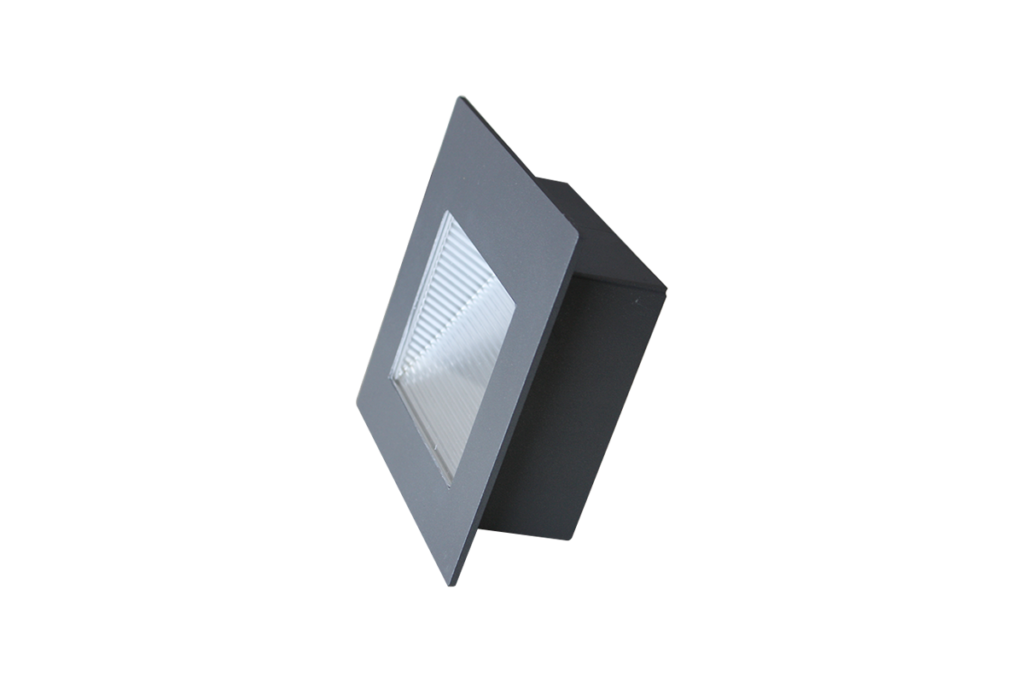

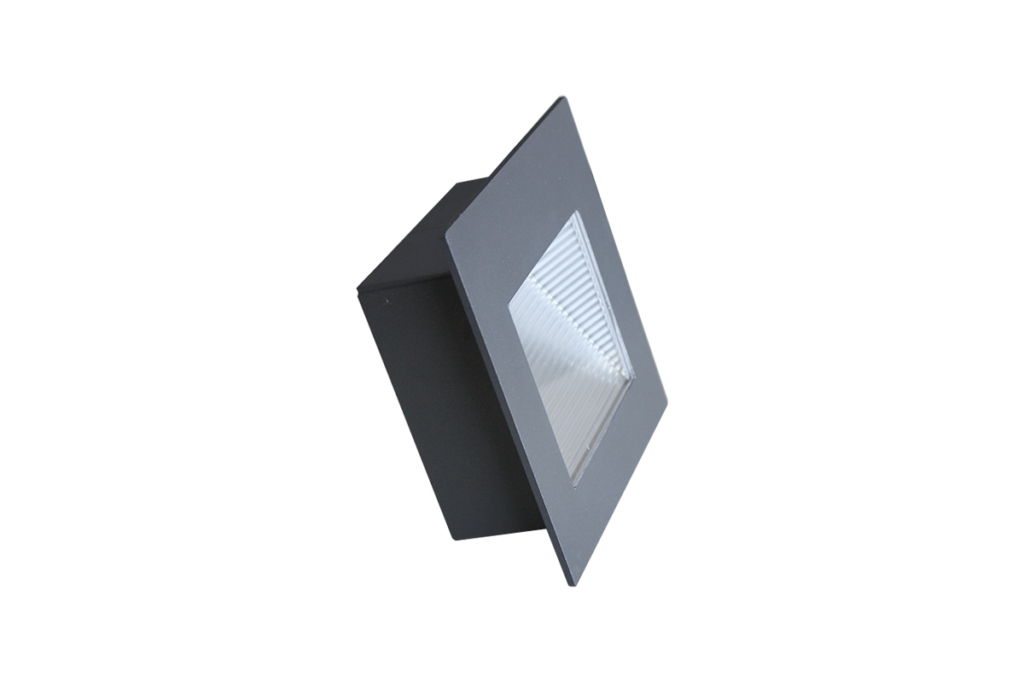

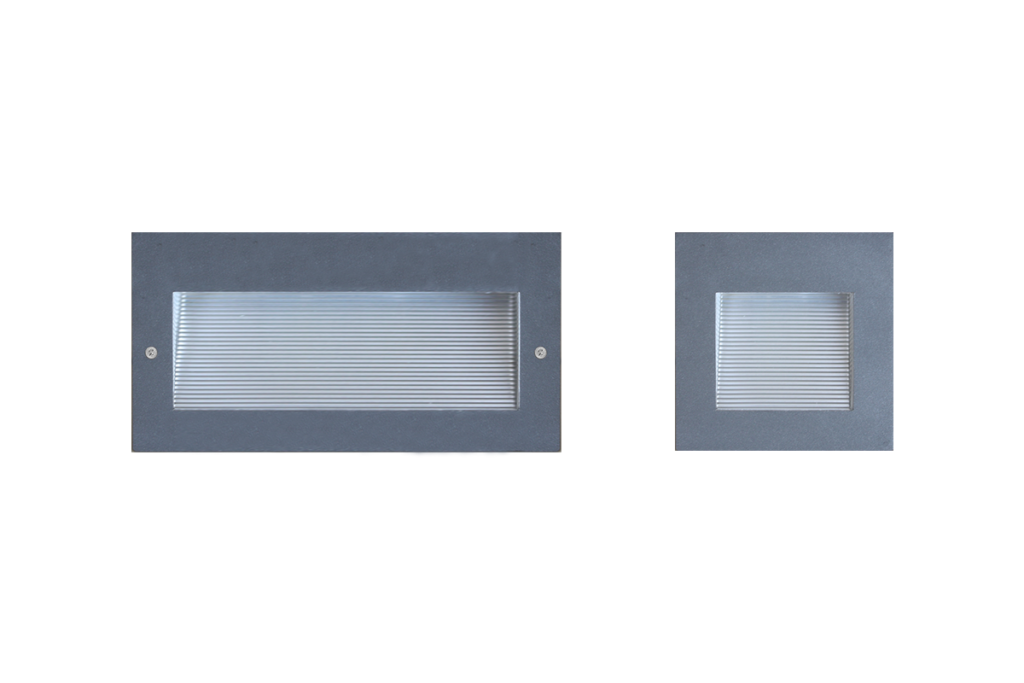

A family of compact downward recessed wall lights, producing a clearly defined wash of light.
iRenzo
iRenzo series is a versatile solution for all architectural areas. Offers a solution for recessed wall lighting.
The luminaire is powered by a LED light source that perfectly illuminates all the interior and exterior staircases alike. Maintains its durability with the strong die-cast aluminum housing and the recessed light form.
Architectural wall recessed die-cast aluminium LED recessed range inspires architects, designers and system integrators with its exceptional quality, homogeneous beam and remarkable creativity.
Designed to last in extremely harsh environments.
High Impact and Versatile
Innovative light sources with low recessing depth combine to form a high impact and low maintenance product.
iRenzo is a compact and high performance luminaire with impressive versatility.
Suitable for easy installation on walls.
iRenzo is a compact and high performance luminaire with impressive versatility.
Suitable for easy installation on walls.
Integrated Solution and Easy to Install
Plug and play built-in system with the fully integrated universal power supply unit.
The watertight plug connector ensures easy, fast and secure installation.
The robust luminaire fits seamlessly into the architecture.
The watertight plug connector ensures easy, fast and secure installation.
The robust luminaire fits seamlessly into the architecture.
Individualize the System
We offer you extensive options for the individualization of the iRenzo range.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.
Architectural
Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.
Sustainable
BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.
Durable
Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.
Led Type
High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant. Custom LED color combinations available.
Colour Rendering Index
CRI ≥ 80 standard and CRI ≥ 90 on request.
Materials
Corrosion resistant stainless steel housing (316) with stainless steel
screws (A4 grade) and temperature-resistant silicone gaskets. Power
unit is built in. Includes recessing box and stainless steel frame. Sealed cable gland. Includes recessing box.
Optional Coating
Marine grade.
Diffuser
High impact and heat resistant polycarbonate with UV protection.
LED Life Time
L90 - B10 > 100,000h
Operating Temperature
-40°C / +55°C
Power Factor
>0.95
Conformity
Complies with European Standards EN 60598 and CE certified.
LED
IP65
IK09
Class I
European conformity
RoHS compliant
No IR
No UV
Durable
Color rendering index
220V AC
Suitable for extreme conditions
Temperature is suitable for contact
F mark
Luminaires with high visual comfort
LM-80
| CODE | POWER CONSUMPTION | LUMEN OUTPUT (lm) 3000K / 4000K | COLOUR TEMPERATURE | DOWNLOAD |
|---|---|---|---|---|
| AC5042 | 3W | 225 / 255 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
| AC5044 | 6W | 450 / 510 | 3000K / 4000K | PRODUCT SHEET PHOTOMETRY |
