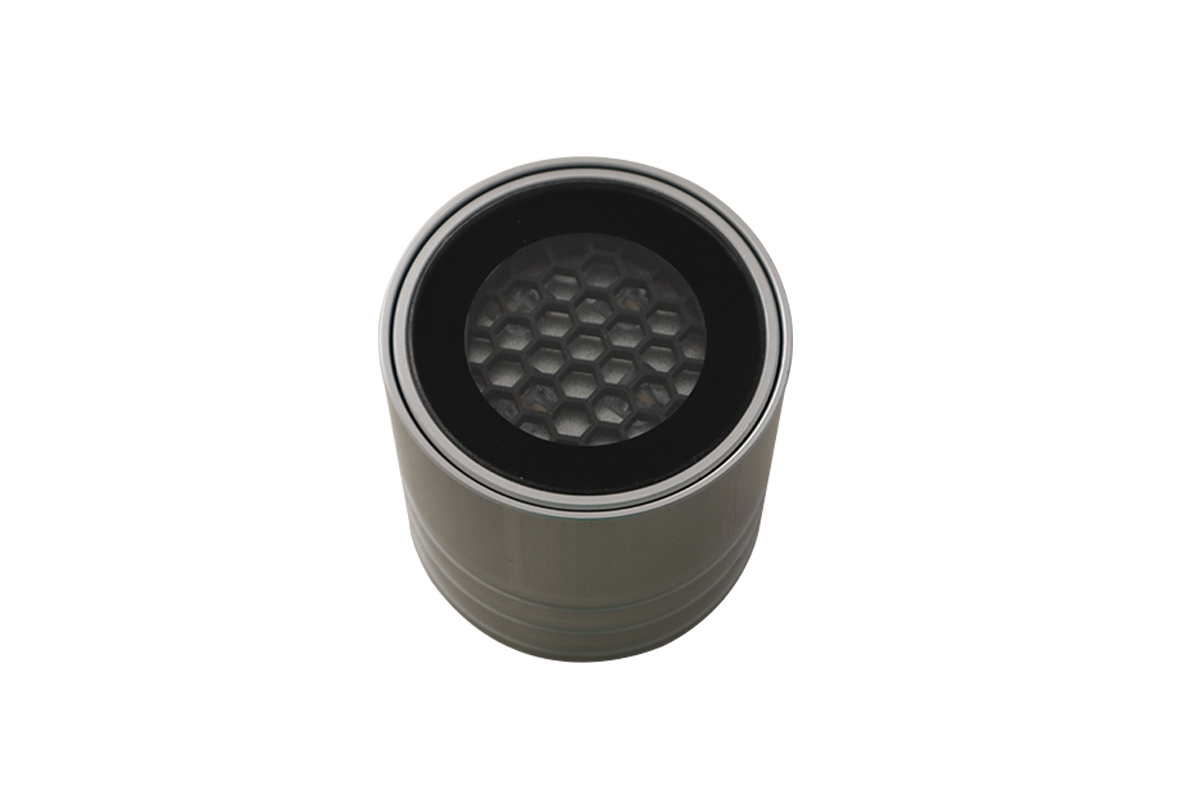

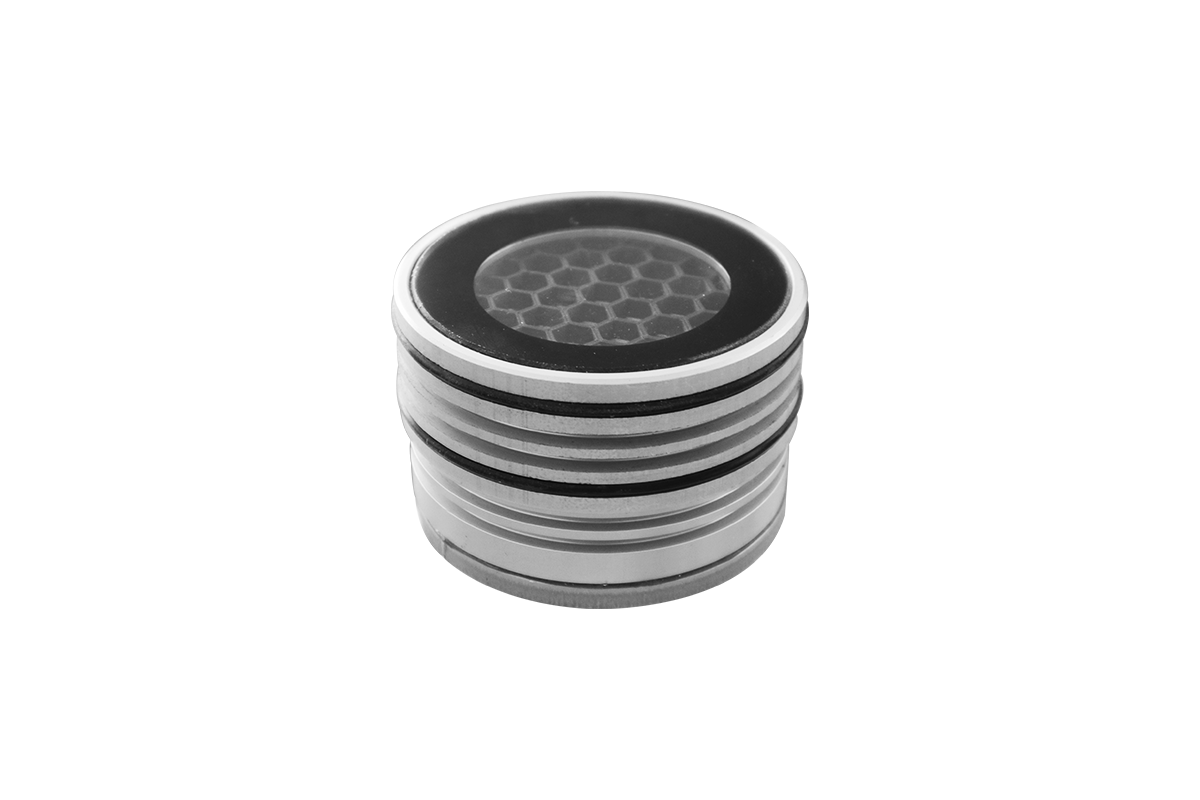

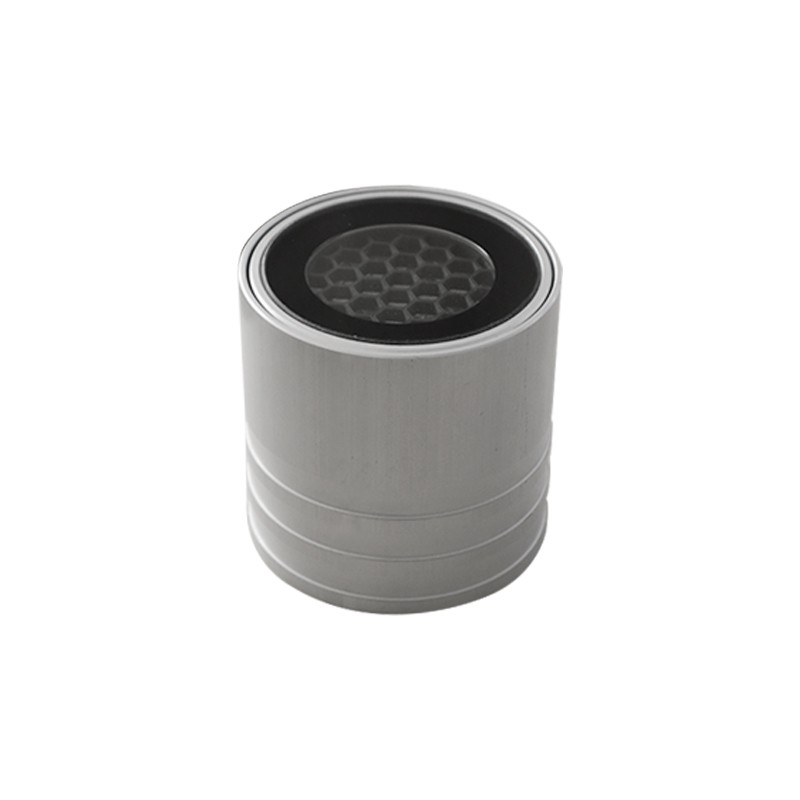

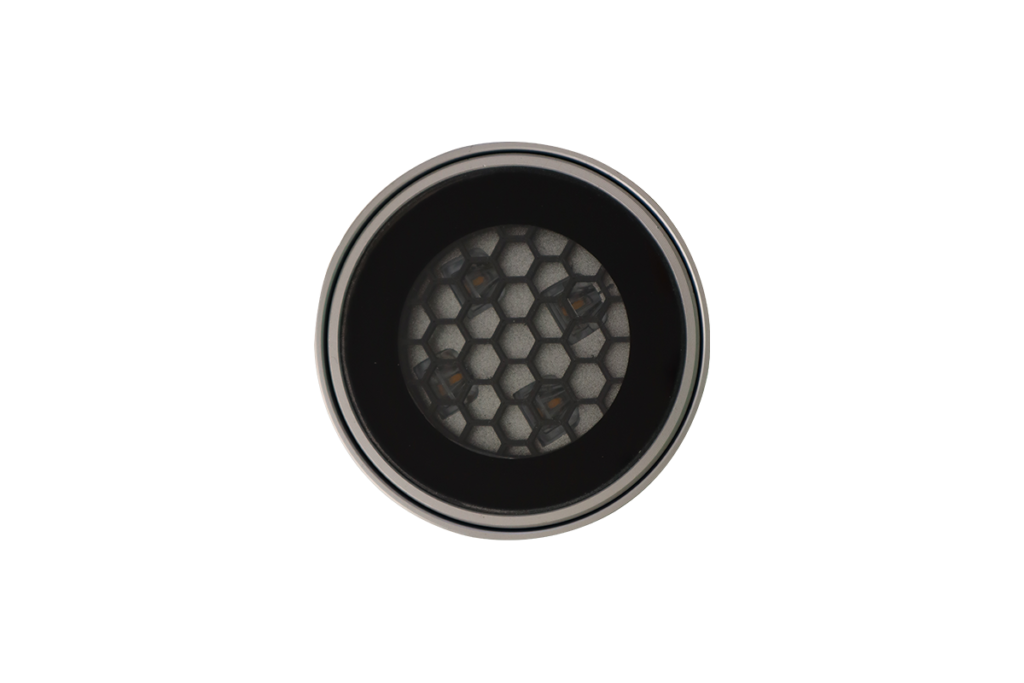

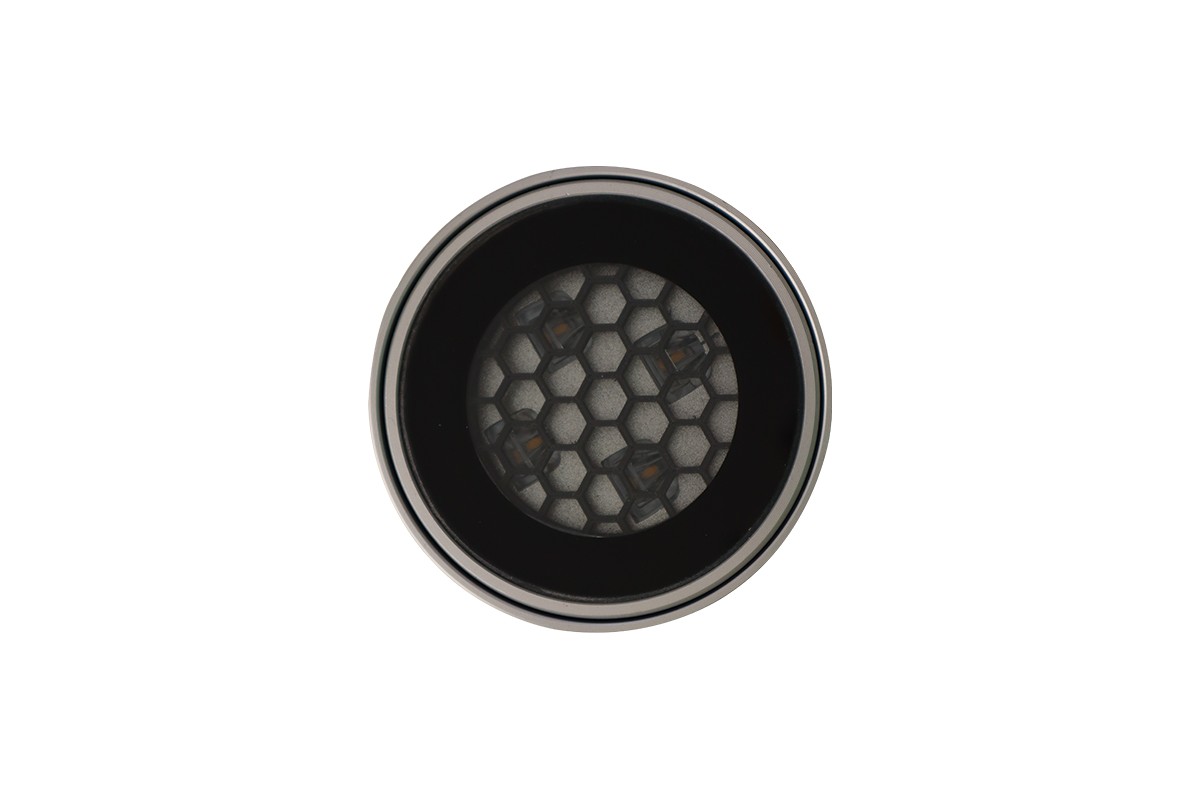

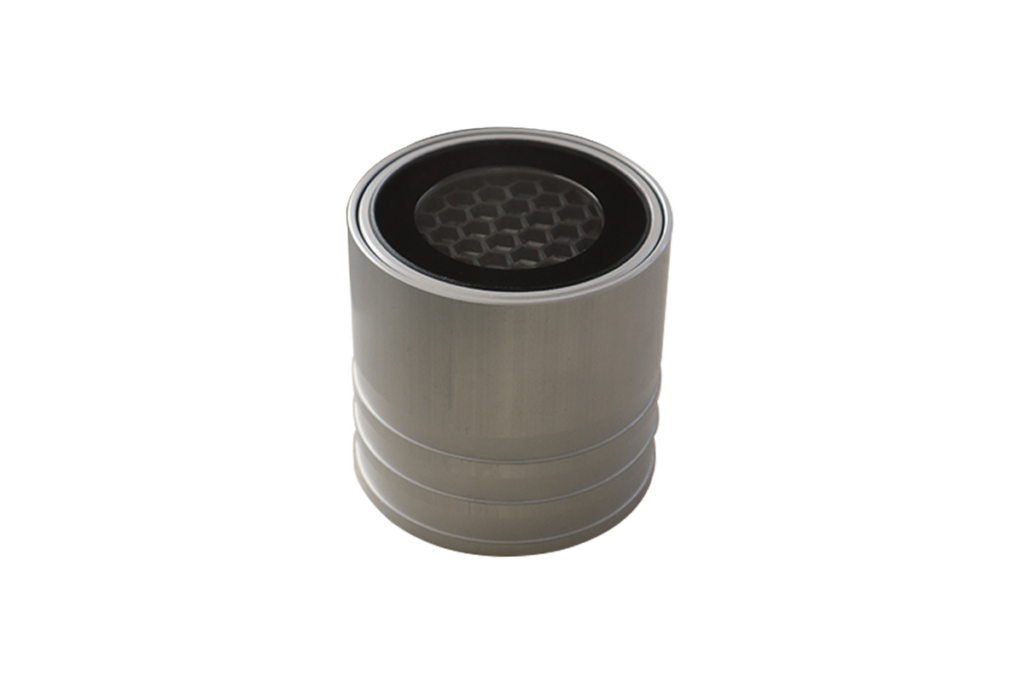

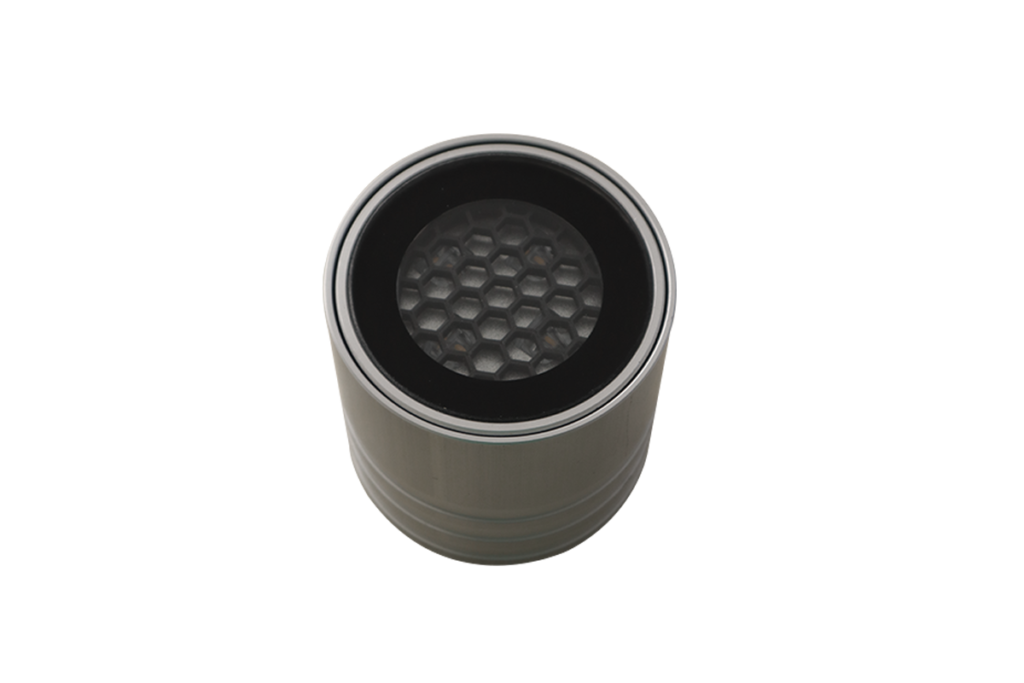

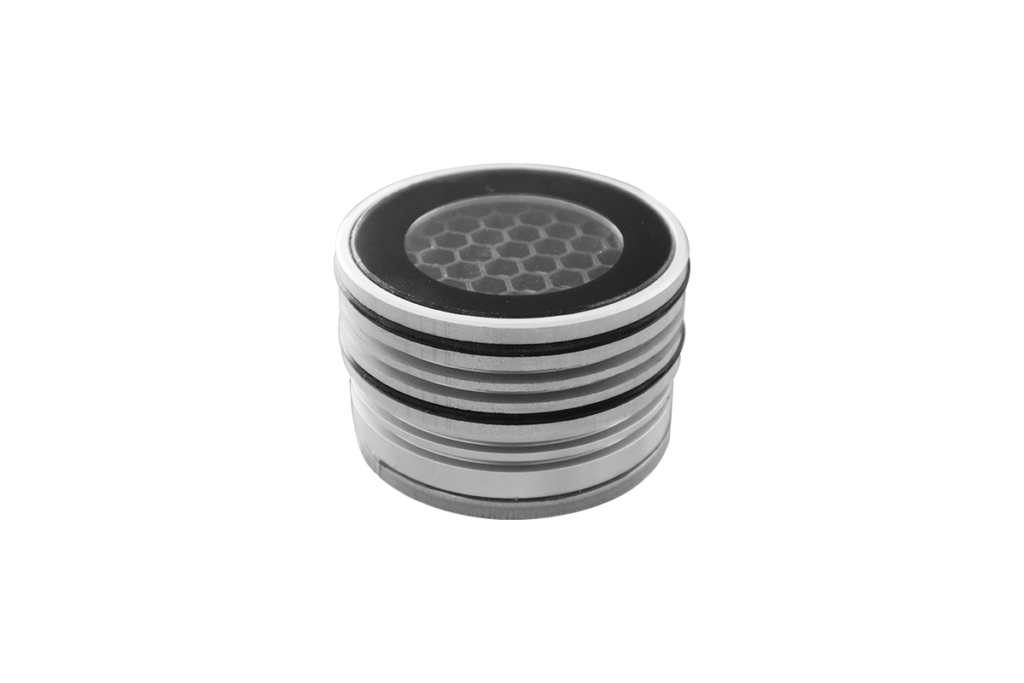

iNoxi Nano

Inox by nature.

A real dialogue between illumination and the environment. Compact drive-over and walk over inground recessed LED luminaire designed for illuminating building facades, green areas, parks and outdoor facilities.

With the use of high-power LEDs, the in-ground light range provides high luminosity at a low power consumption. Adapting a double insulation method, all in-ground lights have an IP67 ranking featuring thick tempered glass.

PRODUCT
GALLERY
OPTICAL
TECHNICAL DATA
CODES
DOWNLOAD FILES

Architectural in-ground stainless steel LED recessed range inspires architects, designers and system integrators with its exceptional quality, a variety of beam angles and remarkable creativity.

Compact drive-over and walk over inground recessed LED luminaire designed for illuminating building facades, green areas, parks and outdoor facilities.

With the use of high-power LEDs, the in-ground light range provides high luminosity at a low power consumption.

Monochrome or DALI controllable. Easy to install with the integrated universal power supply and connect via combined cable gland.

Designed to last in extremely harsh environments.

Innovative and High Performance

Innovative light sources and precise optical systems combine to form a high impact and low maintenance product. Adjustable optics with 355° rotatable and 20° tiltable.

Inoxi is a compact and high performance uplight luminaire with impressive versatility.

Suitable for easy installation on walkways, promenades and squares. Ideal for lighting building facades and other architectural elements.

Integrated Solution and Easy to Install

Plug and play built-in system with the fully integrated universal power supply unit.

The watertight plug connector ensures easy, fast and secure installation. The robust luminaire fits seamlessly into the architecture.

Individualize the System

We offer you extensive options for the individualization of the iNoxi range.

To customize the system even more efficiently to your project requirements, more variants are available on request in addition to the standard configurations.

Architectural

Outdoor lighting performs a function that complements architecture. The extensive and modular range gives designers and architects the freedom to realize their designs and concepts.

Sustainable

BSI® Lighting Technologies follows smart, sustainable and ecologically responsible outdoor lighting principles using new technologies and best practices in product design and manufacturing.

Durable

Robust and reliable product with advanced components and materials, durable and able to withstand corrosion and mechanical impact.

GALLERY

OPTICAL

12°

30°

45°

60°

90°

10x60°

18x38°

TECHNICAL DATA

Led Type

High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.

Colour Rendering Index

CRI ≥ 80 standard and CRI ≥ 90 on request.

Materials

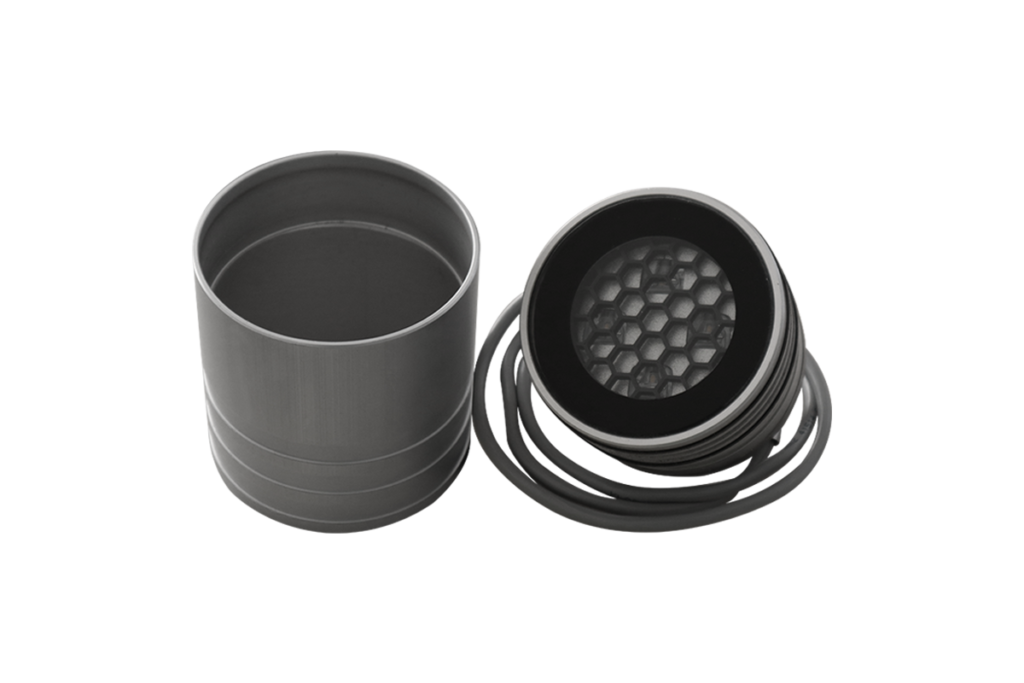

Corrosion resistant stainless steel housing (316) with stainless steel screws (A4 grade) and temperature-resistant silicone gaskets. Power unit is built in. Includes recessing box and stainless steel frame. Sealed cable gland. 20° tilt and 355° rotatable.

Diffuser

Thermal-shock resistant tempered glass.

Installation

Recessing box to be placed at ground level 20 cm drainage gravel for water evacuation. Connection via junction boxes.

Load Rating

30 kN

LED Life Time

L90 - B10 > 100,000h

Operating Temperature

-40°C / +55°C

Power Factor

>0.95
